SHACMAN Delong F2000 340 hp 6X4(10 wheels) Concrete Mixer Truck

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 25ton
Wheelbase:: 3800+1350,3775+1400mm
Tire Size:: 11.00-20
Cab dimensions:: 9.48×2.49×3.81m
Truck Type:: Concrete mixer truck
Rated payload: 11.7ton
Drive 6X4 (10 wheels)
Horsepower 340
Emission China III / Euro III

Overview

The SHACMAN Delong F2000 340 hp 6X4(10 wheels) Concrete Mixer Truck is a concrete mixer truck featuring 11.7t payload, 25ton GVW, 6X4 (10 wheels) drive and 9.48×2.49×3.81m cab. On the powertrain side, it comes with 340 hp, China III / Euro III emissions and Diesel fuel.

China III / Euro III 340 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.48×2.49×3.81m
Drive type: 6X4
Truck Type: Concrete mixer truck
Wheelbase: 3800+1350,3775+1400mm
Front/rear track width: Front track: 1939mm; Rear track: 1850mm
Vehicle origin: Shaanxi
Curb Weight: 25ton
Rated payload: 11.7ton
Max. speed: 77km/h
Front/rear suspension: 1525/2460m
Body Parameters
Water tank capacity: 550L
Slump: 40.23mm
Drum rotation speed: 6-8r/min
Feed rate: 3m³/min
Discharge speed: 2m³/min
Discharge residue rate: <0.7%
Filling Rate: 58.7%
water supply method: Air pressure water supply
Vehicle certification code: SX5255GJBDR384
hydraulic system: Closed hydraulic circuit
Body Brand: SHACMAN
Others: Tank overall dimensions: total length 5047mm, max diameter φ2246mm, effective mixing volume 5 m³. Optional front mask and bumper. Overall length = front overhang + wheelbase + rear overhang (9380=1525+3800+1350+2705; 9480=1525+3800+1350+2805)
Engine parameters
Engine Model: WeichaiWP10.340E32
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 250kW
Max hp: 340Horsepower
Rated speed: 2200rpm
Engine Type: Inline
Chassis Specs
Chassis Series: Delong F2000
Chassis Model: SX5255GJBDR384
Front axle description: 7T
rear axle description: 13T single-reduction dual rear axle
Leaf spring count: 9/12,10/12
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear 8JS118
Tire
Tire Size: 11.00-20
Number of tires: 10pcs

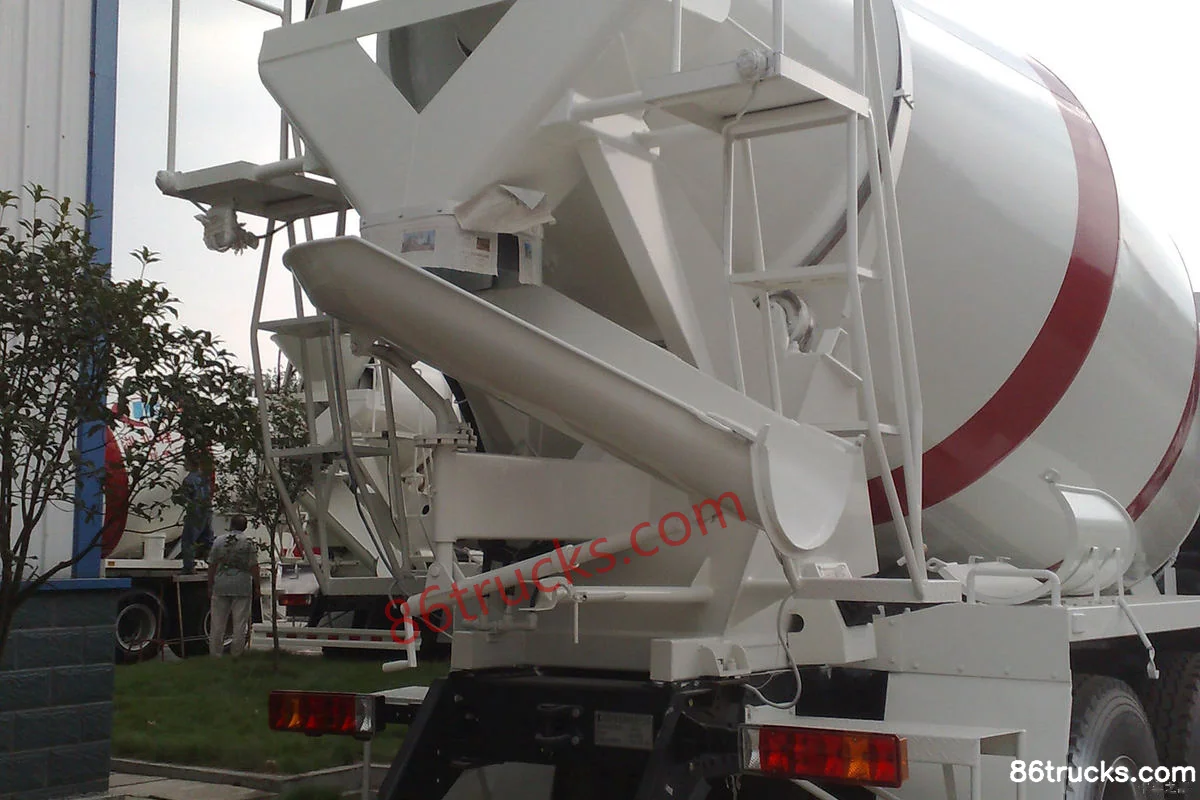

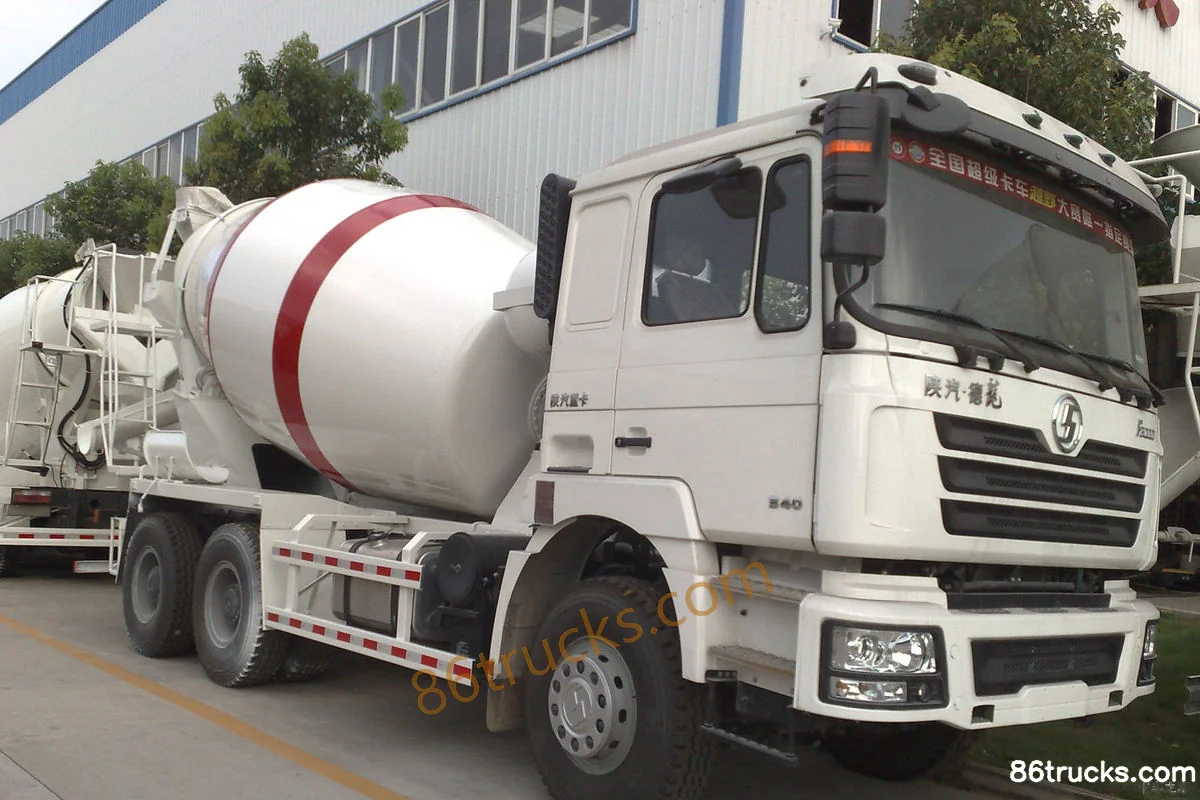

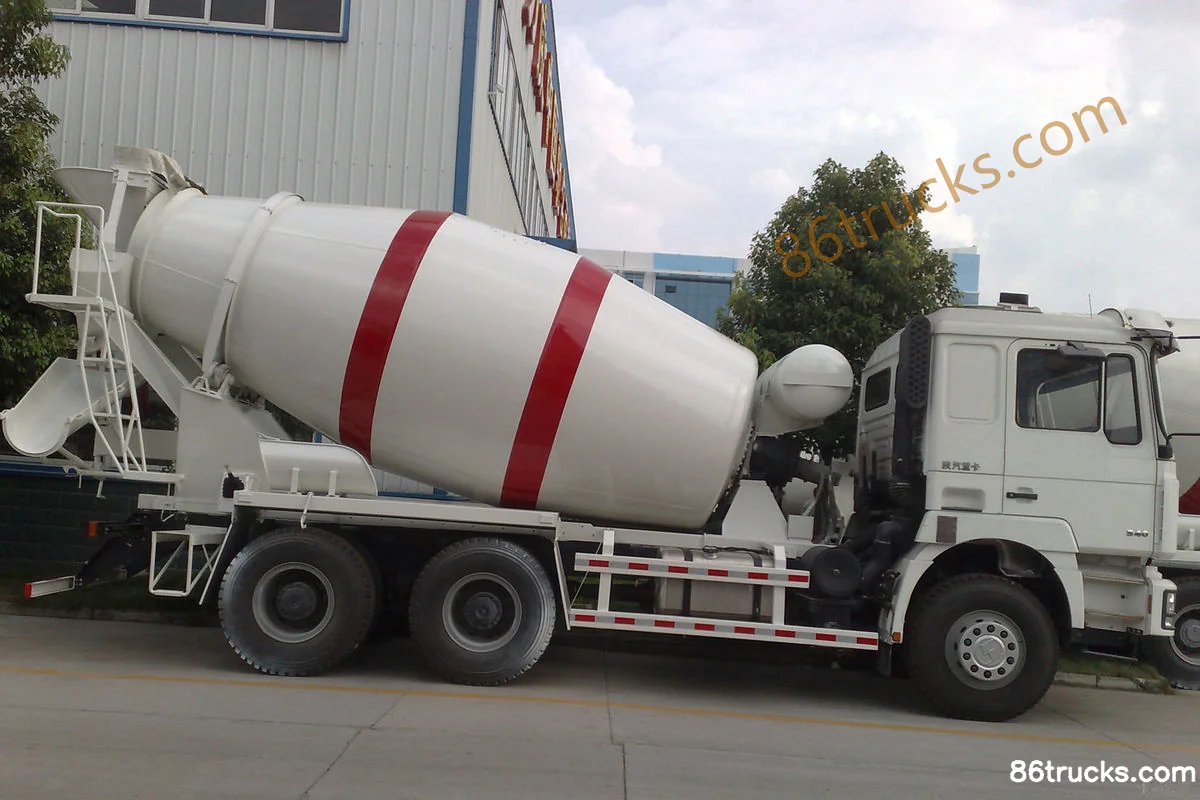

Photos

Exterior2

Cab1

3 photos

FAQ

What emission standard does SHACMAN Delong F2000 340 hp 6X4(10 wheels) Concrete Mixer Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong F2000 340 hp 6X4(10 wheels) Concrete Mixer Truck?

Key specs of SHACMAN Delong F2000 340 hp 6X4(10 wheels) Concrete Mixer Truck: Drive: 6x4; Horsepower: 340 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong F2000 340 hp 6X4(10 wheels) Concrete Mixer Truck suited for?

SHACMAN Delong F2000 340 hp 6X4(10 wheels) Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong F2000 340 hp 6X4(10 wheels) Concrete Mixer Truck differ from other variants in the same series?

SHACMAN Delong F2000 340 hp 6X4(10 wheels) Concrete Mixer Truck belongs to SHACMAN Delong F2000 Heavy Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong F2000 340 hp 6X4(10 wheels) Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong F2000 340 hp 6X4(10 wheels) Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
