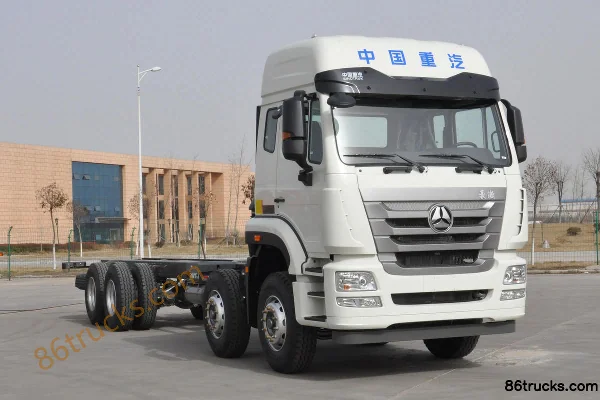

Sinotruk Hohan J5G 350 hp 8X4(12 wheels) 7.99 m³ Concrete Mixer Truck
EXW
From $59,278
Export quote
Sinotruk J5G Heavy Truck concrete mixer truck
Main model photos
361 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk Hohan J5G 350 hp 8X4(12 wheels) 7.99 m³ Concrete Mixer Truck | 8x4 / 350hp / China V | From $59,278 | |
| Sinotruk Hohan J5G 350 hp 8X4(12 wheels) 7.1 m³ concrete mixer truck chassis | 8x4 / 350hp / China IV | From $39,819 | |
| Sinotruk Hohan J5G 340 hp 8X4(12 wheels) 7.1 m³ concrete mixer truck chassis | 8x4 / 340hp / China IV | From $39,125 | |

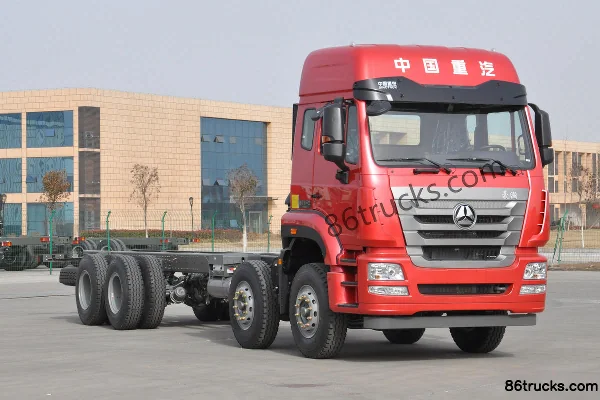

| Sinotruk Hohan J5G 310 hp 8X4(12 wheels) 7.1 m³ concrete mixer truck chassis | 8x4 / 310hp / China IV | From $38,986 | |
| Sinotruk Haohan J5G 350 hp 8X4(12 wheels) 7.99 m³ Concrete Mixer Truck Chassis | 8x4 / 350hp / China V | From $35,667 |
Sinotruk Hohan J5G 350 hp 8X4(12 wheels) 7.1 m³ concrete mixer truck chassis
EXW
From $39,819
Export quote
Sinotruk Hohan J5G 340 hp 8X4(12 wheels) 7.1 m³ concrete mixer truck chassis
EXW
From $39,125
Export quote
Sinotruk Hohan J5G 310 hp 8X4(12 wheels) 7.1 m³ concrete mixer truck chassis
EXW
From $38,986
Export quote
Sinotruk Haohan J5G 350 hp 8X4(12 wheels) 7.99 m³ Concrete Mixer Truck Chassis
EXW
From $35,667
Export quote
Series Specs
Basic Info
Cab dimensions: 9.95×2.496×3.9 / 9.2×2.496×3.13 / 9.275×2.496×3.25 / 8.55×2.496×3.25 / 9.075×2.496×3.25 / 7.825×2.496×3.13 / 7.45×2.496×3.21m
Drive type: 8X4 / 6X4
Truck Type: Concrete mixer truck
Wheelbase: 1800+3250+1350 / 1800+3200+1350 / 1800+3050+1350 / 3625+1350 / 3225+1350mm
Vehicle origin: Jining, Shandong
Front/rear track width: Front track: 2022mm; Rear track: 2022mm / Front track: 2020/2020mm; Rear track: 1830/1830mm / Front track: 2020/2020mm; Rear track: 1850/1850mm / Front track: 2020/2020mm; Rear track: 1850/1850 / Front track: 2022mm; Rear track: 1830/1830mm / Front track: 1950mm; Rear track: 1850/1850mm / Front track: 1950mm; Rear track: 1850/1850
Curb Weight: 14.42 / 10.36 / 8.9 / 8.7 / 7.8 / 7.97ton
Rated payload: 17.45ton
Max. speed: 82km/h
Front/rear suspension: 1.55/2 / 1.55/1.3 / 1.55/1.325 / 1.55/0.8m
Body Parameters
Mixing drum capacity: 7.99 / 7.1 / 5.4 / 5.99m³
Vehicle certification code: ZZ5325GJBN3263E1K / ZZ1315N3266D1 / ZZ1325N3263E1K / ZZ1325N3063D1K / ZZ1315N3063E1 / ZZ1315N3063D1 / ZZ1255N3646D1 / ZZ1265N3243D1K / ZZ1265N3243E1K / ZZ1255N3243E1 / ZZ1255N3243D1
Body Brand: Sinotruk
Others: Optional ratio 5.833, fuel tank capacity 300L / Axle ratio optional 5.833, fuel tank capacity 260L / Ratio optional 5.143, 5.833, tires optional 12.00R20, fuel tank capacity 300L / Optional ratio 5.143, optional tires 11.00R20, fuel tank capacity 260L
Engine parameters
Engine Model: SinotrukMC07.35-50 / SinotrukMC07.35-40 / SinotrukMC07.34-40 / SinotrukMC07.31-40 / SinotrukMC07.34-50 / SinotrukMC07.31-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V / China IV
Max output power: 254 / 250 / 228kW
Max hp: 350 / 340 / 310Horsepower
Rated speed: 2300 / 2300rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled / Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Chassis Specs
Chassis Series: Hohan J5G
Front axle description: Payload 6500/7000kg / H153 / G116 / HF7 (drum)
Frame Dimensions: 850×300×80×(8+8) / 850×300×80×(8+5)mm
rear axle description: 13 tons / H457 / 153
Axle ratio: 4.875
Leaf spring count: 4/4/-,9/9/-,11/11/-,4/4/2+-,9/9/2+-,11/11/2+- / 11/11/12 / 4/4/- / 4/4/-/- / 4/4/5 / 4/-，4/5，4/12，9/-，9/12 / 3/-
Transmission Parameters
Number of gears: 10 / 12Gear
Transmission Model: SinotrukHW13710L / SinotrukHW19712 / SinotrukHW19710
Tire
Tire Size: 11.00R20 / 11.00R20(12.00R20) / 12R22.5(11R22.5/10.00R20/11.00R20)
FAQ
What kind of truck is Sinotruk Sinotruk J5G Heavy Truck concrete mixer truck?
Sinotruk Sinotruk J5G Heavy Truck is an export-oriented concrete mixer truck lineup with about 26 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sinotruk J5G Heavy Truck concrete mixer truck?
Sinotruk J5G Heavy Truck concrete mixer truck export reference is about $34,264 – $59,278. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sinotruk J5G Heavy Truck concrete mixer truck cover?
Sinotruk J5G Heavy Truck concrete mixer truck mainly covers: Drive: 8x4; Horsepower: 310 hp / 340 hp / 350 hp; Emission: China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk J5G Heavy Truck concrete mixer truck?
For Sinotruk J5G Heavy Truck concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sinotruk J5G Heavy Truck concrete mixer truck include?
Sinotruk J5G Heavy Truck concrete mixer truck currently lists about 26 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk J5G Heavy Truck concrete mixer truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
