SHACMAN Delong X3000 375 hp 8X4(12 wheels) 5.4 m³ concrete mixer truck (Tonghua brand)
EXW
From $52,639
Export quote
CIMC Tonghua SHACMAN Chassis concrete mixer truck

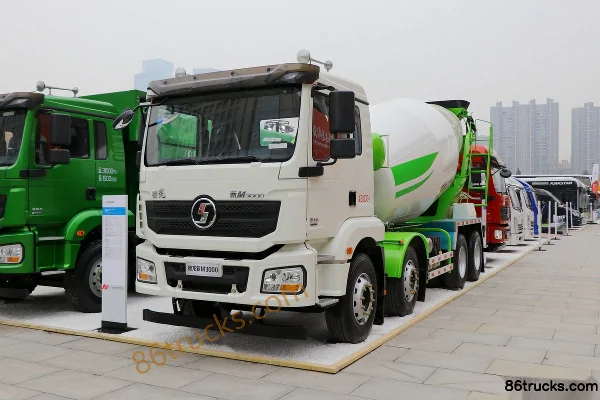

Main model photos
10 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SHACMAN Delong X3000 375 hp 8X4(12 wheels) 5.4 m³ concrete mixer truck (Tonghua brand) | 8x4 / 375hp / China V | From $52,639 | |
| SHACMAN Delong F3000 375 hp 8X4(12 wheels) 5.4 m³ concrete mixer truck (Tonghua brand) | 8x4 / 375hp / China V | From $47,236 | |
| SHACMAN Delong New M3000 400 hp 8X4(12 wheels) 7.7 m³ concrete mixer truck (Tonghua brand) | 8x4 / 400hp / China V | From $48,667 | |
| SHACMAN Delong New M3000 345 hp 8X4(12 wheels) 7.7 m³ concrete mixer truck (Tonghua brand) | 8x4 / 345hp / China V | From $46,389 | |
| SHACMAN Delong New M3000 350 hp 8X4(12 wheels) 7.7 m³ concrete mixer truck (Tonghua brand) | 8x4 / 350hp / China V | From $45,931 |

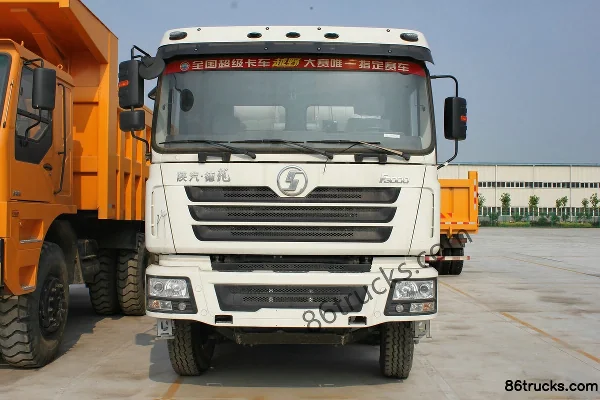

SHACMAN Delong F3000 375 hp 8X4(12 wheels) 5.4 m³ concrete mixer truck (Tonghua brand)
EXW
From $47,236
Export quote
SHACMAN Delong New M3000 400 hp 8X4(12 wheels) 7.7 m³ concrete mixer truck (Tonghua brand)
EXW
From $48,667
Export quote
SHACMAN Delong New M3000 345 hp 8X4(12 wheels) 7.7 m³ concrete mixer truck (Tonghua brand)
EXW
From $46,389
Export quote
SHACMAN Delong New M3000 350 hp 8X4(12 wheels) 7.7 m³ concrete mixer truck (Tonghua brand)
EXW
From $45,931
Export quote
Series Specs
Basic Info
Cab dimensions: 11.6×2.55×4 / 9.95×2.55×4m
Truck Type: Concrete mixer truck
Drive type: 8X4
Vehicle origin: Yangzhou, Jiangsu
Front/rear track width: Front: 2036/2036mm; Rear: 1860/1860 / Front track: 2036/2036mm; Rear track: 1860/1860
Wheelbase: 1800+3775+1400 / 1800+3000+1400mm
Curb Weight: 19 / 14ton
Rated payload: 11.87 / 16.87ton
Max. speed: 99 / 80km/h
Front/rear suspension: 1.525/3.3 / 1.525/2.225m
Body Parameters
Mixing drum capacity: 5.4 / 7.7m³
Vehicle certification code: THT5317GJB13A / THT5317GJB13D
Body Brand: Tonghua Brand
Engine parameters
Engine Model: WeichaiWP12.375E50 / WeichaiWP10H400E50 / Xi’an CumminsISM11E5 345 / WeichaiWP10.350E53 / WeichaiWP8.340E51 / WeichaiWP7.340E53
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 11.596 / 9.5 / 10.8 / 9.726 / 7.8 / 7.47L
Emission standard: China V
Max output power: 276 / 294 / 254 / 257 / 250kW
Max hp: 375 / 400 / 345 / 350 / 340Horsepower
Rated speed: 1900 / 2100rpm
Engine Type: Inline, water-cooled, six-cylinder, electronically controlled high-pressure common rail + SCR / Electronic high-pressure common rail + SCR / Full electronic control / High-pressure common rail+EGR
Chassis Specs
Chassis Series: Delong X3000 / Delong F3000 / Delong New M3000
Chassis Model: SX1310FB / SX5310GJBMB6
Frame Dimensions: 866×308(8+7+8) / 850×300(8+5) / 850×270(8+5)mm
rear axle description: MAN 16T dual-reduction / HDS 16T dual reduction / MAN 11.5T single reduction
Axle ratio: 4.769 / 4.8 / 5.73 / 5.286
Leaf spring count: 13/13/12 / 10/10/12, 10/10/10, left 14 right 13/left 14 right 13/1 / 3/3/5,3/3/- / 3/3/5
Transmission Parameters
Number of gears: 12 / 10Gear
Transmission Model: Fast Gear12JSD180T / Fast Gear10JSD140T / Fast Gear10JSD120T
Tire
Tire Size: 12.00R20 / 11.00R20 / 12.00R20 18PR
Number of tires: 12pcs
FAQ
What kind of truck is CIMC Tonghua CIMC Tonghua SHACMAN Chassis concrete mixer truck?
CIMC Tonghua CIMC Tonghua SHACMAN Chassis is an export-oriented concrete mixer truck lineup with about 9 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for CIMC Tonghua SHACMAN Chassis concrete mixer truck?
CIMC Tonghua SHACMAN Chassis concrete mixer truck export reference is about $40,958 – $52,639. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does CIMC Tonghua SHACMAN Chassis concrete mixer truck cover?
CIMC Tonghua SHACMAN Chassis concrete mixer truck mainly covers: Drive: 8x4; Horsepower: 345 hp / 350 hp / 375 hp / 400 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in CIMC Tonghua SHACMAN Chassis concrete mixer truck?
For CIMC Tonghua SHACMAN Chassis concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does CIMC Tonghua SHACMAN Chassis concrete mixer truck include?
CIMC Tonghua SHACMAN Chassis concrete mixer truck currently lists about 9 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for CIMC Tonghua SHACMAN Chassis concrete mixer truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
