SHACMAN Delong X3000 375 hp 8X4(12 wheels) 5.4 m³ concrete mixer truck (Tonghua brand)

Export reference
From $52,639
MSRP ¥37.9M CNY
Fuel: Diesel
Curb Weight:: 19ton
Wheelbase:: 1800+3775+1400mm
Tire Size:: 12.00R20
Cab dimensions:: 11.6×2.55×4m
Truck Type:: Concrete mixer truck
Rated payload: 11.87ton
Drive 8X4 (12 wheels)
Horsepower 375
Emission China V

Overview

The CIMC Tonghua SHACMAN Delong X3000 375 hp 8X4(12 wheels) 5.4 m³ concrete mixer truck (Tonghua brand) is a concrete mixer truck featuring 11.87t payload, 19ton GVW, 8X4 (12 wheels) drive and 11.6×2.55×4m cab. On the powertrain side, it comes with 375 hp, China V emissions and Diesel fuel.

China V 375 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.6×2.55×4m
Truck Type: Concrete mixer truck
Drive type: 8X4
Vehicle origin: Yangzhou, Jiangsu
Front/rear track width: Front: 2036/2036mm; Rear: 1860/1860
Wheelbase: 1800+3775+1400mm
Curb Weight: 19ton
Rated payload: 11.87ton
Max. speed: 99km/h
Front/rear suspension: 1.525/3.3m
Body Parameters
Mixing drum capacity: 5.4m³
Vehicle certification code: THT5317GJB13A
Body Brand: Tonghua Brand
Engine parameters
Engine Model: WeichaiWP12.375E50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 11.596L
Emission standard: China V
Max output power: 276kW
Max hp: 375Horsepower
Rated speed: 1900rpm
Engine Type: Inline, water-cooled, six-cylinder, electronically controlled high-pressure common rail + SCR
Chassis Specs
Chassis Series: Delong X3000
Chassis Model: SX1310FB
Frame Dimensions: 866×308(8+7+8)mm
rear axle description: MAN 16T dual-reduction
Axle ratio: 4.769
Leaf spring count: 13/13/12
Transmission Parameters
Number of gears: 12Gear
Transmission Model: Fast Gear12JSD180T
Tire
Tire Size: 12.00R20
Number of tires: 12pcs

Photos

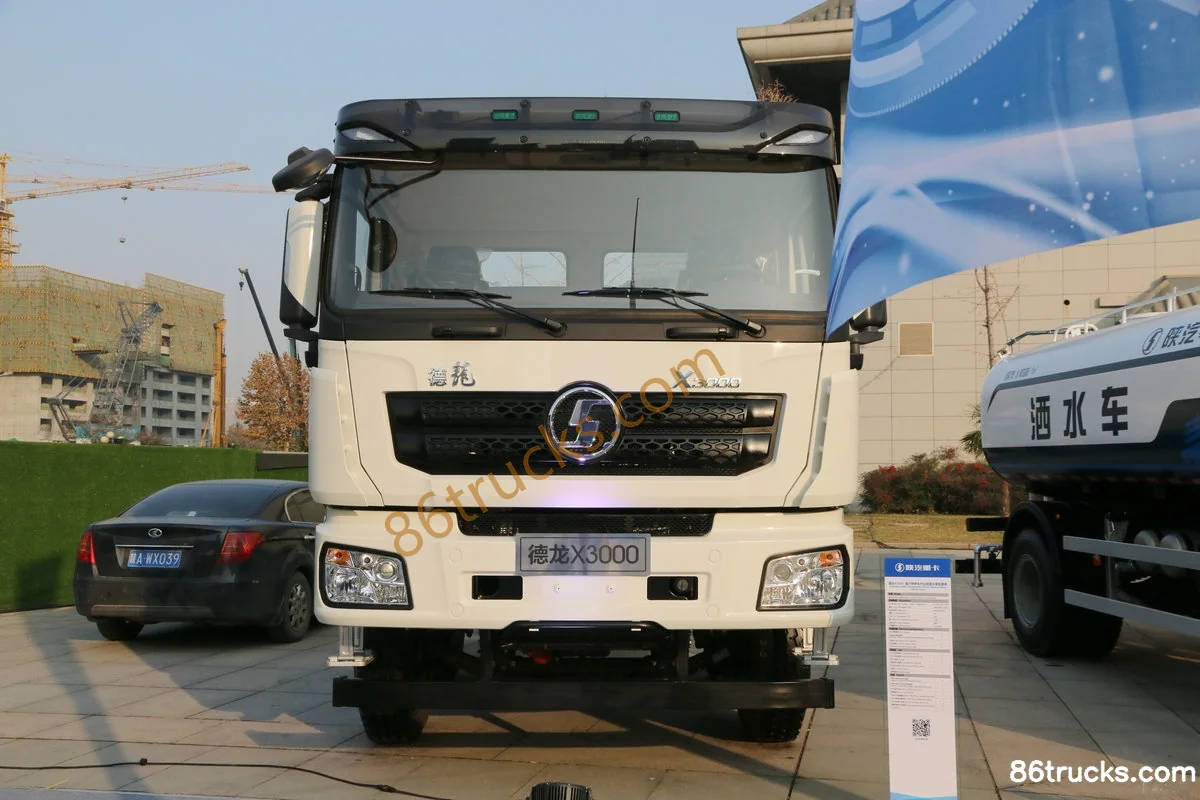

Exterior1

1 photos

FAQ

What is the export price of SHACMAN Delong X3000 375 hp 8X4(12 wheels) 5.4 m³ concrete mixer truck (Tonghua brand), and what does it include?

SHACMAN Delong X3000 375 hp 8X4(12 wheels) 5.4 m³ concrete mixer truck (Tonghua brand) export reference is about From $52,639; MSRP is ¥37.9M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Delong X3000 375 hp 8X4(12 wheels) 5.4 m³ concrete mixer truck (Tonghua brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong X3000 375 hp 8X4(12 wheels) 5.4 m³ concrete mixer truck (Tonghua brand)?

Key specs of SHACMAN Delong X3000 375 hp 8X4(12 wheels) 5.4 m³ concrete mixer truck (Tonghua brand): Drive: 8x4; Horsepower: 375 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong X3000 375 hp 8X4(12 wheels) 5.4 m³ concrete mixer truck (Tonghua brand) suited for?

SHACMAN Delong X3000 375 hp 8X4(12 wheels) 5.4 m³ concrete mixer truck (Tonghua brand) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong X3000 375 hp 8X4(12 wheels) 5.4 m³ concrete mixer truck (Tonghua brand) differ from other variants in the same series?

SHACMAN Delong X3000 375 hp 8X4(12 wheels) 5.4 m³ concrete mixer truck (Tonghua brand) belongs to CIMC Tonghua SHACMAN Chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong X3000 375 hp 8X4(12 wheels) 5.4 m³ concrete mixer truck (Tonghua brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong X3000 375 hp 8X4(12 wheels) 5.4 m³ concrete mixer truck (Tonghua brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
