FAW Jiefang J6L Lightweight Edition 320 hp 8X4(12 wheels) 7 m³ concrete mixer truck (Hongchang Tianma brand) (457 rear axle)
EXW
From $41,917
Export quote
Hongchang Tianma FAW Jiefang Chassis concrete mixer

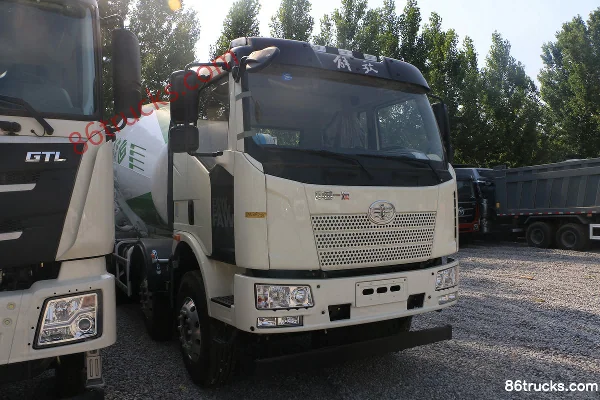

Main model photos
29 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang J6L Lightweight Edition 320 hp 8X4(12 wheels) 7 m³ concrete mixer truck (Hongchang Tianma brand) (457 rear axle) | 8x4 / 320hp / China V | From $41,917 | |
| FAW Jiefang J6L Lightweight Edition 320 hp 8X4(12 wheels) 7 m³ concrete mixer truck (Hongchang Tianma brand) (9-speed) | 8x4 / 320hp / China V | From $42,250 | |
| FAW Jiefang J6L Lightweight Edition 320 hp 8X4(12 wheels) 7 m³ concrete mixer truck (Hongchang Tianma brand) (290 rear axle) | 8x4 / 320hp / China V | From $41,667 | |
| FAW Jiefang J6L Lightweight Edition 320 hp 8X4(12 wheels) 7 m³ concrete mixer truck (Hongchang Tianma brand) | 8x4 / 320hp / China V | From $41,333 | |
| FAW Jiefang J6L 320hp 8X4(12 wheels) 7.96m³ Concrete Mixer Truck (Hongchang Tianma Brand) | 8x4 / 320hp / China V | From $40,903 |
FAW Jiefang J6L Lightweight Edition 320 hp 8X4(12 wheels) 7 m³ concrete mixer truck (Hongchang Tianma brand) (9-speed)
EXW
From $42,250
Export quote
FAW Jiefang J6L Lightweight Edition 320 hp 8X4(12 wheels) 7 m³ concrete mixer truck (Hongchang Tianma brand) (290 rear axle)
EXW
From $41,667
Export quote
FAW Jiefang J6L Lightweight Edition 320 hp 8X4(12 wheels) 7 m³ concrete mixer truck (Hongchang Tianma brand)
EXW
From $41,333
Export quote
FAW Jiefang J6L 320hp 8X4(12 wheels) 7.96m³ Concrete Mixer Truck (Hongchang Tianma Brand)
EXW
From $40,903
Export quote
Series Specs
Basic Info
Cab dimensions: 10.5x2.55x3.999 / 10.2x2.55x3.99m
Drive type: 8X4
Truck Type: concrete mixer truck
Vehicle origin: Wuhu, Jiangsu / Sanhe, Hebei
Front/rear track width: Front track: 1928/1928mm; Rear track: 1878/1878
Wheelbase: 1950+2900+1350mm
Curb Weight: 15.59 / 13.5ton
Rated payload: 15.28 / 17.37ton
Max. speed: 89km/h
Front/rear suspension: 1.4/2.9 / 1.4/2.6m
Body Parameters
Mixing drum capacity: 7 / 7.96m³
Vehicle certification code: HCL5310GJBCAN29J5 / HCL5310GJBCAN29J51
Body Brand: Ruijiang / Hongchang Tianma
Engine parameters
Engine Model: XichaiCA6DL1-32E5
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.7L
Emission standard: China V
Max output power: 238kW
Max hp: 320Horsepower
Rated speed: 2300rpm
Engine Type: BOSCH common rail + SCR, low-mount PTO
Chassis Specs
Chassis Series: FAW JiefangJ6L
Chassis Model: CA5310GJBP62K2T4E5
Front axle description: 1928 front axle
Frame Dimensions: 300x80x(8+5) / 270×75×(7+5)mm
rear axle description: 457 stamped-welded axle / φ290 wheel reduction axle (auto adjust arm, domestic ABS, 2-hole V-rod) / Φ457 stamped-welded axle (auto slack adjuster, domestic ABS)
Axle ratio: 5.286 / 5.263 / 5.571
Leaf spring count: 11/11/10 / 8/8/11
clutch: Φ430
Transmission Parameters
Number of gears: 9 / 10Gear
Transmission Model: FAWCA9TB160M / FAWCA10TA130M
Cab parameters
Cab: J6L full-floating flat roof small half sleeper
Tire
Tire Size: 11.00R20 / 12R22.5
Number of tires: 12pcs
FAQ
What kind of truck is Hongchang Tianma Hongchang Tianma FAW Jiefang Chassis concrete mixer truck?
Hongchang Tianma Hongchang Tianma FAW Jiefang Chassis is an export-oriented concrete mixer truck lineup with about 11 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Hongchang Tianma FAW Jiefang Chassis concrete mixer?
Hongchang Tianma FAW Jiefang Chassis concrete mixer export reference is about $40,903 – $42,583. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Hongchang Tianma FAW Jiefang Chassis concrete mixer cover?
Hongchang Tianma FAW Jiefang Chassis concrete mixer mainly covers: Drive: 8x4; Horsepower: 320 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Hongchang Tianma FAW Jiefang Chassis concrete mixer?
For Hongchang Tianma FAW Jiefang Chassis concrete mixer: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Hongchang Tianma FAW Jiefang Chassis concrete mixer include?
Hongchang Tianma FAW Jiefang Chassis concrete mixer currently lists about 11 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Hongchang Tianma FAW Jiefang Chassis concrete mixer?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
