Foton Ruiwo Q5 140 hp 4X2(6 wheels) 4 cubic meter concrete mixer truck
EXW
From $25,806
Export quote
FotonQ5 concrete mixer truck
Main model photos
491 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Ruiwo Q5 140 hp 4X2(6 wheels) 4 cubic meter concrete mixer truck | 4x2 / 140hp / China V | From $25,806 | |
| Foton 260hp 6X4(10 wheels) Concrete Mixer Truck | 6x4 / 260hp / China IV | ||
| Foton Ruivo 3 Series 180 hp 4X2(6 wheels) Concrete Mixer Truck | 4x2 / 180hp / China III / Euro III |

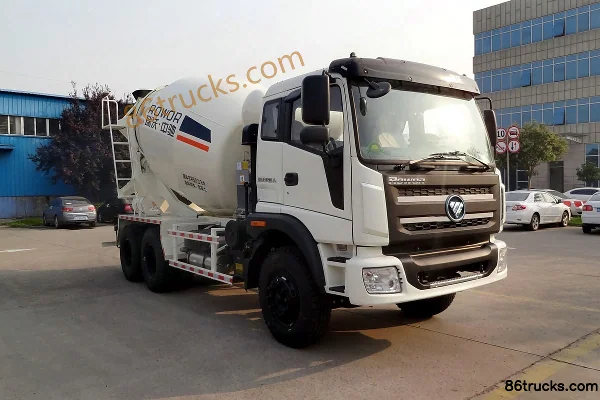

Foton 260hp 6X4(10 wheels) Concrete Mixer Truck
EXW
Export quote

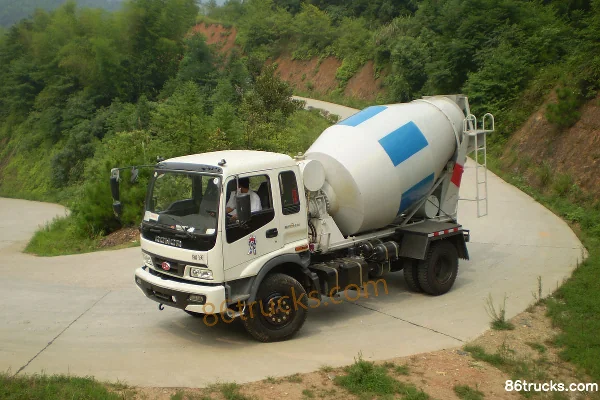

Foton Ruivo 3 Series 180 hp 4X2(6 wheels) Concrete Mixer Truck
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 7.025×2.32×3.7 / 8.623×2.5×3.85 / 7.385×2.49×3.65m
Drive type: 4X2 / 6X4
Truck Type: concrete mixer truck
Wheelbase: 3700 / 3700+1300 / 3900mm
Front/rear track width: Front track: 1963mm; Rear track: 1860mm / Front track: 2027mm; Rear track: 1820mm
Vehicle origin: Hunan
Curb Weight: 6.8 / 12.8 / 7.87ton
Rated payload: 8.805 / 12.005 / 7.9ton
Max. speed: 85 / 80km/h
Front/rear suspension: 1.29/2.035 / 1.42/2.065m
Body Parameters
Water tank capacity: 200L
Mixing drum capacity: 4 / 5 / 6m³
Slump: 55mm
Drum rotation speed: 6r/min
Feed rate: 3m³/min
Discharge speed: 2m³/min
Discharge residue rate: <0.7%
Filling Rate: 58.7%
water supply method: Air pressure water supply
Vehicle certification code: BJ5163GJB-FA / BJ5252GJB-G2 / BJ5162V5PDB-D5
hydraulic system: Closed hydraulic circuit
Body Brand: Foton
Engine parameters
Engine Model: YuchaiYC4S140-50 / YuchaiYC6A260-40 / Yuchai YC6J180-33
Number of cylinders: 4 / 6cylinder
fuel type: Diesel
Displacement: 3.767 / 7.255 / 6L
Emission standard: China V / China IV / China III / Euro III
Max output power: 103 / 191 / 132kW
Max hp: 140 / 260 / 180Horsepower
Rated speed: 2600 / 2300 / 2500rpm
Engine Type: Vertical, inline, water-cooled, four-stroke / BOSCH high-pressure common rail SCR / Inline
Chassis Specs
Chassis Series: Foton Ruiwo Q5 / Foton
Chassis Model: BJ3163DJPEA-FB / BJ5252GJB-G2 / BJ1162V5PDB-D5
rear axle description: 1098 / 435S air brake / 10T
Axle ratio: 5.286
Leaf spring count: 10/12+9 / 10/11
Transmission Parameters
Number of gears: 8 / 10Gear
Transmission Model: Fast Gear8JS85E / Fast Gear10JSD120 / Fast Gear 8JS85
Tire
Tire Size: 9.00R20 16PR / 11.00-20 16PR / 10.00-20
Number of tires: 6 / 10pcs
FAQ
What kind of truck is Foton FotonQ5 concrete mixer truck?
Foton FotonQ5 is an export-oriented concrete mixer truck lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for FotonQ5 concrete mixer truck?
FotonQ5 concrete mixer truck export reference is about From $25,806. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does FotonQ5 concrete mixer truck cover?
FotonQ5 concrete mixer truck mainly covers: Drive: 4x2 / 6x4; Horsepower: 140 hp / 180 hp / 260 hp; Emission: China III / Euro III / China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in FotonQ5 concrete mixer truck?
For FotonQ5 concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does FotonQ5 concrete mixer truck include?
FotonQ5 concrete mixer truck currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FotonQ5 concrete mixer truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
