Dongfeng Dalishen 375 hp 6X4(10 wheels) Concrete Mixer Truck (Shenhu Brand)
EXW
Export quote
Shenhu Dongfeng Commercial Vehicle chassis concrete
Main model photos
27 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Dalishen 375 hp 6X4(10 wheels) Concrete Mixer Truck (Shenhu Brand) | 6x4 / 375hp / China III / Euro III | ||
| Dongfeng Dalishen 340hp 6X4(10 wheels) Concrete Mixer Truck (Shenhu Brand) | 6x4 / 340hp / China III / Euro III |

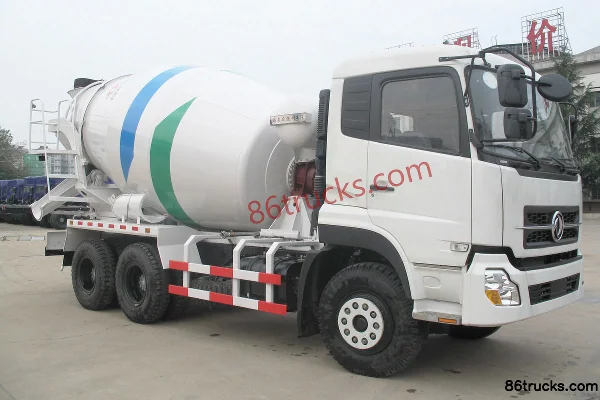

Dongfeng Dalishen 340hp 6X4(10 wheels) Concrete Mixer Truck (Shenhu Brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 8.8×2.5×3.93m
Drive type: 6X4
Truck Type: concrete mixer truck
Front/rear track width: Front track: 2027mm; Rear track: 1860/1860mm / Front track: 1986mm; Rear track: 1860/1860mm
Vehicle origin: Suizhou, Hubei / Hubei
Wheelbase: 3650+1350,3800+1350,4000+1350 / 3650+1350mm
Curb Weight: 12.92ton
Rated payload: 11.95ton
Max. speed: 80km/h
Front/rear suspension: 1.46/2.34m
Body Parameters
Water tank capacity: 550L
Mixing drum capacity: 5.5m³
Slump: 40.23mm
Drum rotation speed: 8r/min
Feed rate: 3m³/min
Discharge speed: 3m³/min
Discharge residue rate: <0.7%
Filling Rate: 58.8%
water supply method: Air pressure water supply
hydraulic system: Fully imported German (or American) system superstructure
Vehicle certification code: HLQ5250GJBD
Body Brand: Shenhu Brand
Others: Contact by phone for details
Engine parameters
Engine Model: Dongfeng ISLe375 30 / Dongfeng L340 30
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.9L
Emission standard: China III / Euro III
Max output power: 275 / 250kW
Max hp: 375 / 340Horsepower
Rated speed: 2100 / 2200rpm
Engine Type: Inline
Chassis Specs
Chassis Series: Dalishen
Chassis Model: DFL5250GJBA
Front axle description: 7T
rear axle description: 16T hub reduction dual rear axle / 13T single-reduction dual rear axle
Leaf spring count: 8/12,9/10,9/13 / 9/13
Transmission Parameters
Number of gears: 12 / 8Gear
Transmission Model: Fast Gear 8-speed
Tire
Tire Size: 12.00R20 / 11.00-20,11.00R20,
FAQ
What kind of truck is Shenhu Shenhu Dongfeng Commercial Vehicle chassis concrete mixer truck?
Shenhu Shenhu Dongfeng Commercial Vehicle chassis is an export-oriented concrete mixer truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Shenhu Dongfeng Commercial Vehicle chassis concrete cover?
Shenhu Dongfeng Commercial Vehicle chassis concrete mainly covers: Drive: 6x4; Horsepower: 340 hp / 375 hp; Emission: China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Shenhu Dongfeng Commercial Vehicle chassis concrete?
For Shenhu Dongfeng Commercial Vehicle chassis concrete: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Shenhu Dongfeng Commercial Vehicle chassis concrete include?
Shenhu Dongfeng Commercial Vehicle chassis concrete currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Shenhu Dongfeng Commercial Vehicle chassis concrete?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
