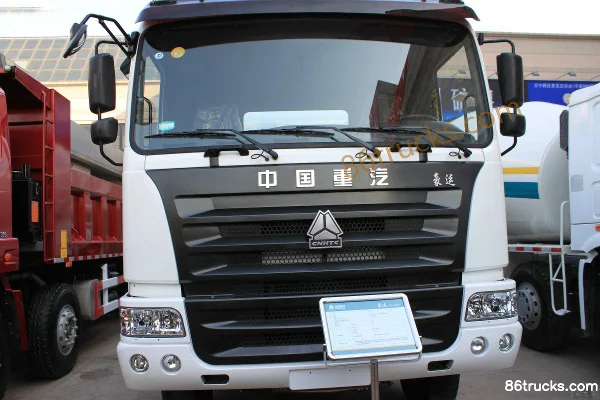

Sinotruk Haoyun 336 hp 6X4(10 wheels) Concrete Mixer Truck
EXW
Export quote
Sinotruk Haoyun Heavy Truck concrete mixer truck
Main model photos
29 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk Haoyun 336 hp 6X4(10 wheels) Concrete Mixer Truck | 6x4 / 336hp / China III / Euro III | ||
| Sinotruk Haoyun 320 hp 6X4(10 wheels) Concrete Mixer Truck | 6x4 / 320hp / China III / Euro III | ||
| Sinotruk Haoyun 340 hp 6X4(10 wheels) concrete mixer truck | 6x4 / 340hp / China III / Euro III |
Sinotruk Haoyun 320 hp 6X4(10 wheels) Concrete Mixer Truck
EXW
Export quote
Sinotruk Haoyun 340 hp 6X4(10 wheels) concrete mixer truck
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 9.115×2.496×3.85 / 9.715×2.496×3.85m
Drive type: 6X4
Truck Type: concrete mixer truck
Front/rear track width: Front track: 2022mm; Rear track: 1830mm / Front track: 2022mm; Rear track: 1830/1830mm
Vehicle origin: Jining / Jinan, Shandong
Wheelbase: 3825+1350 / 4325+1350mm
Curb Weight: 13.11 / 25 / 12.11ton
Rated payload: 25 / 11.86 / 11.76ton
Max. speed: 90km/h
Front/rear suspension: 1.35/1.5 / 1.55/2.39 / 1.55/2.49m
Body Parameters
Water tank capacity: 450 / 550L
Mixing drum capacity: 5.5m³
Slump: 40 / 40.23mm
Drum rotation speed: 3-16r/min
Feed rate: 3m³/min
Discharge speed: 2m³/min
Discharge residue rate: ＜0.6 / 0.7%
Filling Rate: 58.5 / 58.7%
water supply method: Air pressure water supply
hydraulic system: Closed hydraulic circuit
Vehicle certification code: ZZ5255GJBN3845C / ZZ5255GJBN3845C2L / ZZ5255GJBN4345C2
Body Brand: Sinotruk
Others: Imported three major hydraulic components / Reducer: made in Italy; hydraulic pump & motor: Rexroth, Germany.
Engine parameters
Engine Model: Sinotruk WD615.95E / Sinotruk WT615.94
Number of cylinders: 6cylinder
fuel type: Diesel / LNG (liquefied natural gas)
Displacement: 9.726 / 11.2L
Emission standard: China III / Euro III
Max output power: 247 / 235 / 250kW
Max hp: 336 / 320 / 340Horsepower
Rated speed: 2200rpm
Engine Type: Inline
Chassis Specs
Chassis Series: Sinotruk Haoyun
Chassis Model: ZZ5255GJBN3845C / ZZ1255N3845C2L / ZZ1255N4345C2
Front axle description: 9T / 7T
rear axle description: 16T heavy-duty dual-reduction hub-reduction rear axle / 16T / Tandem axle
Leaf spring count: 9/12 / 9/12,10/-
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Sinotruk HW15710 / Sinotruk HW18710
Tire
Tire Size: 11.00R20 / 11.00-20 / 11.00-20，11.00R20，12.00-20，12.00R20
FAQ
What kind of truck is Sinotruk Sinotruk Haoyun Heavy Truck concrete mixer truck?
Sinotruk Sinotruk Haoyun Heavy Truck is an export-oriented concrete mixer truck lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Sinotruk Haoyun Heavy Truck concrete mixer truck cover?
Sinotruk Haoyun Heavy Truck concrete mixer truck mainly covers: Drive: 6x4; Horsepower: 320 hp / 336 hp / 340 hp; Emission: China III / Euro III; Fuel: Diesel / LNG (liquefied natural gas). Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk Haoyun Heavy Truck concrete mixer truck?
For Sinotruk Haoyun Heavy Truck concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sinotruk Haoyun Heavy Truck concrete mixer truck include?
Sinotruk Haoyun Heavy Truck concrete mixer truck currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk Haoyun Heavy Truck concrete mixer truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
