Sinotruk Haoyun 320 hp 6X4(10 wheels) Concrete Mixer Truck

Export reference
MSRP N/A
Fuel: LNG (liquefied natural gas)
Curb Weight:: 25ton
Wheelbase:: 3825+1350mm
Tire Size:: 11.00-20
Cab dimensions:: 9.115×2.496×3.85m
Truck Type:: concrete mixer truck
Rated payload: 11.86ton
Drive 6X4 (10 wheels)
Horsepower 320
Emission China III / Euro III

Overview

The Sinotruk Haoyun 320 hp 6X4(10 wheels) Concrete Mixer Truck is a concrete mixer truck featuring 11.86t payload, 25ton GVW, 6X4 (10 wheels) drive and 9.115×2.496×3.85m cab. On the powertrain side, it comes with 320 hp, China III / Euro III emissions and LNG (liquefied natural gas) fuel.

China III / Euro III 320 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.115×2.496×3.85m
Drive type: 6X4
Truck Type: concrete mixer truck
Wheelbase: 3825+1350mm
Front/rear track width: Front track: 2022mm; Rear track: 1830mm
Vehicle origin: Jining
Curb Weight: 25ton
Rated payload: 11.86ton
Max. speed: 90km/h
Front/rear suspension: 1.55/2.39m
Body Parameters
Water tank capacity: 550L
Slump: 40.23mm
Feed rate: 3m³/min
Discharge speed: 2m³/min
Discharge residue rate: 0.7%
Filling Rate: 58.7%
water supply method: Air pressure water supply
Vehicle certification code: ZZ5255GJBN3845C2L
hydraulic system: Closed hydraulic circuit
Body Brand: Sinotruk
Others: Reducer: made in Italy; hydraulic pump & motor: Rexroth, Germany.
Engine parameters
Engine Model: Sinotruk WT615.94
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 11.2L
Emission standard: China III / Euro III
Max output power: 235kW
Max hp: 320Horsepower
Rated speed: 2200rpm
Engine Type: Inline
Chassis Specs
Chassis Series: Sinotruk Haoyun
Chassis Model: ZZ1255N3845C2L
Front axle description: 7T
rear axle description: 16T
Leaf spring count: 9/12
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Sinotruk HW15710
Tire
Tire Size: 11.00-20
Number of tires: 10pcs

Photos

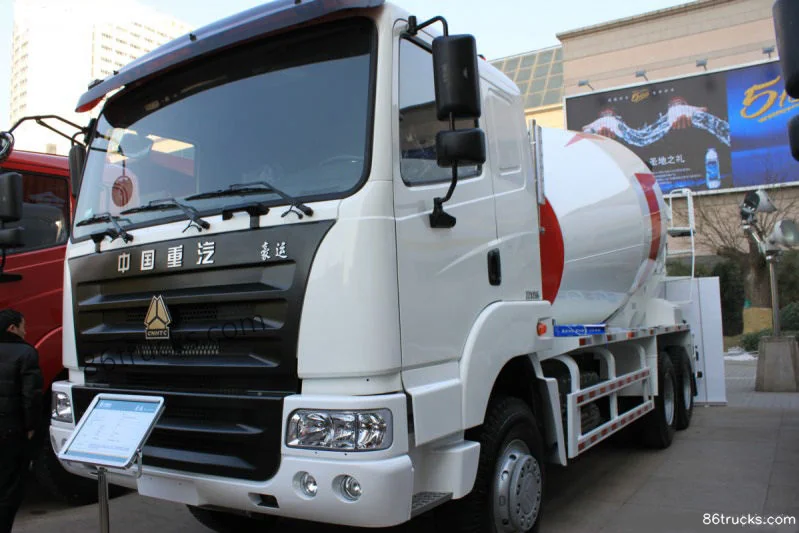

Exterior1

1 photos

FAQ

What emission standard does Sinotruk Haoyun 320 hp 6X4(10 wheels) Concrete Mixer Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Haoyun 320 hp 6X4(10 wheels) Concrete Mixer Truck?

Key specs of Sinotruk Haoyun 320 hp 6X4(10 wheels) Concrete Mixer Truck: Drive: 6x4; Horsepower: 320 hp; Emission: China III / Euro III; Fuel: LNG (liquefied natural gas). See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Haoyun 320 hp 6X4(10 wheels) Concrete Mixer Truck suited for?

Sinotruk Haoyun 320 hp 6X4(10 wheels) Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Haoyun 320 hp 6X4(10 wheels) Concrete Mixer Truck differ from other variants in the same series?

Sinotruk Haoyun 320 hp 6X4(10 wheels) Concrete Mixer Truck belongs to Sinotruk Haoyun Heavy Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Haoyun 320 hp 6X4(10 wheels) Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Haoyun 320 hp 6X4(10 wheels) Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
