FAW Jiefang Qingdao JH6 350hp 8X4(12 wheels) 7.83m³ Hybrid Concrete Mixer Truck 15kWh
EXW
Export quote
FAW Jiefang Qingdao JH6 heavy truck concrete mixer
Main model photos
2,280 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang Qingdao JH6 350hp 8X4(12 wheels) 7.83m³ Hybrid Concrete Mixer Truck 15kWh | 8x4 / 350hp / China VI | ||
| FAW Jiefang Qingdao JH6 350 hp 8X4(12 wheels) 7.74 m³ Concrete Mixer Truck (Ruijiang Brand) | 8x4 / 350hp / China VI | ||
| FAW Jiefang Qingdao JH6 410hp 8X4(12 wheels) CNG Concrete Mixer Truck | 8x4 / 410hp / China VI | ||
| FAW Jiefang Qingdao JH6 340hp 8X4(12 wheels) 7.84m³ concrete mixer truck | 8x4 / 340hp / China VI | From $44,833 | |
| FAW Jiefang Qingdao JH6 320 hp 8X4(12 wheels) 7.85 m³ concrete mixer truck (CA5310GJBP27K2L1T4E5A80) | 8x4 / 320hp / China V | From $50,417 |

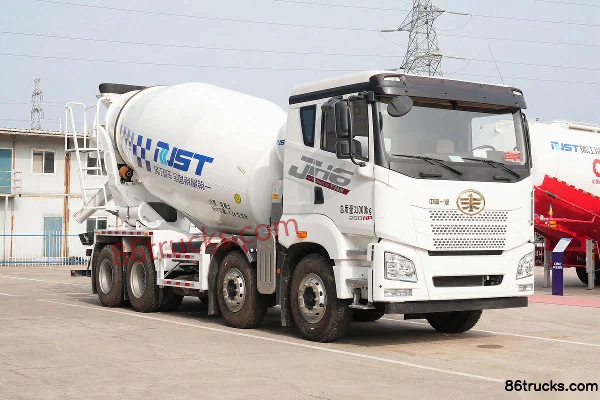

FAW Jiefang Qingdao JH6 350 hp 8X4(12 wheels) 7.74 m³ Concrete Mixer Truck (Ruijiang Brand)
EXW
Export quote

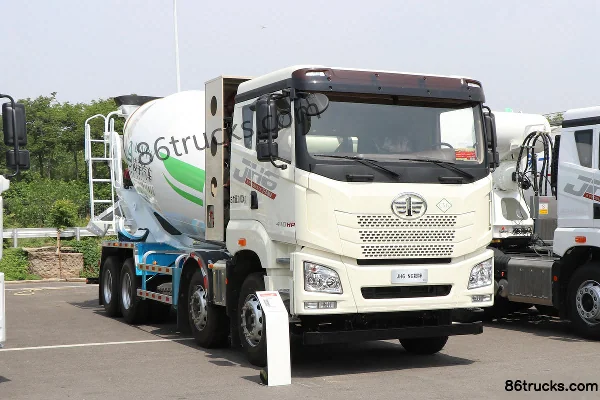

FAW Jiefang Qingdao JH6 410hp 8X4(12 wheels) CNG Concrete Mixer Truck
EXW
Export quote
FAW Jiefang Qingdao JH6 340hp 8X4(12 wheels) 7.84m³ concrete mixer truck
EXW
From $44,833
Export quote

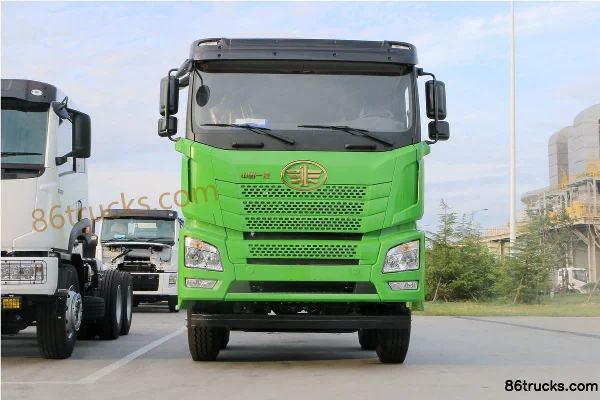

FAW Jiefang Qingdao JH6 320 hp 8X4(12 wheels) 7.85 m³ concrete mixer truck (CA5310GJBP27K2L1T4E5A80)
EXW
From $50,417
Export quote
Series Specs
Basic Info
Cab dimensions: 10.45x2.55x3.998 / 10.25x2.55x3.99 / 10.5x2.55x3.995 / 10x2.55x3.96 / 10.2×2.55×4 / 10.3×2.55×3.995m
Drive type: 8X4
Truck Type: Concrete mixer truck
Front/rear track width: Front 2050/2050 Rear 1878/1878 / Front: 2020/2020; Rear: 1878/1878 / Front: 2050/2050mm; Rear: 1878/1878 / Front: 2020/2020mm; Rear: 1878/1878
Vehicle origin: Qingdao, Shandong / Wuhu, Anhui / Qingdao / Qingdao, Chengdu
Wheelbase: 1900+2950+1350 / 1900+3450+1350mm
Curb Weight: 13.78 / 13.96 / 13.75 / 13.54 / 14.005 / 13.635ton
Rated payload: 17.09 / 16.91 / 17.12 / 17.33 / 16.865 / 17.235ton
Max. speed: 89km/h
Front/rear suspension: 1.495/2.755 / 1.495/2.555 / 1.495/2.355 / 1.495/2.305 / 1.495/2.295 / 1.495/2.605m
electric motor
Motor 1 Brand: FAW Jiefang
Motor 1 Model: CAM380PT51
Motor Type: Permanent magnet synchronous motor
total rated power: 60kW
Peak power: 130kW
Body Parameters
Mixing drum capacity: 7.83 / 7.75 / 7.84 / 7.85 / 7.73 / 7.9m³
Vehicle certification code: CA5310GJBP27K1L1T4E6HEVA81 / WL5316GJBCAG6BF / CA1310P27K15L3T4S2NE6A81 / CA5310GJBP27K2L1T4S2E6A81 / CA5310GJBP27K2L1T4E5A80 / CA5311GJBP27K15L1T4E6A81 / CA5311GJBP27K2L1T4E5A80
Body Brand: FAW Jiefang Qingdao / Ruijiang / FAW Jiefang / FAW Jiefang brand
Engine parameters
Engine Model: DachaiCA6DK2-35E65 / WeichaiWP8.350E61A / WeichaiWP10.5HNG410E62 / DongfengL9NS6B340 / WeichaiWP8.320E51A
Number of cylinders: 6cylinder
fuel type: Diesel / Compressed Natural Gas (CNG)
Displacement: 7.751 / 7.8 / 10.5 / 8.9L
Emission standard: China VI / China V
Max output power: 257 / 301 / 251 / 235kW
Max hp: 350 / 410 / 340 / 320Horsepower
Rated speed: 2100 / 1900rpm
Engine Type: DOC+DPF+HI+SCR / Inline 6-cylinder, water-cooled, 4-stroke, high-pressure common rail, turbocharged intercooled, EGR
Chassis Specs
Chassis Series: JH6 / FAW JiefangJH6 / CA1310P27K2L1T4S2BE5A812L1T4S2BE5A81
Chassis Model: CA1310P27K1L1T4S2BE6HEVA81 / CA1311P27K15L1T4BE6A81 / CA1310P27K2L1T4S2BE6A81 / CA1310P27K2L1T4S2BE5A81 / FAW JiefangJH6
Front axle description: F5N front axle (disc brake)
Frame Dimensions: 300*80*(8+5) / 300×80×（8+5）mm
rear axle description: 270 hub-reduction axle (drum brake) / 270 hub-reduction axle / 457 upgraded stamped-welded axle / 290 wheel reduction axle
Axle ratio: 6.733 / 5.921 / 5.286 / 5.263
Leaf spring count: 4/4/5 / 10/10/10 / 4/4/5,10/10/10
clutch: Φ430
Transmission Parameters
Number of gears: 4 / 10 / 9Gear
Transmission Model: 4-speed automatic / Fast Gear10JSD200TB / Fast Gear10JSD160TB / Fast Gear9JSD135TA / Fast Gear10JSD140T
Cab parameters
Cab: JH6 raised floor mid-roof flat roof cab / JH6 / JH6 raised floor flat roof full-floating cab
Tire
Tire Size: 12R22.5 18PR / 11.00R20 18PR,11.00R20 16PR / 11.00R20 18PR / 11.00R20 16PR
Number of tires: 12pcs
FAQ
What kind of truck is FAW Jiefang Qingdao FAW Jiefang Qingdao JH6 heavy truck concrete mixer truck?
FAW Jiefang Qingdao FAW Jiefang Qingdao JH6 heavy truck is an export-oriented concrete mixer truck lineup with about 8 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for FAW Jiefang Qingdao JH6 heavy truck concrete mixer?
FAW Jiefang Qingdao JH6 heavy truck concrete mixer export reference is about $40,278 – $56,944. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does FAW Jiefang Qingdao JH6 heavy truck concrete mixer cover?
FAW Jiefang Qingdao JH6 heavy truck concrete mixer mainly covers: Drive: 8x4; Horsepower: 320 hp / 340 hp / 350 hp / 410 hp; Emission: China V / China VI; Fuel: Compressed Natural Gas (CNG) / Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in FAW Jiefang Qingdao JH6 heavy truck concrete mixer?
For FAW Jiefang Qingdao JH6 heavy truck concrete mixer: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does FAW Jiefang Qingdao JH6 heavy truck concrete mixer include?
FAW Jiefang Qingdao JH6 heavy truck concrete mixer currently lists about 8 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FAW Jiefang Qingdao JH6 heavy truck concrete mixer?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
