FAW Jiefang Qingdao JH6 340hp 8X4(12 wheels) 7.84m³ concrete mixer truck

Export reference
From $44,833
MSRP ¥32.28M CNY
Fuel: Diesel
Curb Weight:: 13.75ton
Wheelbase:: 1900+2950+1350mm
Tire Size:: 11.00R20 18PR
Cab dimensions:: 10.5x2.55x3.995m
Truck Type:: Concrete mixer truck
Rated payload: 17.12ton
Drive 8X4 (12 wheels)
Horsepower 340
Emission China VI

Overview

The FAW Jiefang Qingdao JH6 340hp 8X4(12 wheels) 7.84m³ concrete mixer truck is a concrete mixer truck featuring 17.12t payload, 13.75ton GVW, 8X4 (12 wheels) drive and JH6 cab. On the powertrain side, it comes with 340 hp, China VI emissions and Diesel fuel.

China VI 340 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.5x2.55x3.995m
Truck Type: Concrete mixer truck
Drive type: 8X4
Vehicle origin: Qingdao
Front/rear track width: Front: 2050/2050mm; Rear: 1878/1878
Wheelbase: 1900+2950+1350mm
Curb Weight: 13.75ton
Rated payload: 17.12ton
Front/rear suspension: 1.495/2.355m
Body Parameters
Mixing drum capacity: 7.84m³
Vehicle certification code: CA5310GJBP27K2L1T4S2E6A81
Body Brand: FAW Jiefang
Engine parameters
Engine Model: DongfengL9NS6B340
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.9L
Emission standard: China VI
Max output power: 251kW
Max hp: 340Horsepower
Rated speed: 1900rpm
Chassis Specs
Chassis Series: JH6
Chassis Model: CA1310P27K2L1T4S2BE6A81
Frame Dimensions: 300×80×(8+5)mm
rear axle description: 457 upgraded stamped-welded axle
Axle ratio: 5.286
Leaf spring count: 10/10/10
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Fast Gear10JSD160TB
Cab parameters
Cab: JH6
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs

Photos

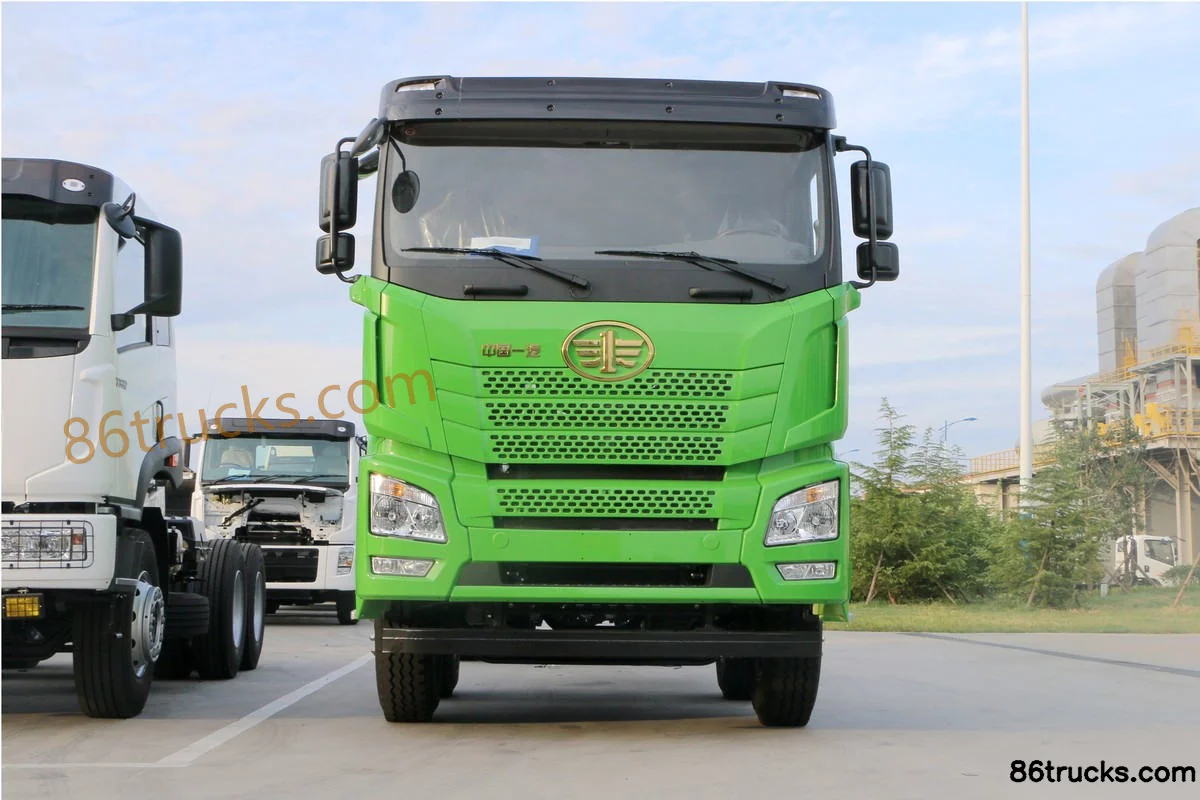

Exterior1

1 photos

FAQ

What is the export price of FAW Jiefang Qingdao JH6 340hp 8X4(12 wheels) 7.84m³ concrete mixer truck, and what does it include?

FAW Jiefang Qingdao JH6 340hp 8X4(12 wheels) 7.84m³ concrete mixer truck export reference is about From $44,833; MSRP is ¥32.28M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao JH6 340hp 8X4(12 wheels) 7.84m³ concrete mixer truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao JH6 340hp 8X4(12 wheels) 7.84m³ concrete mixer truck?

Key specs of FAW Jiefang Qingdao JH6 340hp 8X4(12 wheels) 7.84m³ concrete mixer truck: Drive: 8x4; Horsepower: 340 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao JH6 340hp 8X4(12 wheels) 7.84m³ concrete mixer truck suited for?

FAW Jiefang Qingdao JH6 340hp 8X4(12 wheels) 7.84m³ concrete mixer truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Qingdao JH6 340hp 8X4(12 wheels) 7.84m³ concrete mixer truck differ from other variants in the same series?

FAW Jiefang Qingdao JH6 340hp 8X4(12 wheels) 7.84m³ concrete mixer truck belongs to FAW Jiefang Qingdao JH6 heavy truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao JH6 340hp 8X4(12 wheels) 7.84m³ concrete mixer truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao JH6 340hp 8X4(12 wheels) 7.84m³ concrete mixer truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
