Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) Concrete Mixer Truck (440 rear axle)(Ratio 4.875)
EXW
From $42,222
Export quote

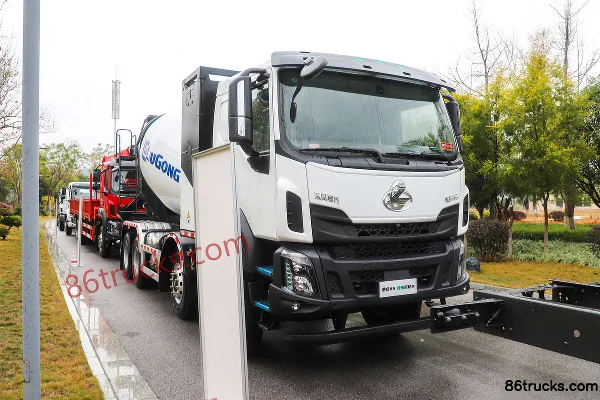

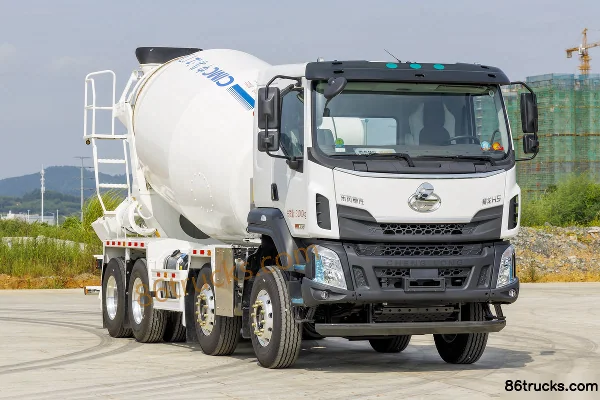

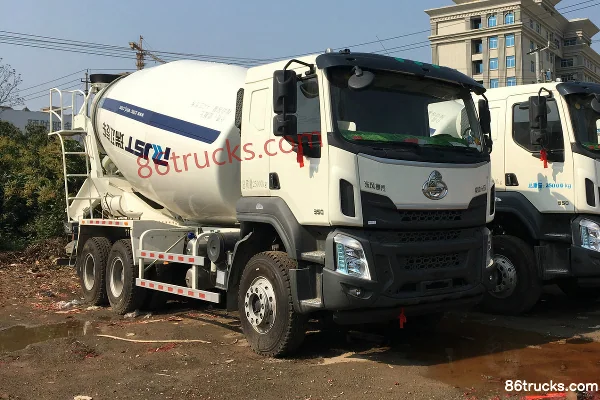

Dongfeng H5 Heavy Truck concrete mixer truck
Main model photos
1,993 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) Concrete Mixer Truck (440 rear axle)(Ratio 4.875) | 8x4 / 350hp / China VI | From $42,222 | |
| Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) Concrete Mixer Truck (13T Rear Axle) | 8x4 / 350hp / China VI | From $43,472 | |
| Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) concrete mixer truck (440 rear axle) | 8x4 / 350hp / China VI | From $41,250 | |
| Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) Concrete Mixer Truck (China VI) | 8x4 / 350hp / China VI | From $41,806 | |
| Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) Concrete Mixer Truck (13T Rear Axle) | 8x4 / 350hp / China VI | From $43,194 |
Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) Concrete Mixer Truck (13T Rear Axle)
EXW
From $43,472
Export quote
Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) concrete mixer truck (440 rear axle)
EXW
From $41,250
Export quote
Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) Concrete Mixer Truck (China VI)
EXW
From $41,806
Export quote
Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) Concrete Mixer Truck (13T Rear Axle)
EXW
From $43,194
Export quote
Series Specs
Basic Info
Cab dimensions: 10.35×2.53×3.99 / 10.42×2.53×3.99 / 9.83×2.53×3.99 / 9.88×2.545×3.96m
Truck Type: Concrete mixer truck / electric concrete mixer transport truck
Drive type: 8X4 / 6X4
Vehicle origin: Liuzhou, Guangxi
Wheelbase: 2050+2800+1350 / 2050+3050+1350 / 1950+3050+1350 / 4050+1350mm
Front/rear track width: Front: 2020/2020mm; Rear: 1860/1860 / Front: 2045mm; Rear: 1874/1874
Curb Weight: 13.98 / 15.6ton
Rated payload: 16.89 / 9.27ton
Max. speed: 89 / 90 / 85km/h
Front/rear suspension: 1.525/2.625 / 1.525/2.375 / 1.525/2.695 / 1.525/2.105 / 1.525/2.545 / 1.525/2.955m
electric motor
Motor 1 Model: TZ388XSLGE03
Motor Type: Permanent magnet synchronous motor
Body Parameters
Mixing drum capacity: 7.73 / 4.2m³
Vehicle certification code: LZ5310GJBH5FC2 / LZ5310GJBH5FC1 / LZ5310GJBH5FB / LZ5250GJBH5DB
Body Brand: DongfengLiuqi / Dongfeng / CIMC Jiangmen
Others: "Mechanical full-floating cab suspension, manual hydraulic tilt, mechanical vibration-damping driver seat, electric power windows, remote central locking, A/C, onboard terminal (tachograph + compatible with BeiDou/GPS), external sun visor, multi-state switch, European-style intake pipe, desert air filter, domestic valves, ABS, automatic slack adjuster, aluminum air tanks, maintenance-free battery, direct-drive fan, rotary FARIZON throttle, large connecting plate, radiator guard plate, front axle first wheel step ring, side-mounted spare tire and carrier, full-power PTO" / Rear axle ratio optional 5.262, 350L aluminum fuel tank, mechanical full-floating cab suspension, manual hydraulic tilt, mechanical damping driver seat, electric window lift, remote central lock, air conditioning, onboard terminal (tachograph + compatible with BeiDou GPS), external sun visor, multi-state switch, ZF steering gear, cyclone dual-channel intake pipe, desert air filter, domestic valves, ABS, automatic adjuster arm, aluminum air tank, maintenance-free battery, direct-drive fan, rotary FARIZON throttle, front stabilizer bar, large connecting plate, radiator guard plate, front wheel step ring, rear-mounted spare tire and spare tire carrier, full-power PTO / Mechanical full-floating cab suspension, manual hydraulic tilt, mechanical damping driver seat, electric windows, remote central locking, automatic A/C, onboard terminal (tachograph + compatible with BeiDou/GPS), external sun visor, multi-state switch, right-turn reminder, overspeed alarm. European-style intake pipe, desert air filter, domestic valves, ABS, self-adjusting arm, aluminum air tanks, maintenance-free battery, direct-drive fan, rotary FARIZON throttle, large connecting plate, radiator guard, front axle step ring, side-mounted spare tire and carrier, high bumper.
Engine parameters
Engine Model: YuchaiYCK08350-60 / WeichaiWP8.350E62 / WeichaiWP8.350E61A / YuchaiYC6L330-50 / YuchaiYC6MK350-50
Number of cylinders: 6cylinder
fuel type: Diesel / Electric
Displacement: 7.7 / 7.8 / 8.424 / 10.338L
Emission standard: China VI / China V
Max output power: 257 / 243 / 258kW
Max hp: 350 / 330Horsepower
Rated speed: 2200 / 2100 / 1900rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC / Vertical, Water-cooled, Four-stroke, Inline six-cylinder / Vertical, inline 6-cylinder, water-cooled, 4-stroke
Chassis Specs
Chassis Series: ChenglongH5
Chassis Model: LZ1317H5FCT / LZ3310H5FBT / LZ5250GJBH5DBT
Front axle description: 2×5.5T front axle / 2x3.6T front axle / 2*5.5T / 7.5T / 2*5T
Frame Dimensions: 282(8+4) / 264(6+4) / 282×85×(8+4) / 282 (8+4) double-layer frame / 300(8+8)mm
Steering gear: Domestic
rear axle description: 2*440 wider brake rear axle / 2×13T hub reduction axle / 2*400 widened brake rear axle / 2×440 wide brake rear axle / 2×440 wide brake / 2*STR widened brake / 2×440 dual rear axle / 2×16T, 300 cast steel widened brake / 2*153
Axle ratio: 4.875 / 4.769 / 5.143 / 6.166 / 4.8
Leaf spring count: 11/11/13 / 3/3/4 / 11/11/10 / 11/13
clutch: Φ430
Transmission Parameters
Number of gears: 10 / 9Gear
Transmission Model: Fast Gear10JSD140T / Fast Gear10JSD140TB / Fast Gear 10JSD140TB (Aluminum) / Fast Gear10JSD140B / Fast Gear9JS135 / Fast Gear10JSD160
Cab parameters
Cab: H51L / 2022 model H51L / H52S
Tire
Tire Size: 11.00R20 18PR / 12R22.5 18PR / 11R22.5 18PR / 11.00R20 / 11.00R2 / 12R22.5 / 11.00R20 16PR
Number of tires: 12 / 10pcs
FAQ
What kind of truck is Dongfeng Dongfeng H5 Heavy Truck concrete mixer truck?
Dongfeng Dongfeng H5 Heavy Truck is an export-oriented concrete mixer truck lineup with about 20 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Dongfeng H5 Heavy Truck concrete mixer truck?
Dongfeng H5 Heavy Truck concrete mixer truck export reference is about $40,972 – $48,056. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Dongfeng H5 Heavy Truck concrete mixer truck cover?
Dongfeng H5 Heavy Truck concrete mixer truck mainly covers: Drive: 8x4; Horsepower: 350 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dongfeng H5 Heavy Truck concrete mixer truck?
For Dongfeng H5 Heavy Truck concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Dongfeng H5 Heavy Truck concrete mixer truck include?
Dongfeng H5 Heavy Truck concrete mixer truck currently lists about 20 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dongfeng H5 Heavy Truck concrete mixer truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
