SHACMAN Delong New M3000 375hp 6X4(10 wheels) 4.9 Cubic Meter Concrete Mixer Truck
EXW
From $45,694
Export quote

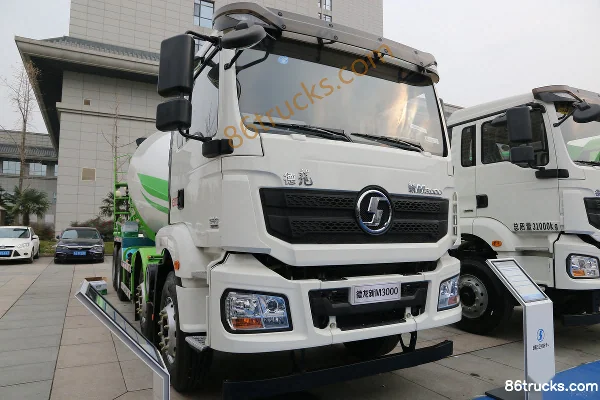

SHACMAN Delong New M3000 Heavy Truck concrete mixer
Main model photos
1,020 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SHACMAN Delong New M3000 375hp 6X4(10 wheels) 4.9 Cubic Meter Concrete Mixer Truck | 6x4 / 375hp / China V | From $45,694 | |
| SHACMAN Delong New M3000 336hp 6X4(10 wheels) 4.9 Cubic Meter Concrete Mixer Truck | 6x4 / 336hp / China V | From $43,028 | |
| SHACMAN Delong New M3000 Composite Edition 350hp 6X4(10 wheels) 7.7m³ LNG Concrete Mixer Truck (China VI) | 8x4 / 350hp / China VI | From $60,222 | |
| SHACMAN Delong New M3000 Standard Edition 340 hp 8X4(12 wheels) 7.49 m³ Concrete Mixer Truck (10-speed) | 8x4 / 340hp / China V | From $41,847 | |

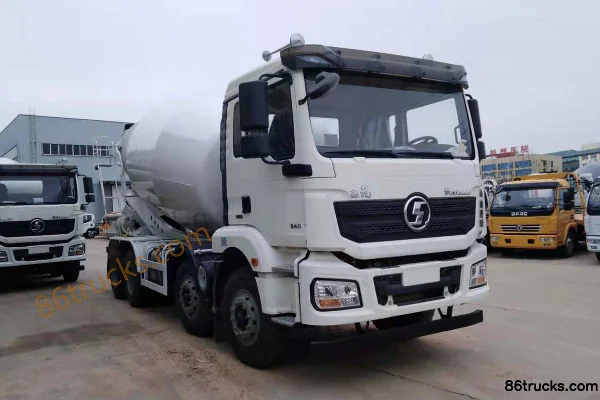

| SHACMAN Delong New M3000 Lightweight Edition 340 hp 8X4(12 wheels) 7.49 m³ Concrete Mixer Truck | 8x4 / 340hp / China V | From $40,958 |
SHACMAN Delong New M3000 336hp 6X4(10 wheels) 4.9 Cubic Meter Concrete Mixer Truck
EXW
From $43,028
Export quote
SHACMAN Delong New M3000 Composite Edition 350hp 6X4(10 wheels) 7.7m³ LNG Concrete Mixer Truck (China VI)
EXW
From $60,222
Export quote
SHACMAN Delong New M3000 Standard Edition 340 hp 8X4(12 wheels) 7.49 m³ Concrete Mixer Truck (10-speed)
EXW
From $41,847
Export quote
SHACMAN Delong New M3000 Lightweight Edition 340 hp 8X4(12 wheels) 7.49 m³ Concrete Mixer Truck
EXW
From $40,958
Export quote
Upcoming
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SHACMAN Delong New M3000 8X4(12 wheels) New Energy Concrete Mixer Truck | 8x4 |
Series Specs
Basic Info
Cab dimensions: 9.505×2.495×3.95 / 10.22×2.55×3.99 / 10.25×2.55×3.995 / 10.625×2.55×3.995 / 9.85×2.495×3.95 / 10.3×2.55×3.995 / 10.08×2.55×3.755 / 10.45×2.495×3.95 / 8.80x2.495x3.3 / 8.31x2.5x3.78 / 9.35×2.5×3.82m
Truck Type: concrete mixer truck
Drive type: 6X4 / 8X4
Front/rear track width: Front track: 2036mm; Rear track: 1860/1860 / Front: 2011/2011mm; Rear: 1860/1860 / Front: 2036/2036mm; Rear: 1860/1860 / Front track: 2036/2036mm; Rear track: 1860/1860 / Front: 2036mm; Rear: 1860/1860 / Front: 2011mm; Rear: 1860/1860
Vehicle origin: Xi'an, Shaanxi / Pingdingshan, Henan / Xi'an, Shaanxi Province
Wheelbase: 4375+1400 / 3975+1400 / 1800+3100+1400 / 1800+3000+1400 / 1800+3000+1200 / 1800+3375+1400 / 1800+3175+1400 / 3150+1400 / 1800+3575+1400mm
Curb Weight: 14.1 / 14 / 14.5 / 15 / 11.8 / 13.4 / 16 / 7.5 / 11.7ton
Rated payload: 10.77 / 16.87 / 16.37 / 9.87 / 17.47 / 8.87 / 13.17ton
Max. speed: 80 / 82km/h
Front/rear suspension: 1.525/2.805 / 1.525/2.32 / 1.525/2.525 / 1.525/2.95 / 1.525/2.575 / 1.525/1.98 / 1.525/3.15 / 1.525/1.505 / 1.485/2.275 / 1.485/1.665 / 1.485/1.65m
Body Parameters
Drum geometric volume: 15m³
Mixing drum capacity: 4.9 / 7.7 / 7.49 / 4.5 / 7.95 / 7.98 / 4.05 / 5.93m³
Vehicle certification code: SX5250GJBFB384 / SX5319GJBMC326TLF1 / SX5310GJBMB3062 / SX5250GJBFB404 / AYD5310GJBSX30 / SX5310GJBMB6 / SX5310GJBMY306N1 / SX5318GJBMR326TL / SX5250GJBFB434 / SX5250GJBMB324 / SX5310GJBMB306
Body Brand: SHACMAN
Others: Standard M cab, engine PTO, hydraulic cab suspension, air driver seat, heavy-duty bumper, electric AC, electric power windows, standard air filter, domestic clutch, domestic steering gear, spare tire carrier, rocker-type FARIZON throttle controller, Tianxingjian Zhiya BD on-board terminal, domestic 4-channel ABS, central door lock, steel air tank, 165Ah maintenance-free battery / Standard M cab, engine PTO, cab hydraulic suspension, air driver seat, heavy-duty bumper, electric AC, electric window regulator, standard air filter, domestic clutch, domestic steering gear, spare tire carrier, rocker-arm FARIZON accelerator pedal, Tianxingjian Zhiya Edition BD onboard terminal, domestic 4-channel ABS, central door lock (with remote), aluminum air tank, 165Ah maintenance-free battery / Powertrain option: 12JSD180T + MAN 16T + 4.769 / Powertrain option: 10JSD140(T) + MAN 16T + 4.769/5.262 / Powertrain option: 10JSD120 + MAN 16T + 4.769 / Powertrain option: 10JSD140(Aluminum) + MAN 13T + 5.262 / Imported oil pump and hydraulic motor, PMP reducer, domestic radiator, others standard
Engine parameters
Injection System: Common Rail (China V)
Engine Model: WeichaiWP12.375E50 / WeichaiWP10.336E53 / WeichaiWP10HNG350E60 / WeichaiWP8.340E51 / WeichaiWP7.340E53 / WeichaiWP10H400E50 / WeichaiWP10.350E53 / WeichaiWP12NG380E51 / WeichaiWP12NG350E52 / WeichaiWP10NG336E50 / Xi’an CumminsISM11E5 345 / WeichaiWP10.336E55 / WeichaiWP7.300E51 / WeichaiWP7.270E51 / WeichaiWP6.245E50
Number of cylinders: 6cylinder
fuel type: Diesel / LNG (liquefied natural gas)
Displacement: 11.596 / 9.726 / 9.5 / 7.8 / 7.47 / 10.8 / 6.75L
Emission standard: China V / China VI
Max output power: 276 / 247 / 257 / 250 / 294 / 280 / 254 / 220 / 199 / 180kW
Max hp: 375 / 336 / 350 / 340 / 400 / 380 / 300 / 270 / 245Horsepower
Rated speed: 1900 / 2100 / 2200 / 2300rpm
Engine Type: Inline, water-cooled, six-cylinder, electronically controlled high-pressure common rail + SCR / Water-cooled, 4-stroke, with exhaust brake, direct injection, turbocharged intercooled / SPI+ER+EGR+TWC / High-pressure common rail+EGR / Electronic high-pressure common rail + SCR / Single-point injection + oxidation catalyst / High-pressure common rail+DOC+DPF+SCR / Full electronic control / Inline 6-cylinder, electronic high-pressure common rail, SCR / Inline, 4-stroke, water-cooled, wet cylinder liner, turbocharged intercooled
Chassis Specs
Chassis Series: Delong New M3000 / New M3000
Chassis Model: SX1250FB / SX1319MC6TLF1 / SX5310GJBMB6 / SX5318GJBMR306 / SX5318GJBMR326TL / SX3250MB4 / SX5250GJBMB4
Front axle description: MAN5.5T / Hande 5.5t MAN technology front axle / MAN 7.5T drum brake / MAN7.5T
Frame Dimensions: 866×308(8+7+8) / 850×300(8+7) / （970-850）×300(8+5) / 850×270(8+4) / 850×300(8+5) / （970-850）×300(8+7) / 850×270(8+5) / 866x308x(8+7+8)mm
rear axle description: MAN 16T dual-reduction / HDS 16T dual reduction / MAN 11.5T single reduction / STR 13T two-stage reduction / 13T STR tech rear axle / Hande 11.5t MAN technology single axle / MAN 16T dual-stage / MAN 13T dual-reduction / MAN 13T dual-stage / STR16T / 13T STR double reduction axle
Axle ratio: 4.769 / 4.266 / 4.8 / 5.286 / 5.73 / 5.262 / 4.625
Leaf spring count: 9/12,10/12 / 10/10/12,14/14/12,10/10/10 / 10/10/12,10/10/10 / Left 14 Right 13/Left 14 Right 13/12 / 10/12 / 3/3/5 / 10/10/10, left 14 right 13/left 14 right 13/12 / 10/12,10/10 / 3/5 / 3/3/5,3/3/-,10/10/12,10/10/10, left 14 right 13/left 14 right 13/12
Transmission Parameters
Number of gears: 12 / 10 / 8 / 9Gear
Transmission Model: Fast Gear12JSD180T / Fast Gear10JSD140 / Fast Gear 10-Speed / Fast Gear10JSD120T / Fast Gear10JSD140T / Fast Gear10JSD120 / Fast Gear10JSD160 / Fast Gear 10JSD140 (Aluminum) / Fast Gear8JS118 / Fast Gear8JS85F / Fast Gear9JS119TB
Cab parameters
Cab: Standard Cab (M) / New M3000 Standard Cab Without Roof Spoiler
Tire
Tire Size: 12.00R20 / 11.00R20 / 12R22.5 / 12.00R20 16PR / 295/80R22.5,11.00R20,12.00R20 18PR / 295/80R22.5 / 12.00R20 18PR / 12.00R20 14PR / 295/80R22.5 18PR
Number of tires: 10 / 12pcs
FAQ
What kind of truck is SHACMAN SHACMAN Delong New M3000 Heavy Truck concrete mixer truck?
SHACMAN SHACMAN Delong New M3000 Heavy Truck is an export-oriented concrete mixer truck lineup with about 37 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for SHACMAN Delong New M3000 Heavy Truck concrete mixer?
SHACMAN Delong New M3000 Heavy Truck concrete mixer export reference is about $37,250 – $60,417. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does SHACMAN Delong New M3000 Heavy Truck concrete mixer cover?
SHACMAN Delong New M3000 Heavy Truck concrete mixer mainly covers: Drive: 6x4 / 8x4; Horsepower: 336 hp / 340 hp / 350 hp / 375 hp; Emission: China V / China VI; Fuel: Diesel / LNG (liquefied natural gas). Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SHACMAN Delong New M3000 Heavy Truck concrete mixer?
For SHACMAN Delong New M3000 Heavy Truck concrete mixer: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does SHACMAN Delong New M3000 Heavy Truck concrete mixer include?
SHACMAN Delong New M3000 Heavy Truck concrete mixer currently lists about 37 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SHACMAN Delong New M3000 Heavy Truck concrete mixer?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
