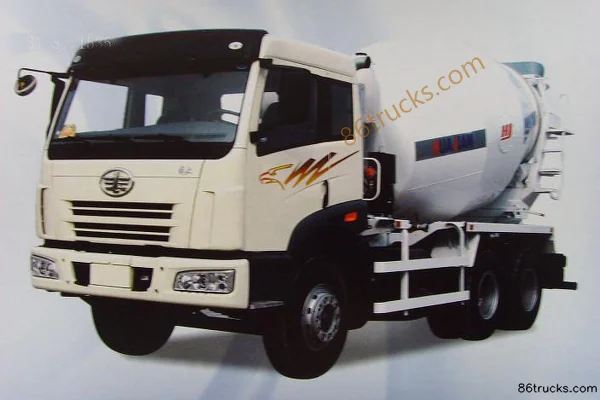

FAW Jiefang Aowei (J5P) 390 hp 6X4(10 wheels) Concrete Mixer Truck (Composite Type)
EXW
Export quote
FAW Jiefang Aowei J5P Heavy-duty Truck concrete
Main model photos
104 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang Aowei (J5P) 390 hp 6X4(10 wheels) Concrete Mixer Truck (Composite Type) | 6x4 / 390hp / China III / Euro III | ||
| FAW Jiefang Aowei (J5P) 350 hp 6X4(10 wheels) Concrete Mixer Truck (Composite Type) | 6x4 / 350hp / China III / Euro III | ||
| FAW Jiefang Aowei (J5P) 335 hp 6X4(10 wheels) Concrete Mixer Truck (Composite Type) | 6x4 / 330hp / China III / Euro III | ||
| FAW Jiefang Aowei (J5P) 350 hp 6X4(10 wheels) Concrete Mixer Truck | 6x4 / 350hp / China III / Euro III | ||
| FAW Jiefang Aowei (J5P) 320 hp 6X4(10 wheels) Concrete Mixer Truck | 6x4 / 320hp / China III / Euro III |
FAW Jiefang Aowei (J5P) 350 hp 6X4(10 wheels) Concrete Mixer Truck (Composite Type)
EXW
Export quote
FAW Jiefang Aowei (J5P) 335 hp 6X4(10 wheels) Concrete Mixer Truck (Composite Type)
EXW
Export quote
FAW Jiefang Aowei (J5P) 350 hp 6X4(10 wheels) Concrete Mixer Truck
EXW
Export quote
FAW Jiefang Aowei (J5P) 320 hp 6X4(10 wheels) Concrete Mixer Truck
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 9.53×2.5×3.95 / 9.45×2.49×3.865 / 8.96×2.496×3.76 / 10.26×2.5×3.95m
Drive type: 6X4 / 8X4
Truck Type: concrete mixer truck
Wheelbase: 4200+1350 / 3900+1350 / 3600+1350 / 3800+1350 / 2000+3100+1350mm
Vehicle origin: Changchun / Changchun, Jilin / Qingdao
Front/rear track width: Front track: 2020mm; Rear track: 1830/1830mm / Front track: 2020, Rear track: 1830/1830 / 1939;1840/1840 / Front track: 2020/2020mm; Rear track: 1830/1830mm
Curb Weight: 15.04 / 12.93 / 12.495 / 12.3 / 15.48ton
Rated payload: 9.765 / 11.875 / 12.3 / 12.505 / 15.325ton
Max. speed: 97 / 76 / 86 / 80 / 78 / 75km/h
Front/rear suspension: 1.418/2.562 / 1.418/2.432 / 1.418/ / 1.493/2.317 / 1.418/2.4m
Body Parameters
Mixing drum capacity: 4.75 / 5.5 / 7m³
Vehicle certification code: CA5252GJBP2K24L1T1E / CA5252GJBP2K2LT1E / CA5252GJBP2K2T1E / CA5250GJBEA80 / CA5312GJBP2K2T4E
Body Brand: FAW Jiefang
Others: Cab: J5P full-floating flat top. Recommended application: GVW 55-70 tons, high load capacity, high efficiency, premium, for concrete mortar transport. Options: 375/420 hp engine, Shaanxi Gear 12JS180A with PTO control. / Cab: J5P full-floating flat top. Recommended application: GVW 55-70 tons, high load capacity, high efficiency, premium, for concrete mortar transport. Options: EGR (mechanical pump) engine, 300/457/485 rear axle, PTO control. / Cab uses J5P full-floating flat roof; recommended operating conditions: GVW 45-60 tons, high load, high efficiency, high-end, concrete mortar transport. Optional configurations: EGR (mechanical pump) engine, 3600+1350mm wheelbase, 300/290 debate reduction rear axle, PTO control mode. / Optional cab; optional modified front lights and front grille cab.
Engine parameters
Engine Model: Xichai CA6DM2-39E3 / XichaiCA6DL2-35E3F / XichaiCA6DL2-33E3F / XichaiCA6DL2-35E3 / XichaiCA6DL1-32E3C / WeichaiWP10.336 / Xichai CA6DL1-32E3
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 11.04 / 8.6 / 7.7 / 9.726L
Emission standard: China III / Euro III
Max output power: 290 / 270 / 246 / 258 / 235 / 247 / 231kW
Max hp: 390 / 350 / 330 / 320 / 336Horsepower
Rated speed: 1900 / 2100 / 2300rpm
Engine Type: Inline / Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled / Inline, electronic, common rail, turbocharged
Chassis Specs
Chassis Series: FAW Jiefang Aowei (J5P)
Chassis Model: CA1252P2K24L1T1S2E / CA1252P2K2LT1S2E / CA1252P2K2T1S2E / CA1250P2K15T1S2EA80 / CA1312P2K2T4S2E
rear axle description: 300, dual axle / 290 wheel reduction / 457, tandem axle / Tandem axle / FAW Jiefang axle 13t
Leaf spring count: 11/12 / 10/12 / 9/9/12
Transmission Parameters
Number of gears: 10 / 9 / 8Gear
Transmission Model: FAW CA10TAX190M / FAW CA10TA190M / Fast Gear 9JS135 / Fast Gear 8JS118 / Fast Gear RT11509C
Tire
Tire Size: 11.00-20，11.00R20，12.00-20，12.00R20 / 12.00-20,12.00R20,11.00-20,11.00R20, / 12.00-20,12.00R20,11.00-20,11.00R20
Number of tires: 10 / 12pcs
FAQ
What kind of truck is FAW Jiefang FAW Jiefang Aowei J5P Heavy-duty Truck concrete mixer truck?
FAW Jiefang FAW Jiefang Aowei J5P Heavy-duty Truck is an export-oriented concrete mixer truck lineup with about 7 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does FAW Jiefang Aowei J5P Heavy-duty Truck concrete cover?
FAW Jiefang Aowei J5P Heavy-duty Truck concrete mainly covers: Drive: 6x4; Horsepower: 320 hp / 330 hp / 350 hp / 390 hp; Emission: China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in FAW Jiefang Aowei J5P Heavy-duty Truck concrete?
For FAW Jiefang Aowei J5P Heavy-duty Truck concrete: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does FAW Jiefang Aowei J5P Heavy-duty Truck concrete include?
FAW Jiefang Aowei J5P Heavy-duty Truck concrete currently lists about 7 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FAW Jiefang Aowei J5P Heavy-duty Truck concrete?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
