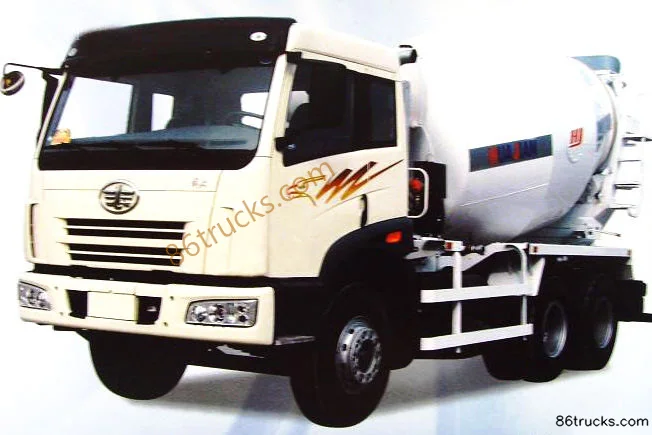

FAW Jiefang Aowei (J5P) 390 hp 6X4(10 wheels) Concrete Mixer Truck (Composite Type)

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 15.04ton
Wheelbase:: 4200+1350mm
Tire Size:: 11.00-20,11.00R20,12.00-20,12.00R20
Cab dimensions:: 9.53×2.5×3.95m
Truck Type:: concrete mixer truck
Rated payload: 9.765ton
Drive 6X4 (10 wheels)
Horsepower 390
Emission China III / Euro III

Overview

The FAW Jiefang Aowei (J5P) 390 hp 6X4(10 wheels) Concrete Mixer Truck (Composite Type) is a concrete mixer truck featuring 9.765t payload, 15.04ton GVW, 6X4 (10 wheels) drive and 9.53×2.5×3.95m cab. On the powertrain side, it comes with 390 hp, China III / Euro III emissions and Diesel fuel.

China III / Euro III 390 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.53×2.5×3.95m
Drive type: 6X4
Truck Type: concrete mixer truck
Wheelbase: 4200+1350mm
Vehicle origin: Changchun
Front/rear track width: Front track: 2020mm; Rear track: 1830/1830mm
Curb Weight: 15.04ton
Rated payload: 9.765ton
Max. speed: 97km/h
Front/rear suspension: 1.418/2.562m
Body Parameters
Mixing drum capacity: 4.75m³
Vehicle certification code: CA5252GJBP2K24L1T1E
Body Brand: FAW Jiefang
Others: Cab: J5P full-floating flat top. Recommended application: GVW 55-70 tons, high load capacity, high efficiency, premium, for concrete mortar transport. Options: 375/420 hp engine, Shaanxi Gear 12JS180A with PTO control.
Engine parameters
Engine Model: Xichai CA6DM2-39E3
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 11.04L
Emission standard: China III / Euro III
Max output power: 290kW
Max hp: 390Horsepower
Rated speed: 1900rpm
Engine Type: Inline
Chassis Specs
Chassis Series: FAW Jiefang Aowei (J5P)
Chassis Model: CA1252P2K24L1T1S2E
rear axle description: 300, dual axle
Leaf spring count: 11/12
Transmission Parameters
Number of gears: 10Gear
Transmission Model: FAW CA10TAX190M
Tire
Tire Size: 11.00-20,11.00R20,12.00-20,12.00R20
Number of tires: 10pcs

Photos

Exterior1

1 photos

FAQ

What emission standard does FAW Jiefang Aowei (J5P) 390 hp 6X4(10 wheels) Concrete Mixer Truck (Composite Type) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Aowei (J5P) 390 hp 6X4(10 wheels) Concrete Mixer Truck (Composite Type)?

Key specs of FAW Jiefang Aowei (J5P) 390 hp 6X4(10 wheels) Concrete Mixer Truck (Composite Type): Drive: 6x4; Horsepower: 390 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Aowei (J5P) 390 hp 6X4(10 wheels) Concrete Mixer Truck (Composite Type) suited for?

FAW Jiefang Aowei (J5P) 390 hp 6X4(10 wheels) Concrete Mixer Truck (Composite Type) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Aowei (J5P) 390 hp 6X4(10 wheels) Concrete Mixer Truck (Composite Type) differ from other variants in the same series?

FAW Jiefang Aowei (J5P) 390 hp 6X4(10 wheels) Concrete Mixer Truck (Composite Type) belongs to FAW Jiefang Aowei J5P Heavy-duty Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Aowei (J5P) 390 hp 6X4(10 wheels) Concrete Mixer Truck (Composite Type)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Aowei (J5P) 390 hp 6X4(10 wheels) Concrete Mixer Truck (Composite Type)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
