Sinotruk Hohan N5G 340hp 8X4(12 wheels) 7.7 cubic meter concrete mixer truck (Dongyue brand)
EXW
From $62,500
Export quote
Zhongtong Sinotruk chassis concrete mixer truck
Main model photos
4 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk Hohan N5G 340hp 8X4(12 wheels) 7.7 cubic meter concrete mixer truck (Dongyue brand) | 8x4 / 340hp / China V | From $62,500 | |
| Sinotruk Haohan N5G 340hp 8X4(12 wheels) 7.97m³ concrete mixer truck (Dongyue brand) | 8x4 / 340hp / China V | From $58,333 |

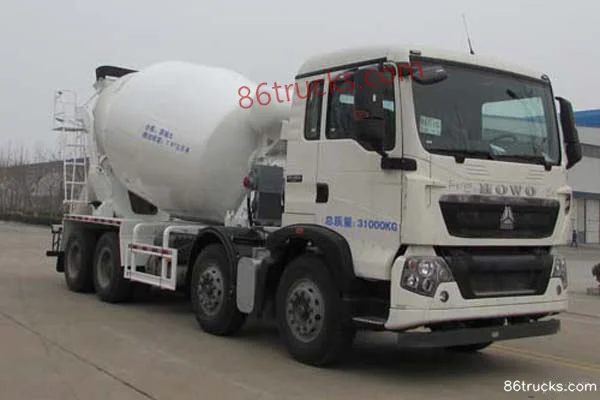

Sinotruk Haohan N5G 340hp 8X4(12 wheels) 7.97m³ concrete mixer truck (Dongyue brand)
EXW
From $58,333
Export quote
Series Specs
Basic Info
Cab dimensions: 10.16×2.496×4 / 9.76×2.496×3.95m
Drive type: 8X4
Truck Type: Concrete mixer truck
Vehicle origin: Liaocheng, Shandong
Front/rear track width: Front: 2035/2035mm; Rear: 1850/1850
Wheelbase: 1800+3050+1350mm
Curb Weight: 14 / 13.31ton
Rated payload: 16.87 / 17.56ton
Max. speed: 82km/h
Front/rear suspension: 1.55/2.41 / 1.43/2.105m
Body Parameters
Mixing drum capacity: 7.7 / 7.97m³
Vehicle certification code: ZTQ5310GJBZ5N30E / ZTQ5310GJBZ7N30E
Body Brand: Dongyue brand
Engine parameters
Engine Model: SinotrukMC07.34-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 245kW
Max hp: 340Horsepower
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Chassis Specs
Chassis Series: N5G
Chassis Model: ZZ1317N306GE1
Front axle description: H653
Frame Dimensions: (8+5/300)mm
rear axle description: MAT16ZG
Axle ratio: 5.73
Leaf spring count: 11/11/10
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW15710L
Cab parameters
Cab: TX-W
Tire
Tire Size: 11.00R20
Number of tires: 12pcs
FAQ
What kind of truck is Zhongtong Zhongtong Sinotruk chassis concrete mixer truck?
Zhongtong Zhongtong Sinotruk chassis is an export-oriented concrete mixer truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Zhongtong Sinotruk chassis concrete mixer truck?
Zhongtong Sinotruk chassis concrete mixer truck export reference is about $58,333 – $62,500. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Zhongtong Sinotruk chassis concrete mixer truck cover?
Zhongtong Sinotruk chassis concrete mixer truck mainly covers: Drive: 8x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Zhongtong Sinotruk chassis concrete mixer truck?
For Zhongtong Sinotruk chassis concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Zhongtong Sinotruk chassis concrete mixer truck include?
Zhongtong Sinotruk chassis concrete mixer truck currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Zhongtong Sinotruk chassis concrete mixer truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
