Sinotruk Haohan N5G 340hp 8X4(12 wheels) 7.97m³ concrete mixer truck (Dongyue brand)

Export reference
From $58,333
MSRP ¥42M CNY
Fuel: Diesel
Curb Weight:: 13.31ton
Wheelbase:: 1800+3050+1350mm
Tire Size:: 11.00R20
Cab dimensions:: 9.76×2.496×3.95m
Truck Type:: Concrete mixer truck
Rated payload: 17.56ton
Drive 8X4 (12 wheels)
Horsepower 340
Emission China V

Overview

The Zhongtong Sinotruk Haohan N5G 340hp 8X4(12 wheels) 7.97m³ concrete mixer truck (Dongyue brand) is a concrete mixer truck featuring 17.56t payload, 13.31ton GVW, 8X4 (12 wheels) drive and TX-W cab. On the powertrain side, it comes with 340 hp, China V emissions and Diesel fuel.

China V 340 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.76×2.496×3.95m
Drive type: 8X4
Truck Type: Concrete mixer truck
Vehicle origin: Liaocheng, Shandong
Front/rear track width: Front: 2035/2035mm; Rear: 1850/1850
Wheelbase: 1800+3050+1350mm
Curb Weight: 13.31ton
Rated payload: 17.56ton
Max. speed: 82km/h
Front/rear suspension: 1.43/2.105m
Body Parameters
Mixing drum capacity: 7.97m³
Vehicle certification code: ZTQ5310GJBZ7N30E
Body Brand: Dongyue brand
Engine parameters
Engine Model: SinotrukMC07.34-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 245kW
Max hp: 340Horsepower
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Chassis Specs
Chassis Series: N5G
Chassis Model: ZZ1317N306GE1
Front axle description: H653
Frame Dimensions: (8+5/300)mm
rear axle description: MAT16ZG
Axle ratio: 5.73
Leaf spring count: 11/11/10
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW15710L
Cab parameters
Cab: TX-W
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

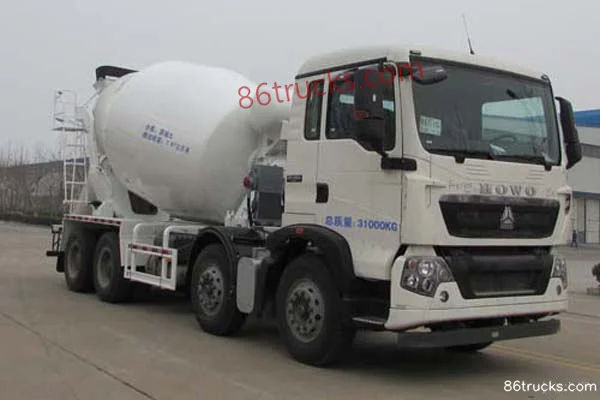

Photos

Exterior1

1 photos

FAQ

What is the export price of Sinotruk Haohan N5G 340hp 8X4(12 wheels) 7.97m³ concrete mixer truck (Dongyue brand), and what does it include?

Sinotruk Haohan N5G 340hp 8X4(12 wheels) 7.97m³ concrete mixer truck (Dongyue brand) export reference is about From $58,333; MSRP is ¥42M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Haohan N5G 340hp 8X4(12 wheels) 7.97m³ concrete mixer truck (Dongyue brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Haohan N5G 340hp 8X4(12 wheels) 7.97m³ concrete mixer truck (Dongyue brand)?

Key specs of Sinotruk Haohan N5G 340hp 8X4(12 wheels) 7.97m³ concrete mixer truck (Dongyue brand): Drive: 8x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Haohan N5G 340hp 8X4(12 wheels) 7.97m³ concrete mixer truck (Dongyue brand) suited for?

Sinotruk Haohan N5G 340hp 8X4(12 wheels) 7.97m³ concrete mixer truck (Dongyue brand) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Haohan N5G 340hp 8X4(12 wheels) 7.97m³ concrete mixer truck (Dongyue brand) differ from other variants in the same series?

Sinotruk Haohan N5G 340hp 8X4(12 wheels) 7.97m³ concrete mixer truck (Dongyue brand) belongs to Zhongtong Sinotruk chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Haohan N5G 340hp 8X4(12 wheels) 7.97m³ concrete mixer truck (Dongyue brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Haohan N5G 340hp 8X4(12 wheels) 7.97m³ concrete mixer truck (Dongyue brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
