Dayun F7 Composite 300hp 6X4(10 wheels) 5.9m³ Concrete Mixer Truck (China VI)
EXW
Export quote

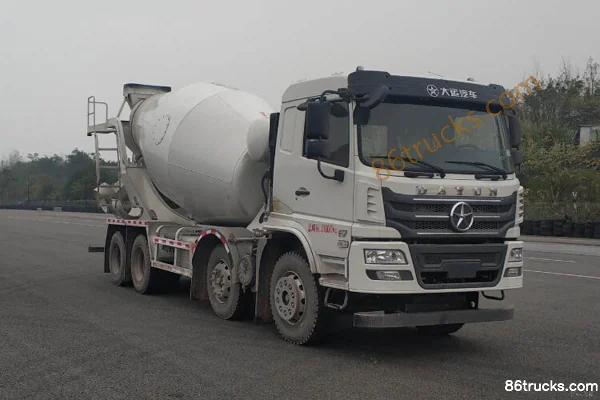

DayunF7 concrete mixer truck
Main model photos
214 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dayun F7 Composite 300hp 6X4(10 wheels) 5.9m³ Concrete Mixer Truck (China VI) | 6x4 / 300hp / China VI | ||
| Dayun F7 320hp Heavy-Duty 8X4(12 wheels) 7.99m³ Concrete Mixer Truck (China VI) | 8x4 / 320hp / China VI | ||
| Dayun F7 Heavy-Duty 320hp 8X4(12 wheels) 7.79m³ Concrete Mixer Truck (China VI) | 8x4 / 320hp / China VI | ||
| Dayun F7 245hp 6X4(10 wheels) 5.9m³ Concrete Mixer Truck (China VI) | 6x4 / 245hp / China VI | ||
| Dayun F7 270hp 6X4(10 wheels) 5.9m³ concrete mixer truck (China VI) | 6x4 / 270hp / China VI |
Dayun F7 320hp Heavy-Duty 8X4(12 wheels) 7.99m³ Concrete Mixer Truck (China VI)
EXW
Export quote
Dayun F7 Heavy-Duty 320hp 8X4(12 wheels) 7.79m³ Concrete Mixer Truck (China VI)
EXW
Export quote
Dayun F7 245hp 6X4(10 wheels) 5.9m³ Concrete Mixer Truck (China VI)
EXW
Export quote
Dayun F7 270hp 6X4(10 wheels) 5.9m³ concrete mixer truck (China VI)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 8.91×2.525×3.9 / 9.9×2.525×3.96 / 10.18×2.525×3.96 / 9.06×2.525×3.9 / 8.66×2.525×3.9m
Drive type: 6X4 / 8X4
Truck Type: Concrete mixer truck
Vehicle origin: Shiyan, Hubei
Front/rear track width: 2065/1860/1860 / 2065/2065；1860/1860 / 2065/2065/1860/1860 / 2065；1860/1860mm
Wheelbase: 3650+1350 / 1850+3000+1350 / 3800+1350 / 3400+1350mm
Curb Weight: 11.465 / 13.435 / 13.865ton
Rated payload: 12.905 / 17.435 / 17.005ton
Max. speed: 80km/h
Front/rear suspension: 1.46/2.45 / 1.46/2.24 / 1.46/2.52m
Body Parameters
Mixing drum capacity: 5.9 / 7.99 / 7.79m³
Vehicle certification code: DYZ5240GJBD6DC / DYZ5310GJBD6FC / DYZ5310GJBD6FB
Body Brand: Dayun
Engine parameters
Engine Model: YuchaiYCK08300-60 / WeichaiWP8.320E61 / YuchaiYCS06245-60A / YuchaiYCS06270-60 / YuchaiYCK05240-60
Number of cylinders: 6 / 4cylinder
fuel type: Diesel
Displacement: 7.7 / 7.8 / 6.23 / 5.13L
Emission standard: China VI
Max output power: 221 / 235 / 180 / 199 / 176kW
Max hp: 300 / 320 / 245 / 270 / 240Horsepower
Rated speed: 2200 / 2100 / 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC / Inline 6-cylinder, water-cooled, 4-stroke, high-pressure common rail, turbocharged intercooled, EGR
Chassis Specs
Chassis Series: F7
Chassis Model: DYQ1240D6DA / DYQ1310D6FA
Front axle description: 153 widened axle/5t / Dual 153 widened axle/5t
Frame Dimensions: (940-860)×280×(8+6)mm
rear axle description: Dual 153 standard axle/10t
Axle ratio: 5.143 / 5.571
Leaf spring count: 9/10 / 9/9/10
Transmission Parameters
Number of gears: 9 / 10 / 8Gear
Transmission Model: Fast Gear9JS119 / Fast Gear10JSD140B / Fast Gear8JS118
Cab parameters
Cab: Day cab standard roof
Tire
Tire Size: 11.00R20 18PR / 11R22.5 18PR / 10.00R20 18PR
Number of tires: 10 / 12pcs
FAQ
What kind of truck is Dayun DayunF7 concrete mixer truck?
Dayun DayunF7 is an export-oriented concrete mixer truck lineup with about 7 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does DayunF7 concrete mixer truck cover?
DayunF7 concrete mixer truck mainly covers: Drive: 6x4 / 8x4; Horsepower: 245 hp / 270 hp / 300 hp / 320 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in DayunF7 concrete mixer truck?
For DayunF7 concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does DayunF7 concrete mixer truck include?
DayunF7 concrete mixer truck currently lists about 7 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for DayunF7 concrete mixer truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
