FAW Jiefang Qingdao JK6 Lightweight 8X4(12 wheels) Pure Electric Mixer Truck Chassis 350kWh
EXW
From $81,444
Export quote
FAW Jiefang QingdaoJK6 concrete mixer truck
Main model photos
674 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang Qingdao JK6 Lightweight 8X4(12 wheels) Pure Electric Mixer Truck Chassis 350kWh | 8x4 | From $81,444 | |
| FAW Jiefang Qingdao JK6 8X4(12 wheels) Battery Swap Pure Electric Concrete Mixer Truck Chassis 281.92kWh | 8x4 | From $77,764 | |
| FAW Jiefang Qingdao JK6 8X4(12 wheels) 6.79m³ Pure Electric Concrete Mixer Truck (Ruijiang Brand) 350.08kWh | 8x4 | ||
| FAW Jiefang Qingdao JK6 320hp 8X4(12 wheels) 8m³ Concrete Mixer Truck (Ruijiang Brand) | 8x4 / 320hp / China VI | ||
| FAW Jiefang Qingdao JK6 320hp Lightweight Version 8X4(12 wheels) 8m³ Concrete Mixer Truck | 8x4 / 320hp / China VI | From $62,500 |
FAW Jiefang Qingdao JK6 8X4(12 wheels) Battery Swap Pure Electric Concrete Mixer Truck Chassis 281.92kWh
EXW
From $77,764
Export quote
FAW Jiefang Qingdao JK6 8X4(12 wheels) 6.79m³ Pure Electric Concrete Mixer Truck (Ruijiang Brand) 350.08kWh
EXW
Export quote

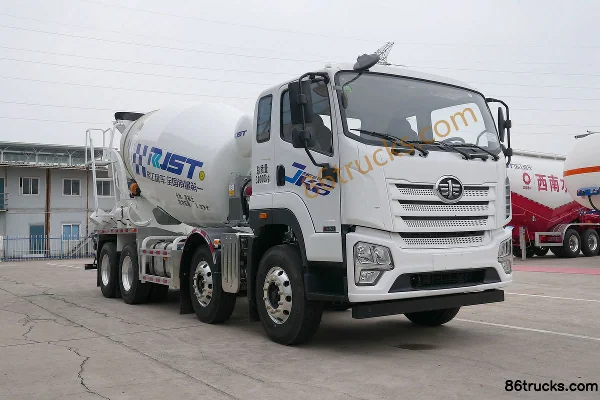

FAW Jiefang Qingdao JK6 320hp 8X4(12 wheels) 8m³ Concrete Mixer Truck (Ruijiang Brand)
EXW
Export quote

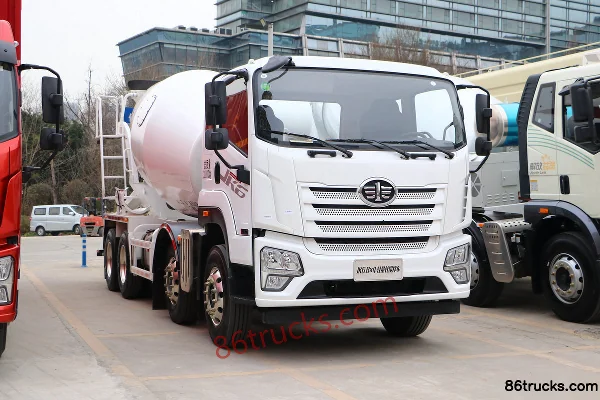

FAW Jiefang Qingdao JK6 320hp Lightweight Version 8X4(12 wheels) 8m³ Concrete Mixer Truck
EXW
From $62,500
Export quote
Series Specs
Basic Info
Cab dimensions: 9.21x2.55x3.435 / 10.85×2.55×3.99 / 10.02×2.55×3.85m
Drive type: 8X4
Truck Type: Concrete mixer truck / Battery swap electric concrete mixer truck / electric concrete mixer transport truck
Front/rear track width: Front 1965/1965, Rear 1878/1878 / Front: 1965/1965mm; Rear: 1870/1870 / Front: 1964/1964mm; Rear: 1870/1870
Vehicle origin: Wuhu / Qingdao, Shandong
Wheelbase: 1900+3350+1350 / 1900+2950+1350mm
Curb Weight: 11.7 / 16.05 / 11.6ton
Rated payload: 14.82 / 19.27ton
Max. speed: 89km/h
Front/rear suspension: 1.41/1.2 / 1.41/2.84 / 1.41/2.41m
electric motor
Motor 1 Brand: FAW / CRRC Times
Motor 1 Model: CAM400PT52 / TZ400XS035 / FAWCAM400PT52
Motor Type: Permanent magnet synchronous motor
total rated power: 270 / 250kW
Peak power: 420 / 360kW
total peak torque: 2600 / 2500N·m
total rated torque: 1500 / 1600N·m
Body Parameters
Mixing drum capacity: 6.79 / 8m³
Vehicle certification code: WL5311GJBCADFBEV / WL5319GJBCAG6AE / CA1311P28K1L4T4BE6A81 / CA1311P28L3T4BEVA80
Body Brand: Ruijiang / FAW Jiefang Qingdao
Engine parameters
Engine Model: DachaiCA6DK2-32E65
Number of cylinders: 6cylinder
fuel type: Electric / Diesel
Displacement: 7.751L
Emission standard: China VI
Max output power: 238kW
Max hp: 320Horsepower
Rated speed: 2100rpm
Engine Type: DOC+DPF+HI+SCR
Chassis Specs
Chassis Series: FAW JiefangJK6 / JK6
Chassis Model: CA1311P28L3T4BEVA80 / CA1310P28L3T4BEVA80 / CA1311P28K1L4T4BE6A81
Front axle description: A5S Improved Front Axle (Drum Brake) / A5S Front Axle / A5S Improved Front Axle
Frame Dimensions: 300×80×(8+5) / 270×75×(7+5)mm
rear axle description: 270 hub-reduction axle (drum brake) / 270 hub-reduction axle / 435 upgraded stamped-welded axle
Axle ratio: 5.263 / 4.875
Leaf spring count: 4/4/5 / 3/3/4
Transmission Parameters
Number of gears: 6 / 10Gear
Transmission Model: Fast Gear6E240 / Fast Gear10JSD140T
Cab parameters
Cab: JK6 Mid-Roof Full-Float Cab / JK6 flat-roof full-floating cab
Tire
Tire Size: 12R22.5 18PR / 11R22.5 18PR
FAQ
What kind of truck is FAW Jiefang Qingdao FAW Jiefang QingdaoJK6 concrete mixer truck?
FAW Jiefang Qingdao FAW Jiefang QingdaoJK6 is an export-oriented concrete mixer truck lineup with about 6 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for FAW Jiefang QingdaoJK6 concrete mixer truck?
FAW Jiefang QingdaoJK6 concrete mixer truck export reference is about $62,500 – $81,444. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does FAW Jiefang QingdaoJK6 concrete mixer truck cover?
FAW Jiefang QingdaoJK6 concrete mixer truck mainly covers: Drive: 8x4; Horsepower: 320 hp; Emission: China VI; Fuel: Diesel / Electric. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in FAW Jiefang QingdaoJK6 concrete mixer truck?
For FAW Jiefang QingdaoJK6 concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does FAW Jiefang QingdaoJK6 concrete mixer truck include?
FAW Jiefang QingdaoJK6 concrete mixer truck currently lists about 6 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FAW Jiefang QingdaoJK6 concrete mixer truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
