FAW Jiefang Qingdao JK6 320hp 8X4(12 wheels) 8m³ Concrete Mixer Truck (Ruijiang Brand)

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 11.6ton
Wheelbase:: 1900+2950+1350mm
Tire Size:: 11R22.5 18PR
Cab dimensions:: 10.02×2.55×3.85m
Truck Type:: Concrete mixer truck
Rated payload: 19.27ton
Drive 8x4 (12 wheels)
Horsepower 320
Emission China VI

Overview

The FAW Jiefang Qingdao JK6 320hp 8X4(12 wheels) 8m³ Concrete Mixer Truck (Ruijiang Brand) is a concrete mixer truck featuring 19.27t payload, 11.6ton GVW, 8x4 (12 wheels) drive and JK6 flat-roof full-floating cab cab. On the powertrain side, it comes with 320 hp, China VI emissions and Diesel fuel.

China VI 320 Diesel 8x4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.02×2.55×3.85m
Truck Type: Concrete mixer truck
Drive type: 8x4
Wheelbase: 1900+2950+1350mm
Front/rear track width: Front: 1964/1964mm; Rear: 1870/1870
Curb Weight: 11.6ton
Rated payload: 19.27ton
Max. speed: 89km/h
Front/rear suspension: 1.41/2.41m
Body Parameters
Mixing drum capacity: 8m³
Vehicle certification code: WL5319GJBCAG6AE
Body Brand: Ruijiang
Engine parameters
Engine Model: DachaiCA6DK2-32E65
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.751L
Emission standard: China VI
Max output power: 238kW
Max hp: 320Horsepower
Rated speed: 2100rpm
Engine Type: DOC+DPF+HI+SCR
Chassis Specs
Chassis Series: JK6
Chassis Model: CA1311P28K1L4T4BE6A81
Frame Dimensions: 270×75×(7+5)mm
rear axle description: 435 upgraded stamped-welded axle
Axle ratio: 4.875
Leaf spring count: 3/3/4
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Fast Gear10JSD140T
Cab parameters
Cab: JK6 flat-roof full-floating cab
Tire
Tire Size: 11R22.5 18PR
Number of tires: 12pcs

Photos

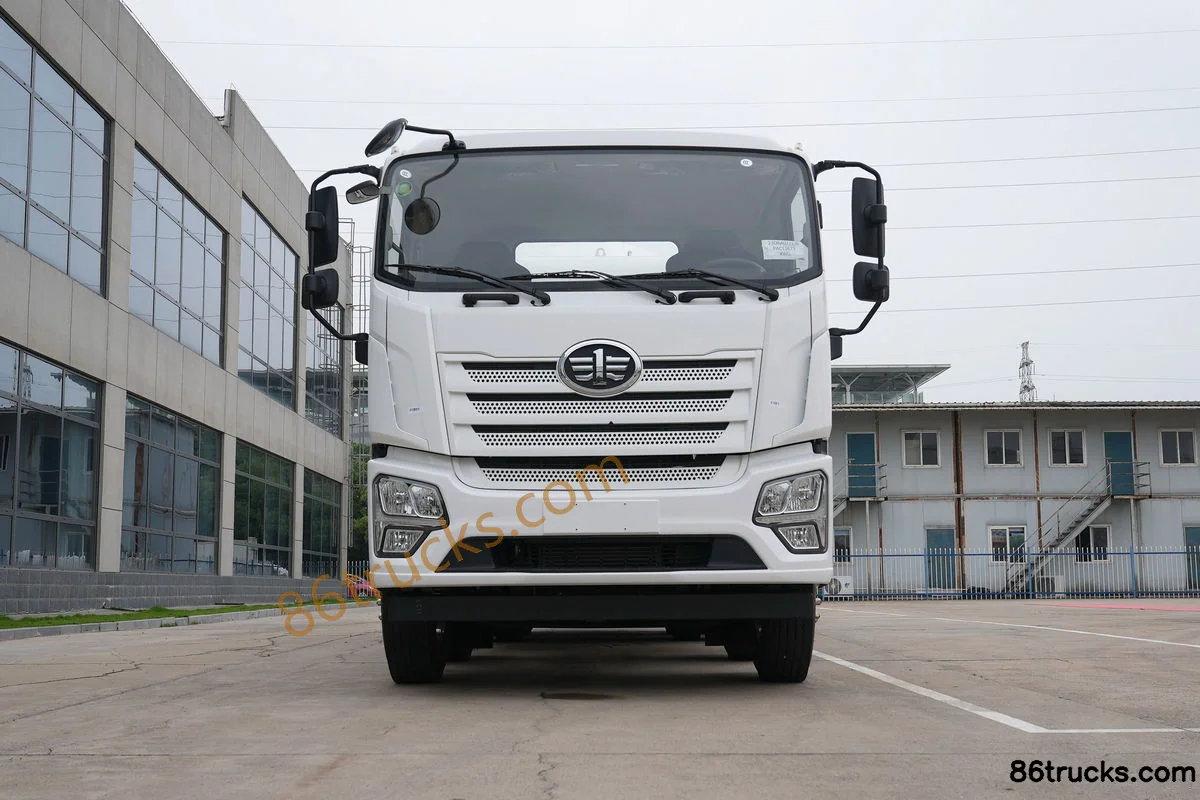

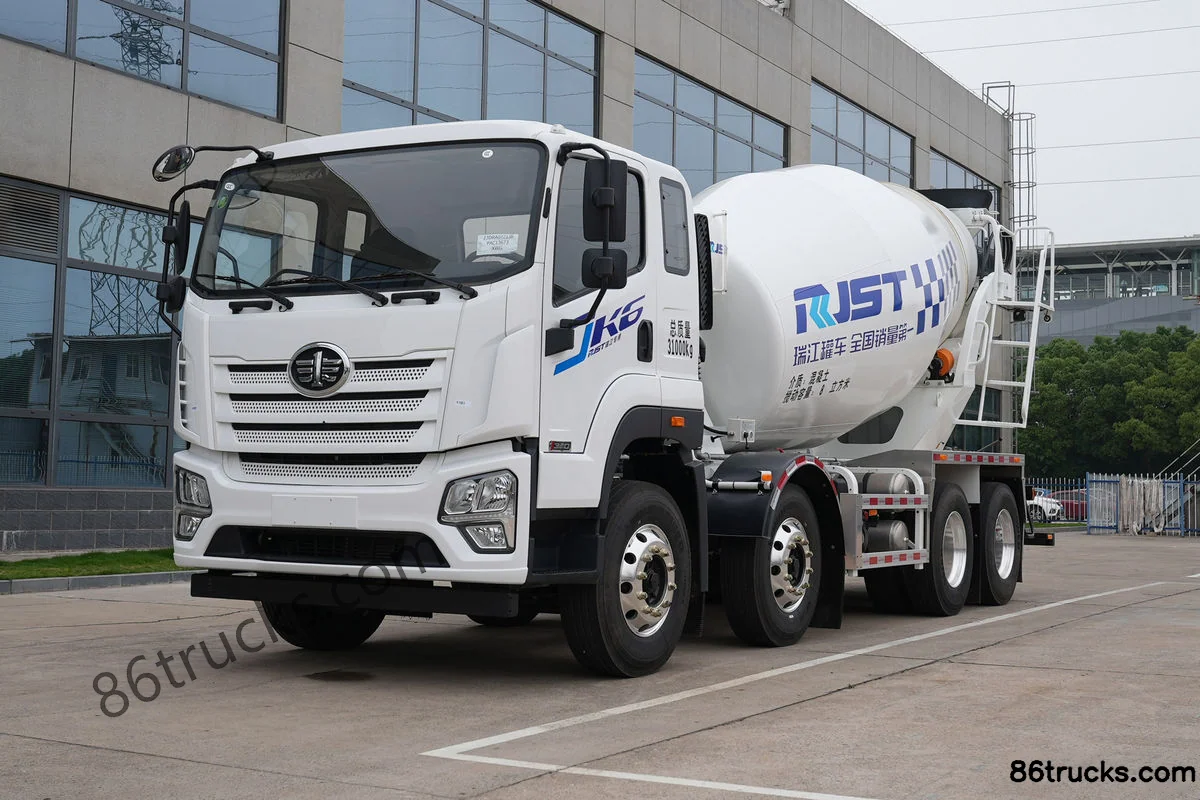

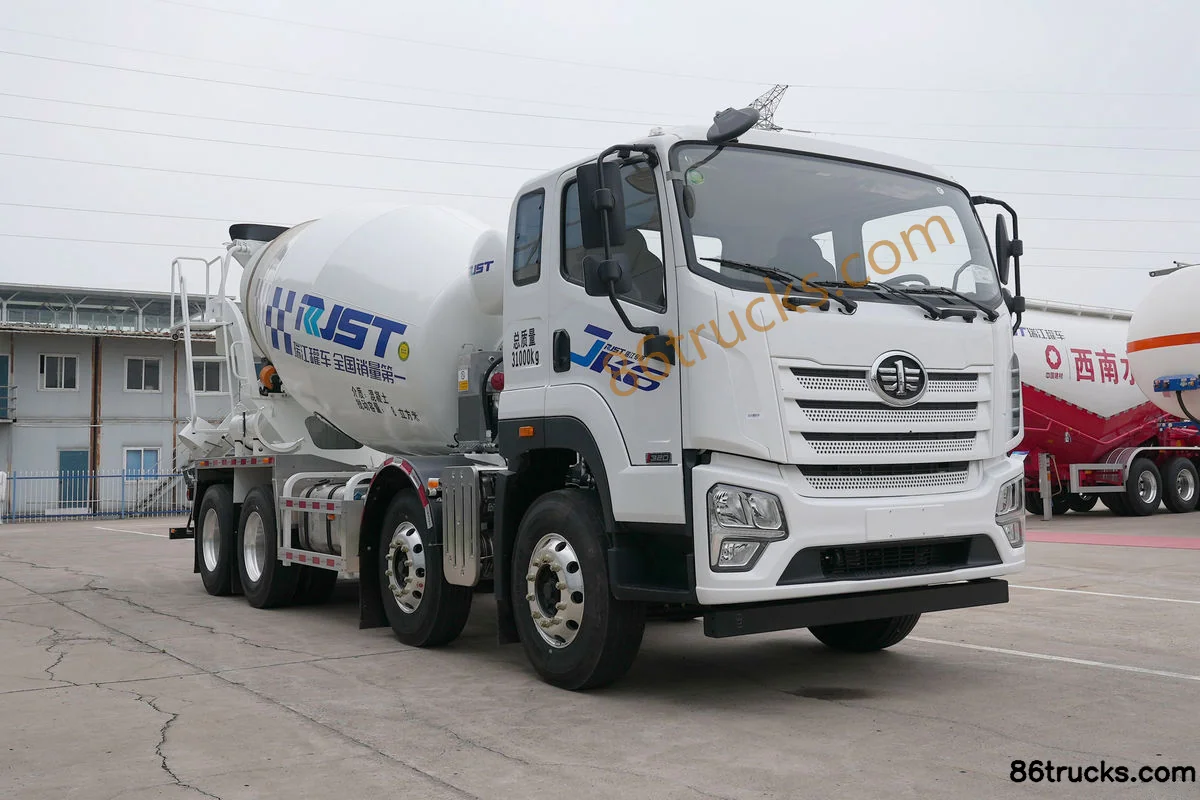

Exterior3

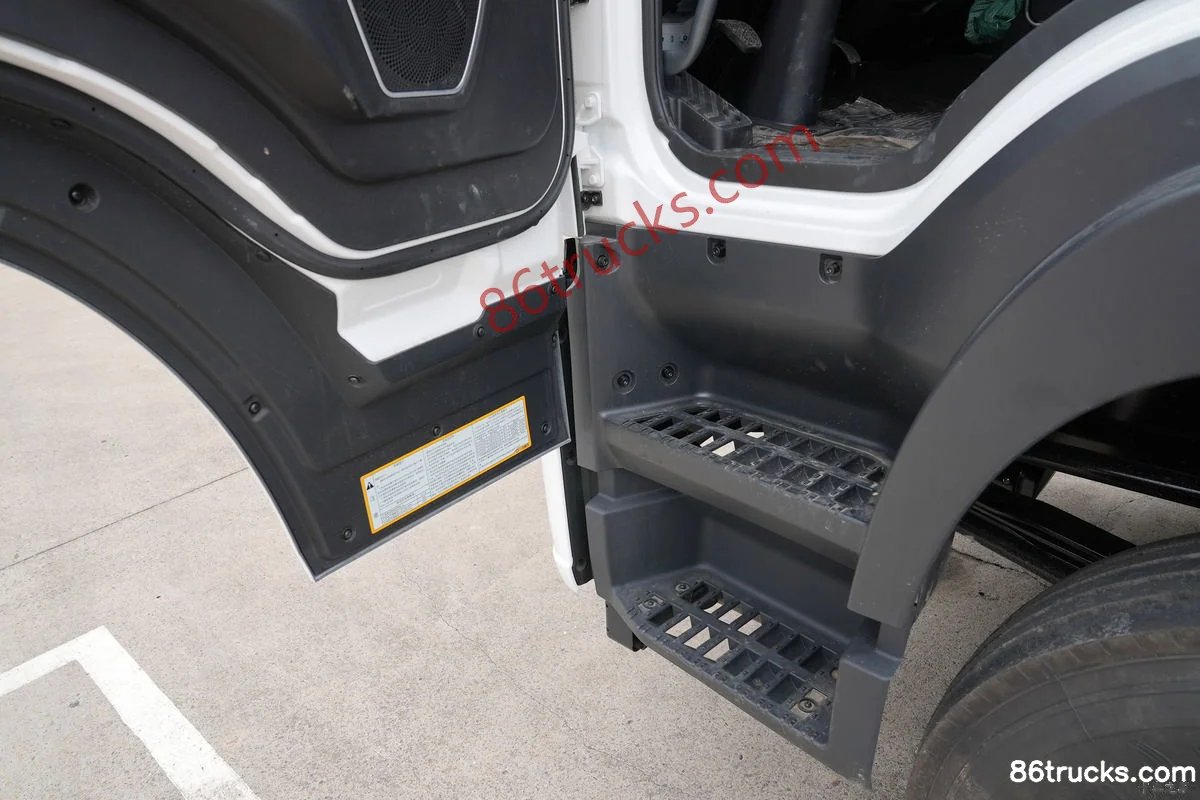

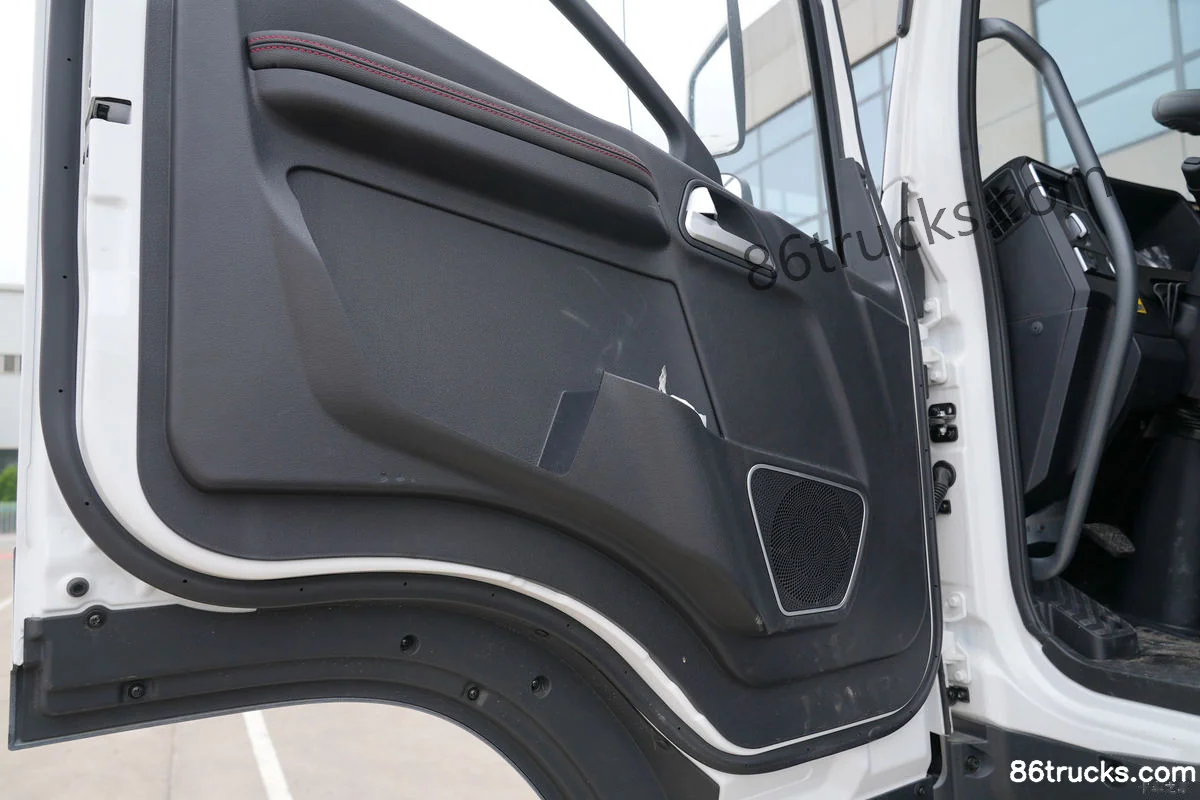

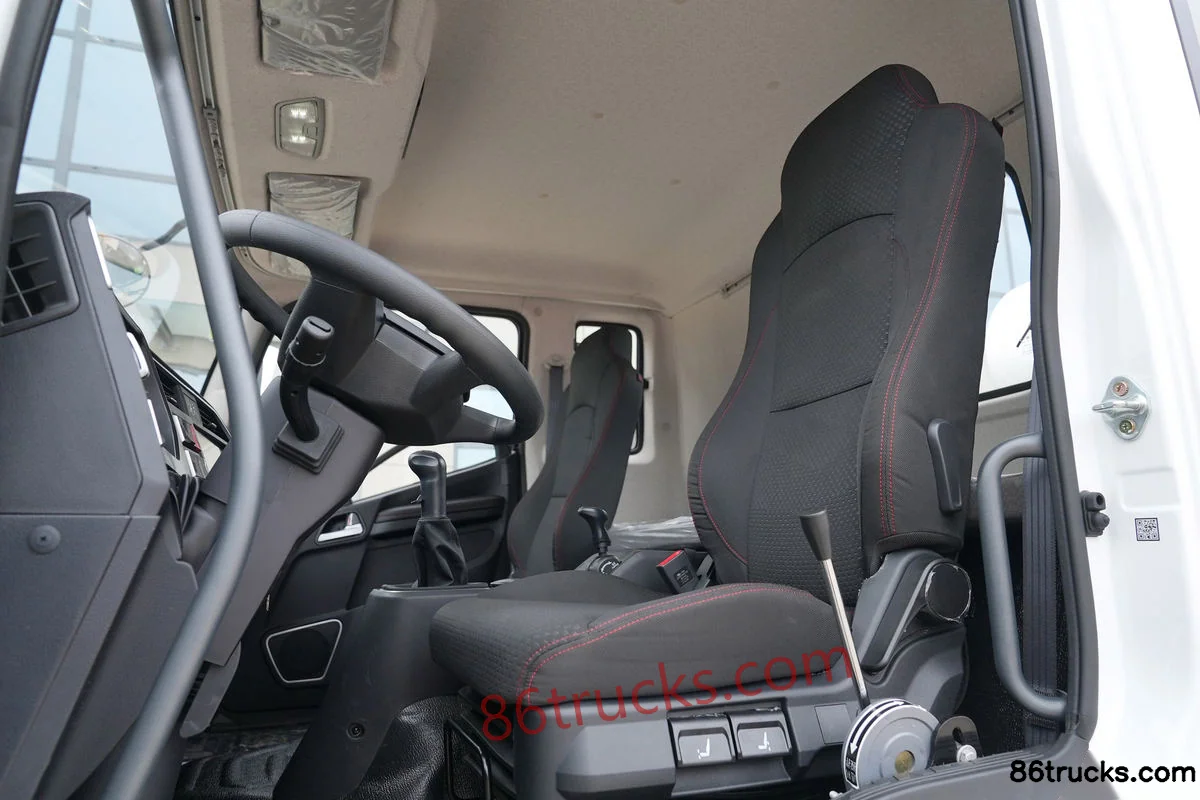

Cab3

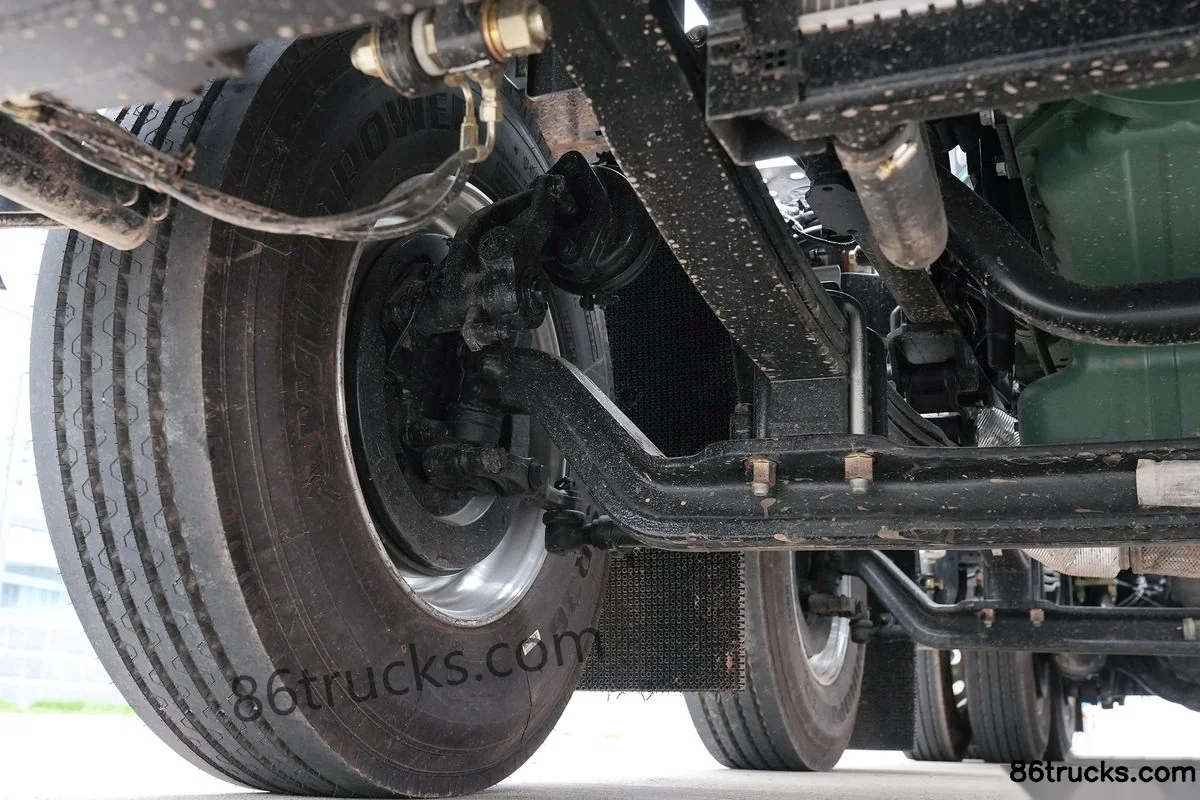

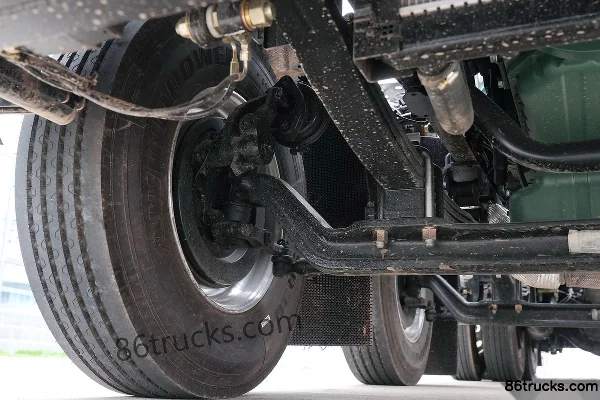

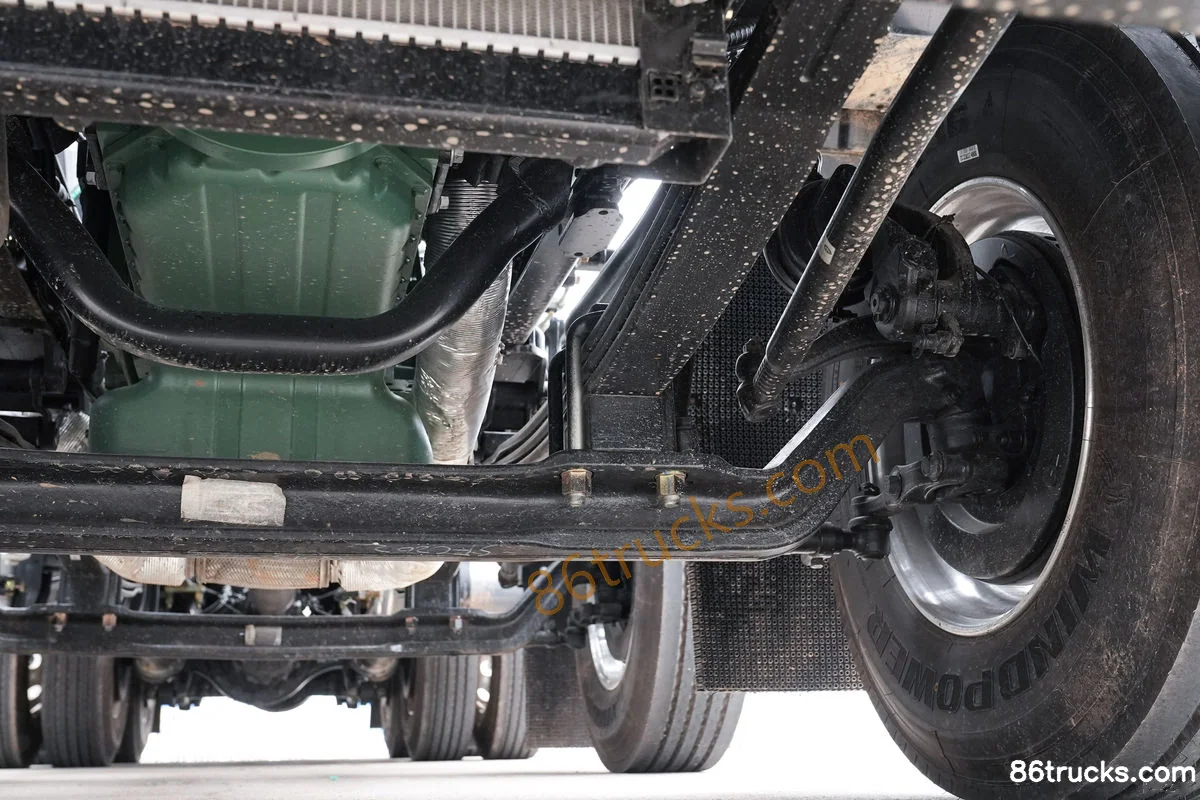

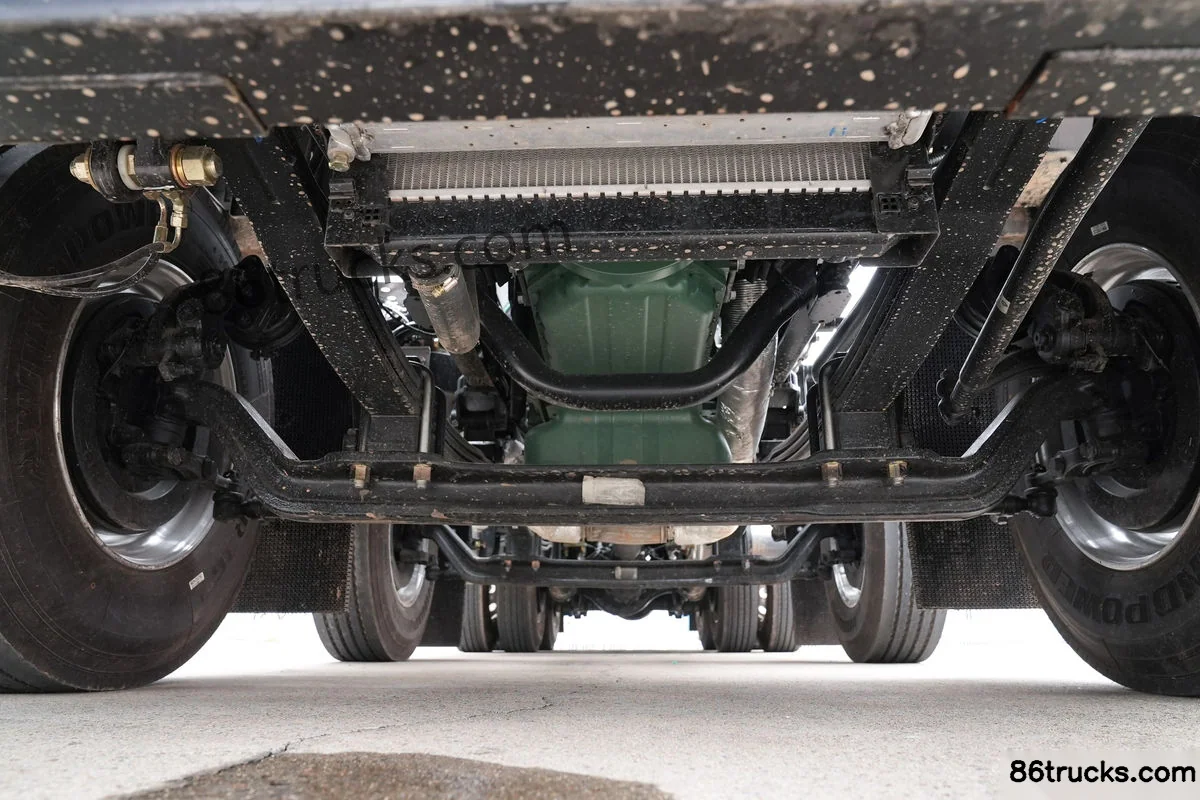

Chassis3

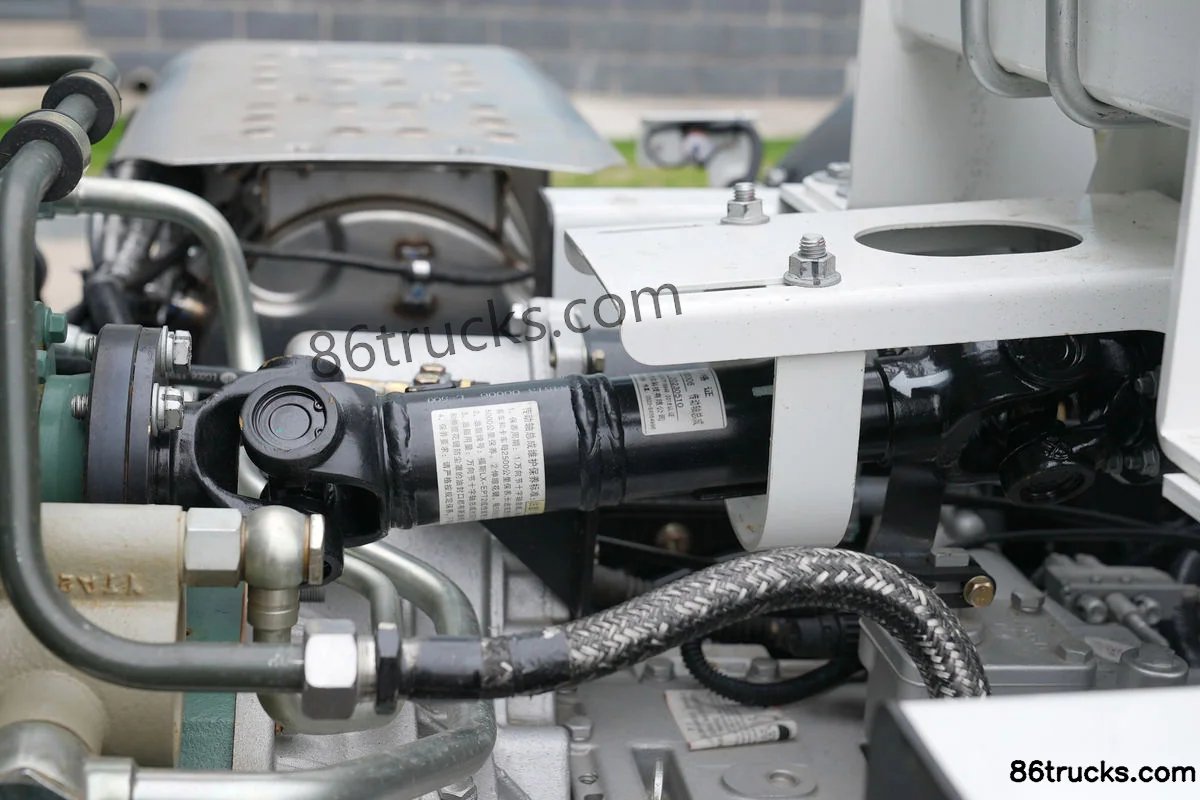

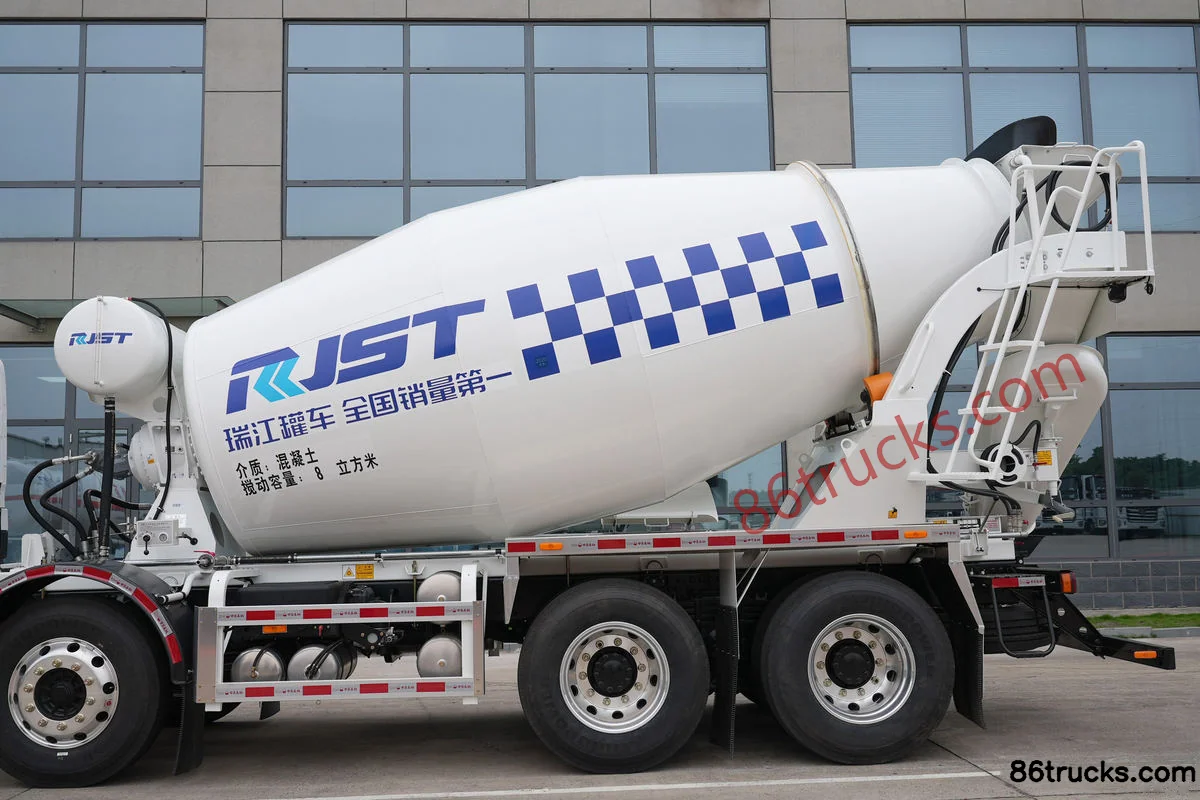

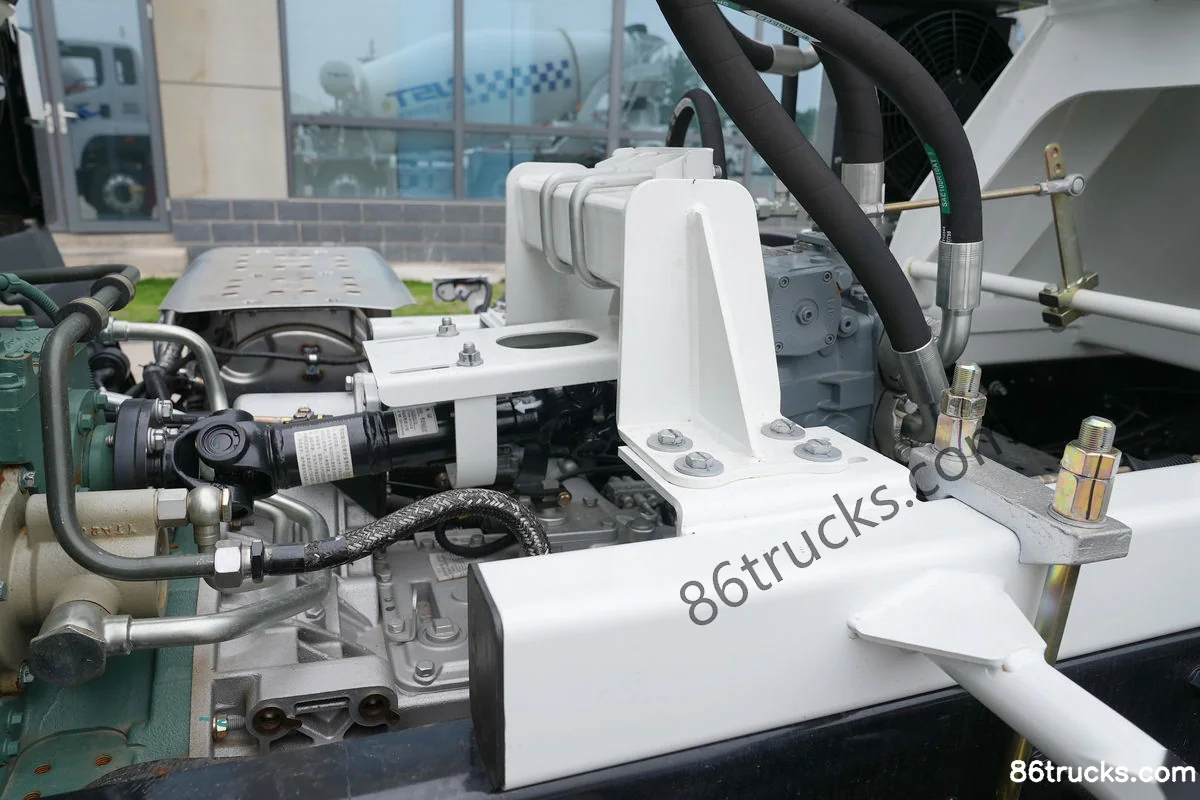

Body3

12 photos

FAQ

What emission standard does FAW Jiefang Qingdao JK6 320hp 8X4(12 wheels) 8m³ Concrete Mixer Truck (Ruijiang Brand) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao JK6 320hp 8X4(12 wheels) 8m³ Concrete Mixer Truck (Ruijiang Brand)?

Key specs of FAW Jiefang Qingdao JK6 320hp 8X4(12 wheels) 8m³ Concrete Mixer Truck (Ruijiang Brand): Drive: 8x4; Horsepower: 320 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao JK6 320hp 8X4(12 wheels) 8m³ Concrete Mixer Truck (Ruijiang Brand) suited for?

FAW Jiefang Qingdao JK6 320hp 8X4(12 wheels) 8m³ Concrete Mixer Truck (Ruijiang Brand) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Qingdao JK6 320hp 8X4(12 wheels) 8m³ Concrete Mixer Truck (Ruijiang Brand) differ from other variants in the same series?

FAW Jiefang Qingdao JK6 320hp 8X4(12 wheels) 8m³ Concrete Mixer Truck (Ruijiang Brand) belongs to FAW Jiefang QingdaoJK6 (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao JK6 320hp 8X4(12 wheels) 8m³ Concrete Mixer Truck (Ruijiang Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao JK6 320hp 8X4(12 wheels) 8m³ Concrete Mixer Truck (Ruijiang Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
