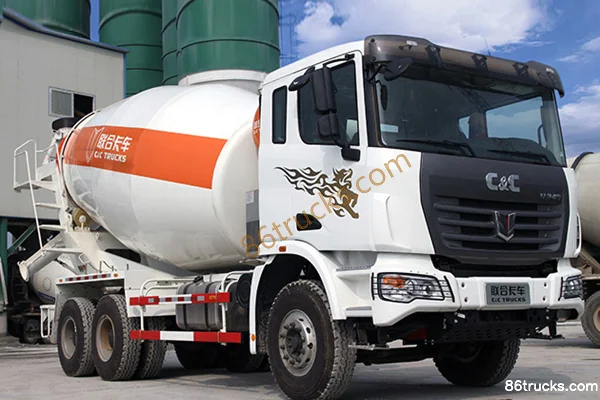

Union Truck U350 350 hp 8X4(12 wheels) 10 Cubic Meter Concrete Mixer Truck
EXW
From $59,278
Export quote
Union Truck U-Series Heavy Truck concrete mixer
Main model photos
924 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Union Truck U350 350 hp 8X4(12 wheels) 10 Cubic Meter Concrete Mixer Truck | 8x4 / 350hp / China V | From $59,278 | |
| Union Truck U380 380 hp 8X4(12 wheels) 12 cubic meter concrete mixer truck | 8x4 / 380hp / China VI | From $70,806 | |
| Union Truck U350 350 hp 8X4(12 wheels) 12 Cubic Meter Concrete Mixer Truck | 8x4 / 350hp / China VI | From $59,694 | |
| Union Truck U350 350 hp 8X4(12 wheels) 12 Cubic Meter Concrete Mixer Truck | 8x4 / 350hp / China V | From $54,972 | |
| Union Truck U350 350 hp 8X4(12 wheels) 10 Cubic Meter Concrete Mixer Truck | 8x4 / 350hp / China V | From $53,167 |
Union Truck U380 380 hp 8X4(12 wheels) 12 cubic meter concrete mixer truck
EXW
From $70,806
Export quote
Union Truck U350 350 hp 8X4(12 wheels) 12 Cubic Meter Concrete Mixer Truck
EXW
From $59,694
Export quote
Union Truck U350 350 hp 8X4(12 wheels) 12 Cubic Meter Concrete Mixer Truck
EXW
From $54,972
Export quote
Union Truck U350 350 hp 8X4(12 wheels) 10 Cubic Meter Concrete Mixer Truck
EXW
From $53,167
Export quote
Upcoming
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Union Truck U350 350hp 8X4(12 wheels) 8m³ concrete mixer truck | 8x4 / 350hp / China V |
Series Specs
Basic Info
Cab dimensions: 10×2.55×3.95 / 10.46×2.55×3.99 / 10.23×2.55×3.9 / 10.1×2.55×3.9 / 10.14×2.55×3.9 / 10.6×2.55×3.99 / 10.2×2.55×3.99 / 10.055×2.55×3.99 / 9.15×2.55×3.89 / 10.55×2.55×3.99m
Drive type: 8X4 / 6X4
Truck Type: concrete mixer truck
Vehicle origin: Wuhu, Anhui
Front/rear track width: Front track: 2040/2040mm; Rear track: 1860/1860 / Front: 2040/2040mm; Rear: 1860/1860 / Front: 2040mm; Rear: 1860/1860 / Front track: 2040mm; Rear track: 1860/1860
Wheelbase: 2100+2750+1350 / 1950+2900+1350 / 2100+3300+1350 / 1950+2800+1350 / 4200+1350 / 1800+3100+1300 / 1950+3450+1350mm
Curb Weight: 13.42 / 14.09 / 13.85 / 15 / 13.4 / 14.3 / 15.065 / 15.9 / 13.44 / 18.5ton
Rated payload: 17.45 / 16.78 / 17.02 / 15.87 / 17.47 / 16.57 / 15.805 / 8.97 / 17.365 / 12.37ton
Max. speed: 85 / 80km/h
Front/rear suspension: 1.515/2.285 / 1.515/2.745 / 1.515/2.425 / 1.515/2.335 / 1.515/2.485 / 1.48/2.62 / 1.48/3.19 / 1.48/2.495 / 1.48/2.32m
Body Parameters
Mixing drum capacity: 10 / 12 / 7.59 / 7.69 / 7.99 / 7.27 / 7.1 / 8 / 4.1 / 7.95 / 5.6m³
Vehicle certification code: QCC5313GJBD666-1 / QCC5313GJBN666-3 / QCC5313GJBD666-2 / QCC5312GJBD656-3 / QCC5312GJBD656-4 / QCC5312GJBD656-2 / QCC5313GJBN666-1 / QCC5313GJBD666 / QCC5312GJBD656-E2 / QCC5312GJBD656-1 / QCC5252GJBD654 / QCC5312GJBD656N / QCC5312GJBD656
Body Brand: Union Truck
Others: Optional 14 cubic meters, ratio optional 4.769 / Fuel tank 300L, cab US / Optional 14 cubic meters / Optional upper body 16 cubic meters, rear axle ratio optional 5.26.
Engine parameters
Engine Model: YuchaiYCK08350-60 / YuchaiYCK11380N-60 / YuchaiYC6L350-50 / YuchaiYCK09380-60 / United PowerYC6K1035-50 / WeichaiWP7.300E51 / United PowerYC6K1038-50
Number of cylinders: 6cylinder
fuel type: Diesel / LNG (liquefied natural gas)
Displacement: 7.7 / 10.98 / 8.424 / 9.41 / 10.338 / 7.47L
Emission standard: China V / China VI
Max output power: 257 / 280 / 258 / 220 / 285kW
Max hp: 350 / 380 / 300Horsepower
Rated speed: 2200 / 1700 / 1900 / 2100rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC / Theoretical air-fuel ratio + EGR + TWC + ASC / Vertical, inline, water-cooled, four-stroke / Inline / Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Chassis Specs
Chassis Series: Union U Series
Chassis Model: QCC5313GJBD666-E1 / QCC5313GJBN666-E / QCC5312GJBD656-E2 / QCC5312GJBD656-E1 / QCC5252GJBD654-E / QCC5312GJBD656-E
Front axle description: Sanhuan 8T
Frame Dimensions: 300×80×8+8 / 300×80×8+5 / 300×80×7+5mm
rear axle description: HandeMAN / HandeSTR / HandeMAN237 / Pengxiang QL350 / Pengxiang 457 / 153 / Pengxiang LC300 / Fuwa 330
Steering gear: Domestic
Axle ratio: 4.769 / 4.8 / 5.262 / 5.73 / 4.875 / 4.26 / 4.24
Leaf spring count: 3/3/4 / 9/9/12 / 10/10/12 / 3/3/4,4/4/5 / 3/3/4,3/3/5,4/4/5 / 10/12 / 3/4,9/11,9/12,10/12,12/13
Transmission Parameters
Number of gears: 9 / 10Gear
Transmission Model: Fast Gear9JSD150T-B / Fast Gear10JSD160T / Fast Gear9JS135TB / Fast Gear9JS150T-B / Fast Gear9JS180T
Cab parameters
Cab: US (new)
Tire
Tire Size: 11.00R20 / 12R22.5 / 12.00R20 16PR / 11.00R20,12.00R20 16PR,12R22.5 / 2.00R20 16PR
Number of tires: 12 / 10pcs
FAQ
What kind of truck is Union Truck Union Truck U-Series Heavy Truck concrete mixer truck?
Union Truck Union Truck U-Series Heavy Truck is an export-oriented concrete mixer truck lineup with about 25 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Union Truck U-Series Heavy Truck concrete mixer?
Union Truck U-Series Heavy Truck concrete mixer export reference is about $37,056 – $70,806. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Union Truck U-Series Heavy Truck concrete mixer cover?
Union Truck U-Series Heavy Truck concrete mixer mainly covers: Drive: 8x4; Horsepower: 350 hp / 380 hp; Emission: China V / China VI; Fuel: Diesel / LNG (liquefied natural gas). Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Union Truck U-Series Heavy Truck concrete mixer?
For Union Truck U-Series Heavy Truck concrete mixer: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Union Truck U-Series Heavy Truck concrete mixer include?
Union Truck U-Series Heavy Truck concrete mixer currently lists about 25 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Union Truck U-Series Heavy Truck concrete mixer?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
