Union Truck U350 350hp 8X4(12 wheels) 8m³ concrete mixer truck

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 13.42ton
Wheelbase:: 2100+2750+1350mm
Tire Size:: 12R22.5
Cab dimensions:: 10×2.55×3.95m
Truck Type:: concrete mixer truck
Rated payload: 17.45ton
Drive 8X4 (12 wheels)
Horsepower 350
Emission China V

Overview

The Union Truck U350 350hp 8X4(12 wheels) 8m³ concrete mixer truck is a concrete mixer truck featuring 17.45t payload, 13.42ton GVW, 8X4 (12 wheels) drive and US (new) cab. On the powertrain side, it comes with 350 hp, China V emissions and Diesel fuel.

China V 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10×2.55×3.95m
Truck Type: concrete mixer truck
Drive type: 8X4
Vehicle origin: Wuhu, Anhui
Front/rear track width: Front track: 2040/2040mm; Rear track: 1860/1860
Wheelbase: 2100+2750+1350mm
Curb Weight: 13.42ton
Rated payload: 17.45ton
Max. speed: 85km/h
Front/rear suspension: 1.515/2.285m
Body Parameters
Mixing drum capacity: 7.99m³
Vehicle certification code: QCC5313GJBD666-1
Body Brand: Union Truck
Engine parameters
Engine Model: YuchaiYCK08350-60
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.7L
Emission standard: China V
Max output power: 257kW
Max hp: 350Horsepower
Rated speed: 2200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Chassis Specs
Chassis Series: Union U Series
Chassis Model: QCC5313GJBD666-E1
Frame Dimensions: 300×80×7+5mm
rear axle description: Pengxiang QL350
Steering gear: Domestic
Axle ratio: 4.875
Leaf spring count: 3/3/4,3/3/5,4/4/5
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear9JSD150T-B
Cab parameters
Cab: US (new)
Tire
Tire Size: 12R22.5
Number of tires: 12pcs

Photos

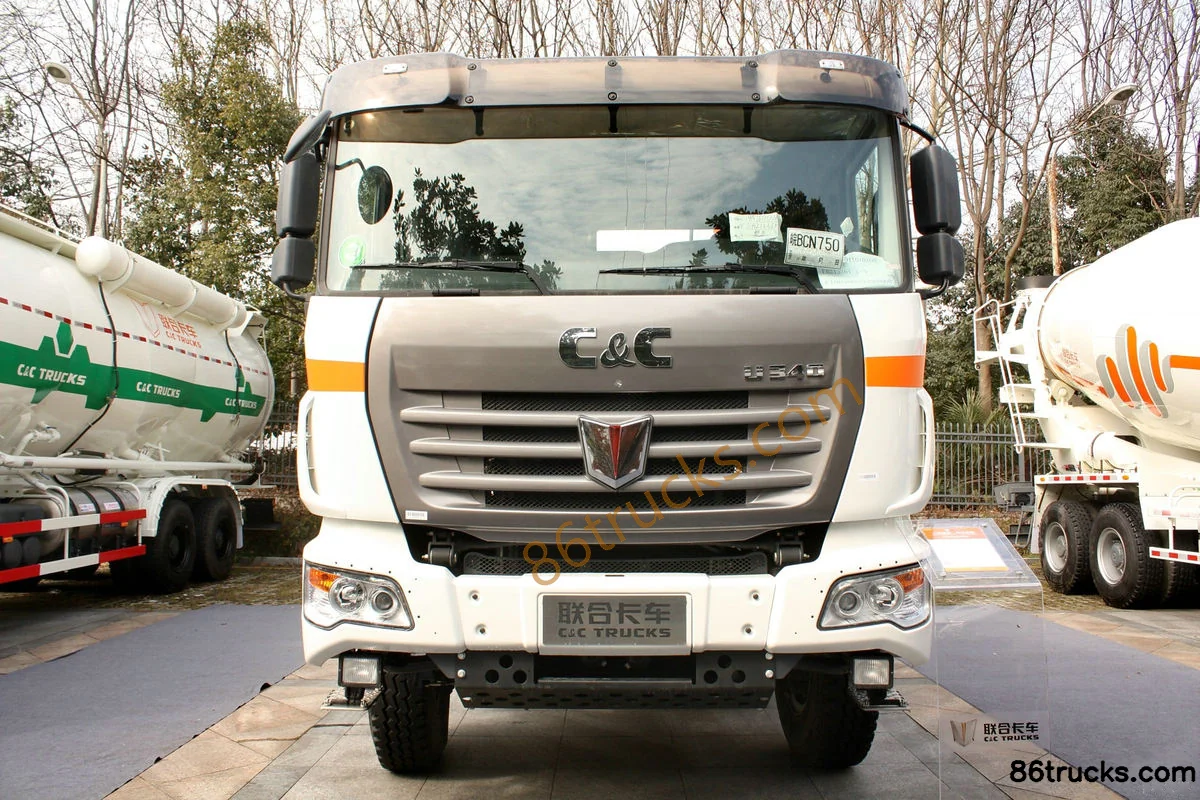

Exterior1

1 photos

FAQ

What emission standard does Union Truck U350 350hp 8X4(12 wheels) 8m³ concrete mixer truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Union Truck U350 350hp 8X4(12 wheels) 8m³ concrete mixer truck?

Key specs of Union Truck U350 350hp 8X4(12 wheels) 8m³ concrete mixer truck: Drive: 8x4; Horsepower: 350 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Union Truck U350 350hp 8X4(12 wheels) 8m³ concrete mixer truck suited for?

Union Truck U350 350hp 8X4(12 wheels) 8m³ concrete mixer truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Union Truck U350 350hp 8X4(12 wheels) 8m³ concrete mixer truck differ from other variants in the same series?

Union Truck U350 350hp 8X4(12 wheels) 8m³ concrete mixer truck belongs to Union Truck U-Series Heavy Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Union Truck U350 350hp 8X4(12 wheels) 8m³ concrete mixer truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Union Truck U350 350hp 8X4(12 wheels) 8m³ concrete mixer truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
