Sinotruk HOWO T5G 340hp 8X4(12 wheels) 7.36m³ Concrete Mixer Truck (Ruijiang Brand)
EXW
From $59,722
Export quote

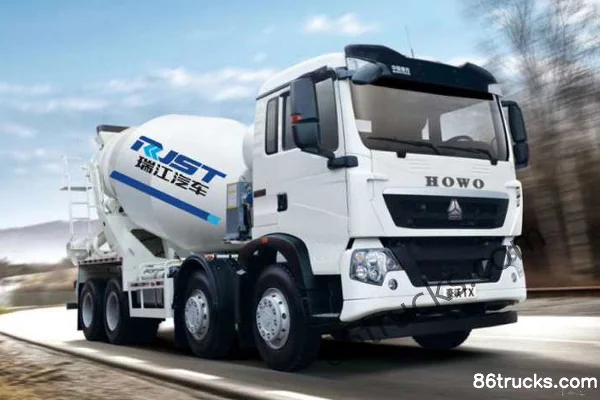

CIMC Ruijiang Sinotruk HOWO chassis concrete mixer
Main model photos
3 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HOWO T5G 340hp 8X4(12 wheels) 7.36m³ Concrete Mixer Truck (Ruijiang Brand) | 8x4 / 340hp / China V | From $59,722 | |
| Sinotruk HOWO TX6 340 hp 8X4(12 wheels) 7.65 m³ Concrete Mixer Truck (Ruijiang Brand) | 8x4 / 340hp / China VI | From $64,306 | |
| Sinotruk HOWO T5G 340 hp 8X4(12 wheels) 7.88 m³ concrete mixer truck (Ruijiang brand) | 8x4 / 340hp / China V | From $53,472 |
Sinotruk HOWO TX6 340 hp 8X4(12 wheels) 7.65 m³ Concrete Mixer Truck (Ruijiang Brand)
EXW
From $64,306
Export quote
Sinotruk HOWO T5G 340 hp 8X4(12 wheels) 7.88 m³ concrete mixer truck (Ruijiang brand)
EXW
From $53,472
Export quote
Series Specs
Basic Info
Cab dimensions: 10.45×2.55×3.99 / 10.3×2.55×3.99 / 10.15×2.5×3.99m
Drive type: 8X4
Truck Type: Concrete mixer truck
Wheelbase: 1800+3050+1350mm
Vehicle origin: Wuhu / 7.65 / Wuhu, Anhui
Front/rear track width: Front: 2035/2035mm; Rear: 1850/1850 / Front: 2015/2015mm; Rear: 1850/1850
Curb Weight: 14.8 / 14.1 / 13.64ton
Rated payload: 16.07 / 16.77 / 17.23ton
Max. speed: 82km/h
Front/rear suspension: 1.43/2.795 / 1.43/2.645 / 1.43/1.3m
Body Parameters
Mixing drum capacity: 7.36 / 7.88m³
Vehicle certification code: WL5310GJBZZ31YL14 / WL5318GJBZZ31 / WL5310GJBZZ31
Body Brand: Ruijiang
Engine parameters
Engine Model: SinotrukMC07.34-50 / SinotrukMC07.34-60
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V / China VI
Max output power: 245 / 248kW
Max hp: 340Horsepower
Rated speed: 2300 / 2200rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler / Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Chassis Specs
Chassis Series: T5G / TX / HOWO T5G
Chassis Model: ZZ1317N306GE1 / ZZ1317N306GF1
rear axle description: MAT16ZG
Axle ratio: 5.73
Leaf spring count: 11/11/10 / 11/11/12,11/11/10,3/3/5,3/3/4,2/2/5,2/2/4,3/3/-,2/2/-,11/11/-,5/5/5,5/5/-
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Sinotruk 10-speed / SinotrukHW15710L
Tire
Tire Size: 11.00R20
Number of tires: 12pcs
FAQ
What kind of truck is CIMC Ruijiang CIMC Ruijiang Sinotruk HOWO chassis concrete mixer truck?
CIMC Ruijiang CIMC Ruijiang Sinotruk HOWO chassis is an export-oriented concrete mixer truck lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for CIMC Ruijiang Sinotruk HOWO chassis concrete mixer?
CIMC Ruijiang Sinotruk HOWO chassis concrete mixer export reference is about $53,472 – $64,306. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does CIMC Ruijiang Sinotruk HOWO chassis concrete mixer cover?
CIMC Ruijiang Sinotruk HOWO chassis concrete mixer mainly covers: Drive: 8x4; Horsepower: 340 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in CIMC Ruijiang Sinotruk HOWO chassis concrete mixer?
For CIMC Ruijiang Sinotruk HOWO chassis concrete mixer: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does CIMC Ruijiang Sinotruk HOWO chassis concrete mixer include?
CIMC Ruijiang Sinotruk HOWO chassis concrete mixer currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for CIMC Ruijiang Sinotruk HOWO chassis concrete mixer?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
