Sinotruk HOKA Heavy Truck 336 hp 6X4(10 wheels) Concrete Mixer Truck
EXW
Export quote
Sinotruk HOKA Heavy Truck concrete mixer truck

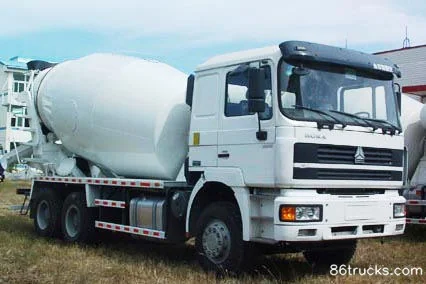

Main model photos
25 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HOKA Heavy Truck 336 hp 6X4(10 wheels) Concrete Mixer Truck | 6x4 / 336hp / China III / Euro III | ||
| Sinotruk HOKA 336 hp 6X4(10 wheels) Concrete Mixer Truck | 6x4 / 336hp / China III / Euro III |
Sinotruk HOKA 336 hp 6X4(10 wheels) Concrete Mixer Truck
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 10.015×2.496×3.93 / 9.19×2.49×3.8m
Drive type: 6X4
Truck Type: concrete mixer truck
Wheelbase: 4200+1350 / 3800+1350mm
Front/rear track width: Front track: 2020mm; Rear track: 2020mm / Front track: 1939/2020mm; Rear track: 1850/1850mm
Vehicle origin: Guangzhou / Jinan, Shandong
Curb Weight: 14.18 / 13ton
Rated payload: 10.69 / 11.8ton
Max. speed: 78km/h
Front/rear suspension: 1.525/2.94 / 1.53/2.52m
Body Parameters
Water tank capacity: 500L
Slump: 40mm
Drum rotation speed: 6-8r/min
Feed rate: 3m³/min
Discharge speed: 2m³/min
Discharge residue rate: <0.7%
Filling Rate: 58.7%
water supply method: Air pressure water supply
Vehicle certification code: ZZ5253GJBN4241C1 / ZZ5253GJBN3841C
hydraulic system: Closed hydraulic circuit
Body Brand: Sinotruk
Others: Hydraulic pump, motor (Rexroth), ZF reducer; this vehicle can be optionally equipped with a new-style front mask.
Engine parameters
Engine Model: Sinotruk WD615.95E / Sinotruk WD615.95
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 247kW
Max hp: 336Horsepower
Rated speed: 2200rpm
Engine Type: Inline / Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Chassis Specs
Chassis Series: Sinotruk HOKA
Chassis Model: ZZ1253N4241C / ZZ1253N3841C
Front axle description: 9 / 9T
rear axle description: 16T dual-stage reduction dual rear axle / 16T dual-reduction drive axle
Leaf spring count: 10/12
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Sinotruk HW15710 / HW15710
Tire
Tire Size: 12.00R20 / 11.00-20 12.00-20
Number of tires: 10pcs
FAQ
What kind of truck is Sinotruk Sinotruk HOKA Heavy Truck concrete mixer truck?
Sinotruk Sinotruk HOKA Heavy Truck is an export-oriented concrete mixer truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Sinotruk HOKA Heavy Truck concrete mixer truck cover?
Sinotruk HOKA Heavy Truck concrete mixer truck mainly covers: Drive: 6x4; Horsepower: 336 hp; Emission: China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk HOKA Heavy Truck concrete mixer truck?
For Sinotruk HOKA Heavy Truck concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sinotruk HOKA Heavy Truck concrete mixer truck include?
Sinotruk HOKA Heavy Truck concrete mixer truck currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk HOKA Heavy Truck concrete mixer truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
