Union Truck U350 350hp 6X4(10 wheels) 4.1m³ concrete mixer truck chassis (4.26 ratio)

Export reference
From $45,111
MSRP ¥32.48M CNY
Fuel: Diesel
Curb Weight:: 15.9ton
Wheelbase:: 4200+1350mm
Tire Size:: 12.00R20 16PR
Cab dimensions:: 9.15×2.55×3.89m
Truck Type:: concrete mixer truck
Rated payload: 8.97ton
Drive 6X4 (10 wheels)
Horsepower 350
Emission China V

Overview

The Union Truck U350 350hp 6X4(10 wheels) 4.1m³ concrete mixer truck chassis (4.26 ratio) is a concrete mixer truck featuring 8.97t payload, 15.9ton GVW, 6X4 (10 wheels) drive and 9.15×2.55×3.89m cab. On the powertrain side, it comes with 350 hp, China V emissions and Diesel fuel.

China V 350 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.15×2.55×3.89m
Drive type: 6X4
Truck Type: concrete mixer truck
Wheelbase: 4200+1350mm
Front/rear track width: Front track: 2040mm; Rear track: 1860/1860
Curb Weight: 15.9ton
Rated payload: 8.97ton
Max. speed: 85km/h
Front/rear suspension: 1.48/2.495m
Body Parameters
Mixing drum capacity: 4.1m³
Vehicle certification code: QCC5252GJBD654
Body Brand: Union Truck
Others: Optional 14 cubic meters
Engine parameters
Engine Model: United PowerYC6K1035-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 10.338L
Emission standard: China V
Max output power: 258kW
Max hp: 350Horsepower
Engine Type: Inline
Chassis Specs
Chassis Series: Union U Series
Chassis Model: QCC5252GJBD654-E
Front axle description: Sanhuan 8T
Steering gear: Domestic
rear axle description: HandeMAN
Axle ratio: 4.26
Leaf spring count: 10/12
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear9JS150T-B
Tire
Tire Size: 12.00R20 16PR
Number of tires: 10pcs

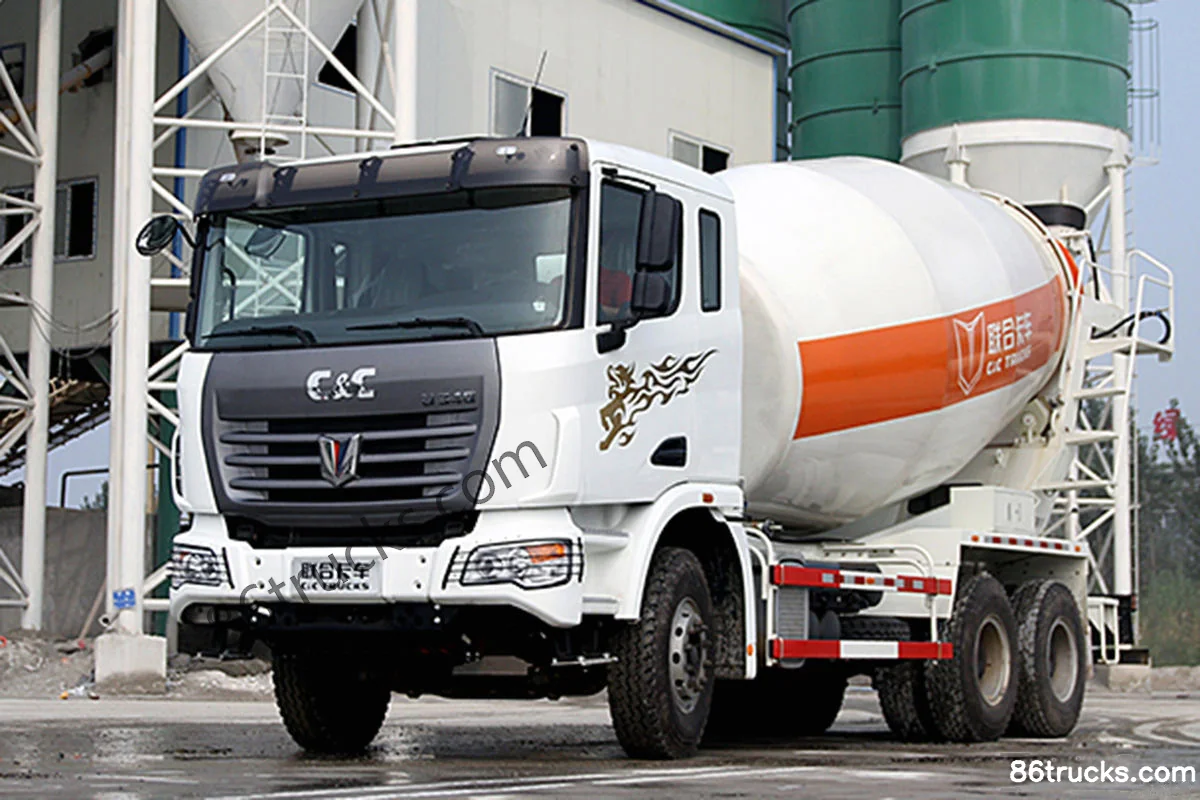

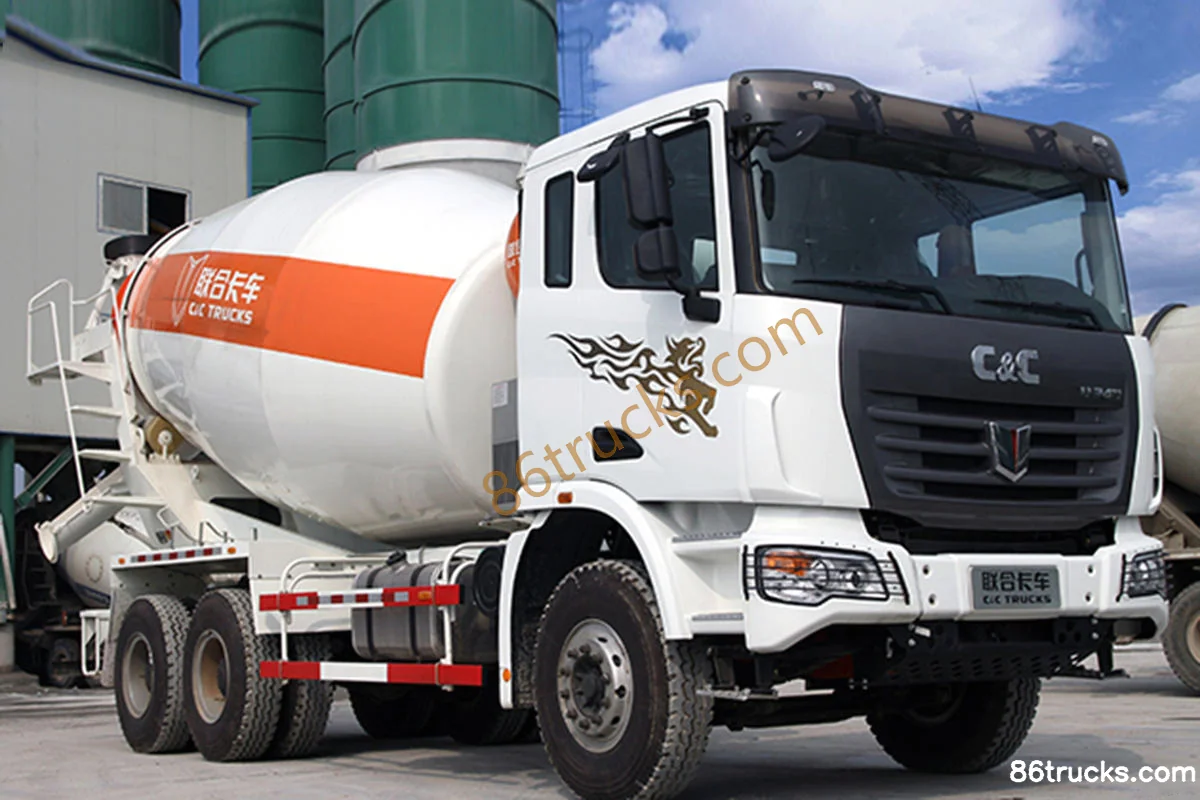

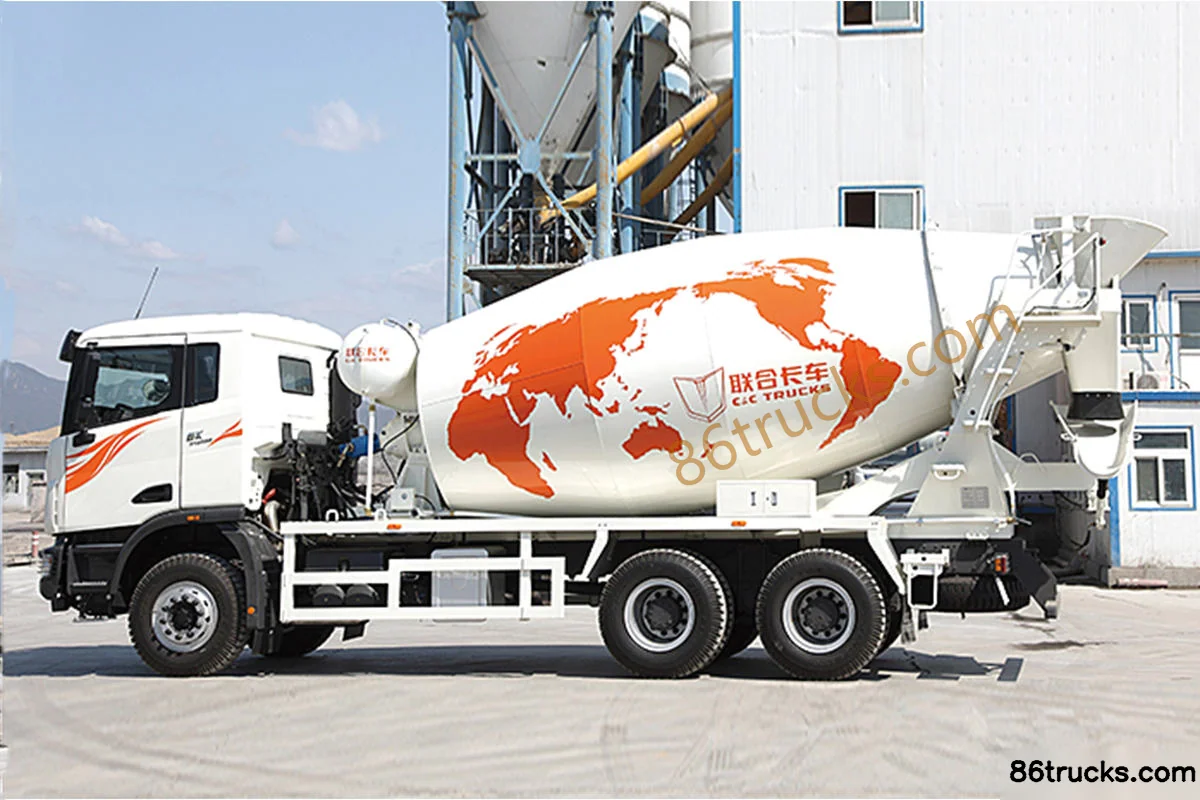

Photos

Exterior3

3 photos

FAQ

What is the export price of Union Truck U350 350hp 6X4(10 wheels) 4.1m³ concrete mixer truck chassis (4.26 ratio), and what does it include?

Union Truck U350 350hp 6X4(10 wheels) 4.1m³ concrete mixer truck chassis (4.26 ratio) export reference is about From $45,111; MSRP is ¥32.48M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Union Truck U350 350hp 6X4(10 wheels) 4.1m³ concrete mixer truck chassis (4.26 ratio) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Union Truck U350 350hp 6X4(10 wheels) 4.1m³ concrete mixer truck chassis (4.26 ratio)?

Key specs of Union Truck U350 350hp 6X4(10 wheels) 4.1m³ concrete mixer truck chassis (4.26 ratio): Drive: 6x4; Horsepower: 350 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Union Truck U350 350hp 6X4(10 wheels) 4.1m³ concrete mixer truck chassis (4.26 ratio) suited for?

Union Truck U350 350hp 6X4(10 wheels) 4.1m³ concrete mixer truck chassis (4.26 ratio) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Union Truck U350 350hp 6X4(10 wheels) 4.1m³ concrete mixer truck chassis (4.26 ratio) differ from other variants in the same series?

Union Truck U350 350hp 6X4(10 wheels) 4.1m³ concrete mixer truck chassis (4.26 ratio) belongs to Union Truck U-Series Heavy Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Union Truck U350 350hp 6X4(10 wheels) 4.1m³ concrete mixer truck chassis (4.26 ratio)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Union Truck U350 350hp 6X4(10 wheels) 4.1m³ concrete mixer truck chassis (4.26 ratio)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
