Sinotruk Haohan J5G 340 hp 8X4(12 wheels) 7 m³ Concrete Mixer Truck (Zoomlion)
EXW
Export quote
ZOOMLION Sinotruk Chassis concrete mixer truck
Main model photos
8 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk Haohan J5G 340 hp 8X4(12 wheels) 7 m³ Concrete Mixer Truck (Zoomlion) | 8x4 / 340hp / China V | ||
| Sinotruk Hohan J5G 340 hp 6X4(10 wheels) 4.3m³ Concrete Mixer Truck (Zoomlion) | 6x4 / 340hp / China V | ||
| Sinotruk Hohan J5G 310 hp 6X4(10 wheels) 5m³ Concrete Mixer Truck (Zoomlion) | 6x4 / 310hp / China V | ||
| Sinotruk Haohan J5G 310 hp 8X4(12 wheels) 7.7m³ concrete mixer truck (Zoomlion) | 8x4 / 310hp / China V |
Sinotruk Hohan J5G 340 hp 6X4(10 wheels) 4.3m³ Concrete Mixer Truck (Zoomlion)
EXW
Export quote

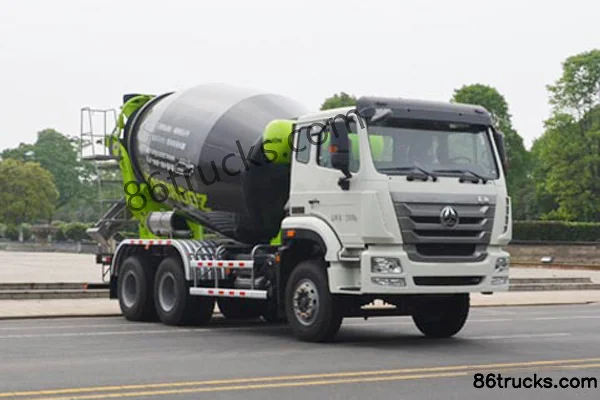

Sinotruk Hohan J5G 310 hp 6X4(10 wheels) 5m³ Concrete Mixer Truck (Zoomlion)
EXW
Export quote

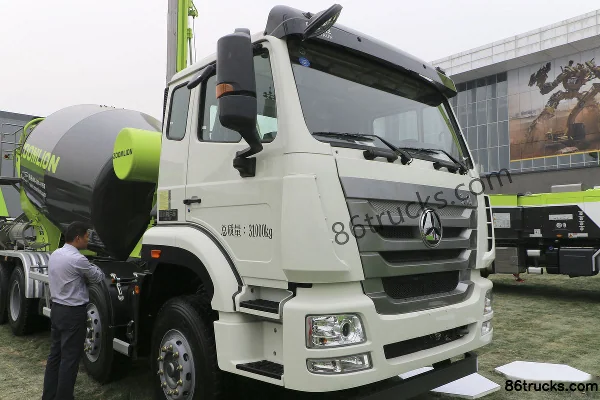

Sinotruk Haohan J5G 310 hp 8X4(12 wheels) 7.7m³ concrete mixer truck (Zoomlion)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 10.155×2.525×3.96 / 9.84×2.525×3.95 / 9.21×2.525×3.94 / 9.73×2.496×3.95m
Drive type: 8X4 / 6X4
Truck Type: concrete mixer truck
Wheelbase: 1800+3050+1350 / 4025+1350 / 3825+1350mm
Front/rear track width: Front: 1950/1950mm; Rear: 1850/1850 / Front: 2022mm; Rear: 1830/1830 / Front: 1950mm; Rear: 1830/1830 / Front track: 2022/2022mm; Rear track: 1850/1850
Vehicle origin: Changsha, Hunan / Changsha
Curb Weight: 15.55 / 15.3 / 13.6 / 14.05ton
Rated payload: 15.32 / 9.57 / 11.27 / 16.82ton
Max. speed: 80km/h
Front/rear suspension: 1.55/2.405 / 1.55/2.915 / 1.55/2.485 / 1.55/1.98m
Body Parameters
Water tank capacity: 0.45L
Mixing drum capacity: 7 / 4.3 / 5 / 7.7m³
Feed rate: ≥4m³/min
Discharge speed: ≥3m³/min
Discharge residue rate: ≤0.7%
water supply method: air type
Vehicle certification code: ZLJ5312GJBAE / ZLJ5253GJBAE / ZLJ5250GJBAE / ZLJ5318GJBHE
Body Brand: ZOOMLION
Engine parameters
Injection System: Common Rail (China V)
Engine Model: SinotrukMC07.34-50 / SinotrukD10.34-50 / SinotrukMC07.31-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87 / 9.726L
Emission standard: China V
Max output power: 248 / 249 / 228kW
Max hp: 340 / 310Horsepower
Rated speed: 2300 / 1900rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler / Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Chassis Specs
Chassis Series: Hohan J5G
Chassis Model: ZZ1315N3063E1 / ZZ2255N4046E1 / ZZ2255N3843E1
Axle ratio: 5.73 / 4.875 / 5.286
Leaf spring count: 4/4/5 / 4/5 / L14/R13/L14/R13/12,4/4/-,11/11/12,11/11/-,4/4/12,L14/R13/L14/R13/-
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW10
Tire
Tire Size: 11.00R20 18PR / 11.00R20 18PR,12.00R20 16PR/12.00R20 18PR
Number of tires: 12 / 10pcs
FAQ
What kind of truck is ZOOMLION ZOOMLION Sinotruk Chassis concrete mixer truck?
ZOOMLION ZOOMLION Sinotruk Chassis is an export-oriented concrete mixer truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does ZOOMLION Sinotruk Chassis concrete mixer truck cover?
ZOOMLION Sinotruk Chassis concrete mixer truck mainly covers: Drive: 6x4 / 8x4; Horsepower: 310 hp / 340 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in ZOOMLION Sinotruk Chassis concrete mixer truck?
For ZOOMLION Sinotruk Chassis concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does ZOOMLION Sinotruk Chassis concrete mixer truck include?
ZOOMLION Sinotruk Chassis concrete mixer truck currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for ZOOMLION Sinotruk Chassis concrete mixer truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
