Sinotruk Hohan J5G 340 hp 6X4(10 wheels) 4.3m³ Concrete Mixer Truck (Zoomlion)

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 15.3ton
Wheelbase:: 4025+1350mm
Tire Size:: 11.00R20 18PR,12.00R20 16PR/12.00R20 18PR
Cab dimensions:: 9.84×2.525×3.95m
Truck Type:: concrete mixer truck
Rated payload: 9.57ton
Drive 6X4 (10 wheels)
Horsepower 340
Emission China V

Overview

The Sinotruk Hohan J5G 340 hp 6X4(10 wheels) 4.3m³ Concrete Mixer Truck (Zoomlion) is a concrete mixer truck featuring 9.57t payload, 15.3ton GVW, 6X4 (10 wheels) drive and 9.84×2.525×3.95m cab. On the powertrain side, it comes with 340 hp, China V emissions and Diesel fuel.

China V 340 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.84×2.525×3.95m
Drive type: 6X4
Truck Type: concrete mixer truck
Wheelbase: 4025+1350mm
Vehicle origin: Changsha, Hunan
Front/rear track width: Front: 2022mm; Rear: 1830/1830
Curb Weight: 15.3ton
Rated payload: 9.57ton
Max. speed: 80km/h
Front/rear suspension: 1.55/2.915m
Engine parameters
Injection System: Common Rail (China V)
Engine Model: SinotrukD10.34-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China V
Max output power: 249kW
Max hp: 340Horsepower
Rated speed: 1900rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Body Parameters
Mixing drum capacity: 4.3m³
Vehicle certification code: ZLJ5253GJBAE
Body Brand: ZOOMLION
Chassis Specs
Chassis Series: Hohan J5G
Chassis Model: ZZ2255N4046E1
Axle ratio: 4.875
Leaf spring count: 4/5
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW10
Tire
Tire Size: 11.00R20 18PR,12.00R20 16PR/12.00R20 18PR
Number of tires: 10pcs

Photos

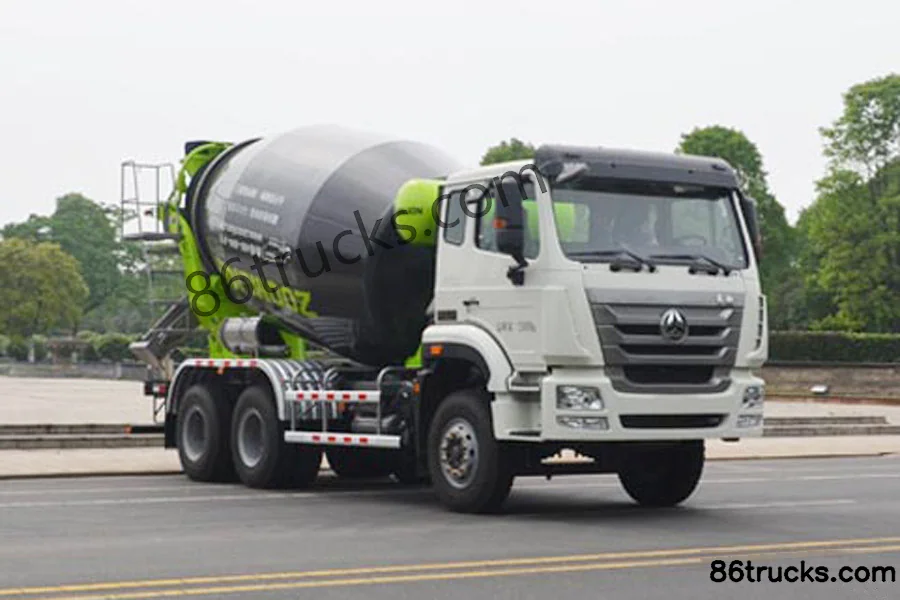

Exterior1

1 photos

FAQ

What emission standard does Sinotruk Hohan J5G 340 hp 6X4(10 wheels) 4.3m³ Concrete Mixer Truck (Zoomlion) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Hohan J5G 340 hp 6X4(10 wheels) 4.3m³ Concrete Mixer Truck (Zoomlion)?

Key specs of Sinotruk Hohan J5G 340 hp 6X4(10 wheels) 4.3m³ Concrete Mixer Truck (Zoomlion): Drive: 6x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Hohan J5G 340 hp 6X4(10 wheels) 4.3m³ Concrete Mixer Truck (Zoomlion) suited for?

Sinotruk Hohan J5G 340 hp 6X4(10 wheels) 4.3m³ Concrete Mixer Truck (Zoomlion) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Hohan J5G 340 hp 6X4(10 wheels) 4.3m³ Concrete Mixer Truck (Zoomlion) differ from other variants in the same series?

Sinotruk Hohan J5G 340 hp 6X4(10 wheels) 4.3m³ Concrete Mixer Truck (Zoomlion) belongs to ZOOMLION Sinotruk Chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Hohan J5G 340 hp 6X4(10 wheels) 4.3m³ Concrete Mixer Truck (Zoomlion)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Hohan J5G 340 hp 6X4(10 wheels) 4.3m³ Concrete Mixer Truck (Zoomlion)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
