Sinotruk Haohan J5G 310 hp 8X4(12 wheels) 7.7m³ concrete mixer truck (Zoomlion)

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 14.05ton
Wheelbase:: 1800+3050+1350mm
Tire Size:: 11.00R20 18PR
Cab dimensions:: 9.73×2.496×3.95m
Truck Type:: concrete mixer truck
Rated payload: 16.82ton
Drive 8X4 (12 wheels)
Horsepower 310
Emission China V

Overview

The Sinotruk Haohan J5G 310 hp 8X4(12 wheels) 7.7m³ concrete mixer truck (Zoomlion) is a concrete mixer truck featuring 16.82t payload, 14.05ton GVW, 8X4 (12 wheels) drive and 9.73×2.496×3.95m cab. On the powertrain side, it comes with 310 hp, China V emissions and Diesel fuel.

China V 310 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.73×2.496×3.95m
Drive type: 8X4
Truck Type: concrete mixer truck
Wheelbase: 1800+3050+1350mm
Front/rear track width: Front track: 2022/2022mm; Rear track: 1850/1850
Vehicle origin: Changsha
Curb Weight: 14.05ton
Rated payload: 16.82ton
Max. speed: 80km/h
Front/rear suspension: 1.55/1.98m
Body Parameters
Water tank capacity: 0.45L
Mixing drum capacity: 7.7m³
Feed rate: ≥4m³/min
Discharge speed: ≥3m³/min
Discharge residue rate: ≤0.7%
water supply method: air type
Vehicle certification code: ZLJ5318GJBHE
Body Brand: ZOOMLION
Engine parameters
Engine Model: SinotrukMC07.31-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 228kW
Max hp: 310Horsepower
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Chassis Specs
Chassis Series: Hohan J5G
Chassis Model: ZZ1315N3063E1
Axle ratio: 5.286
Leaf spring count: L14/R13/L14/R13/12,4/4/-,11/11/12,11/11/-,4/4/12,L14/R13/L14/R13/-
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW10
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs

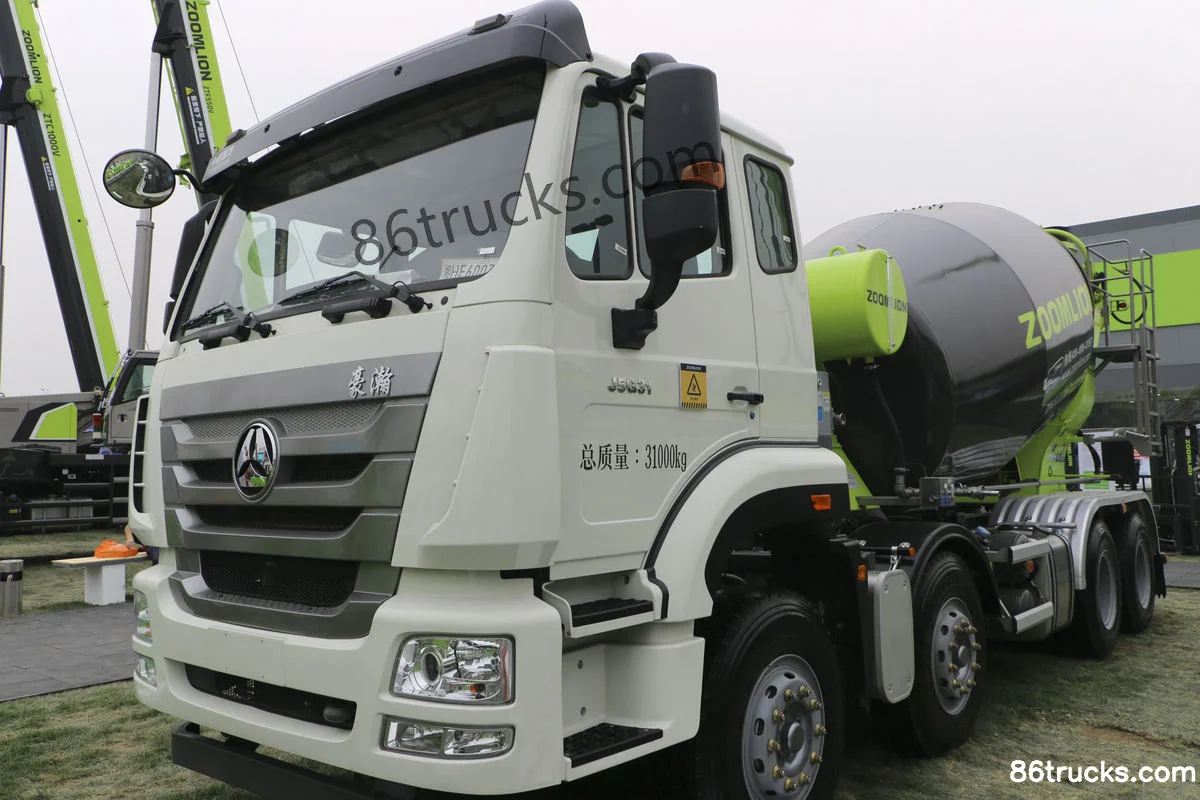

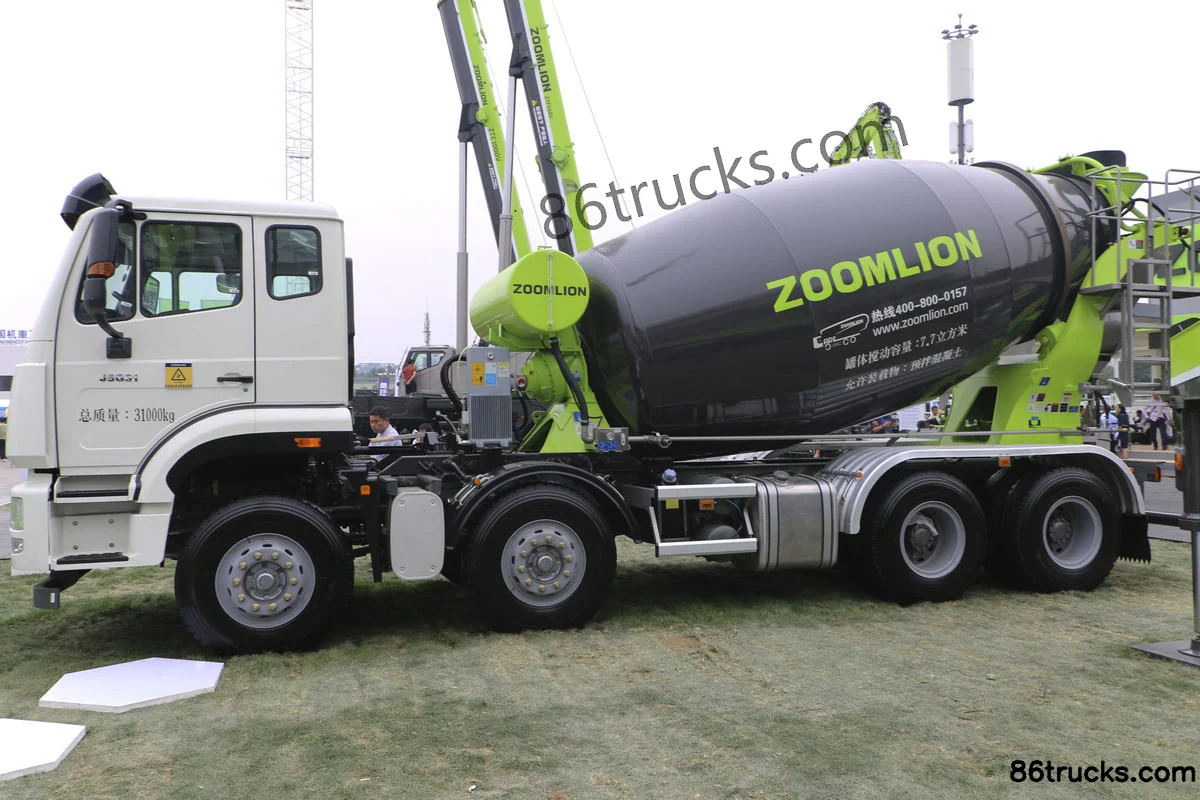

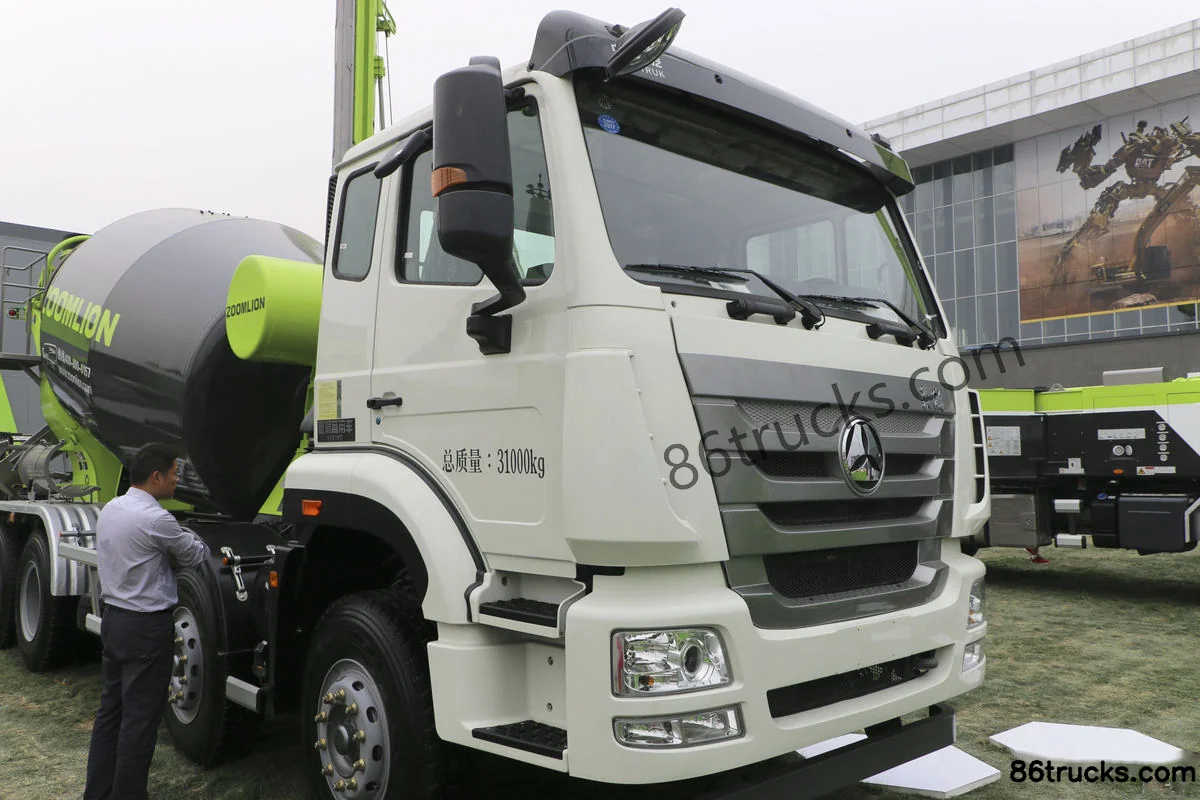

Photos

Exterior3

3 photos

FAQ

What emission standard does Sinotruk Haohan J5G 310 hp 8X4(12 wheels) 7.7m³ concrete mixer truck (Zoomlion) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Haohan J5G 310 hp 8X4(12 wheels) 7.7m³ concrete mixer truck (Zoomlion)?

Key specs of Sinotruk Haohan J5G 310 hp 8X4(12 wheels) 7.7m³ concrete mixer truck (Zoomlion): Drive: 8x4; Horsepower: 310 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Haohan J5G 310 hp 8X4(12 wheels) 7.7m³ concrete mixer truck (Zoomlion) suited for?

Sinotruk Haohan J5G 310 hp 8X4(12 wheels) 7.7m³ concrete mixer truck (Zoomlion) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Haohan J5G 310 hp 8X4(12 wheels) 7.7m³ concrete mixer truck (Zoomlion) differ from other variants in the same series?

Sinotruk Haohan J5G 310 hp 8X4(12 wheels) 7.7m³ concrete mixer truck (Zoomlion) belongs to ZOOMLION Sinotruk Chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Haohan J5G 310 hp 8X4(12 wheels) 7.7m³ concrete mixer truck (Zoomlion)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Haohan J5G 310 hp 8X4(12 wheels) 7.7m³ concrete mixer truck (Zoomlion)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
