Sinotruk (formerly Sinotruk Ace) Jieshi 220 hp 6X4(10 wheels) concrete mixer truck
EXW
From $45,833
Export quote
Sinotruk Jieshi Light Truck concrete mixer truck
Main model photos
60 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk (formerly Sinotruk Ace) Jieshi 220 hp 6X4(10 wheels) concrete mixer truck | 6x4 / 220hp / China V | From $45,833 | |
| Sinotruk (formerly Sinotruk Ace) Jieshi 185 hp 4X2(6 wheels) 3.35 m³ concrete mixer truck | 4x2 / 185hp / China V | From $30,556 | |
| Sinotruk (formerly Sinotruk Ace) Jieshi New Model 140 hp 4X2(6 wheels) 3.35m³ Concrete Mixer Truck | 4x2 / 140hp / China V | From $25,694 | |
| Sinotruk (formerly Sinotruk Ace) Jieshi 170 hp 4X2(6 wheels) 3.35m³ Concrete Mixer Truck | 4x2 / 170hp / China V | From $24,306 |
Sinotruk (formerly Sinotruk Ace) Jieshi 185 hp 4X2(6 wheels) 3.35 m³ concrete mixer truck
EXW
From $30,556
Export quote

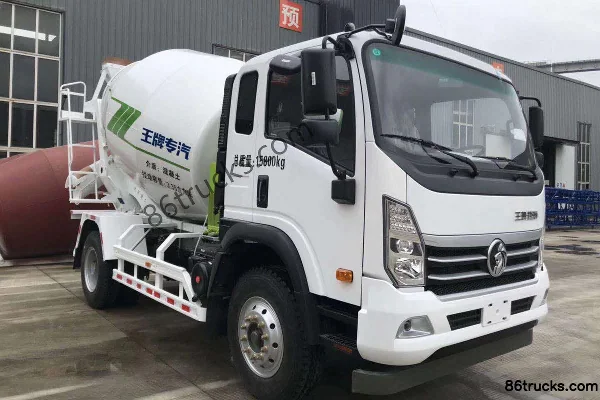

Sinotruk (formerly Sinotruk Ace) Jieshi New Model 140 hp 4X2(6 wheels) 3.35m³ Concrete Mixer Truck
EXW
From $25,694
Export quote

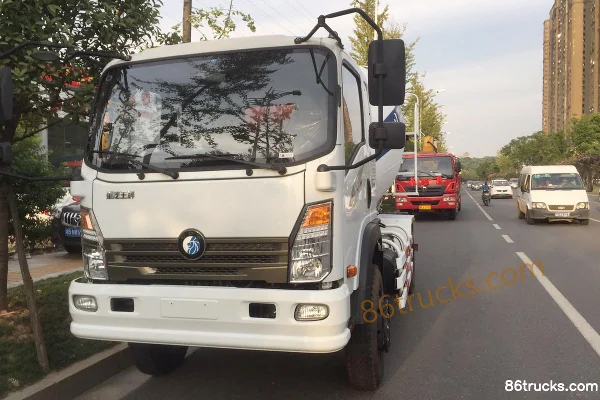

Sinotruk (formerly Sinotruk Ace) Jieshi 170 hp 4X2(6 wheels) 3.35m³ Concrete Mixer Truck
EXW
From $24,306
Export quote
Series Specs
Basic Info
Cab dimensions: 8.76×2.5×3.7 / 7.63×2.35×3.5 / 6.94×2.35×3.5m
Truck Type: Concrete mixer truck
Drive type: 6X4 / 4X2
Vehicle origin: Chengdu, Sichuan
Wheelbase: 3400+1350,3600+1350 / 3950 / 3650mm
Front/rear track width: Front: 1960mm; Rear: 1860/1860 / Front track: 1780mm; Rear track: 1700mm
Curb Weight: 11.5 / 15.8 / 8.25ton
Rated payload: 13.37 / 7.355ton
Max. speed: 80km/h
Front/rear suspension: 1.46/2.55 / 1.28/2.4 / 1.28/2.16m
Body Parameters
Mixing drum capacity: 6 / 3.35m³
Vehicle certification code: CDW5250GJBA1N5C / CDW5160GJBA3R5
Body Brand: Sinotruk王牌
Others: 5-7 m³
Engine parameters
Engine Model: YuchaiYC6JA220-50 / YuchaiYC4EG185-50 / YuchaiYC4D140-50 / YuchaiYCD4P4S-170
Number of cylinders: 6 / 4cylinder
fuel type: Diesel
Displacement: 6.87 / 4.73 / 4.214 / 4.6L
Emission standard: China V
Max output power: 162 / 136 / 103 / 125kW
Max hp: 220 / 185 / 140 / 170Horsepower
Rated speed: 2300 / 2500 / 2800 / 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke / BOSCH high-pressure common rail
Chassis Specs
Chassis Series: Jieshi
Chassis Model: CDW3250A1N5C / CDW3160HA3R5
Front axle description: 5T / 3.6T
Frame Dimensions: 280×10mm
rear axle description: 10T
Axle ratio: 5.571 / 6.833
Leaf spring count: 9/10,11/12,9/12,10/12 / 11/11+9 / 11/10+8
Transmission Parameters
Number of gears: 8 / 6Gear
Transmission Model: Fast Gear8JS118A / Fast Gear8JS85F / WLYWLY653HF
Cab parameters
Cab: N60 / 7 series
Tire
Tire Size: 11.00R20 18PR,295/80R22.5 / 10.00R20 / 9.00R20
Number of tires: 10 / 6pcs
FAQ
What kind of truck is Sinotruk Sinotruk Jieshi Light Truck concrete mixer truck?
Sinotruk Sinotruk Jieshi Light Truck is an export-oriented concrete mixer truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sinotruk Jieshi Light Truck concrete mixer truck?
Sinotruk Jieshi Light Truck concrete mixer truck export reference is about $24,306 – $45,833. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sinotruk Jieshi Light Truck concrete mixer truck cover?
Sinotruk Jieshi Light Truck concrete mixer truck mainly covers: Drive: 4x2 / 6x4; Horsepower: 140 hp / 170 hp / 185 hp / 220 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk Jieshi Light Truck concrete mixer truck?
For Sinotruk Jieshi Light Truck concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sinotruk Jieshi Light Truck concrete mixer truck include?
Sinotruk Jieshi Light Truck concrete mixer truck currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk Jieshi Light Truck concrete mixer truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
