Sinotruk (formerly Sinotruk Ace) Jieshi 170 hp 4X2(6 wheels) 3.35m³ Concrete Mixer Truck

Export reference
From $24,306
MSRP ¥17.5M CNY
Fuel: Diesel
Curb Weight:: 8.25ton
Wheelbase:: 3650mm
Tire Size:: 9.00R20
Cab dimensions:: 6.94×2.35×3.5m
Truck Type:: concrete mixer truck
Rated payload: 7.355ton
Drive 4X2 (6 wheels)
Horsepower 170
Emission China V

Overview

The Sinotruk (formerly Sinotruk Ace) Jieshi 170 hp 4X2(6 wheels) 3.35m³ Concrete Mixer Truck is a concrete mixer truck featuring 7.355t payload, 8.25ton GVW, 4X2 (6 wheels) drive and 7 series cab. On the powertrain side, it comes with 170 hp, China V emissions and Diesel fuel.

China V 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 6.94×2.35×3.5m
Truck Type: concrete mixer truck
Drive type: 4X2
Vehicle origin: Chengdu, Sichuan
Front/rear track width: Front track: 1780mm; Rear track: 1700mm
Wheelbase: 3650mm
Curb Weight: 8.25ton
Rated payload: 7.355ton
Max. speed: 80km/h
Front/rear suspension: 1.28/2.16m
Body Parameters
Mixing drum capacity: 3.35m³
Vehicle certification code: CDW5160GJBA3R5
Body Brand: Sinotruk王牌
Engine parameters
Engine Model: YuchaiYCD4P4S-170
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.6L
Emission standard: China V
Max output power: 125kW
Max hp: 170Horsepower
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Chassis Specs
Chassis Series: Jieshi
Chassis Model: CDW3160HA3R5
Front axle description: 3.6T
rear axle description: 10T
Axle ratio: 6.833
Leaf spring count: 11/10+8
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS85F
Cab parameters
Cab: 7 series
Tire
Tire Size: 9.00R20
Number of tires: 6pcs

Photos

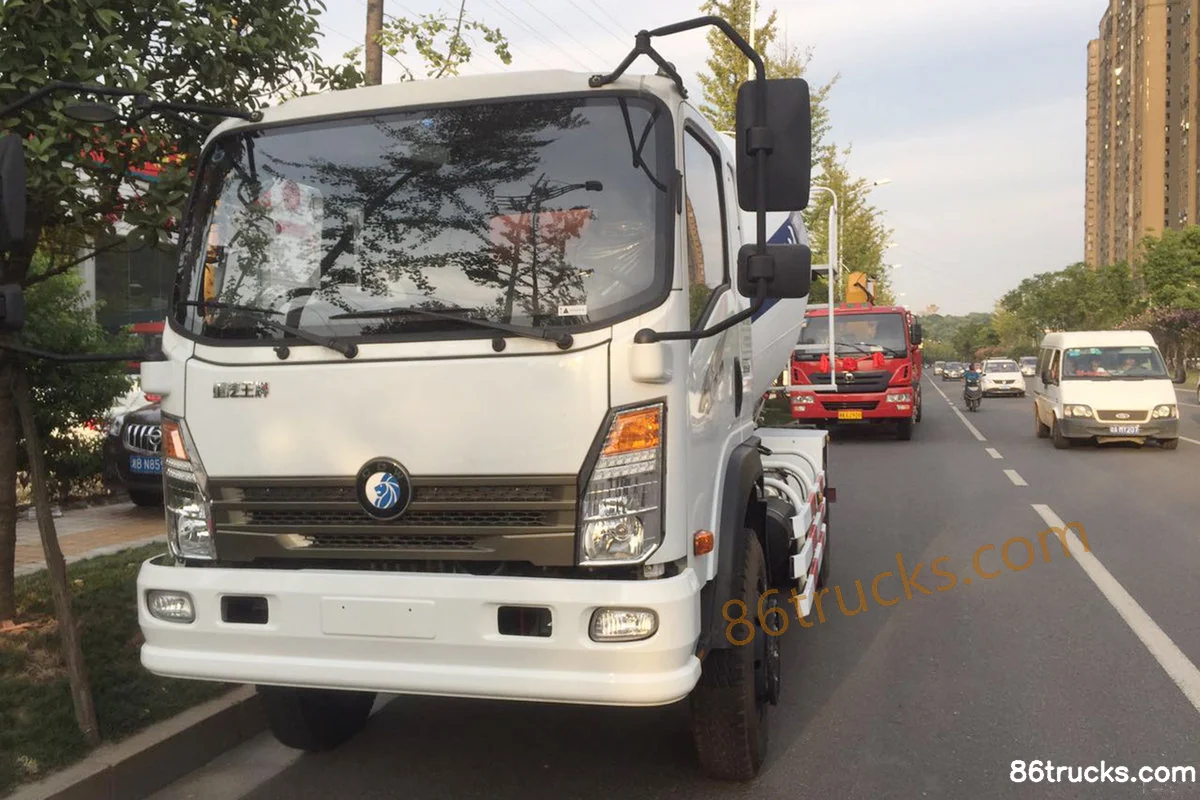

Exterior1

1 photos

FAQ

What is the export price of Sinotruk (formerly Sinotruk Ace) Jieshi 170 hp 4X2(6 wheels) 3.35m³ Concrete Mixer Truck, and what does it include?

Sinotruk (formerly Sinotruk Ace) Jieshi 170 hp 4X2(6 wheels) 3.35m³ Concrete Mixer Truck export reference is about From $24,306; MSRP is ¥17.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk (formerly Sinotruk Ace) Jieshi 170 hp 4X2(6 wheels) 3.35m³ Concrete Mixer Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk (formerly Sinotruk Ace) Jieshi 170 hp 4X2(6 wheels) 3.35m³ Concrete Mixer Truck?

Key specs of Sinotruk (formerly Sinotruk Ace) Jieshi 170 hp 4X2(6 wheels) 3.35m³ Concrete Mixer Truck: Drive: 4x2; Horsepower: 170 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk (formerly Sinotruk Ace) Jieshi 170 hp 4X2(6 wheels) 3.35m³ Concrete Mixer Truck suited for?

Sinotruk (formerly Sinotruk Ace) Jieshi 170 hp 4X2(6 wheels) 3.35m³ Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk (formerly Sinotruk Ace) Jieshi 170 hp 4X2(6 wheels) 3.35m³ Concrete Mixer Truck differ from other variants in the same series?

Sinotruk (formerly Sinotruk Ace) Jieshi 170 hp 4X2(6 wheels) 3.35m³ Concrete Mixer Truck belongs to Sinotruk Jieshi Light Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk (formerly Sinotruk Ace) Jieshi 170 hp 4X2(6 wheels) 3.35m³ Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk (formerly Sinotruk Ace) Jieshi 170 hp 4X2(6 wheels) 3.35m³ Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
