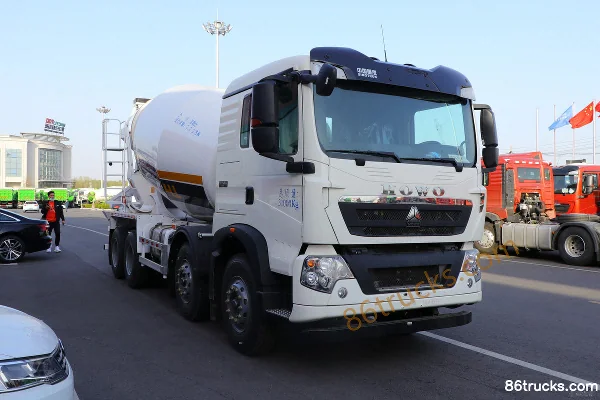

Sinotruk HOWO TX 350hp 8X4(12 wheels) 7.8m³ concrete mixer truck (China VI) (Tanghong Heavy Industry brand) (XT5317GJBT5F33)
EXW
Export quote
Tanghong Heavy Industry Sinotruk HOWO chassis
Main model photos
29 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HOWO TX 350hp 8X4(12 wheels) 7.8m³ concrete mixer truck (China VI) (Tanghong Heavy Industry brand) (XT5317GJBT5F33) | 8x4 / 350hp / China VI | ||
| Sinotruk HOWO T5G 340hp 8X4(12 wheels) 7.3m³ Concrete Mixer Truck (Tanghong Heavy Industry)(XT5318GJBT5F4) | 8x4 / 400hp / China VI | From $62,500 | |
| Sinotruk HOWO T5G 340hp 8X4(12 wheels) 7.73m³ Concrete Mixer Truck (Tanghong Heavy Industry)(XT5317GJBT5E12) | 8x4 / 340hp / China V | From $51,389 | |
| Sinotruk HOWO T5G 340 hp 8X4(12 wheels) 8.0 cubic meter concrete mixer truck (Tanghong Heavy Industry brand)(XT5315GJBT5E1) | 8x4 / 340hp / China V | From $52,778 | |
| Sinotruk HOWO T5G 340 hp 8X4(12 wheels) 7.7 m³ Concrete Mixer Truck (Tanghong Heavy Industry Brand) (XT5314GJBT5E6) | 8x4 / 340hp / China V |
Sinotruk HOWO T5G 340hp 8X4(12 wheels) 7.3m³ Concrete Mixer Truck (Tanghong Heavy Industry)(XT5318GJBT5F4)
EXW
From $62,500
Export quote
Sinotruk HOWO T5G 340hp 8X4(12 wheels) 7.73m³ Concrete Mixer Truck (Tanghong Heavy Industry)(XT5317GJBT5E12)
EXW
From $51,389
Export quote
Sinotruk HOWO T5G 340 hp 8X4(12 wheels) 8.0 cubic meter concrete mixer truck (Tanghong Heavy Industry brand)(XT5315GJBT5E1)
EXW
From $52,778
Export quote
Sinotruk HOWO T5G 340 hp 8X4(12 wheels) 7.7 m³ Concrete Mixer Truck (Tanghong Heavy Industry Brand) (XT5314GJBT5E6)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 10.18×2.55×3.99 / 10.35×2.5×3.99 / 9.94×2.55×3.99 / 9.88×2.55×3.9 / 10.2×2.55×3.99 / 9.92×2.5×3.99 / 11.85×2.496×3.99m
Drive type: 8X4
Truck Type: Concrete mixer truck
Vehicle origin: Tangshan, Hebei
Front/rear track width: Front: 2035/2035mm; Rear: 1870/1870 / Front: 2015/2015mm; Rear: 1850/1850 / Front track: 2035/2035mm; Rear track: 1850/1850 / Front: 2035/2035mm; Rear: 1850/1850 / Front track: 2015/2015mm; Rear track: 1850/1850 / Front: 2022/2022mm; Rear: 1830/1830
Wheelbase: 1800+3050+1350 / 1800+3025+1400 / 1800+3025+1350 / 1800+3825+1350mm
Curb Weight: 13.85 / 14.94 / 14 / 13.4 / 14.07 / 19.2ton
Rated payload: 17.02 / 15.93 / 16.87 / 17.47 / 16.8 / 11.67ton
Max. speed: 82 / 80km/h
Front/rear suspension: 1.43/2.55 / 1.43/2.72 / 1.43/2.31 / 1.43/1.3 / 1.43/2.57 / 1.43/2.29 / 1.5/3.375m
Body Parameters
Mixing drum capacity: 7.8 / 7.3 / 7.73 / 8 / 7.7 / 5.34m³
Vehicle certification code: XT5317GJBT5F33 / XT5318GJBT5F4 / XT5317GJBT5E12 / XT5315GJBT5E1 / XT5314GJBT5E6 / XT5319GJBT5F / XT5310GJBZZE2
Body Brand: Tanghong Heavy Industry
Engine parameters
Engine Model: WeichaiWP8.350E61 / SinotrukMC09.40-50 / SinotrukMC07.34-50 / WeichaiWP8.340E51 / SinotrukMC07.34-60 / SinotrukD10.38-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.8 / 8.765 / 6.87 / 9.726L
Emission standard: China VI / China V
Max output power: 257 / 291 / 248 / 250 / 276kW
Max hp: 350 / 400 / 340 / 380Horsepower
Rated speed: 2100 / 2000 / 2200rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, high-pressure common rail, turbocharged intercooled, EGR / Inline, water-cooled, 4-stroke, turbocharged & intercooled, high-pressure common rail / Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail / High-pressure common rail+EGR
Chassis Specs
Chassis Series: TX / T5G / HOWO T5G / SinotrukHOWO T5G / HOWO-7
Chassis Model: ZZ1317N306GF1 / ZZ1317N306GE1 / ZZ1317N3667E1
Axle ratio: 4.875
Leaf spring count: 11/11/12 / 11/11/10 / 3/3/4 / 11/11/12,11/11/10,3/3/5,3/3/4,2/2/5,2/2/4,3/3/-,2/2/-,11/11/-
Transmission Parameters
Number of gears: 10 / 12Gear
Transmission Model: Sinotruk HW10-speed / SinotrukHW19712CL / Sinotruk 10-speed
Cab parameters
Cab: HOWOTX
Tire
Tire Size: 12R22.5 18PR / 12R22.5,11.00R20,315/80R22.5 18PR,295/80R22.5,12.00R20 18PR / 11.00R20 / 12R22.5 / 12.00R20 18PR
Number of tires: 12pcs
FAQ
What kind of truck is Tanghong Heavy Industry Tanghong Heavy Industry Sinotruk HOWO chassis concrete mixer truck?
Tanghong Heavy Industry Tanghong Heavy Industry Sinotruk HOWO chassis is an export-oriented concrete mixer truck lineup with about 7 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Tanghong Heavy Industry Sinotruk HOWO chassis?
Tanghong Heavy Industry Sinotruk HOWO chassis export reference is about $51,389 – $64,583. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Tanghong Heavy Industry Sinotruk HOWO chassis cover?
Tanghong Heavy Industry Sinotruk HOWO chassis mainly covers: Drive: 8x4; Horsepower: 340 hp / 350 hp / 400 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Tanghong Heavy Industry Sinotruk HOWO chassis?
For Tanghong Heavy Industry Sinotruk HOWO chassis: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Tanghong Heavy Industry Sinotruk HOWO chassis include?
Tanghong Heavy Industry Sinotruk HOWO chassis currently lists about 7 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Tanghong Heavy Industry Sinotruk HOWO chassis?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
