FAW Jiefang J6L 8X4(12 wheels) 7.08m³ Electric Concrete Mixer Truck CATL 352kWh
EXW
Export quote
FAW Jiefang J6L Medium Truck concrete mixer truck
Main model photos
1,675 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang J6L 8X4(12 wheels) 7.08m³ Electric Concrete Mixer Truck CATL 352kWh | 8x4 | ||
| FAW Jiefang J6L 8X4(12 wheels) 7.08 m³ Electric Concrete Mixer Truck 350kwh | 8x4 | ||
| FAW Jiefang J6L 320 hp 8X4(12 wheels) 8 m³ concrete mixer truck | 8x4 / 320hp / China VI | ||
| FAW Jiefang J6L 360 hp 8X4(12 wheels) 7.8 m³ concrete mixer truck | 8x4 / 360hp / China VI | From $41,042 | |
| FAW Jiefang J6L 320 hp 8X4(12 wheels) 7.8 m³ concrete mixer truck (Fast Gear 10-speed) | 8x4 / 320hp / China VI | From $38,986 |

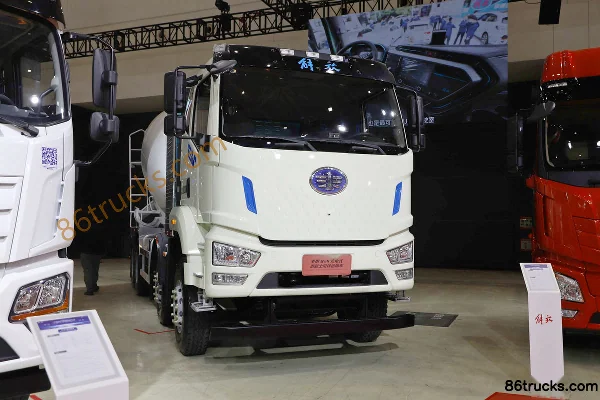

FAW Jiefang J6L 8X4(12 wheels) 7.08 m³ Electric Concrete Mixer Truck 350kwh
EXW
Export quote

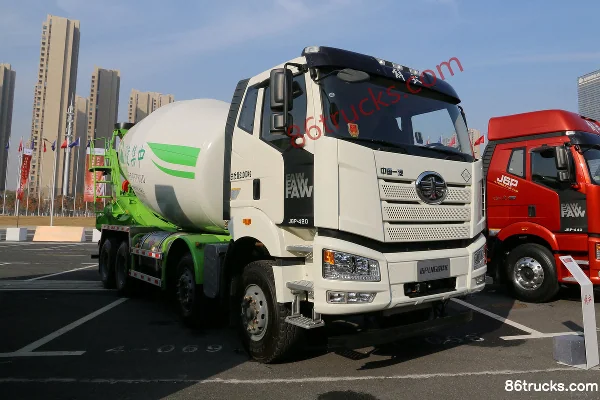

FAW Jiefang J6L 320 hp 8X4(12 wheels) 8 m³ concrete mixer truck
EXW
Export quote
FAW Jiefang J6L 360 hp 8X4(12 wheels) 7.8 m³ concrete mixer truck
EXW
From $41,042
Export quote
FAW Jiefang J6L 320 hp 8X4(12 wheels) 7.8 m³ concrete mixer truck (Fast Gear 10-speed)
EXW
From $38,986
Export quote
Series Specs
Basic Info
Cab dimensions: 10.68×2.55×3.99 / 10.63×2.55×3.99 / 9.8×2.55×3.95 / 10.16x2.55x3.96 / 10.25×2.55×3.98 / 9.11×2.55×3.96m
Drive type: 8X4 / 6X4
Truck Type: electric concrete mixer transport truck / Concrete mixer truck
Vehicle origin: Deyang, Sichuan / Changchun, Qingdao, Chengdu
Front/rear track width: Front track: 2048/2048mm; Rear track: 1878/1878mm / 1963/1963/1878/1878 / 1914/1914；1878/1878 / 1914/1914mm；1878/1878 / 1914/1914/1878/1878 / Front track: 1928/1928mm; Rear track: 1878/1878 / Front: 1987/1987mm; Rear: 1878/1878 / Front: 1914/1914mm; Rear: 1878/1878 / Front: 1914mm; Rear: 1860/1860
Wheelbase: 2000+3400+1350 / 1950+2900+1350 / 2000+2850+1350 / 1900+2950+1350 / 3800+1350mm
Curb Weight: 15.42 / 16.1 / 13.75 / 13 / 14 / 11.25ton
Rated payload: 15.45 / 14.77 / 17.12 / 17.805 / 16.805 / 13.555 / 17.87ton
Max. speed: 89 / 81km/h
Front/rear suspension: 1.47/2.46 / 1.5/2.93 / 1.4/2.2 / 1.4/2.56 / 1.4/2.65m
electric motor
Motor 1 Brand: FAW Group
Motor 1 Model: CAM400PT53
Motor Type: Permanent magnet synchronous motor
Peak power: 400kW
Body Parameters
Drum geometric volume: 11.6 / 15.5m³
Mixing drum capacity: 7.08 / 6.7 / 7.8 / 8 / 7.7 / 6m³
Vehicle certification code: CA5310GJBP62L4T4BEV / CA5320GJBP62K1T4E6 / CA5310GJBP62K1T4E6 / CA5310GJBP62K2T4E5 / CA5310GJBP62K2T4E5Z / CA5250GJBP62K1T1E5
Body Brand: FAW Jiefang
Engine parameters
Engine Model: DachaiCA6DK1-32E6 / XichaiCA6DL6-36E68 / DachaiCA6DK2-32E65 / XichaiCA6DK2-35E65 / XichaiCA6DL1-32E5 / XichaiCA6DK1-32E6
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.2 / 8.57 / 7.751 / 7.7L
Emission standard: China VI / China V
Max output power: 235 / 265 / 238 / 257kW
Max hp: 320 / 360 / 350Horsepower
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC / DOC+DPF+high-efficiency SCR air-assisted, low-mounted PTO, low idle, direct-drive pump / BOSCH common rail + SCR, low-mount PTO / EGR+DOC+DPF+SCR gas drive, low-position PTO
Chassis Specs
Chassis Series: J6L / FAW JiefangJ6L
Front axle description: Axle F7N front axle / F5N-1950 (S-cam) front axle / New F7N-2050 front axle / 1928 front axle / 1928 / F7N-1928
Frame Dimensions: 300×80×(8+5) / 270×75×(7+5)mm
rear axle description: Axle new Φ290 wheel-reduction axle / ф457 stamped-welded axle / φ290 wheel reduction axle / φ290 lightweight cast wheel reduction axle / 457 stamped-welded axle / φ290 wheel reduction axle (auto adjust arm, domestic ABS, 2-hole V-rod) / Φ457 stamped-welded axle (auto slack adjuster, domestic ABS) / Φ457 cast steel axle (auto slack adjuster, domestic ABS, 1878 track, 2-hole V-rod)
Axle ratio: 5.571 / 5.921 / 5.286 / 5.263
Leaf spring count: 9/11/10 / 4/4/- / 9/9/10 / 4/4/5 / 12/11/10 / 8/8/11 / 11/11/10 / 10/10/11,8/8/11,3/3/11,9/9/11,11/11/10 / 12/10,13/10,8/11
clutch: Φ430
Transmission Parameters
Number of gears: 4 / 10 / 9Gear
Transmission Model: F4S2400E / Fast Gear10JSD140TB / FAW JiefangCA10TAX160M / FAWCA10TA130M / FAWCA9TB160M
Cab parameters
Cab: J6L flat roof half sleeper upgraded interior cab / New J6L Full-Float Flat-Top Cab with Semi-Sleeper / J6L full-floating flat roof small half sleeper / J6L Semi-floating Flat Roof with Extended Cab / 2017 Model J6L Semi-Float Flat-Roof Small Half-Row Cab / 2017 semi-floating flat roof cab with single-row bunk
Tire
Tire Size: 12R22.5 18PR / 11.00R20 / 12R22.5 / 10.00R20
Number of tires: 12 / 10pcs
FAQ
What kind of truck is FAW Jiefang FAW Jiefang J6L Medium Truck concrete mixer truck?
FAW Jiefang FAW Jiefang J6L Medium Truck is an export-oriented concrete mixer truck lineup with about 24 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for FAW Jiefang J6L Medium Truck concrete mixer truck?
FAW Jiefang J6L Medium Truck concrete mixer truck export reference is about $37,042 – $55,278. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does FAW Jiefang J6L Medium Truck concrete mixer truck cover?
FAW Jiefang J6L Medium Truck concrete mixer truck mainly covers: Drive: 8x4; Horsepower: 320 hp / 360 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in FAW Jiefang J6L Medium Truck concrete mixer truck?
For FAW Jiefang J6L Medium Truck concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does FAW Jiefang J6L Medium Truck concrete mixer truck include?
FAW Jiefang J6L Medium Truck concrete mixer truck currently lists about 24 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FAW Jiefang J6L Medium Truck concrete mixer truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
