FAW Jiefang J6L 8X4(12 wheels) 7.08m³ Electric Concrete Mixer Truck CATL 352kWh

Export reference
MSRP N/A
Tire Size:: 12R22.5 18PR
Cab dimensions:: 10.68×2.55×3.99m
Truck Type:: electric concrete mixer transport truck
Vehicle origin:: Deyang, Sichuan
Front/rear track width:: Front track: 2048/2048mm; Rear track: 1878/1878mm
Max. speed:: 89km/h
FAW Jiefang J6L 8X4(12 wheels) 7.08m³ Electric Concrete Mixer Truck CATL 352kWh exterior
View more photos (9)
Rated payload: 15.45ton
Drive 8X4 (12 wheels)
Curb Weight: 15.42ton
Wheelbase: 2000+3400+1350mm

Overview

The FAW Jiefang J6L 8X4(12 wheels) 7.08m³ Electric Concrete Mixer Truck CATL 352kWh is a concrete mixer truck featuring 15.45t payload, 15.42ton GVW, 8X4 (12 wheels) drive and J6L flat roof half sleeper upgraded interior cab cab.

8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Cab dimensions: 10.68×2.55×3.99m
Drive type: 8X4
Truck Type: electric concrete mixer transport truck
Vehicle origin: Deyang, Sichuan
Front/rear track width: Front track: 2048/2048mm; Rear track: 1878/1878mm
Wheelbase: 2000+3400+1350mm
Curb Weight: 15.42ton
Rated payload: 15.45ton
Max. speed: 89km/h
Front/rear suspension: 1.47/2.46m
electric motor
Motor 1 Brand: FAW Group
Motor 1 Model: CAM400PT53
Motor Type: Permanent magnet synchronous motor
Peak power: 400kW
Body Parameters
Mixing drum capacity: 7.08m³
Vehicle certification code: CA5310GJBP62L4T4BEV
Body Brand: FAW Jiefang
Chassis Specs
Chassis Series: J6L
Chassis Model: CA5310GJBP62L4T4BEV
Front axle description: Axle F7N front axle
Frame Dimensions: 300×80×(8+5)mm
rear axle description: Axle new Φ290 wheel-reduction axle
Leaf spring count: 9/11/10
Transmission Parameters
Number of gears: 4Gear
Transmission Model: F4S2400E
Cab parameters
Cab: J6L flat roof half sleeper upgraded interior cab
Tire
Tire Size: 12R22.5 18PR
Number of tires: 12pcs

Photos

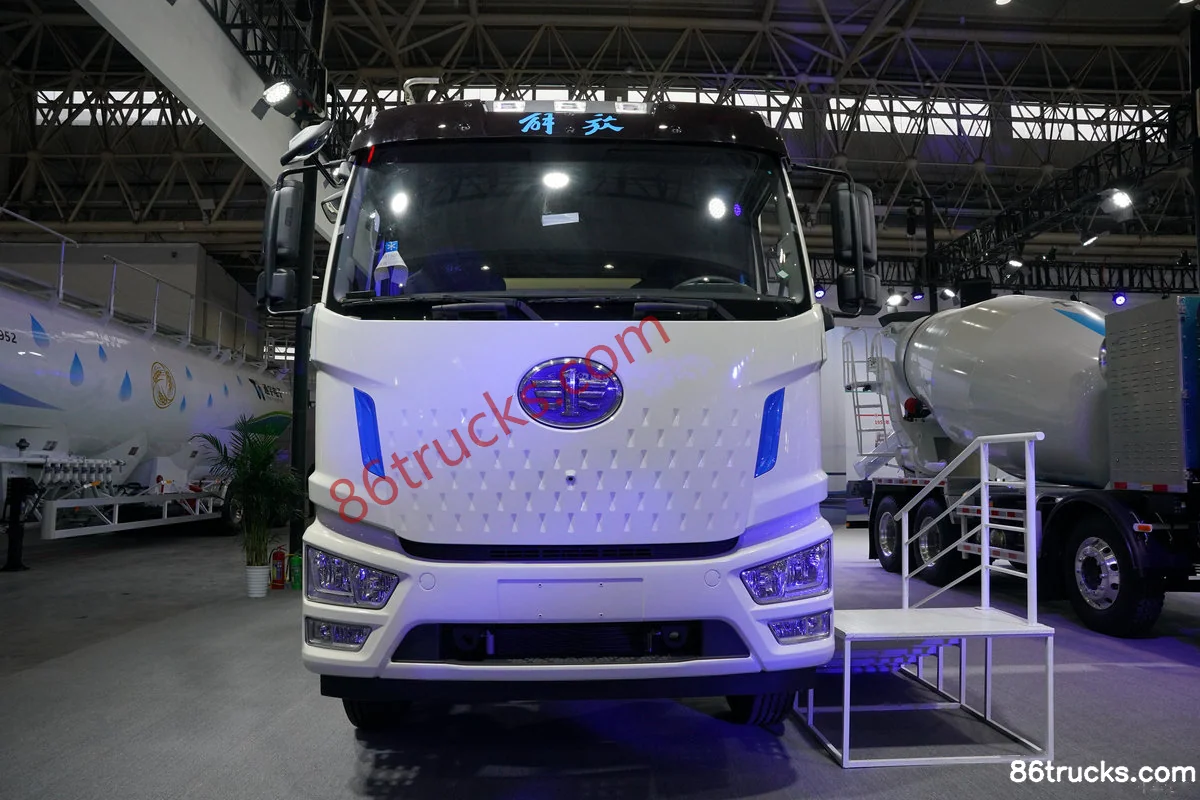

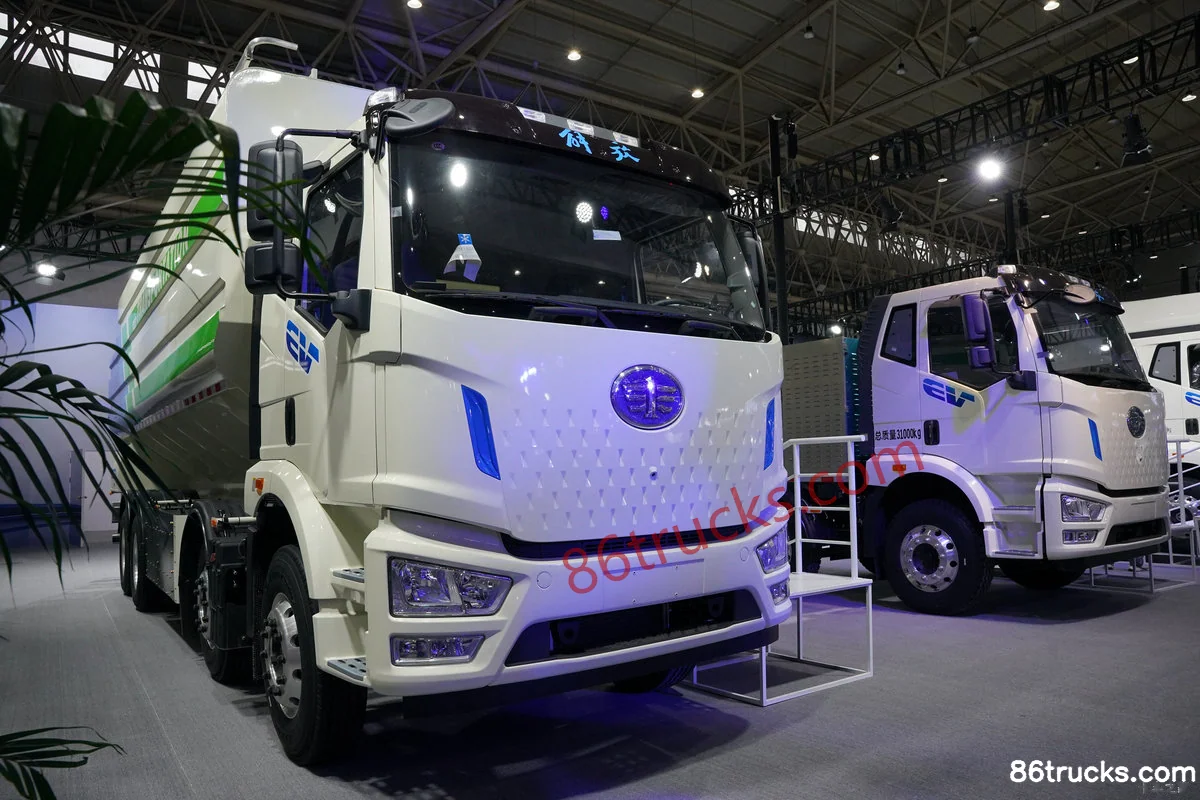

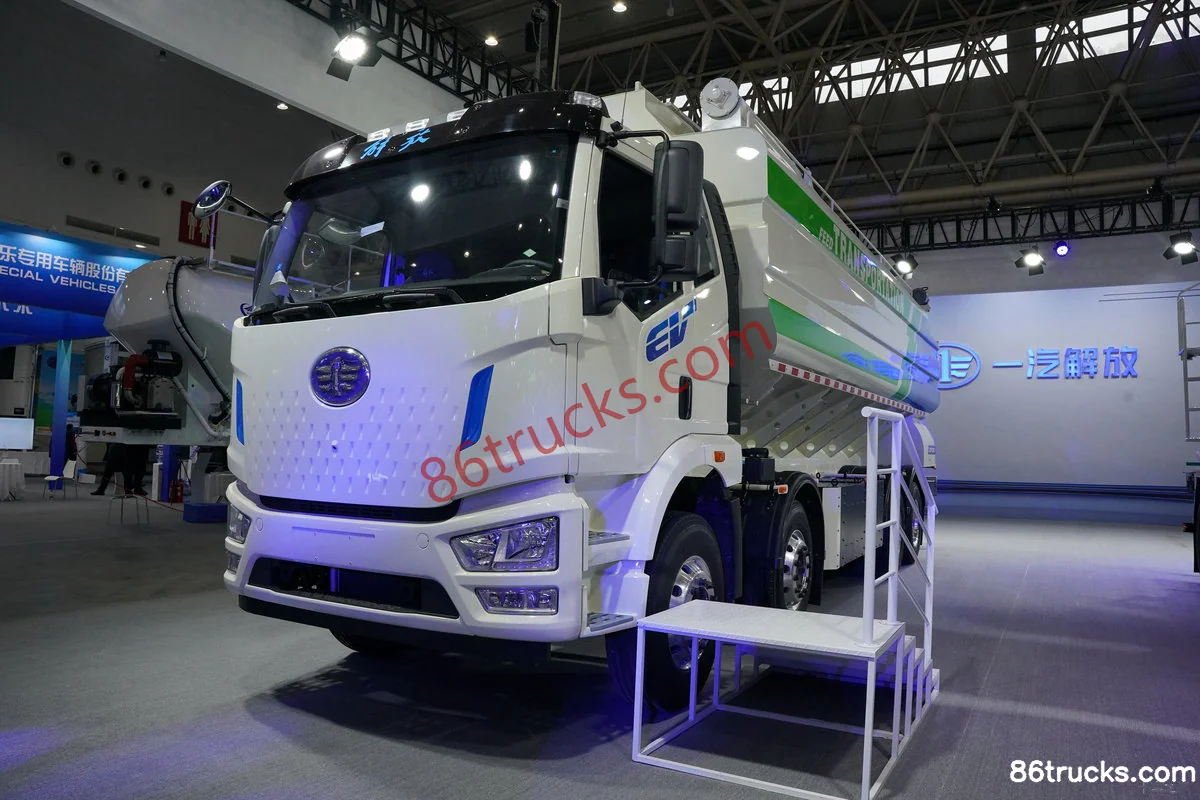

Exterior3

FAW Jiefang J6L 8X4(12 wheels) 7.08m³ Electric Concrete Mixer Truck CATL 352kWh Exterior (1) | 86Trucks FAW Jiefang J6L 8X4(12 wheels) 7.08m³ Electric Concrete Mixer Truck CATL 352kWh Exterior (2) | 86Trucks FAW Jiefang J6L 8X4(12 wheels) 7.08m³ Electric Concrete Mixer Truck CATL 352kWh Exterior (3) | 86Trucks

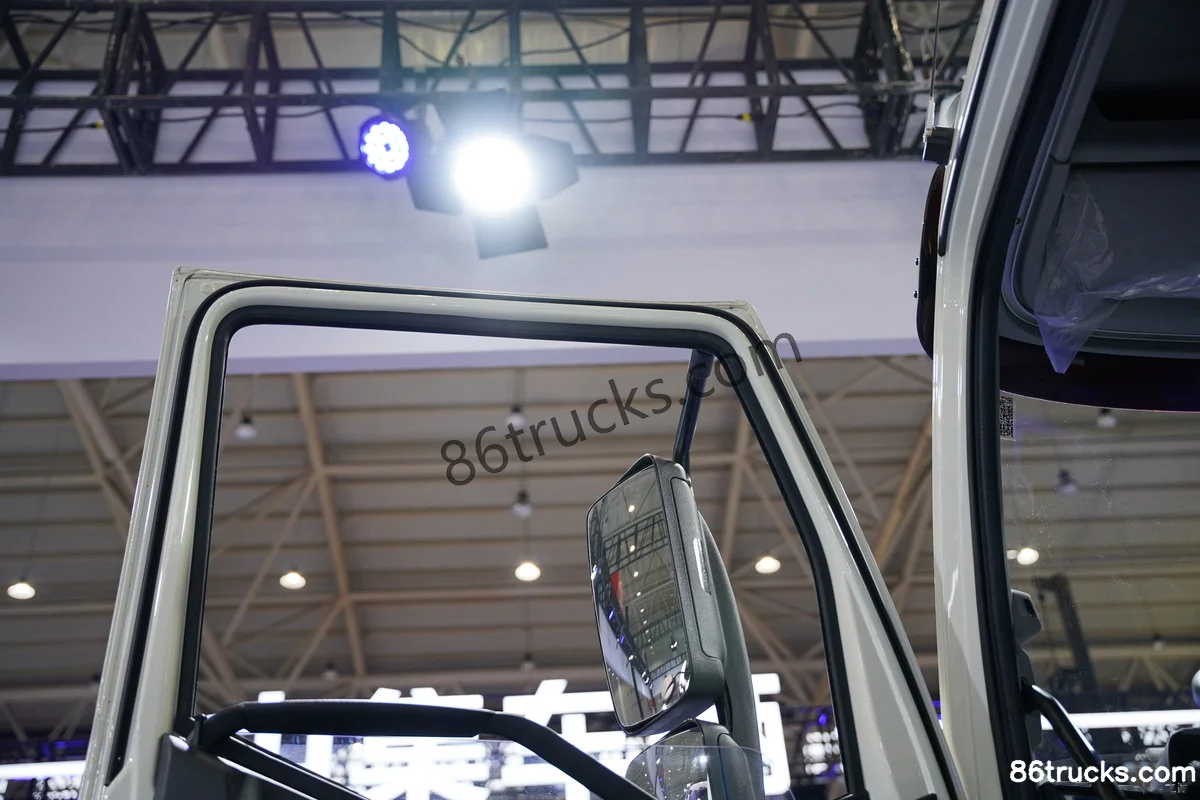

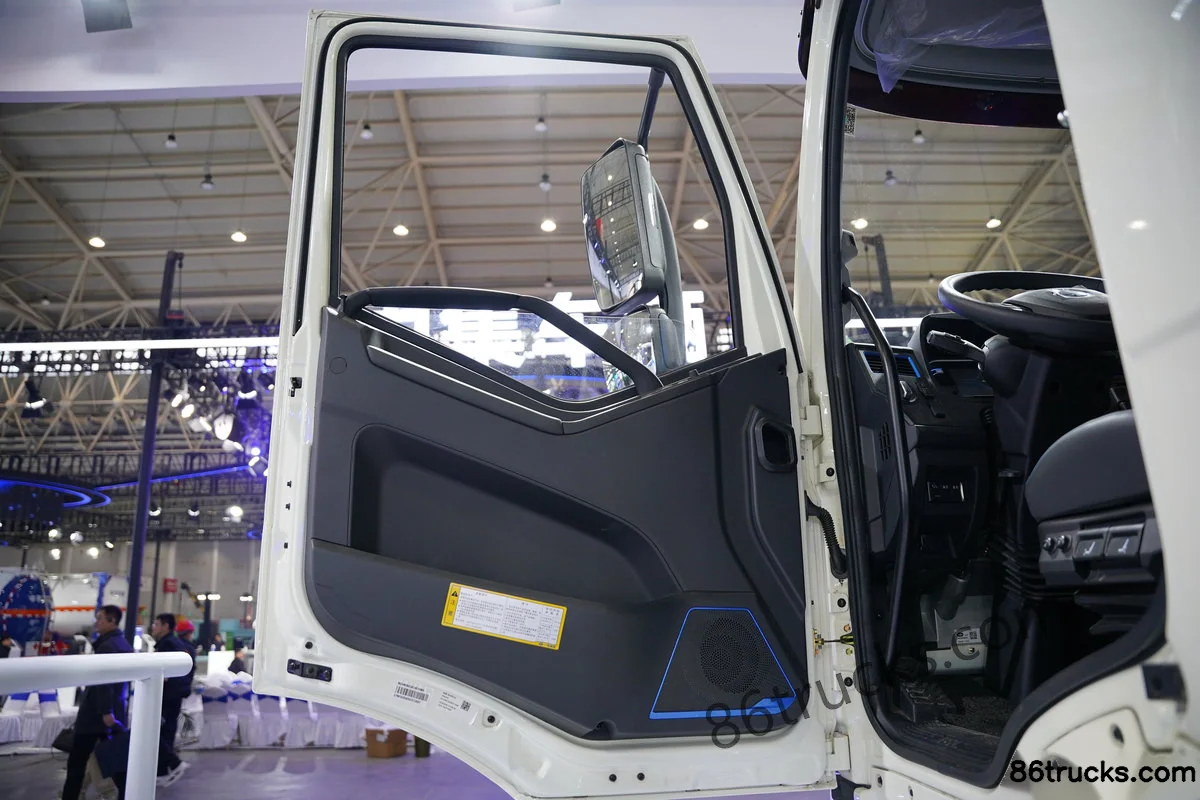

Cab3

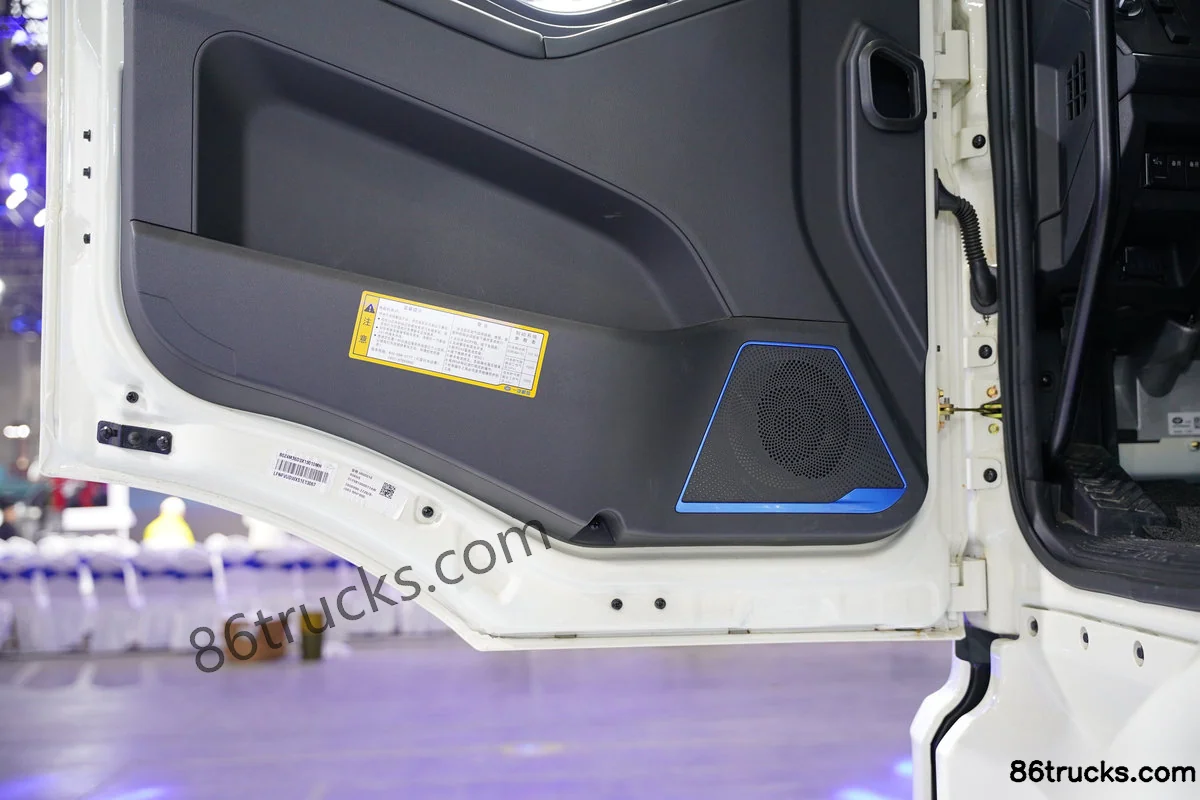

FAW Jiefang J6L 8X4(12 wheels) 7.08m³ Electric Concrete Mixer Truck CATL 352kWh Cab (1) | 86Trucks FAW Jiefang J6L 8X4(12 wheels) 7.08m³ Electric Concrete Mixer Truck CATL 352kWh Cab (2) | 86Trucks FAW Jiefang J6L 8X4(12 wheels) 7.08m³ Electric Concrete Mixer Truck CATL 352kWh Cab (3) | 86Trucks

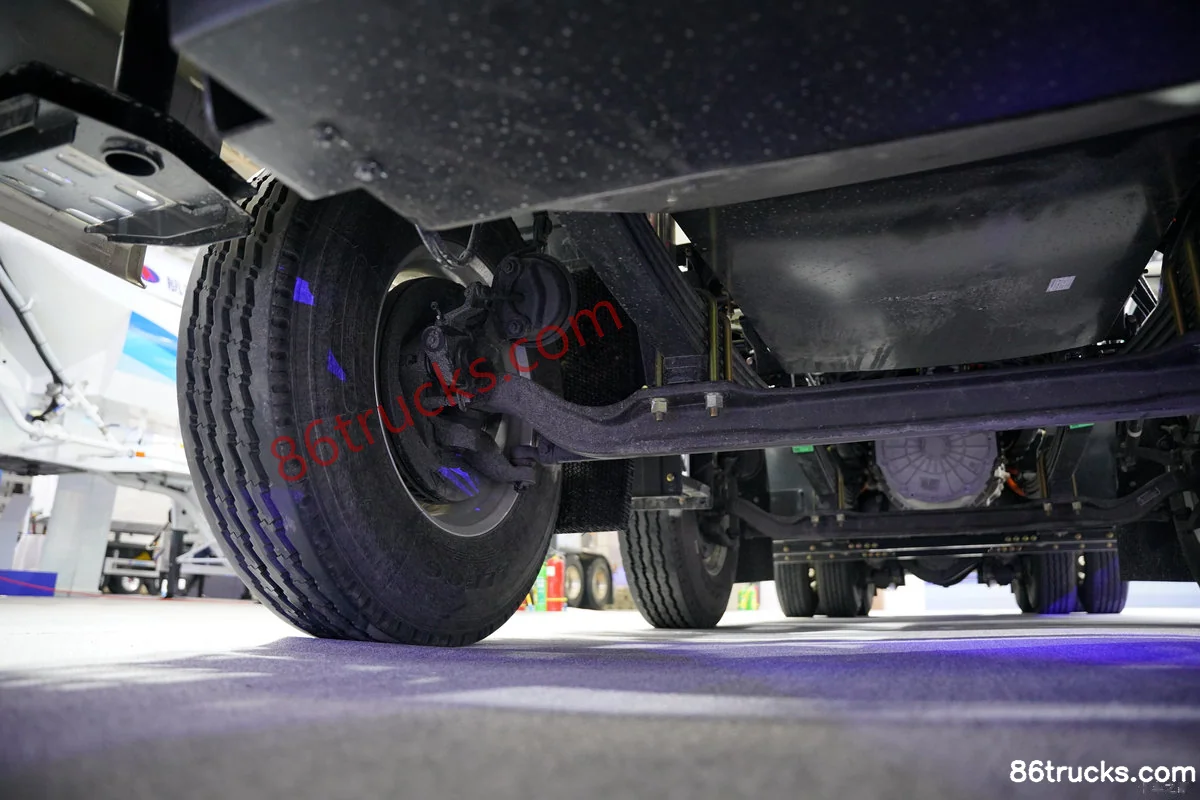

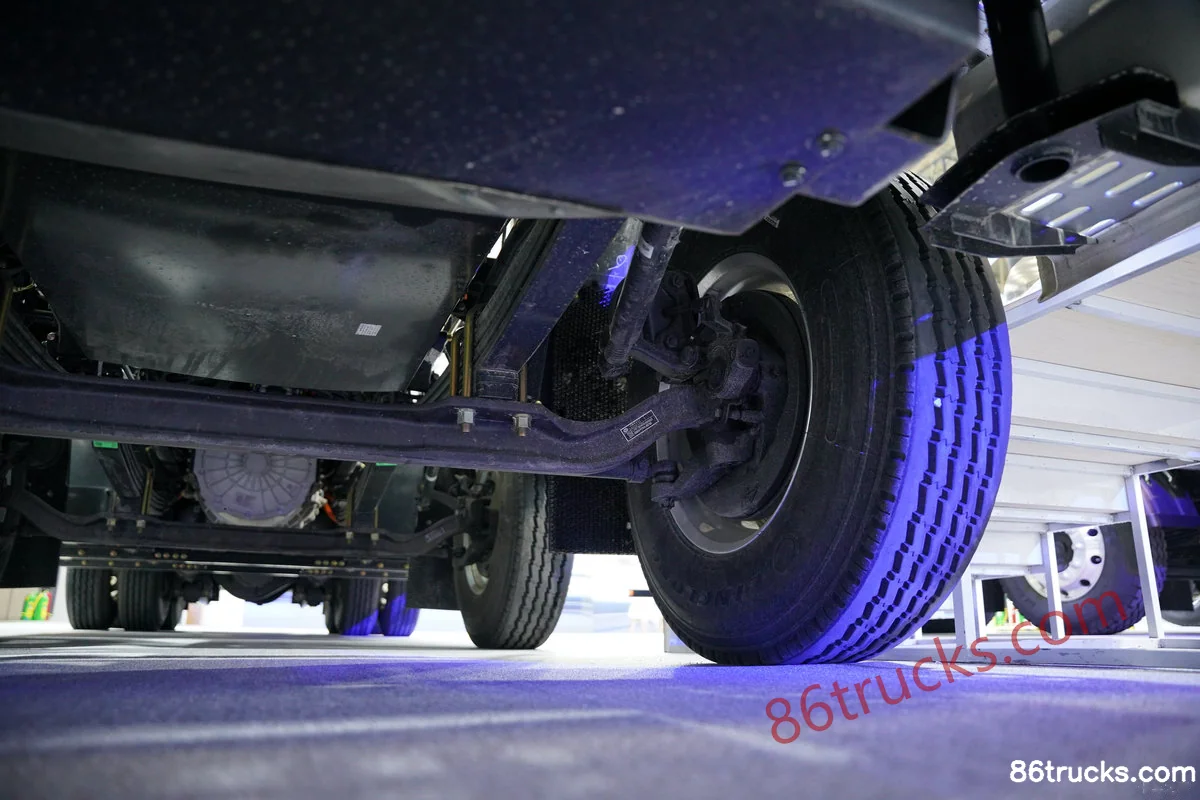

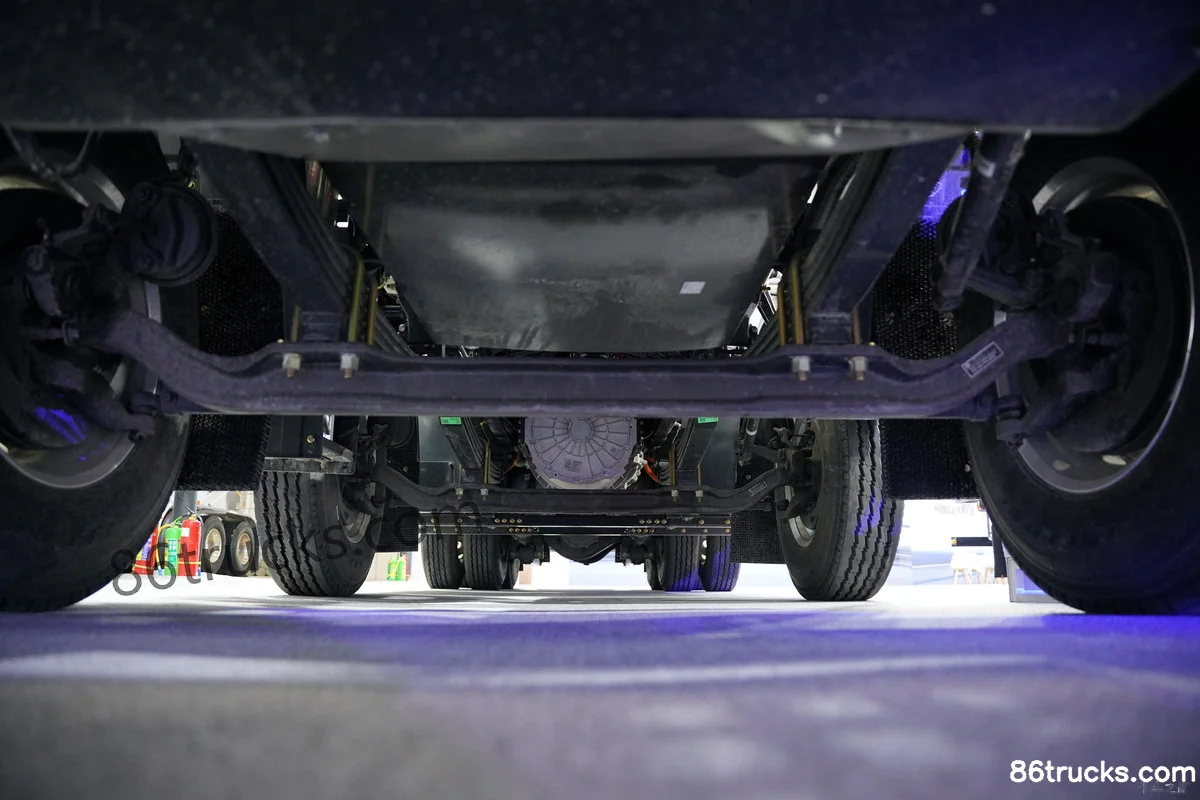

Chassis3

FAW Jiefang J6L 8X4(12 wheels) 7.08m³ Electric Concrete Mixer Truck CATL 352kWh Chassis (1) | 86Trucks FAW Jiefang J6L 8X4(12 wheels) 7.08m³ Electric Concrete Mixer Truck CATL 352kWh Chassis (2) | 86Trucks FAW Jiefang J6L 8X4(12 wheels) 7.08m³ Electric Concrete Mixer Truck CATL 352kWh Chassis (3) | 86Trucks

9 photos

FAQ

What are the key specs of FAW Jiefang J6L 8X4(12 wheels) 7.08m³ Electric Concrete Mixer Truck CATL 352kWh?

Key specs of FAW Jiefang J6L 8X4(12 wheels) 7.08m³ Electric Concrete Mixer Truck CATL 352kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6L 8X4(12 wheels) 7.08m³ Electric Concrete Mixer Truck CATL 352kWh suited for?

FAW Jiefang J6L 8X4(12 wheels) 7.08m³ Electric Concrete Mixer Truck CATL 352kWh is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang J6L 8X4(12 wheels) 7.08m³ Electric Concrete Mixer Truck CATL 352kWh differ from other variants in the same series?

FAW Jiefang J6L 8X4(12 wheels) 7.08m³ Electric Concrete Mixer Truck CATL 352kWh belongs to FAW Jiefang J6L Medium Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6L 8X4(12 wheels) 7.08m³ Electric Concrete Mixer Truck CATL 352kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6L 8X4(12 wheels) 7.08m³ Electric Concrete Mixer Truck CATL 352kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
