Sinotruk (formerly Sinotruk Ace) Jieshi 220 hp 6X4(10 wheels) concrete mixer truck

Export reference
From $45,833
MSRP ¥33M CNY
Fuel: Diesel
Curb Weight:: 11.5ton
Wheelbase:: 3400+1350,3600+1350mm
Tire Size:: 11.00R20 18PR,295/80R22.5
Cab dimensions:: 8.76×2.5×3.7m
Truck Type:: Concrete mixer truck
Rated payload: 13.37ton
Drive 6X4 (10 wheels)
Horsepower 220
Emission China V

Overview

The Sinotruk (formerly Sinotruk Ace) Jieshi 220 hp 6X4(10 wheels) concrete mixer truck is a concrete mixer truck featuring 13.37t payload, 11.5ton GVW, 6X4 (10 wheels) drive and N60 cab. On the powertrain side, it comes with 220 hp, China V emissions and Diesel fuel.

China V 220 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.76×2.5×3.7m
Truck Type: Concrete mixer truck
Drive type: 6X4
Vehicle origin: Chengdu, Sichuan
Front/rear track width: Front: 1960mm; Rear: 1860/1860
Wheelbase: 3400+1350,3600+1350mm
Curb Weight: 11.5ton
Rated payload: 13.37ton
Max. speed: 80km/h
Front/rear suspension: 1.46/2.55m
Body Parameters
Mixing drum capacity: 6m³
Vehicle certification code: CDW5250GJBA1N5C
Body Brand: Sinotruk王牌
Engine parameters
Engine Model: YuchaiYC6JA220-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 162kW
Max hp: 220Horsepower
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Chassis Specs
Chassis Series: Jieshi
Chassis Model: CDW3250A1N5C
Front axle description: 5T
rear axle description: 10T
Axle ratio: 5.571
Leaf spring count: 9/10,11/12,9/12,10/12
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS118A
Cab parameters
Cab: N60
Tire
Tire Size: 11.00R20 18PR,295/80R22.5
Number of tires: 10pcs

Photos

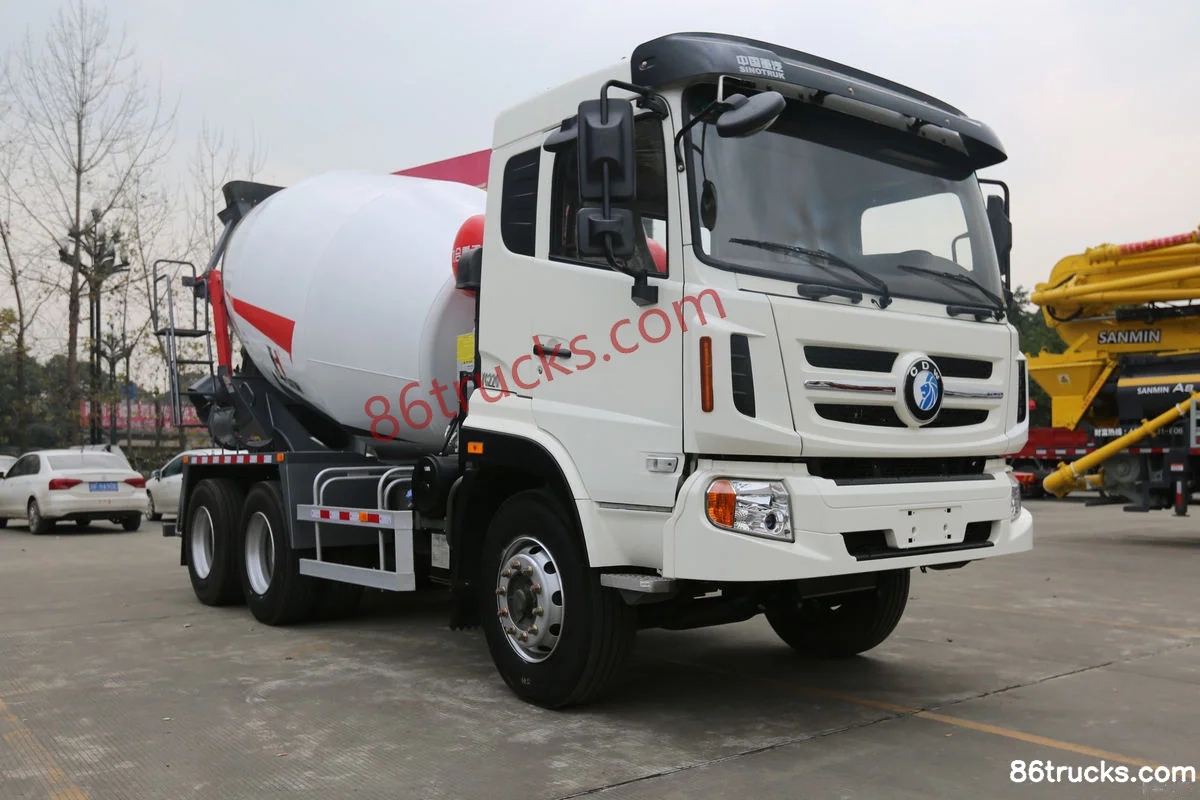

Exterior1

1 photos

FAQ

What is the export price of Sinotruk (formerly Sinotruk Ace) Jieshi 220 hp 6X4(10 wheels) concrete mixer truck, and what does it include?

Sinotruk (formerly Sinotruk Ace) Jieshi 220 hp 6X4(10 wheels) concrete mixer truck export reference is about From $45,833; MSRP is ¥33M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk (formerly Sinotruk Ace) Jieshi 220 hp 6X4(10 wheels) concrete mixer truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk (formerly Sinotruk Ace) Jieshi 220 hp 6X4(10 wheels) concrete mixer truck?

Key specs of Sinotruk (formerly Sinotruk Ace) Jieshi 220 hp 6X4(10 wheels) concrete mixer truck: Drive: 6x4; Horsepower: 220 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk (formerly Sinotruk Ace) Jieshi 220 hp 6X4(10 wheels) concrete mixer truck suited for?

Sinotruk (formerly Sinotruk Ace) Jieshi 220 hp 6X4(10 wheels) concrete mixer truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk (formerly Sinotruk Ace) Jieshi 220 hp 6X4(10 wheels) concrete mixer truck differ from other variants in the same series?

Sinotruk (formerly Sinotruk Ace) Jieshi 220 hp 6X4(10 wheels) concrete mixer truck belongs to Sinotruk Jieshi Light Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk (formerly Sinotruk Ace) Jieshi 220 hp 6X4(10 wheels) concrete mixer truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk (formerly Sinotruk Ace) Jieshi 220 hp 6X4(10 wheels) concrete mixer truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
