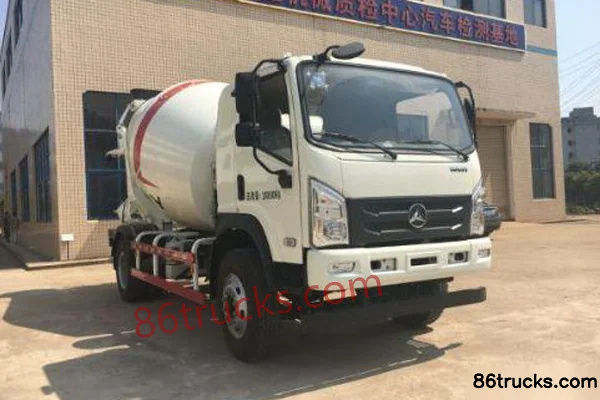

SANY V8 140hp 4X2(6 wheels) 3.6m³ concrete mixer truck
EXW
Export quote
SANY Heavy Industry V8 concrete mixer truck
Main model photos
4 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SANY V8 140hp 4X2(6 wheels) 3.6m³ concrete mixer truck | 4x2 / 140hp / China V | ||
| SANY V8 140hp 4X2(6 wheels) 3.6m³ concrete mixer truck | 4x2 / 140hp / China V |
SANY V8 140hp 4X2(6 wheels) 3.6m³ concrete mixer truck
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 7.53×2.32×3.32 / 7.785×2.32×3.605m
Drive type: 4X2
Truck Type: concrete mixer truck
Wheelbase: 4200mm
Vehicle origin: Changsha, Hunan
Front/rear track width: Front track: 1799mm; Rear track: 1724mm
Curb Weight: 7.35 / 8.01ton
Rated payload: 8.52 / 7.86ton
Max. speed: 80km/h
Front/rear suspension: 1.28/2.05 / 1.28/2.305m
Engine parameters
Injection System: Common Rail (China V)
Engine Model: YuchaiYC4EG140-50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.73L
Emission standard: China V
Max output power: 103kW
Max hp: 140Horsepower
Rated speed: 2500rpm
Engine Type: BOSCH high-pressure common rail + SCR
Body Parameters
Mixing drum capacity: 3.6m³
Vehicle certification code: SYM5161GJB1E / SYM5160GJB1E
Body Brand: SANY Group
Chassis Specs
Chassis Series: SANY Heavy Industry V8
Chassis Model: SYM1160T1E
Axle ratio: 6.5
Leaf spring count: 10/10+3
Transmission Parameters
Number of gears: 8Gear
Transmission Model: WLYWLY8S90A
Tire
Tire Size: 9.00R20
Number of tires: 6pcs
FAQ
What kind of truck is SANY Truck SANY Heavy Industry V8 concrete mixer truck?
SANY Truck SANY Heavy Industry V8 is an export-oriented concrete mixer truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does SANY Heavy Industry V8 concrete mixer truck cover?
SANY Heavy Industry V8 concrete mixer truck mainly covers: Drive: 4x2; Horsepower: 140 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SANY Heavy Industry V8 concrete mixer truck?
For SANY Heavy Industry V8 concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does SANY Heavy Industry V8 concrete mixer truck include?
SANY Heavy Industry V8 concrete mixer truck currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SANY Heavy Industry V8 concrete mixer truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
