FAW Jiefang Qingdao JK6 Lightweight 8X4(12 wheels) Pure Electric Mixer Truck Chassis 350kWh

Export reference
From $81,444
MSRP ¥58.64M CNY
Cab dimensions:: 9.21x2.55x3.435m
Truck Type:: Concrete mixer truck
Front/rear track width:: Front 1965/1965, Rear 1878/1878mm
Max. speed:: 89km/h
Front/rear suspension:: 1.41/1.2m
Motor 1 Brand:: FAW
Drive 8X4 (12 wheels)
Curb Weight: 11.7ton
Wheelbase: 1900+3350+1350mm
Tire Size: 12R22.5 18PR

Overview

The FAW Jiefang Qingdao JK6 Lightweight 8X4(12 wheels) Pure Electric Mixer Truck Chassis 350kWh is a concrete mixer truck featuring 11.7ton GVW, 8X4 (12 wheels) drive and 9.21x2.55x3.435m cab.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.21x2.55x3.435m
Drive type: 8X4
Truck Type: Concrete mixer truck
Wheelbase: 1900+3350+1350mm
Front/rear track width: Front 1965/1965, Rear 1878/1878mm
Curb Weight: 11.7ton
Max. speed: 89km/h
Front/rear suspension: 1.41/1.2m
electric motor
Motor 1 Brand: FAW
Motor 1 Model: CAM400PT52
Motor Type: Permanent magnet synchronous motor
total rated power: 270kW
Peak power: 420kW
total rated torque: 1500N·m
total peak torque: 2600N·m
Chassis Specs
Chassis Series: FAW JiefangJK6
Chassis Model: CA1311P28L3T4BEVA80
Frame Dimensions: 300×80×(8+5)mm
Axle ratio: 5.263
Transmission Parameters
Number of gears: 6Gear
Transmission Model: Fast Gear6E240
Tire
Tire Size: 12R22.5 18PR
Number of tires: 12pcs

Photos

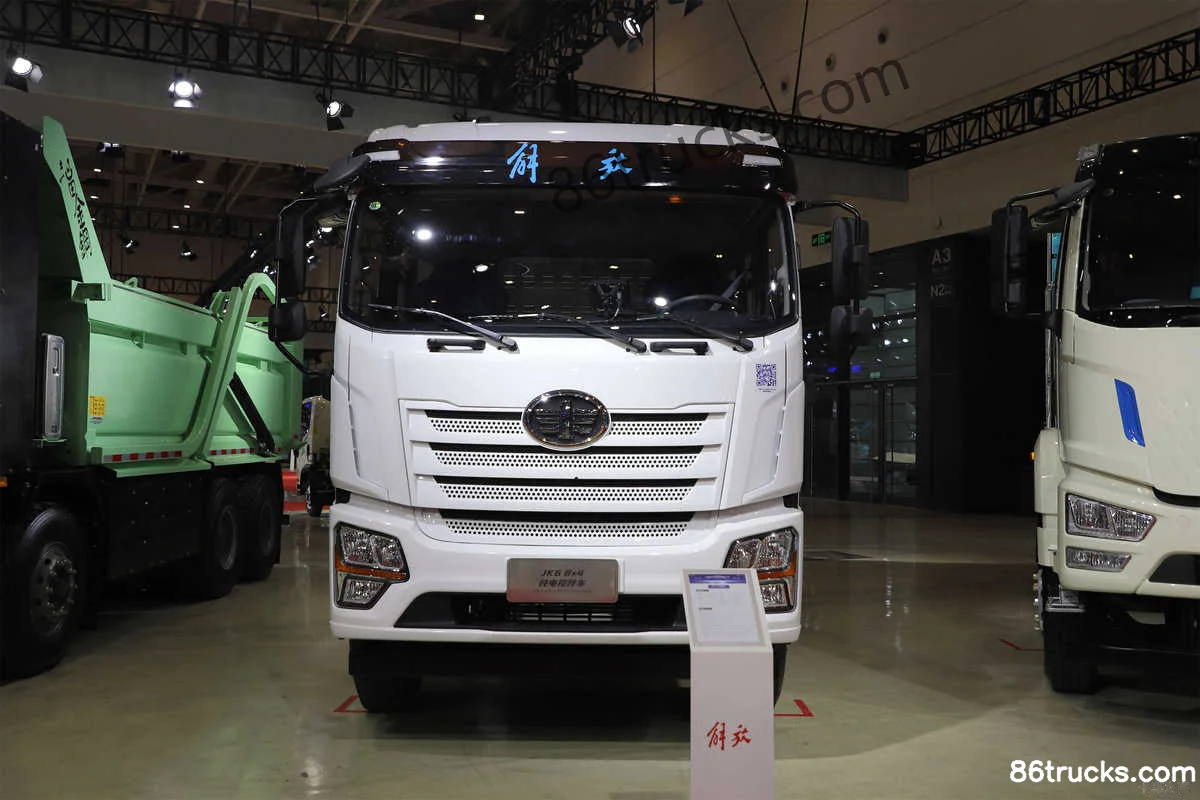

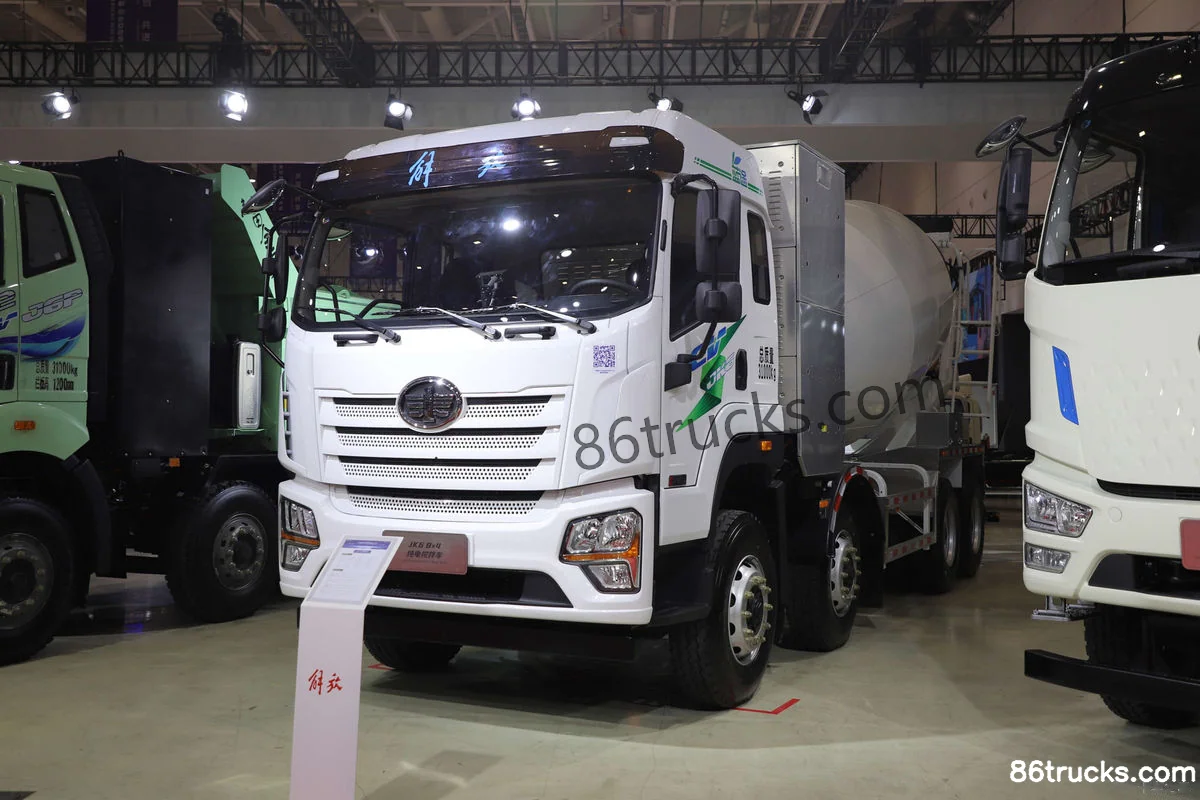

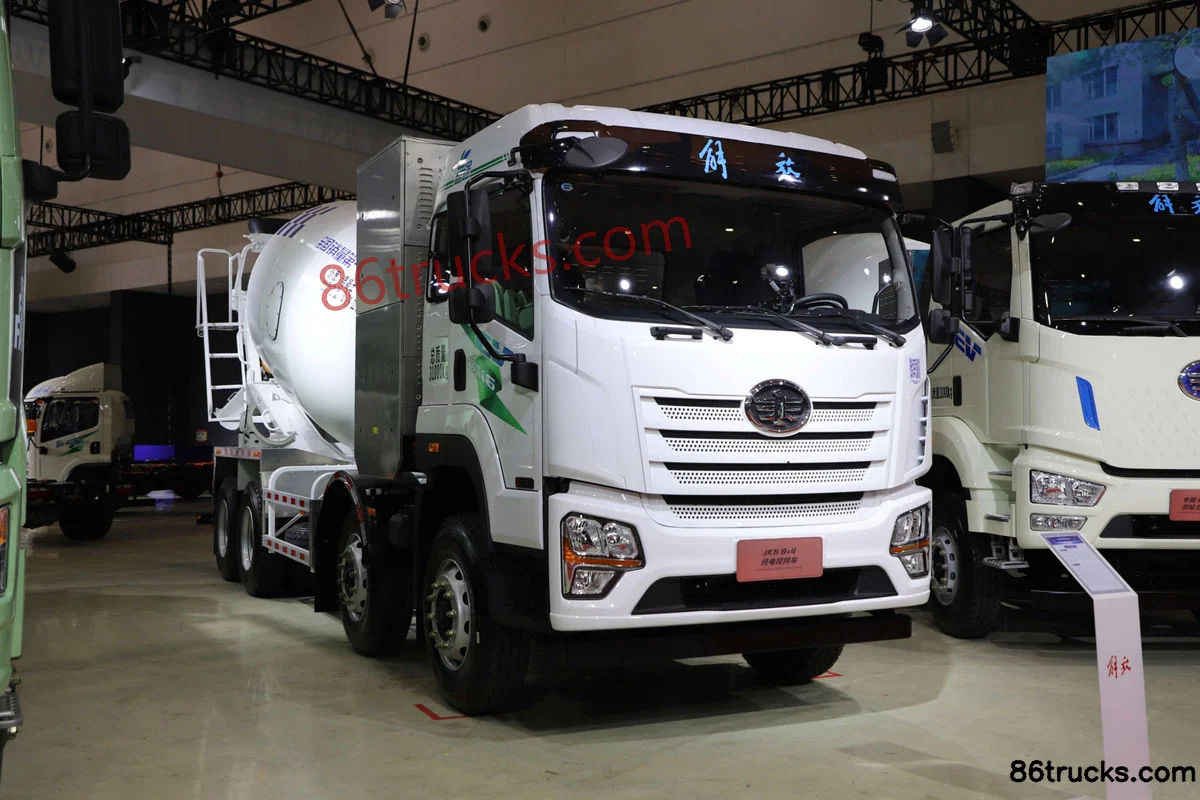

Exterior3

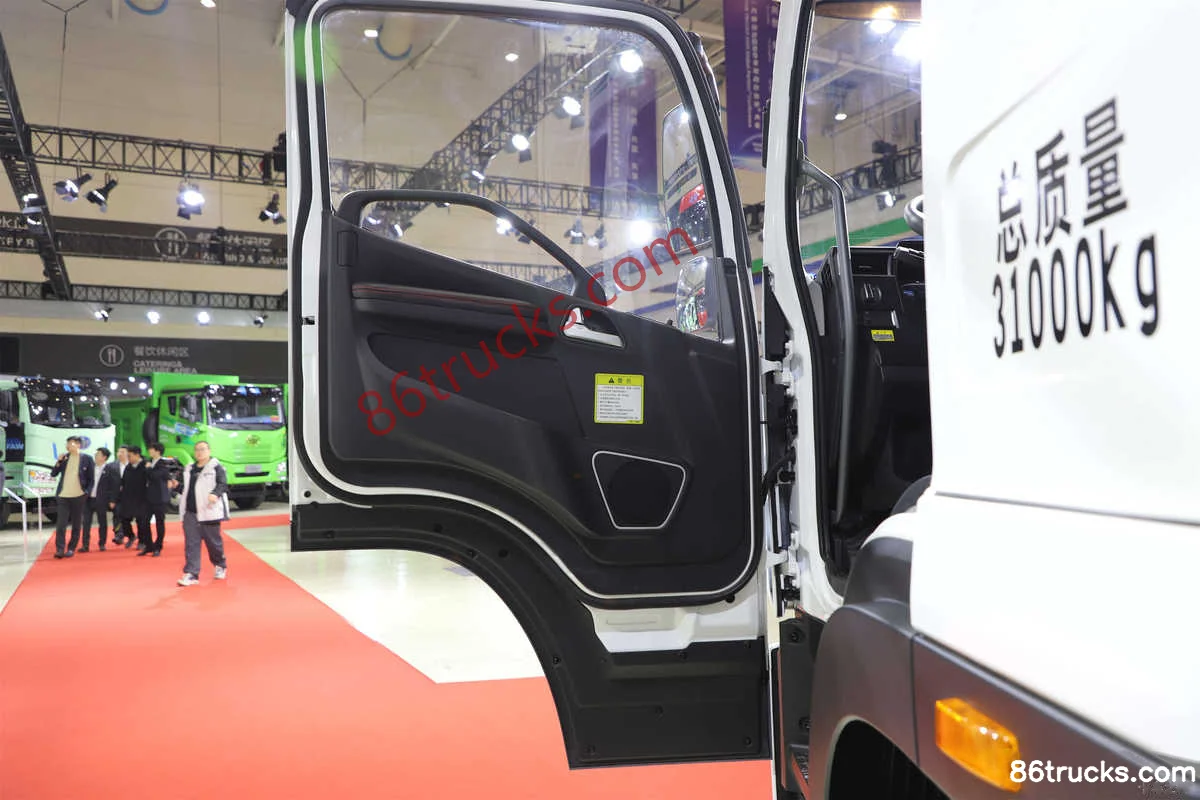

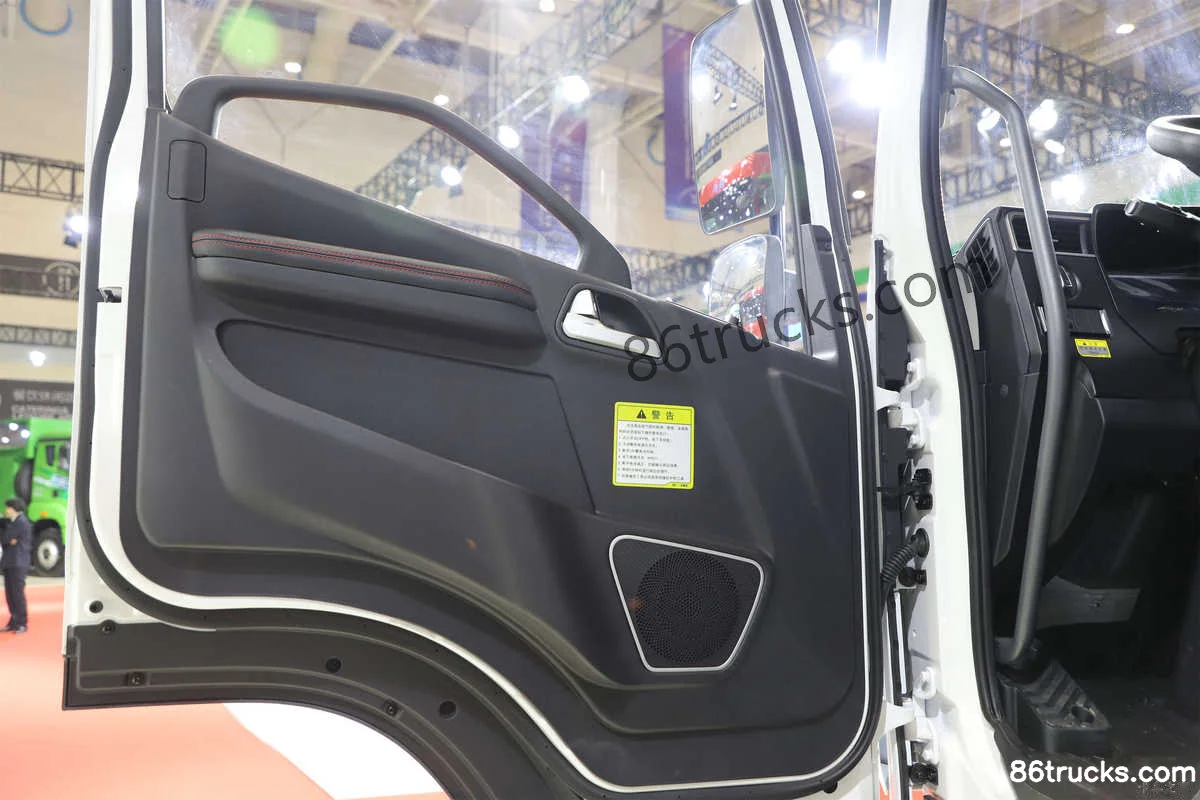

Cab3

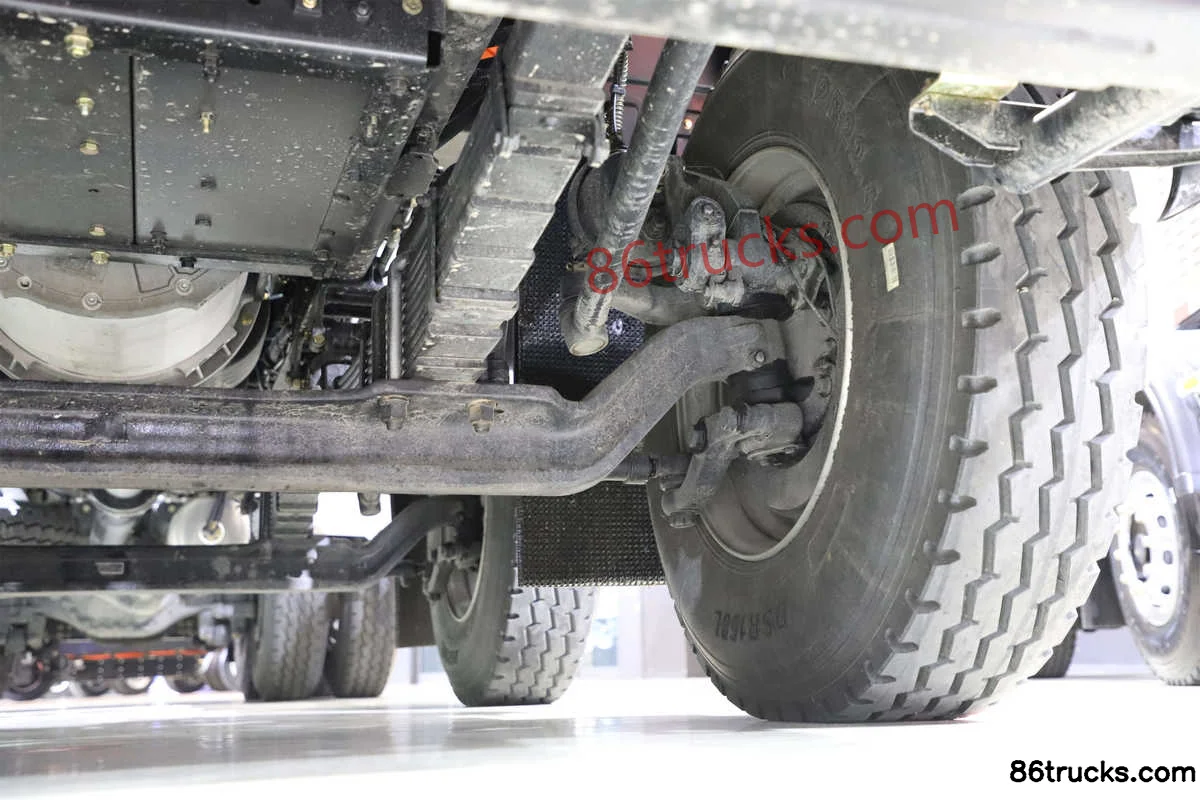

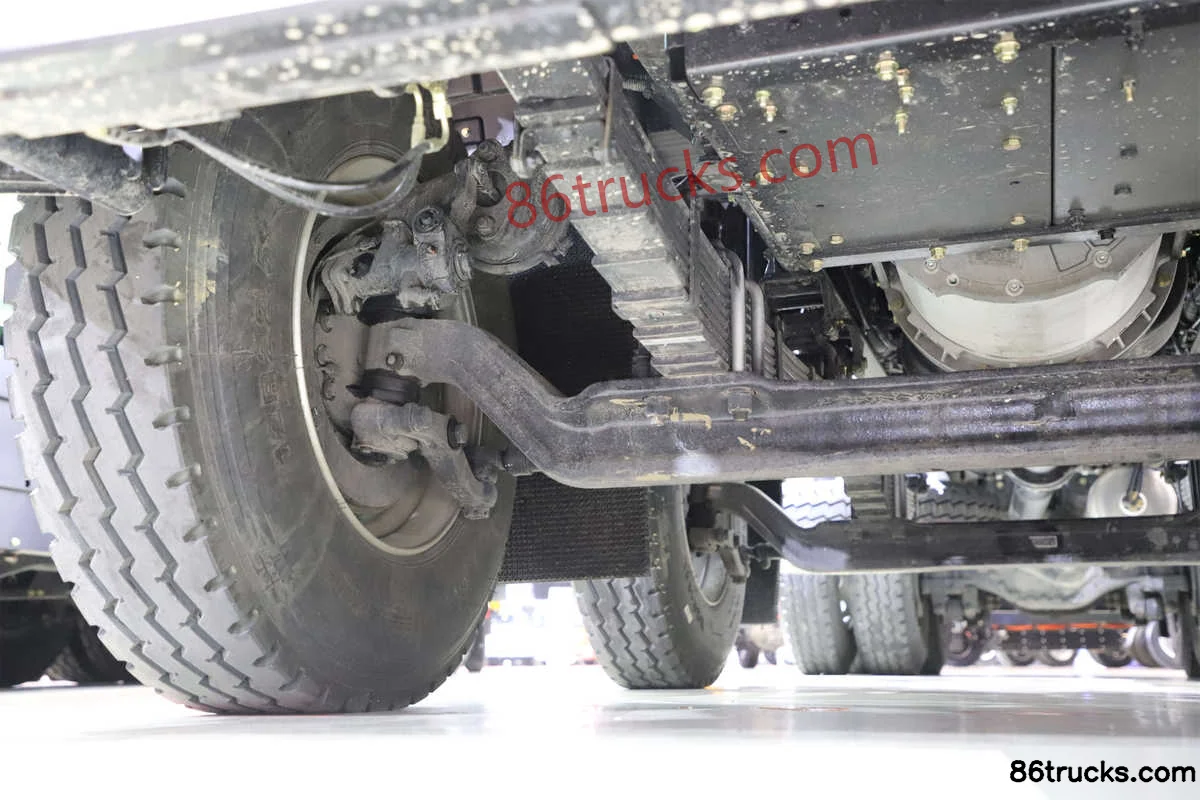

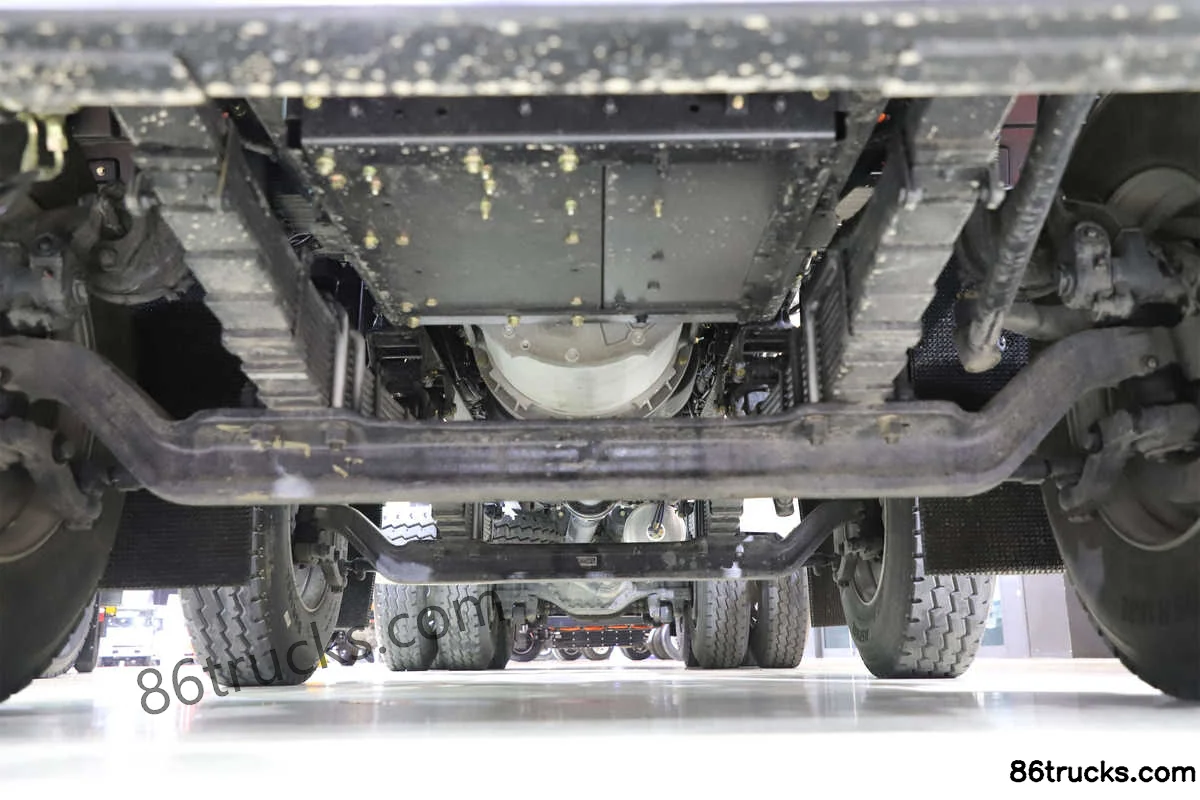

Chassis3

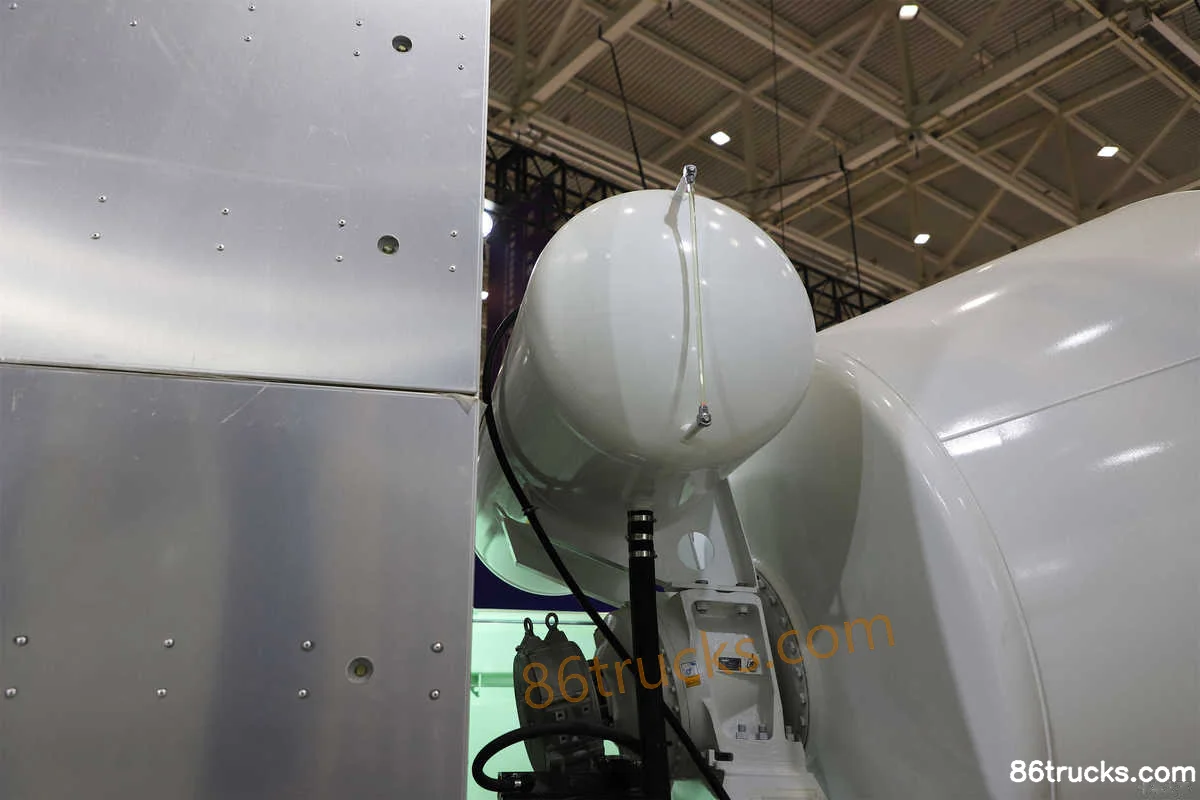

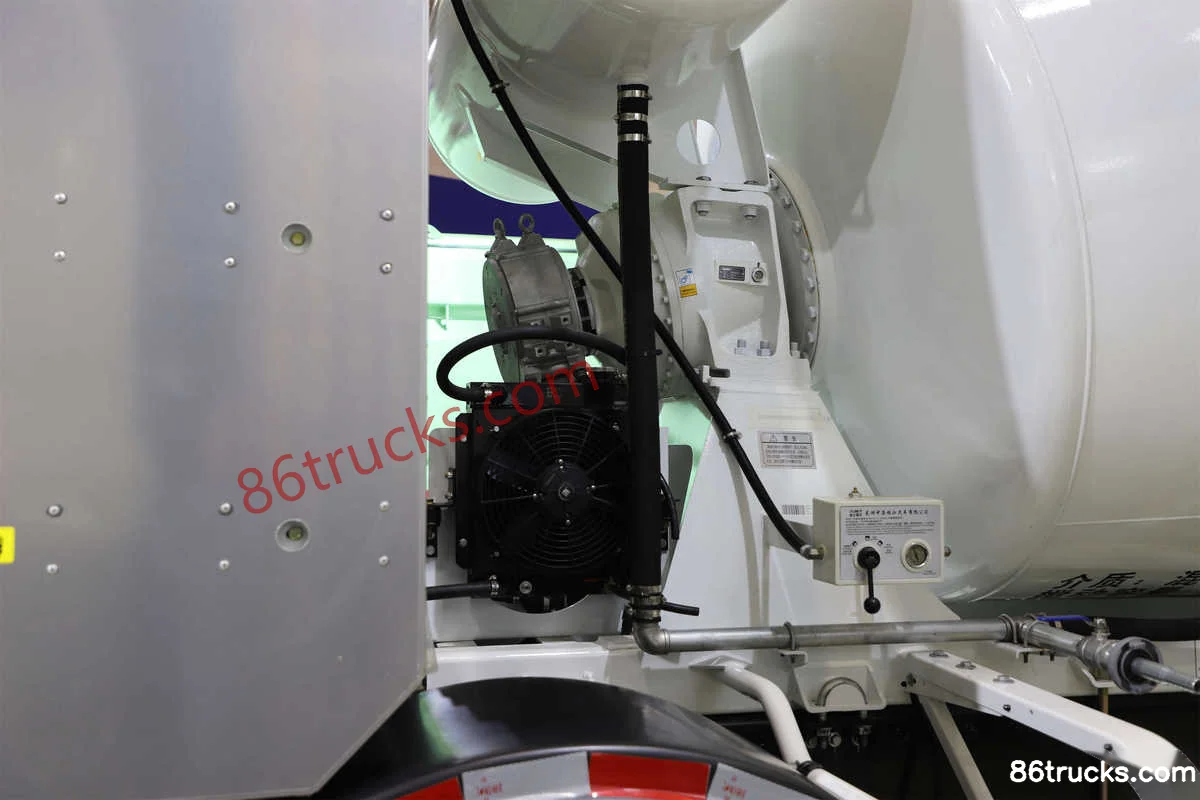

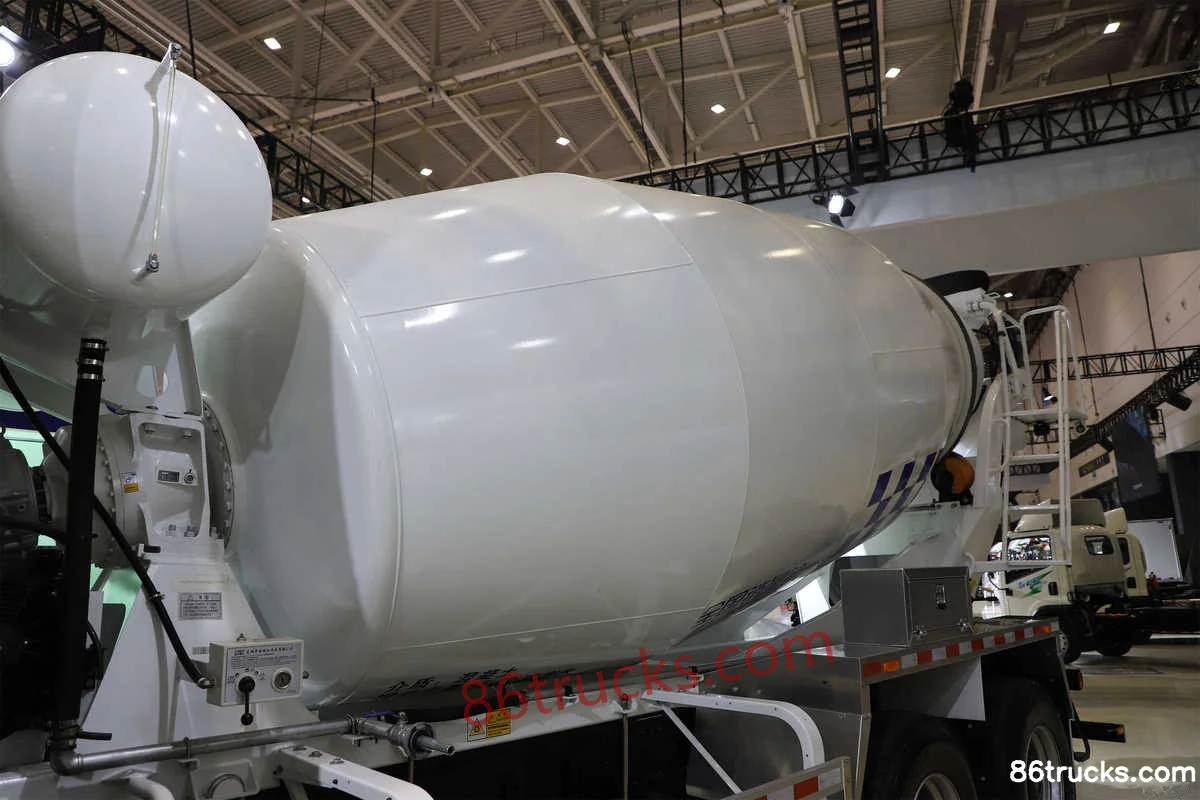

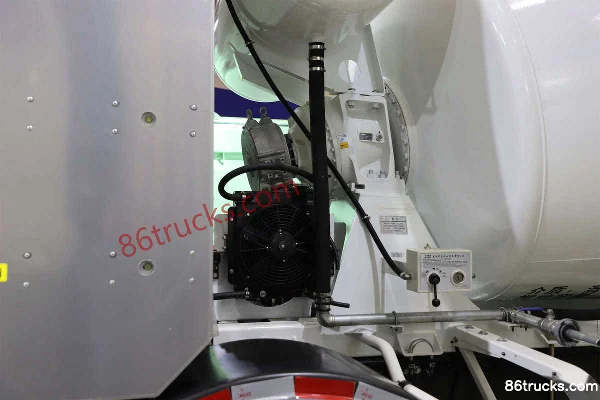

Body3

12 photos

FAQ

What is the export price of FAW Jiefang Qingdao JK6 Lightweight 8X4(12 wheels) Pure Electric Mixer Truck Chassis 350kWh, and what does it include?

FAW Jiefang Qingdao JK6 Lightweight 8X4(12 wheels) Pure Electric Mixer Truck Chassis 350kWh export reference is about From $81,444; MSRP is ¥58.64M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of FAW Jiefang Qingdao JK6 Lightweight 8X4(12 wheels) Pure Electric Mixer Truck Chassis 350kWh?

Key specs of FAW Jiefang Qingdao JK6 Lightweight 8X4(12 wheels) Pure Electric Mixer Truck Chassis 350kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao JK6 Lightweight 8X4(12 wheels) Pure Electric Mixer Truck Chassis 350kWh suited for?

FAW Jiefang Qingdao JK6 Lightweight 8X4(12 wheels) Pure Electric Mixer Truck Chassis 350kWh is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Qingdao JK6 Lightweight 8X4(12 wheels) Pure Electric Mixer Truck Chassis 350kWh differ from other variants in the same series?

FAW Jiefang Qingdao JK6 Lightweight 8X4(12 wheels) Pure Electric Mixer Truck Chassis 350kWh belongs to FAW Jiefang QingdaoJK6 (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao JK6 Lightweight 8X4(12 wheels) Pure Electric Mixer Truck Chassis 350kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao JK6 Lightweight 8X4(12 wheels) Pure Electric Mixer Truck Chassis 350kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
