Foton Auman GTL Heavy Truck concrete mixer truck

Main model photos

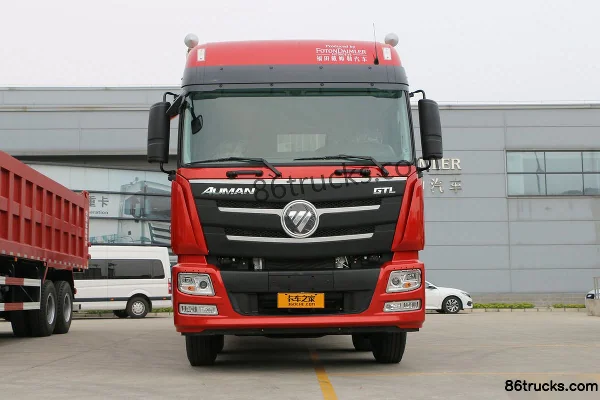

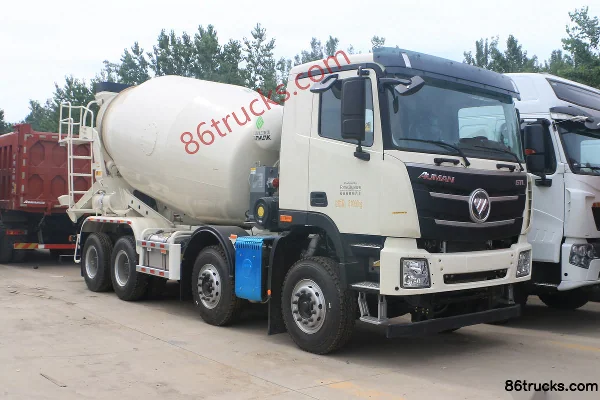

Foton Auman GTL Quality Edition 360hp 8X4(12 wheels) 7.7m³ Concrete Mixer Truck Exterior Foton AumanGTL 360hp 8X4(12 wheels) 7.2cbm concrete mixer truck Exterior Foton Auman GTL Composite 320hp 6X4(10 wheels) 4.7m³ Concrete Mixer Truck Exterior

1,617 photos

Models

On sale

Model Drive / HP / Emission EXW Export quote
Foton AumanGTL 360hp 8X4(12 wheels) 7.86m³ AMT Automatic Concrete Mixer Truck 8x4 / 360hp / China VI From $49,528
Foton AumanGTL 360hp 8X4(12 wheels) 7.74m³ AMT Automatic Concrete Mixer Truck 8x4 / 360hp / China VI From $49,528
Foton Auman GTL 360hp 8X4(12 wheels) 7.7m³ AMT Automatic Concrete Mixer Truck 8x4 / 360hp / China VI From $49,528
Foton AumanGTL 360hp 8X4(12 wheels) 7.7m³ Concrete Mixer Truck 8x4 / 360hp / China VI From $45,889
Foton Auman GTL 360hp 8X4(12 wheels) 7.7m³ AMT Automatic Concrete Mixer Truck 8x4 / 360hp / China VI From $49,528

Inventory

Model Drive / HP / Emission EXW Export quote
Foton Auman GTL Heavy-Duty 380hp 8X4(12 wheels) 5.4m³ Concrete Mixer Truck 8x4 / 380hp / China V
Foton Auman GTL 9 Series 340 hp 6X4(10 wheels) 3.5m³ Concrete Mixer Truck 6x4 / 340hp / China V
Foton AumanGTL 9 Series 320 hp 6X4(10 wheels) 4.3 m³ concrete mixer truck 6x4 / 320hp / China V
Foton Auman GTL 6 Series 320hp 6X4(10 wheels) 4.7m³ concrete mixer truck 6x4 / 320hp / China V
Foton Auman GTL 6 Series 320hp 6X4(10 wheels) 5.4m³ concrete mixer truck 6x4 / 320hp / China V

Series Specs

Basic Info
Cab dimensions: 10.12×2.53×3.99 / 10.3×2.55×3.99 / 10.12×2.53×3.995 / 10.3×2.53×3.9 / 10.22×2.55×3.78 / 10.75×2.53×3.98 / 10.21×2.53×3.995 / 10.78×2.53×3.995 / 11.6×2.53×3.995 / 10.8×2.53×3.995 / 11.55×2.55×4 / 9.73×2.495×3.98 / 9.02×2.495×3.912 / 8.44×2.5×3.7 / 10.15×2.55×3.98 / 11.15×2.55×4 / 10.12X2.55X3.99 / 9.020×2.495×3.912 / 9.02×2.495×3.91 / 10.79X2.495X4 / 11.23×2.495×3.995m
Drive type: 8X4 / 6X4
Truck Type: concrete mixer truck
Wheelbase: 2100+2750+1350 / 2100+3100+1350 / 1800+3150+1350 / 1800+3850+1350 / 2100+3350+1350 / 4100+1350 / 3575+1350 / 3200+1350 / 4300+1350 / 1800+3650+1350 / 1800+3050+1350 / 1800+3450+1350mm
Front/rear track width: Front: 2020/2020mm; Rear: 1830/1830 / Front track: 2020/2020mm; Rear track: 1830/1830mm / Front: 2030/2030mm; Rear: 1865/1865 / Front: 2080/2080mm; Rear: 1865/1865 / 2020/2020/1830/1830 / Front: 2010/2010mm; Rear: 1880/1880 / Front track: 2010mm; Rear track: 1865/1865 / Front track: 2005mm; Rear track: 1865/1865 / Front track: 2010mm; Rear track: 1865/1865mm / Front track: 2010/2010mm; Rear track: 1880/1880 / Front track: 2005mm; Rear track: 1865/1865mm / Front track 2010 / Rear track 1865/1865 / Front track 2005 / Rear track 1865/1865 / Front track 2010, rear track 1860/1860 / Front track: 2010mm; Rear track: 1860/1860mm / Front track: 2020/2020, Rear track: 1880/1880 / Front 2020/2020 Rear 1880/1880
Vehicle origin: Beijing / Huairou, Beijing
Curb Weight: 13.7 / 13.98 / 14 / 15.5 / 15.74 / 15.59 / 14.9 / 18.95 / 15 / 14.5 / 12.1 / 15.8 / 18.2 / 16.15 / 12.77 / 13.9 / 18 / 17.38ton
Rated payload: 17.17 / 16.89 / 16.87 / 15.37 / 15.13 / 15.28 / 15.97 / 11.92 / 9.87 / 10.37 / 12.77 / 9.07 / 12.67 / 14.72 / 12.1 / 10.905 / 12.805 / 13.49ton
Max. speed: 80 / 85 / 70km/h
Front/rear suspension: 1.46/2.46 / 1.46/2.64 / 1.46/2.56 / 1.46/3.09 / 1.46/2.45 / 1.46/2.78 / 1.45/2.78 / 1.45/2.47 / 1.46/3.14 / 1.46/2.54 / 1.45/3.1 / 1.45/2.83 / 1.45/2.645 / 1.45/2.44 / 1.45/3.05 / 1.45/2.9 / 1.44/2.84 / 1.45/3.18m
electric motor
Motor 1 Brand: Foton / Tebest
Motor 1 Model: FTTB220 / TZ400XSTPG46
Motor Type: Permanent magnet synchronous motor
total rated power: 220 / 260kW
Peak power: 360 / 400kW
Body Parameters
Drum geometric volume: 10 / 12m³
Slump: 80-220 / 80mm-220
Mixing drum capacity: 7.86 / 7.74 / 7.7 / 7 / 6.92 / 7.2 / 7.02 / 5.4 / 4.3 / 4.7 / 3.5 / 6.6 / 5.7 / 6.04m³
Drum rotation speed: ≥ 3r/min
Feed rate: ≥3m³/min
Discharge speed: ≥2m³/min
Discharge residue rate: ≤0.4%
water supply method: Air pressure water supply
Vehicle certification code: BJ5319GJBY6GRL-22 / BJ5319GJBY6GRL-21 / BJ5319GJBY6GRL-17 / BJ5319GJBY6GRL-14 / BJ5319GJBEVGRF-01 / BJ5319GJBEVGRF-03 / BJ5319GJBEVGRF-02 / BJ5319GJBY6GRL-13 / BJ5319GJBY6GRL-01 / BJ5319GJBL6GRS-02 / BJ5319GJB-FC / BJ5319GJBY6GRL-05 / BJ5319GJB-6B / BJ5319GJB-FA / BJ5319GJBL6GRS-01 / BJ5319GJB-AB / BJ5259GJB-AA / BJ5259GJB-AB / BJ5259GJB-AC / BJ5259GJB-AD / BJ5319GJB-AA / BJ5259GJB-XB / BJ5259GJB-XC / BJ5319GJB-XA / BJ5319GJB-XB
Body Brand: FotonAuman / Auman
Others: 350L aluminum fuel tank; desert air filter / 350L aluminum fuel tank, 12 cubic meters, power windows + central lock + air-suspension seat (standard) + electric heated mirrors + MP5 + radio + USB + GTL radar + 360° surround view camera / 375L aluminum fuel tank; desert air filter / AM steering gear; 350L aluminum fuel tank; desert air filter / AM steering gear; 230L aluminum fuel tank; desert air filter
Engine parameters
Injection System: Common Rail (China V) / Common Rail (China IV)
Engine Model: FotonX11NS6B360 / WeichaiWP10HNG350E60 / WeichaiWP8.350E61A / FotonX12NS6B360 / WeichaiWP12.400E62 / FotonISGe5-380 / FotonISGe5-360 / FotonISGe5-320 / FotonISGe5-340 / WeichaiWP10.336E40 / FotonISGe4 350 / WeichaiWP12.375E40 / FotonISGe4 380
Number of cylinders: 6cylinder
fuel type: Diesel / Electric / LNG (liquefied natural gas)
Displacement: 10.5 / 9.5 / 7.8 / 11.8 / 11.6 / 9.726 / 11.596L
Emission standard: China VI / China V / China IV
Max output power: 265 / 257 / 294 / 279 / 235 / 250 / 247 / 276kW
Max hp: 360 / 350 / 400 / 380 / 320 / 340 / 336Horsepower
Rated speed: 1900 / 2100rpm
Engine Type: CR+DOC+DPF+Hi_SCR / SPI+ER+EGR+TWC / Inline / Turbocharged Intercooled (Turbo), Direct Injection, Electronic Control / Common Rail SCR
Chassis Specs
Chassis Series: AumanGTL / Auman GTL 9 Series
Chassis Model: BJ5319GJBY6GRL-01 / BJ5319GJBEVGRF-01 / BJ5319GJBEVGRF-02 / BJ5319GJBL6GRS-02 / BJ5319GJBY6GRL-02 / BJ5319GJBL6GRS-01 / BJ5319GJB-AB / BJ5259GJB-AA / BJ5259GJB-AB / BJ5259GJB-AC / BJ5259GJB-AD / BJ5319GJB-AA / BJ5259GJB-XB / BJ5259GJB-XC / BJ5319GJB-XA / BJ5319GJB-XB
Transmission Parameters
Number of gears: 12 / 10 / 9Gear
Transmission Model: ZF12TX2420TD / Fast Gear12JSD180 / Tebest TS-0425C / ZF12-speed / Fast Gear112JSD180 / Fast Gear10JSD160 / Fast Gear9JSD180 / Fast GearRTD11509C / Fast Gear 9-speed

FAQ

What kind of truck is Auman Foton Auman GTL Heavy Truck concrete mixer truck?

Auman Foton Auman GTL Heavy Truck is an export-oriented concrete mixer truck lineup with about 60 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.

What is the export price range for Foton Auman GTL Heavy Truck concrete mixer truck?

Foton Auman GTL Heavy Truck concrete mixer truck export reference is about $41,819 – $56,306. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).

What spec range does Foton Auman GTL Heavy Truck concrete mixer truck cover?

Foton Auman GTL Heavy Truck concrete mixer truck mainly covers: Drive: 6x4 / 8x4; Horsepower: 320 hp / 340 hp / 360 hp / 380 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.

How do I choose a variant in Foton Auman GTL Heavy Truck concrete mixer truck?

For Foton Auman GTL Heavy Truck concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.

What is concrete mixer truck typically used for?

concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.

How many models does Foton Auman GTL Heavy Truck concrete mixer truck include?

Foton Auman GTL Heavy Truck concrete mixer truck currently lists about 60 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.

How do I request a quote for Foton Auman GTL Heavy Truck concrete mixer truck?

Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
