Foton Auman GTL 9 Series 340 hp 6X4(10 wheels) 3.5m³ Concrete Mixer Truck

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 15.8ton
Wheelbase:: 4300+1350mm
Tire Size:: 11.00R20 18PR,12.00R20 16PR
Cab dimensions:: 10.15×2.55×3.98m
Truck Type:: concrete mixer truck
Rated payload: 9.07ton
Drive 6X4 (10 wheels)
Horsepower 340
Emission China V

Overview

The Foton Auman GTL 9 Series 340 hp 6X4(10 wheels) 3.5m³ Concrete Mixer Truck is a concrete mixer truck featuring 9.07t payload, 15.8ton GVW, 6X4 (10 wheels) drive and 10.15×2.55×3.98m cab. On the powertrain side, it comes with 340 hp, China V emissions and Diesel fuel.

China V 340 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.15×2.55×3.98m
Drive type: 6X4
Truck Type: concrete mixer truck
Front/rear track width: Front track: 2010mm; Rear track: 1865/1865mm
Wheelbase: 4300+1350mm
Curb Weight: 15.8ton
Rated payload: 9.07ton
Max. speed: 80km/h
Front/rear suspension: 1.45/3.05m
Body Parameters
Mixing drum capacity: 3.5m³
Vehicle certification code: BJ5259GJB-AD
Body Brand: FotonAuman
Engine parameters
Engine Model: FotonISGe5-340
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 10.5L
Emission standard: China V
Max output power: 250kW
Max hp: 340Horsepower
Rated speed: 1900rpm
Chassis Specs
Chassis Series: AumanGTL
Chassis Model: BJ5259GJB-AD
rear axle description: 16T
Axle ratio: 4.8
Leaf spring count: 10/12,9/12,11/14,3/5,3/4,2/4
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast GearRTD-11509C
Tire
Tire Size: 11.00R20 18PR,12.00R20 16PR
Number of tires: 10pcs

Photos

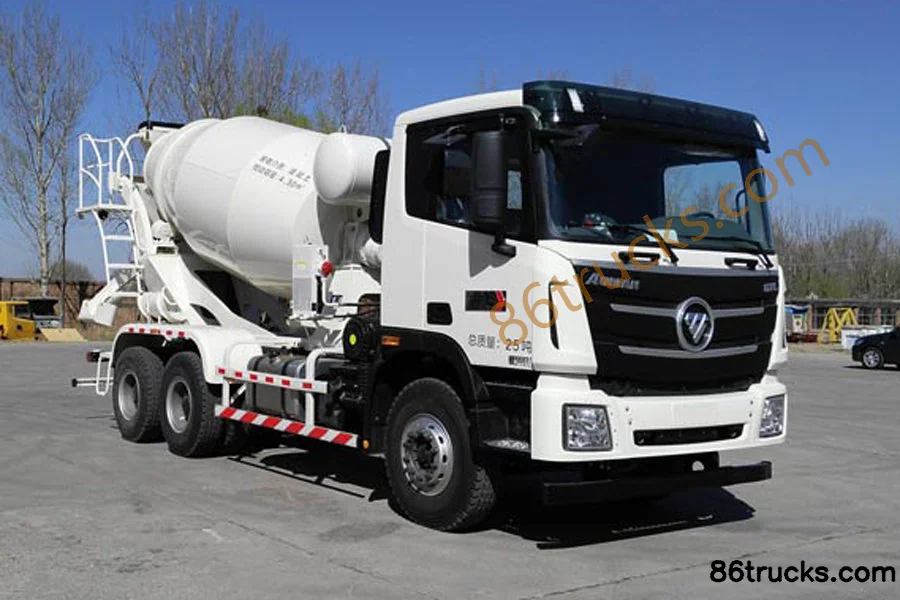

Exterior1

1 photos

FAQ

What emission standard does Foton Auman GTL 9 Series 340 hp 6X4(10 wheels) 3.5m³ Concrete Mixer Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Auman GTL 9 Series 340 hp 6X4(10 wheels) 3.5m³ Concrete Mixer Truck?

Key specs of Foton Auman GTL 9 Series 340 hp 6X4(10 wheels) 3.5m³ Concrete Mixer Truck: Drive: 6x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Auman GTL 9 Series 340 hp 6X4(10 wheels) 3.5m³ Concrete Mixer Truck suited for?

Foton Auman GTL 9 Series 340 hp 6X4(10 wheels) 3.5m³ Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton Auman GTL 9 Series 340 hp 6X4(10 wheels) 3.5m³ Concrete Mixer Truck differ from other variants in the same series?

Foton Auman GTL 9 Series 340 hp 6X4(10 wheels) 3.5m³ Concrete Mixer Truck belongs to Foton Auman GTL Heavy Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Auman GTL 9 Series 340 hp 6X4(10 wheels) 3.5m³ Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Auman GTL 9 Series 340 hp 6X4(10 wheels) 3.5m³ Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
