Sinotruk HOWO TX 8X4(12 wheels) Pure Electric Concrete Mixer Truck 400.62kWh (Qingzhuan Brand)
EXW
Export quote
Sinotruk HOWO SinotrukHOWOHOWO TX7 concrete mixer
Main model photos
1,050 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HOWO TX 8X4(12 wheels) Pure Electric Concrete Mixer Truck 400.62kWh (Qingzhuan Brand) | 8x4 | ||
| Sinotruk HOWO TX 31T 8X4(12 wheels) Battery Swap Electric Concrete Mixer Truck 282kWh | 8x4 | ||
| Sinotruk HOWO TX 340 hp 8X4(12 wheels) 7.95 m³ Concrete Mixer Truck (Wuyi Brand) | 8x4 / 340hp / China V | From $59,722 | |
| Sinotruk HOWO TX 350 hp 8X4(12 wheels) 7.74 m³ concrete mixer truck (China VI) (Wuyi brand) | 8x4 / 350hp / China VI | From $62,500 | |
| Sinotruk HOWO TX 350 hp 8X4(12 wheels) 7.96 m³ concrete mixer truck (China VI) (Wuyi brand) | 8x4 / 350hp / China VI | From $63,889 |
Sinotruk HOWO TX 31T 8X4(12 wheels) Battery Swap Electric Concrete Mixer Truck 282kWh
EXW
Export quote

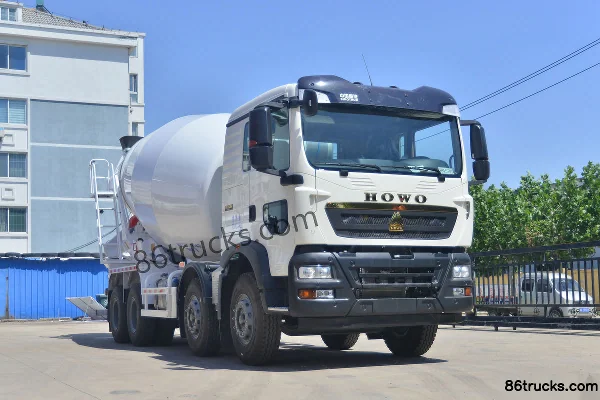

Sinotruk HOWO TX 340 hp 8X4(12 wheels) 7.95 m³ Concrete Mixer Truck (Wuyi Brand)
EXW
From $59,722
Export quote
Sinotruk HOWO TX 350 hp 8X4(12 wheels) 7.74 m³ concrete mixer truck (China VI) (Wuyi brand)
EXW
From $62,500
Export quote
Sinotruk HOWO TX 350 hp 8X4(12 wheels) 7.96 m³ concrete mixer truck (China VI) (Wuyi brand)
EXW
From $63,889
Export quote
Series Specs
Basic Info
Cab dimensions: 10.7×2.55×3.995 / 9.4×2.5×3.22 / 9.83×2.53×3.95 / 9.83×2.53×3.96 / 9.83×2.55×3.95 / 9.83×2.496×3.85 / 10.17×2.55×3.99 / 10.16×2.55×3.98m
Drive type: 8X4
Truck Type: electric concrete mixer transport truck / Battery swap electric concrete mixer truck / Concrete mixer truck
Vehicle origin: Qingdao, Shandong / Jianyang, Nanping / Jinan, Shandong / Xinxiang, Henan
Front/rear track width: Front track: 2022/2022mm; Rear track: 1860/1860mm / Front: 2015/2015mm; Rear: 1870/1870 / Front: 2022/2022mm; Rear: 1850/1850 / Front track: 2015/2015mm; Rear track: 1850/1850
Wheelbase: 1800+3000+1400 / 1800+3450+1350 / 1800+3050+1350 / 1800+3400+1350 / 1800+3025+1350mm
Curb Weight: 16.23 / 13.42 / 13.43 / 16.36 / 13.6ton
Rated payload: 14.64 / 17.45 / 17.44 / 14.15 / 17.27ton
Max. speed: 89 / 82 / 80km/h
Front/rear suspension: 1.5/2.6 / 1.43/2.25 / 1.43/2.2 / 1.5/2.47 / 1.43/2.53m
electric motor
Motor 1 Brand: Sinotruk
Motor 1 Model: TZ388XS-ZQV13 / TZ2410XSWDM2004
Motor Type: Permanent magnet synchronous motor
Peak power: 490kW
Body Parameters
Mixing drum capacity: 6.71 / 7.95 / 7.74 / 7.96 / 7.99 / 7.5 / 7.9m³
Vehicle certification code: QDZ5317GJB326GZ13BEV / ZZ1317V346GZ1SEV / FJG5311GJBZZW / FJG5313GJBZZW / ZZ5317GJBN306GF1 / ZZ5317GJBN306GE1H / YXA5310GJB03
Body Brand: Qingzhuan brand / Wuyi Brand / HOWO brand / Runyuda
Engine parameters
Engine Model: WeichaiWP8.340E51 / WeichaiWP8.350E61A / SinotrukMC07H.35-60 / WeichaiWP8.350E61 / SinotrukMC07.34-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.8 / 7.36 / 6.87L
Emission standard: China V / China VI
Max output power: 250 / 257 / 248kW
Max hp: 340 / 350Horsepower
Rated speed: 2100 / 2200rpm
Engine Type: High-pressure common rail+EGR / Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail / Inline 6-cylinder, water-cooled, 4-stroke, high-pressure common rail, turbocharged intercooled, EGR
Chassis Specs
Chassis Series: HOWOTX / HOWOTX5
Chassis Model: ZZ1317N306GE1 / ZZ1317N306GF1
Front axle description: VGD71
Frame Dimensions: 8+5/280mm
rear axle description: MCX16ZG two-stage reduction drive axle / MAT16ZG self-adjusting arm dual rear axle (drum) / MCJ11BG self-adjusting tandem rear axle (drum) / MAT16ZG self-adjusting arm dual rear axle / MCJ11BG
Axle ratio: 5.73 / 5.29
Leaf spring count: 11/11/12 / 5/5/5 / 3/3/4 / 11/11/10
Transmission Parameters
Number of gears: 9 / 10Gear
Transmission Model: SinotrukHW19709XA / SinotrukHW15710L / SinotrukHW13709XSTL
Cab parameters
Cab: TX crew cab / TX-F
Tire
Tire Size: 11.00R20 18PR / 12R22.5 / 11.00R20 / 11R22.5 / 12R22.5 18PR / 11R22.5 18PR
Number of tires: 12pcs
FAQ
What kind of truck is Sinotruk HOWO SinotrukHOWOHOWO TX7 concrete mixer truck?
Sinotruk HOWO SinotrukHOWOHOWO TX7 is an export-oriented concrete mixer truck lineup with about 10 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sinotruk HOWO SinotrukHOWOHOWO TX7 concrete mixer?
Sinotruk HOWO SinotrukHOWOHOWO TX7 concrete mixer export reference is about $47,222 – $63,889. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sinotruk HOWO SinotrukHOWOHOWO TX7 concrete mixer cover?
Sinotruk HOWO SinotrukHOWOHOWO TX7 concrete mixer mainly covers: Drive: 8x4; Horsepower: 340 hp / 350 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk HOWO SinotrukHOWOHOWO TX7 concrete mixer?
For Sinotruk HOWO SinotrukHOWOHOWO TX7 concrete mixer: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sinotruk HOWO SinotrukHOWOHOWO TX7 concrete mixer include?
Sinotruk HOWO SinotrukHOWOHOWO TX7 concrete mixer currently lists about 10 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk HOWO SinotrukHOWOHOWO TX7 concrete mixer?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
