Sinotruk HOWO TX 340 hp 8X4(12 wheels) 7.5 cubic meter concrete mixer truck

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 16.36ton
Wheelbase:: 1800+3050+1350mm
Tire Size:: 11.00R20
Cab dimensions:: 10.17×2.55×3.99m
Truck Type:: Concrete mixer truck
Rated payload: 14.15ton
Drive 8X4 (12 wheels)
Horsepower 340
Emission China V

Overview

The Sinotruk HOWO TX 340 hp 8X4(12 wheels) 7.5 cubic meter concrete mixer truck is a concrete mixer truck featuring 14.15t payload, 16.36ton GVW, 8X4 (12 wheels) drive and 10.17×2.55×3.99m cab. On the powertrain side, it comes with 340 hp, China V emissions and Diesel fuel.

China V 340 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.17×2.55×3.99m
Drive type: 8X4
Truck Type: Concrete mixer truck
Front/rear track width: Front: 2022/2022mm; Rear: 1850/1850
Wheelbase: 1800+3050+1350mm
Vehicle origin: Jinan, Shandong
Curb Weight: 16.36ton
Rated payload: 14.15ton
Max. speed: 80km/h
Front/rear suspension: 1.5/2.47m
Body Parameters
Mixing drum capacity: 7.5m³
Vehicle certification code: ZZ5317GJBN306GE1H
Engine parameters
Engine Model: SinotrukMC07.34-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 248kW
Max hp: 340Horsepower
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Chassis Specs
Chassis Series: HOWOTX
Chassis Model: ZZ1317N306GE1
Leaf spring count: 11/11/10
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW15710L
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

Photos

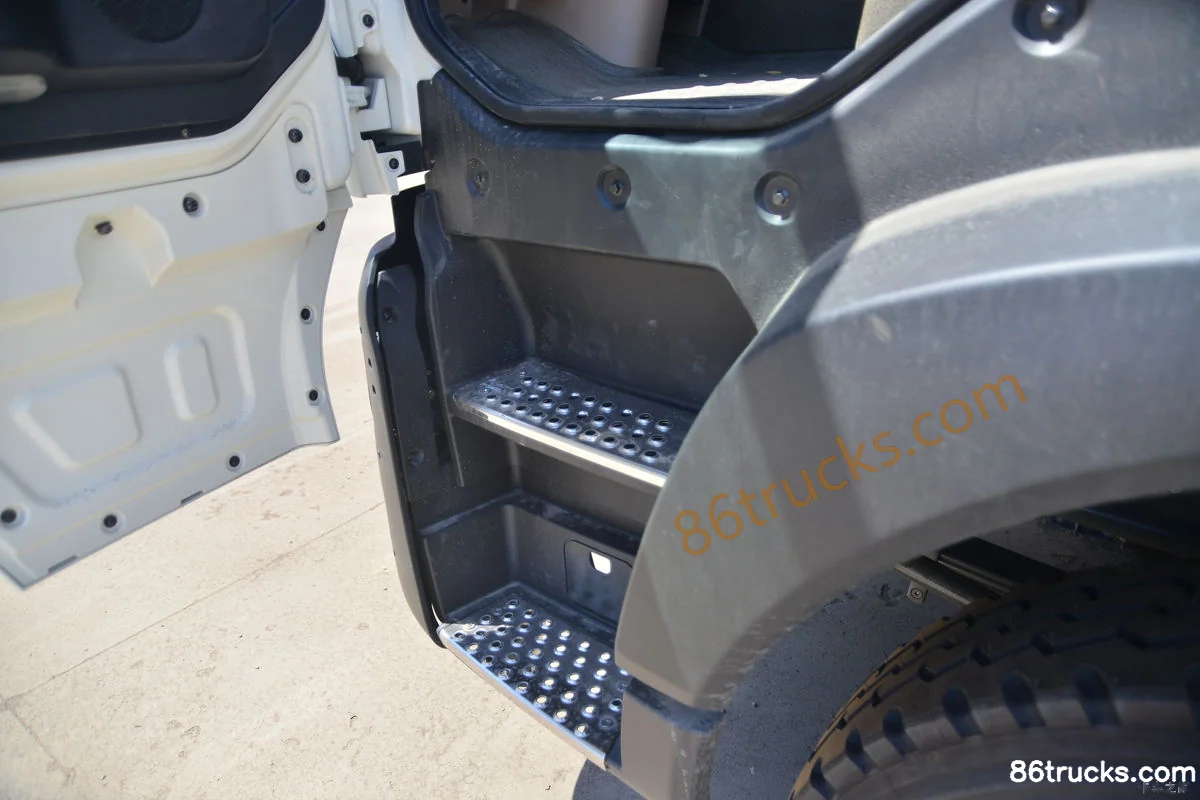

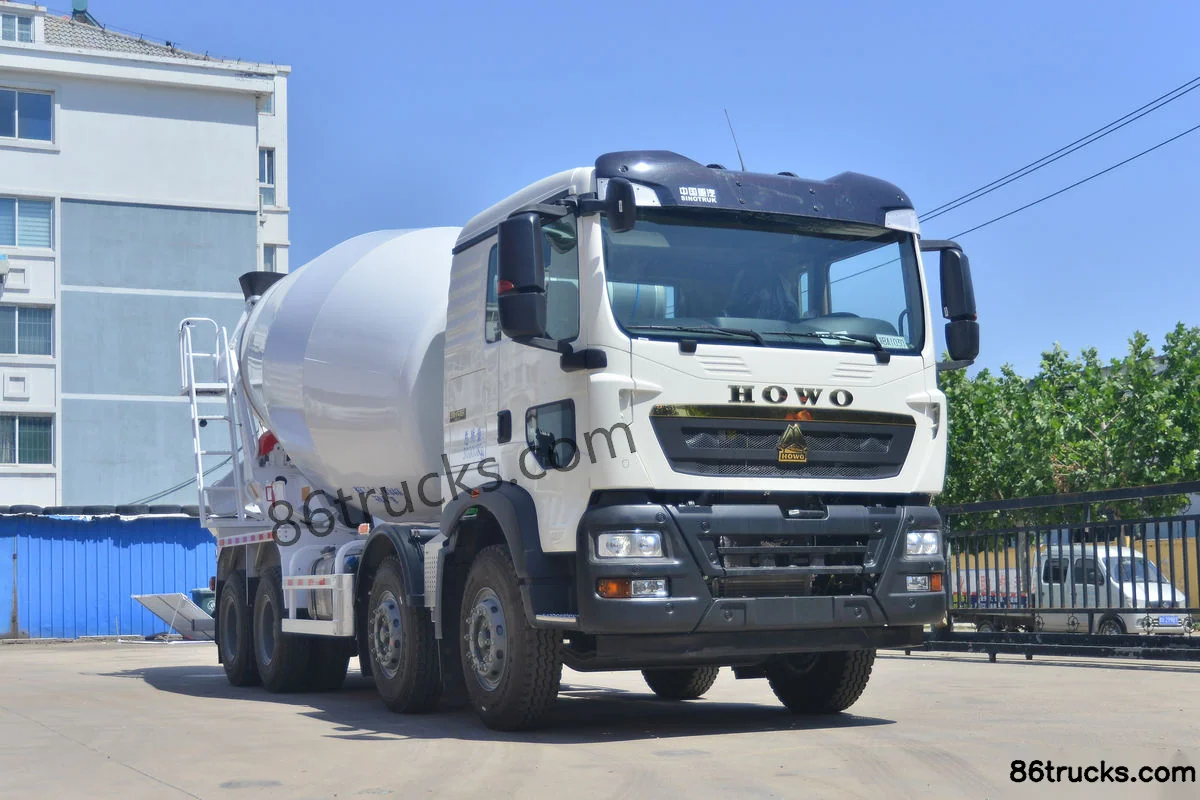

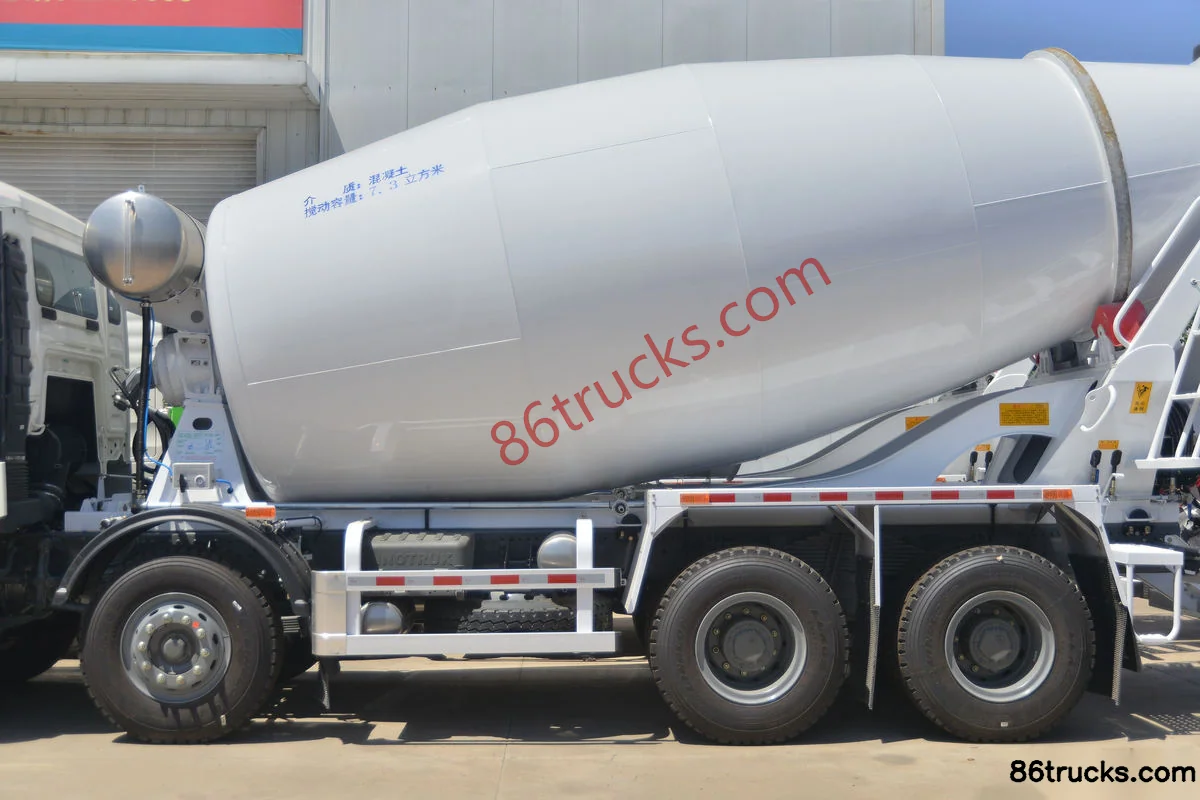

Exterior3

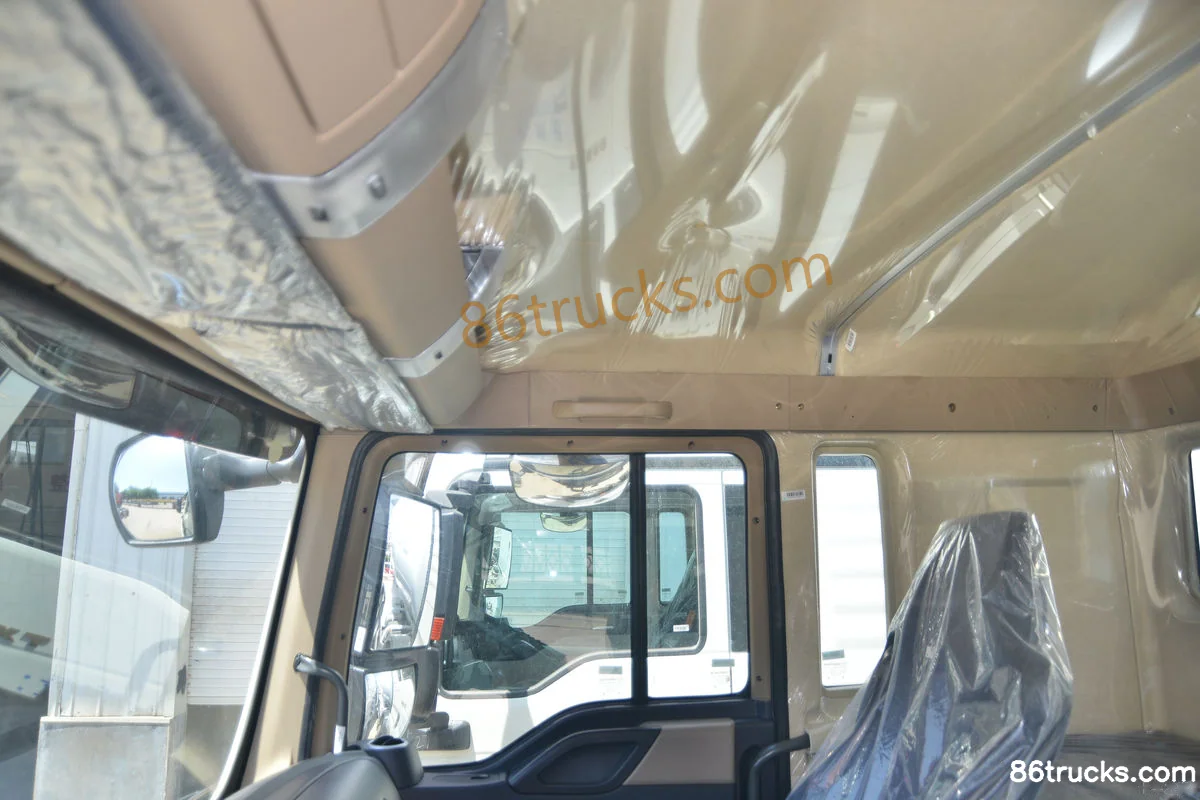

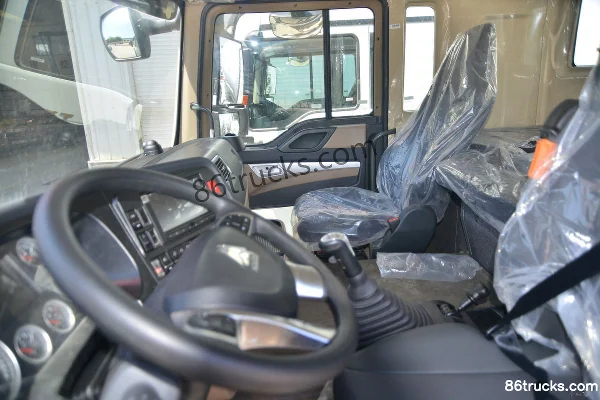

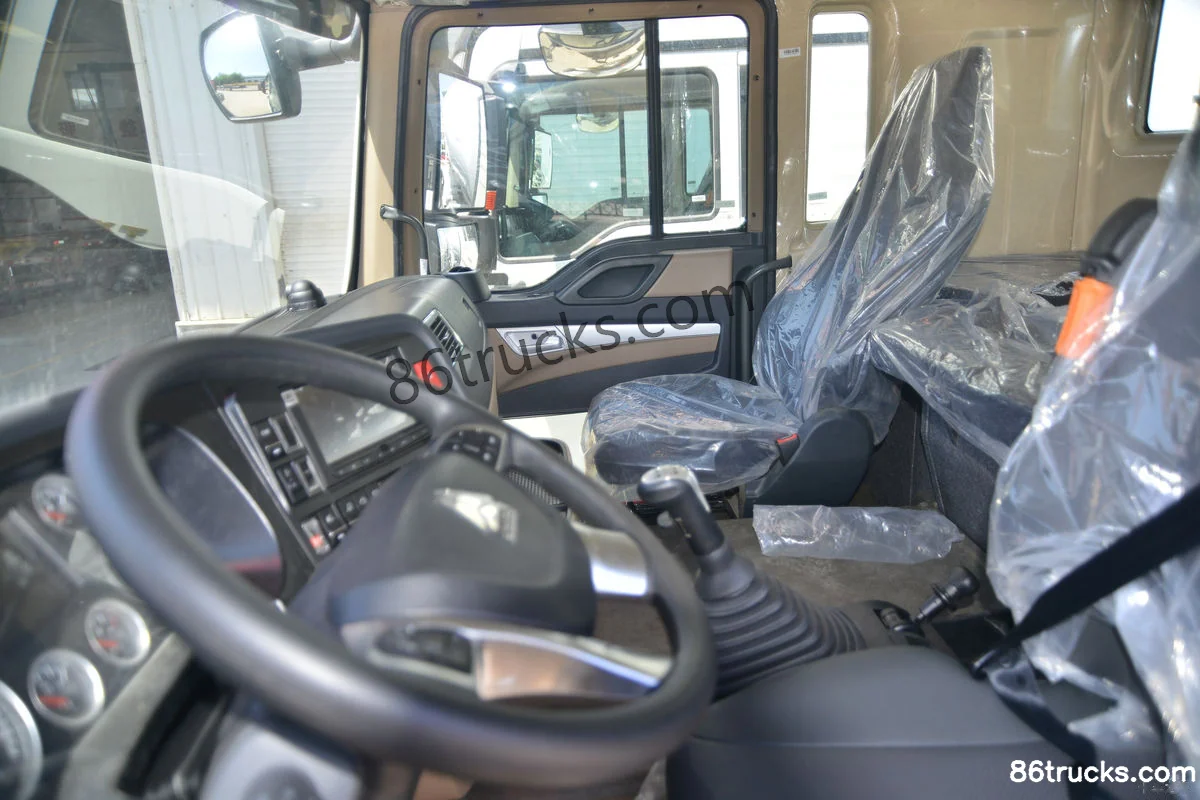

Cab3

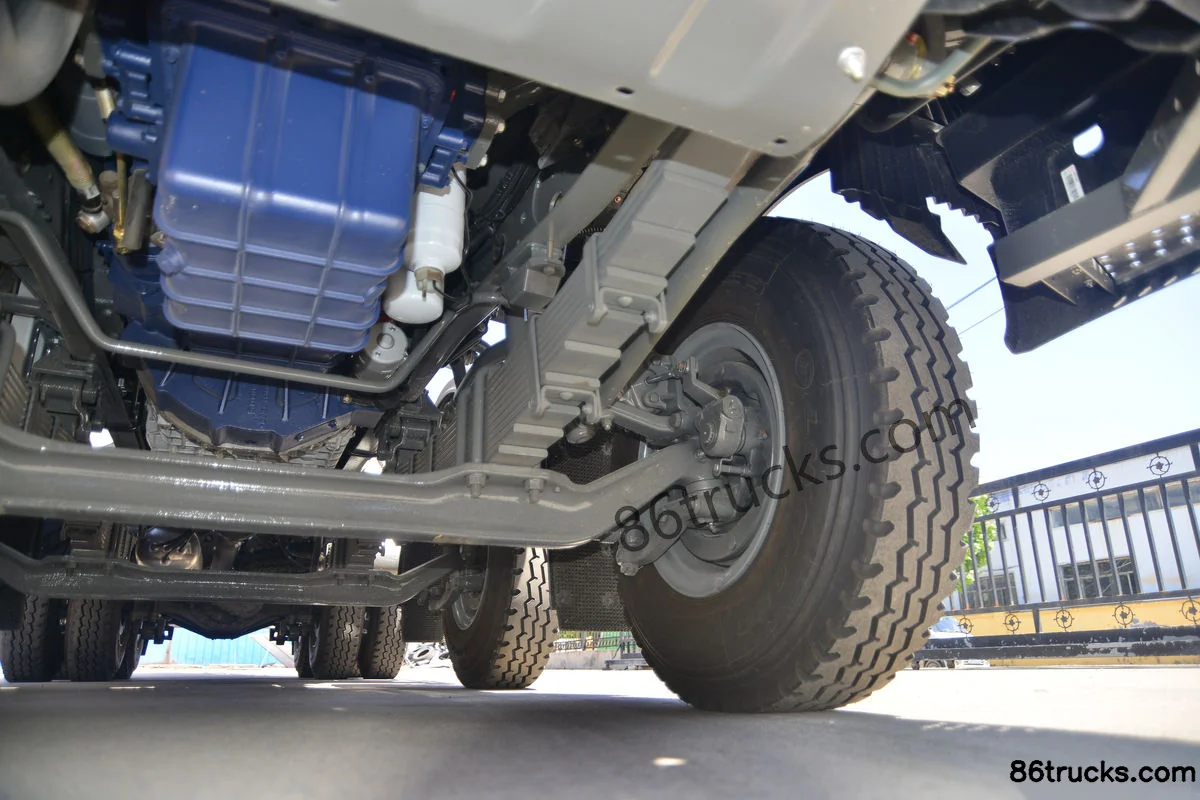

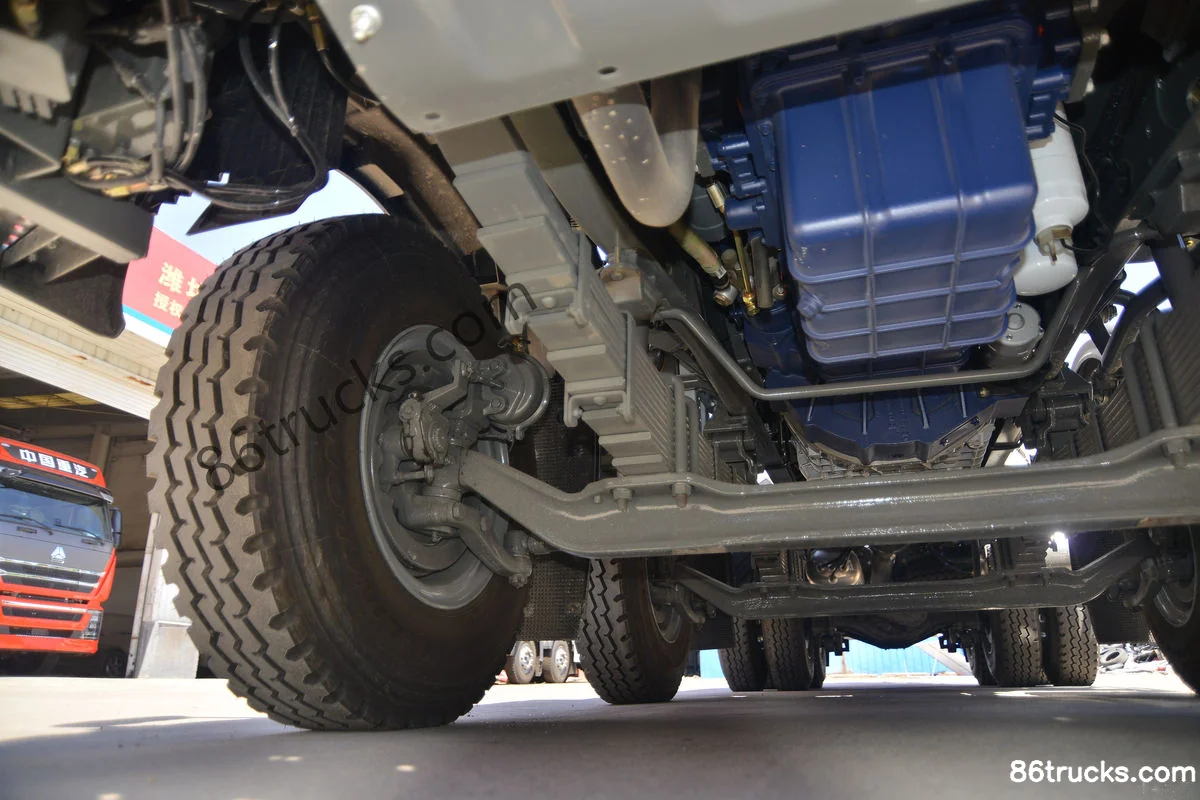

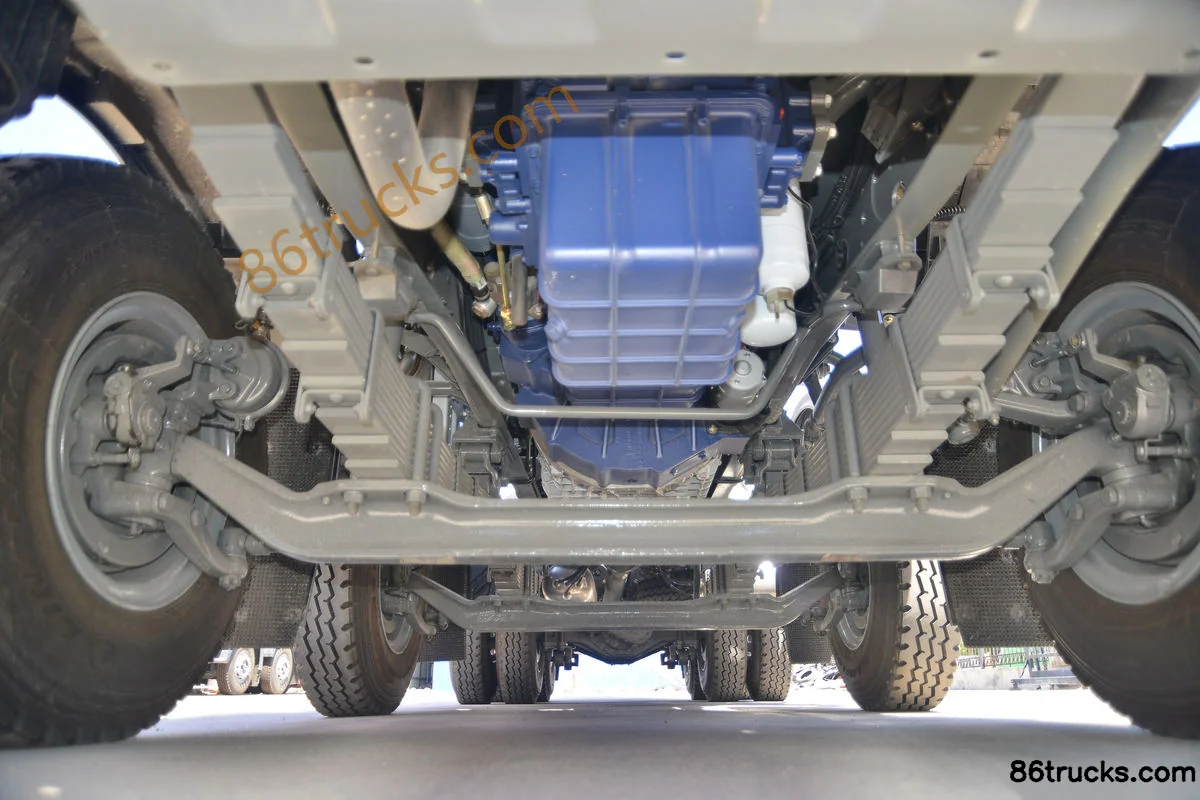

Chassis3

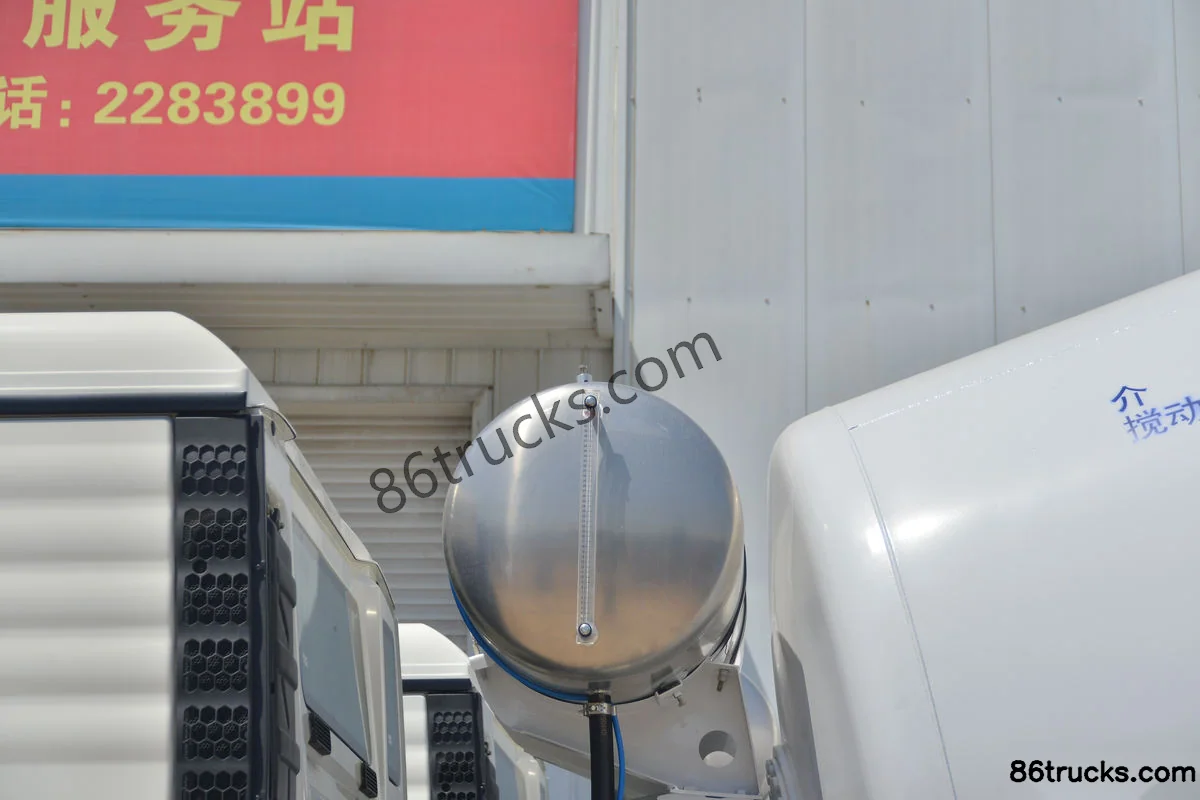

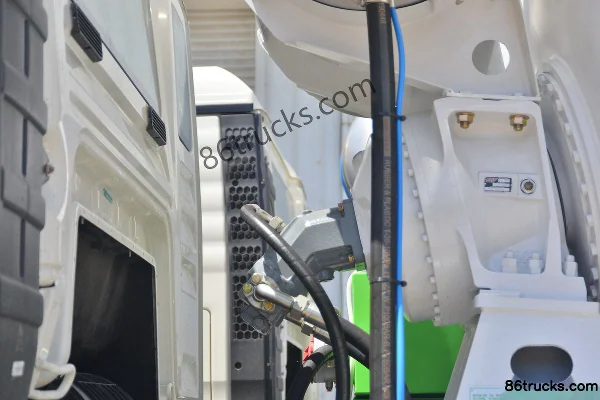

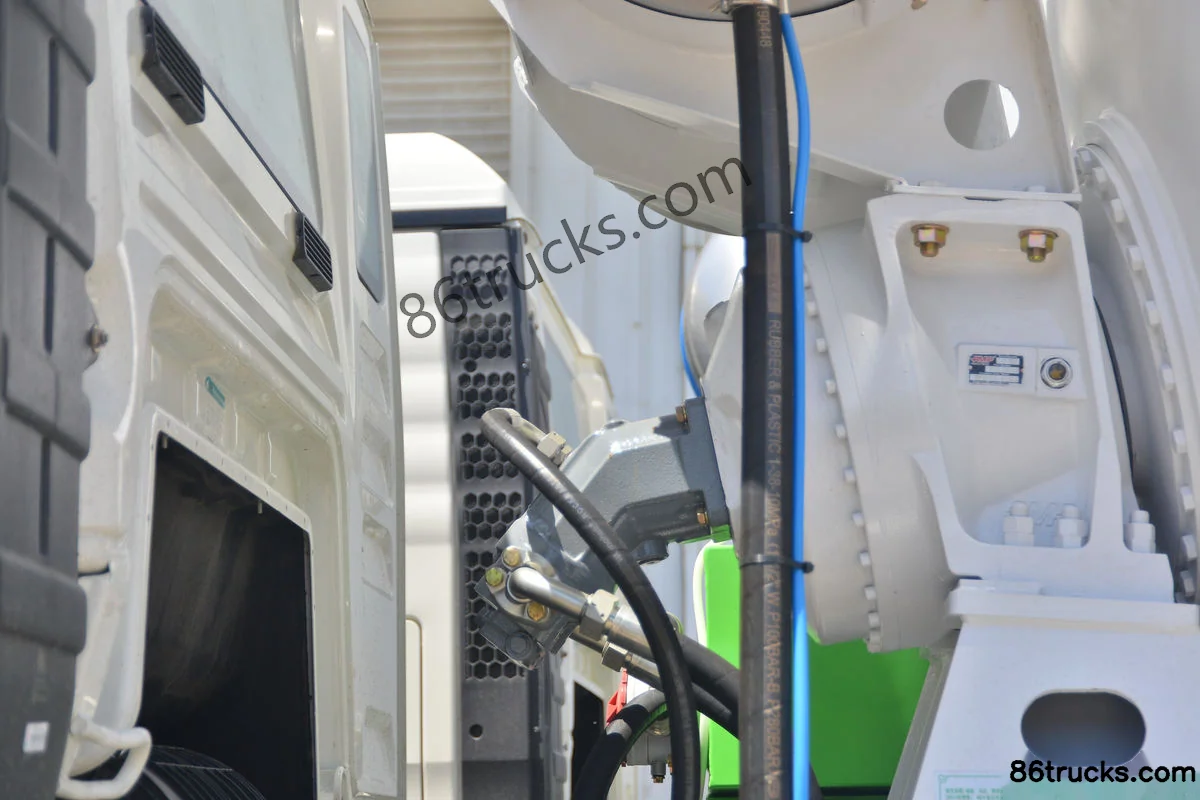

Body3

12 photos

FAQ

What emission standard does Sinotruk HOWO TX 340 hp 8X4(12 wheels) 7.5 cubic meter concrete mixer truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO TX 340 hp 8X4(12 wheels) 7.5 cubic meter concrete mixer truck?

Key specs of Sinotruk HOWO TX 340 hp 8X4(12 wheels) 7.5 cubic meter concrete mixer truck: Drive: 8x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO TX 340 hp 8X4(12 wheels) 7.5 cubic meter concrete mixer truck suited for?

Sinotruk HOWO TX 340 hp 8X4(12 wheels) 7.5 cubic meter concrete mixer truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO TX 340 hp 8X4(12 wheels) 7.5 cubic meter concrete mixer truck differ from other variants in the same series?

Sinotruk HOWO TX 340 hp 8X4(12 wheels) 7.5 cubic meter concrete mixer truck belongs to SinotrukHOWOHOWO TX7 (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO TX 340 hp 8X4(12 wheels) 7.5 cubic meter concrete mixer truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO TX 340 hp 8X4(12 wheels) 7.5 cubic meter concrete mixer truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
