Dongfeng 145 Series 179hp 4X2(6 wheels) Concrete Mixer Truck (Chengliwei Brand)
EXW
Export quote
Chengliwei Dongfeng Commercial Vehicle Chassis
Main model photos
256 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng 145 Series 179hp 4X2(6 wheels) Concrete Mixer Truck (Chengliwei Brand) | 4x2 / 145hp / China III / Euro III | ||
| Dongfeng 153 Series 190hp 4X2(6 wheels) Concrete Mixer Truck (Chengliwei) | 4x2 / 190hp / China III / Euro III | ||
| Dongfeng Hercules 340 hp 6X4(10 wheels) Concrete Mixer Truck (Chengliwei Brand) | 6x4 / 340hp / China III / Euro III |
Dongfeng 153 Series 190hp 4X2(6 wheels) Concrete Mixer Truck (Chengliwei)
EXW
Export quote

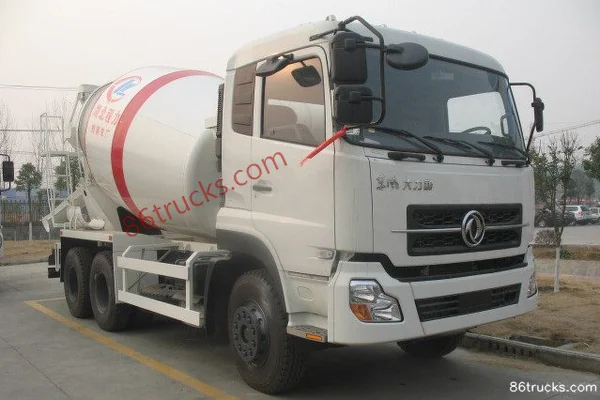

Dongfeng Hercules 340 hp 6X4(10 wheels) Concrete Mixer Truck (Chengliwei Brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 7.4×2.49×3.45 / 7.95×2.49×3.9 / 9.65×2.5×3.97m
Drive type: 4X2 / 6X4
Truck Type: concrete mixer truck / Dongfeng Dali Shen concrete mixer truck
Front/rear track width: Front track: 1900mm; Rear track: 1800mm / Front track: 1940mm; Rear track: 1860mm / Front track: 2027mm; Rear track: 1850/1850mm
Vehicle origin: Hubei / Suizhou, Hubei
Wheelbase: 3950 / 4500 / 3650+1350mm
Curb Weight: 7.325 / 12 / 14.05ton
Rated payload: 3.975 / 4.2 / 10.82ton
Max. speed: 90 / 85 / 75km/h
Front/rear suspension: 1.25/2.2 / 1.5/2.8m
Body Parameters
Water tank capacity: 400 / 500L
Mixing drum capacity: 1.85m³
Slump: 40mm
Drum rotation speed: 3 / 18r/min
Feed rate: 2 / 3.5m³/min
Discharge speed: 1.5 / 2m³/min
Discharge residue rate: ＜0.9% / <0.8%
Filling Rate: 75% / 58.7%
water supply method: Air pressure water supply / Closed hydraulic circuit
hydraulic system: Domestic closed hydraulic circuit / Air pressure water supply
Vehicle certification code: CLW5110GJB3 / CLW5120GJB3 / CLW5250GJB3
Body Brand: Chengliwei
Others: 1. Mixing volume: 5 cubic meters. 2. Since the mass variation caused by the two overall length parameters is less than 3%, only one curb weight is listed. 3. Overall vehicle length (mm) 9170 corresponds to wheelbase (mm) 3800+1350, rear overhang (mm) 2520. Overall vehicle length (mm) 9650 corresponds to wheelbase (mm) 4000+1350, rear overhang (mm) 2800. Rated payload (kg) 10820 corresponds to cab seating capacity 2 persons; rated payload (kg) 10755 corresponds to cab seating capacity 3 persons. Optional cab front lower mirror per chassis.
Engine parameters
Engine Model: Yuchai YC6J180-30 / Dongfeng B190 33 / Dongfeng ISLe340 30
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.5 / 5.9 / 8.9L
Emission standard: China III / Euro III
Max output power: 132 / 140 / 250kW
Max hp: 145 / 190 / 340Horsepower
Rated speed: 2500 / 2100rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, direct injection / Inline
Chassis Specs
Chassis Series: 145 series / 153 Series / Dalishen
Chassis Model: EQ1110GLJ / EQ3120GSZ3GJ / DFL5251GJBA1
Front axle description: 5T / 7T
rear axle description: 10T / 13T single-reduction dual rear axle
Leaf spring count: 8/11+8 / 8/10+7 / 9/10
Transmission Parameters
Number of gears: 6 / 8Gear
Transmission Model: Dachi 6-speed / Fast Gear 8JS130T-B
Tire
Tire Size: 9.00-20 / 10.00-20,10.00R20 / 11.00-20，11.00R20，12.00-20，12.00R20
FAQ
What kind of truck is Chengliwei Chengliwei Dongfeng Commercial Vehicle Chassis concrete mixer truck?
Chengliwei Chengliwei Dongfeng Commercial Vehicle Chassis is an export-oriented concrete mixer truck lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Chengliwei Dongfeng Commercial Vehicle Chassis cover?
Chengliwei Dongfeng Commercial Vehicle Chassis mainly covers: Drive: 4x2 / 6x4; Horsepower: 145 hp / 190 hp / 340 hp; Emission: China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chengliwei Dongfeng Commercial Vehicle Chassis?
For Chengliwei Dongfeng Commercial Vehicle Chassis: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Chengliwei Dongfeng Commercial Vehicle Chassis include?
Chengliwei Dongfeng Commercial Vehicle Chassis currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chengliwei Dongfeng Commercial Vehicle Chassis?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
