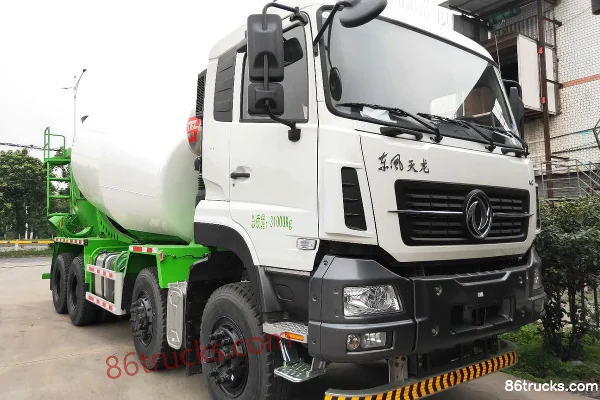

Dongfeng Commercial Vehicle Tianlong KC 350hp 8X4(12 wheels) 7.79m³ concrete mixer truck (Shenying brand)(YG5318GJBAX1VB)
EXW
From $48,611
Export quote
Shenying Dongfeng Commercial Vehicle Chassis
Main model photos
5 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Commercial Vehicle Tianlong KC 350hp 8X4(12 wheels) 7.79m³ concrete mixer truck (Shenying brand)(YG5318GJBAX1VB) | 8x4 / 350hp / China V | From $48,611 | |
| Dongfeng Commercial Vehicle Tianlong KC 340hp 8X4(12 wheels) 7m³ Concrete Mixer Truck (Shenying Brand)(YG5318GJBAX1V) | 8x4 / 341hp / China V | From $60,417 |
Dongfeng Commercial Vehicle Tianlong KC 340hp 8X4(12 wheels) 7m³ Concrete Mixer Truck (Shenying Brand)(YG5318GJBAX1V)
EXW
From $60,417
Export quote
Series Specs
Basic Info
Cab dimensions: 10.22×2.5×3.99 / 10.18×2.5×3.995m
Drive type: 8X4
Truck Type: concrete mixer truck
Vehicle origin: Shiyan, Hubei
Front/rear track width: Front: 2010/2010mm; Rear: 1860/1860 / Front: 2010/2010mm; Rear: 1880/1880
Wheelbase: 1850+3000+1350mm
Curb Weight: 13.8 / 15.48ton
Rated payload: 17.07 / 15.39ton
Max. speed: 90km/h
Front/rear suspension: 1.5/2.52 / 1.5/2.68m
Body Parameters
Mixing drum capacity: 7m³
Vehicle certification code: YG5318GJBAX1VB / YG5318GJBAX1V
Body Brand: Shenying Brand
Engine parameters
Engine Model: YuchaiYC6L350-50 / DongfengISL9.5-340E51A
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.424 / 9.46L
Emission standard: China V
Max output power: 257 / 251kW
Max hp: 350 / 341Horsepower
Rated speed: 2200 / 1900rpm
Engine Type: Vertical, inline, water-cooled, four-stroke / Vertical, inline
Chassis Specs
Chassis Series: Tianlong KC
Chassis Model: DFH1318AX1V
rear axle description: Dana 10T Hub Reduction Axle
Axle ratio: 5.22
Leaf spring count: 8/8/10 / 10/10/13,9/9/13,9/9/10,3/3/4
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear9JSS119 / Fast Gear9JS150T-B
Cab parameters
Cab: Dongfeng Tianlong KC flat-top cab
Tire
Tire Size: 11R22.5 18PR / 11.00R20
Number of tires: 12pcs
FAQ
What kind of truck is Shenying Shenying Dongfeng Commercial Vehicle Chassis concrete mixer truck?
Shenying Shenying Dongfeng Commercial Vehicle Chassis is an export-oriented concrete mixer truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Shenying Dongfeng Commercial Vehicle Chassis?
Shenying Dongfeng Commercial Vehicle Chassis export reference is about $48,611 – $60,417. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Shenying Dongfeng Commercial Vehicle Chassis cover?
Shenying Dongfeng Commercial Vehicle Chassis mainly covers: Drive: 8x4; Horsepower: 341 hp / 350 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Shenying Dongfeng Commercial Vehicle Chassis?
For Shenying Dongfeng Commercial Vehicle Chassis: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Shenying Dongfeng Commercial Vehicle Chassis include?
Shenying Dongfeng Commercial Vehicle Chassis currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Shenying Dongfeng Commercial Vehicle Chassis?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
