Dongfeng Commercial Vehicle Tianlong KC 340hp 8X4(12 wheels) 7m³ Concrete Mixer Truck (Shenying Brand)(YG5318GJBAX1V)

Export reference
From $60,417
MSRP ¥43.5M CNY
Fuel: Diesel
Curb Weight:: 15.48ton
Wheelbase:: 1850+3000+1350mm
Tire Size:: 11.00R20
Cab dimensions:: 10.18×2.5×3.995m
Truck Type:: concrete mixer truck
Rated payload: 15.39ton
Drive 8X4 (12 wheels)
Horsepower 341
Emission China V

Overview

The Dongfeng Commercial Vehicle Tianlong KC 340hp 8X4(12 wheels) 7m³ Concrete Mixer Truck (Shenying Brand)(YG5318GJBAX1V) is a concrete mixer truck featuring 15.39t payload, 15.48ton GVW, 8X4 (12 wheels) drive and Dongfeng Tianlong KC flat-top cab cab. On the powertrain side, it comes with 341 hp, China V emissions and Diesel fuel.

China V 341 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.18×2.5×3.995m
Drive type: 8X4
Truck Type: concrete mixer truck
Vehicle origin: Shiyan, Hubei
Front/rear track width: Front: 2010/2010mm; Rear: 1880/1880
Wheelbase: 1850+3000+1350mm
Curb Weight: 15.48ton
Rated payload: 15.39ton
Max. speed: 90km/h
Front/rear suspension: 1.5/2.68m
Body Parameters
Mixing drum capacity: 7m³
Vehicle certification code: YG5318GJBAX1V
Body Brand: Shenying Brand
Engine parameters
Engine Model: DongfengISL9.5-340E51A
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.46L
Emission standard: China V
Max output power: 251kW
Max hp: 341Horsepower
Rated speed: 1900rpm
Engine Type: Vertical, inline
Chassis Specs
Chassis Series: Tianlong KC
Chassis Model: DFH1318AX1V
rear axle description: Dana 10T Hub Reduction Axle
Axle ratio: 5.22
Leaf spring count: 10/10/13,9/9/13,9/9/10,3/3/4
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear9JS150T-B
Cab parameters
Cab: Dongfeng Tianlong KC flat-top cab
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

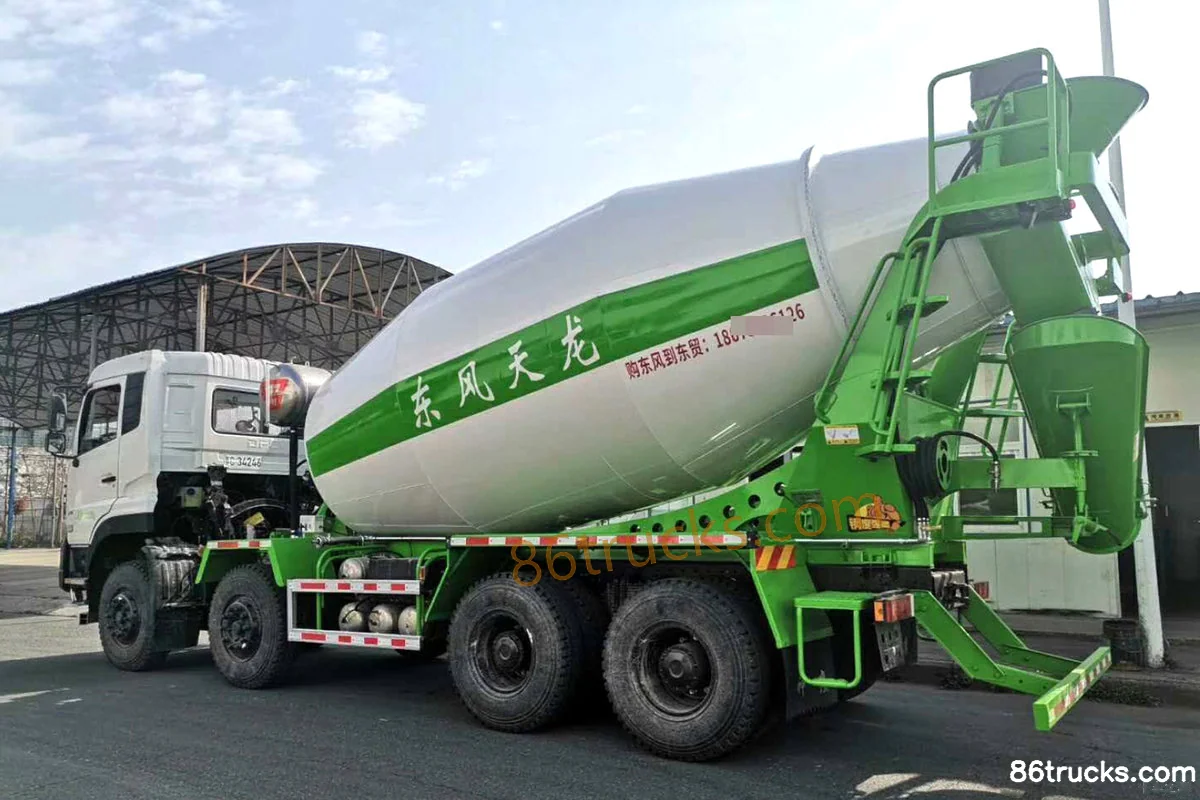

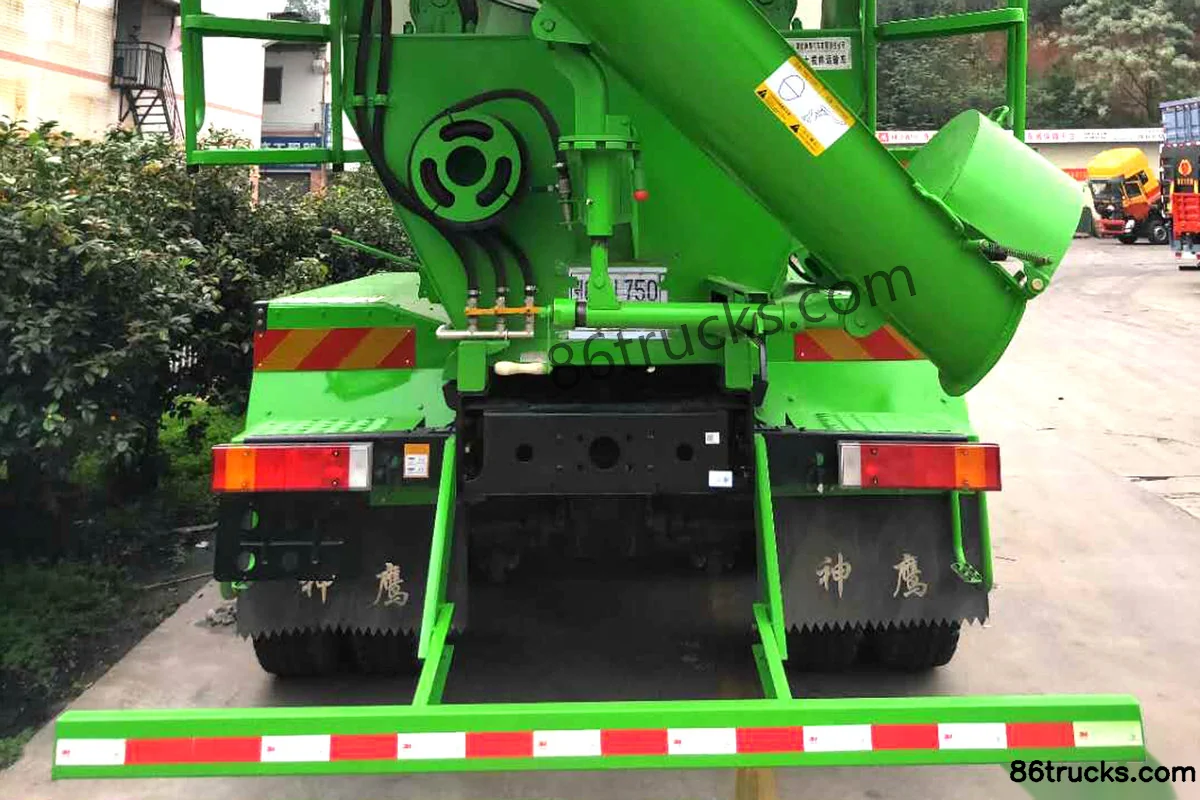

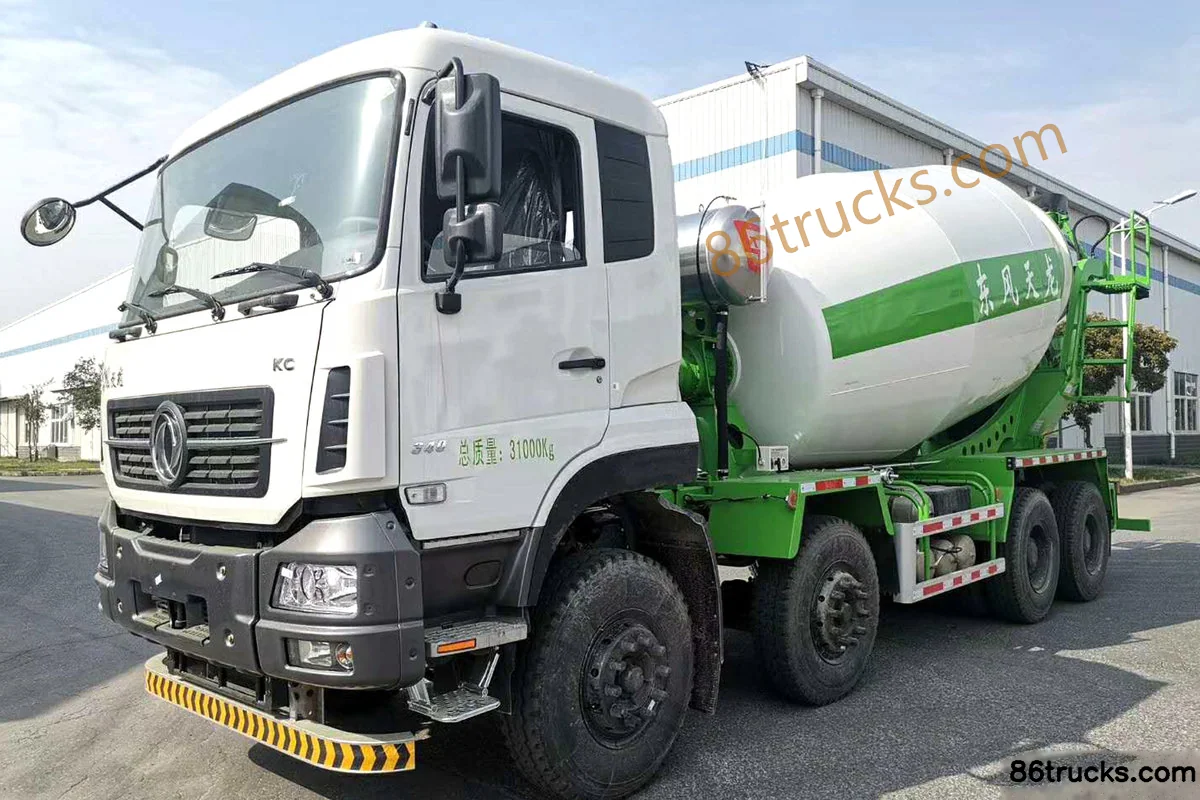

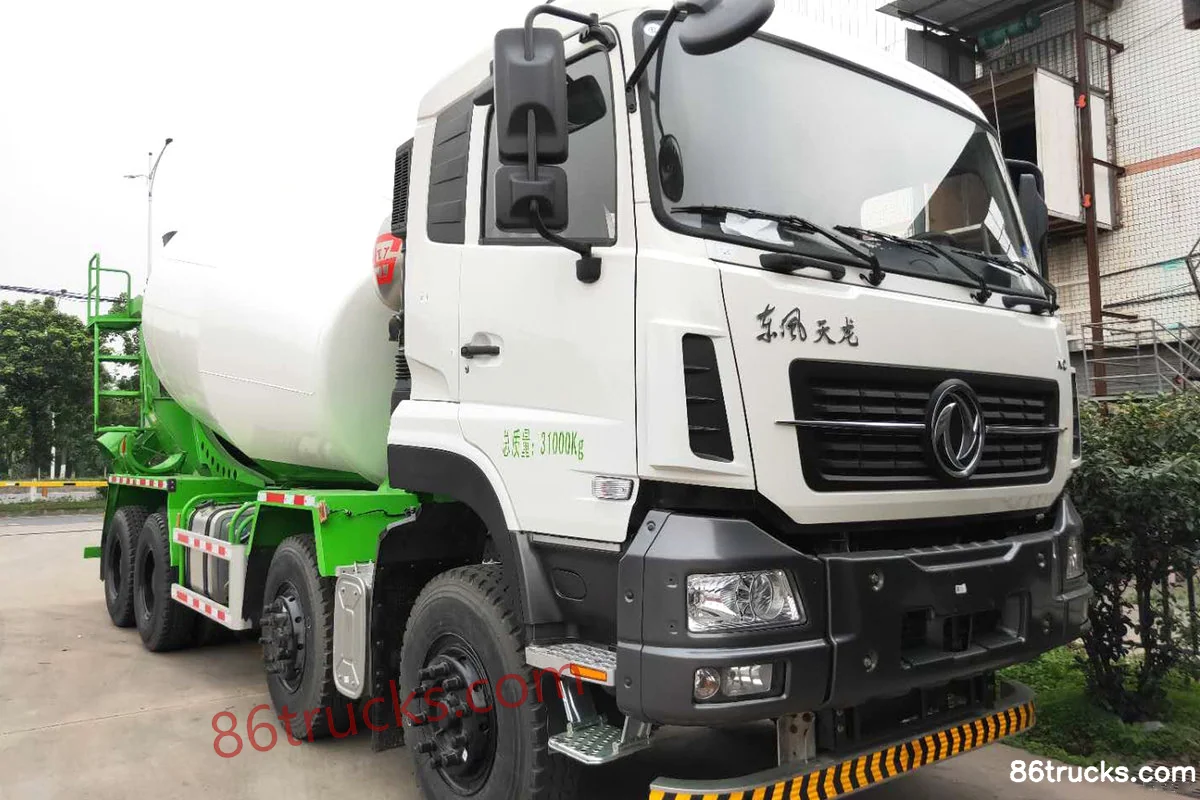

Photos

Exterior3

Cab1

4 photos

FAQ

What is the export price of Dongfeng Commercial Vehicle Tianlong KC 340hp 8X4(12 wheels) 7m³ Concrete Mixer Truck (Shenying Brand)(YG5318GJBAX1V), and what does it include?

Dongfeng Commercial Vehicle Tianlong KC 340hp 8X4(12 wheels) 7m³ Concrete Mixer Truck (Shenying Brand)(YG5318GJBAX1V) export reference is about From $60,417; MSRP is ¥43.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Commercial Vehicle Tianlong KC 340hp 8X4(12 wheels) 7m³ Concrete Mixer Truck (Shenying Brand)(YG5318GJBAX1V) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Commercial Vehicle Tianlong KC 340hp 8X4(12 wheels) 7m³ Concrete Mixer Truck (Shenying Brand)(YG5318GJBAX1V)?

Key specs of Dongfeng Commercial Vehicle Tianlong KC 340hp 8X4(12 wheels) 7m³ Concrete Mixer Truck (Shenying Brand)(YG5318GJBAX1V): Drive: 8x4; Horsepower: 341 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Commercial Vehicle Tianlong KC 340hp 8X4(12 wheels) 7m³ Concrete Mixer Truck (Shenying Brand)(YG5318GJBAX1V) suited for?

Dongfeng Commercial Vehicle Tianlong KC 340hp 8X4(12 wheels) 7m³ Concrete Mixer Truck (Shenying Brand)(YG5318GJBAX1V) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Commercial Vehicle Tianlong KC 340hp 8X4(12 wheels) 7m³ Concrete Mixer Truck (Shenying Brand)(YG5318GJBAX1V) differ from other variants in the same series?

Dongfeng Commercial Vehicle Tianlong KC 340hp 8X4(12 wheels) 7m³ Concrete Mixer Truck (Shenying Brand)(YG5318GJBAX1V) belongs to Shenying Dongfeng Commercial Vehicle Chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Commercial Vehicle Tianlong KC 340hp 8X4(12 wheels) 7m³ Concrete Mixer Truck (Shenying Brand)(YG5318GJBAX1V)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Commercial Vehicle Tianlong KC 340hp 8X4(12 wheels) 7m³ Concrete Mixer Truck (Shenying Brand)(YG5318GJBAX1V)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
