Dongfeng 153 series 190hp 4X2(6 wheels) concrete mixer truck (Chusheng brand)
EXW
Export quote
Chusheng Dongfeng Commercial Vehicle Chassis
Main model photos
197 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng 153 series 190hp 4X2(6 wheels) concrete mixer truck (Chusheng brand) | 4x2 / 190hp / China III / Euro III | ||
| Dongfeng Hercules 340hp 6X4(10 wheels) Concrete Mixer Truck (Chusheng Brand) | 6x4 / 340hp / China III / Euro III | ||
| Dongfeng Hercules 340hp 6X4(10 wheels) Concrete Mixer Truck (Chusheng Brand) | 6x4 / 340hp / China III / Euro III | ||
| Dongfeng Hercules 340hp 6X4(10 wheels) Concrete Mixer Truck (Chusheng Brand) | 6x4 / 340hp / China III / Euro III |

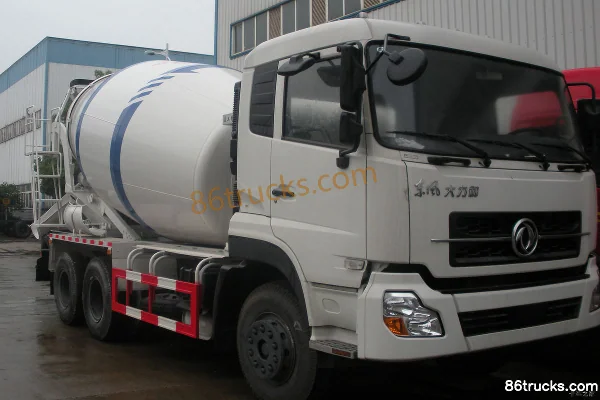

Dongfeng Hercules 340hp 6X4(10 wheels) Concrete Mixer Truck (Chusheng Brand)
EXW
Export quote
Dongfeng Hercules 340hp 6X4(10 wheels) Concrete Mixer Truck (Chusheng Brand)
EXW
Export quote
Dongfeng Hercules 340hp 6X4(10 wheels) Concrete Mixer Truck (Chusheng Brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 8.0×2.49×3.75 / 9.2×2.5×3.88 / 9.2×2.5×3.99 / 9.75×2.5×3.99m
Drive type: 4X2 / 6X4
Truck Type: Concrete mixer truck
Front/rear track width: Front track: 1940mm; Rear track: 1860mm / Front 1986/Rear 1860/1860 / Front track: 2050mm; Rear track: 1850/1850mm / Front track: 2027mm; Rear track: 1820/1820mm
Vehicle origin: Hubei / Suizhou, Hubei
Wheelbase: 4200 / 3650+1350mm
Curb Weight: 12 / 13.205 / 14 / 13.305ton
Rated payload: 4.2 / 11.665 / 10.87 / 11.565ton
Max. speed: 85 / 80 / 90 / 75km/h
Front/rear suspension: 1.25/2.25 / 1.46/2.74 / 1.5/2.7 / 1.5/3.25m
Body Parameters
Water tank capacity: 400 / 500 / 550L
Mixing drum capacity: 1.96m³
Slump: 40.23mm
Drum rotation speed: 3 / 6-12 / 6-8r/min
Feed rate: 3m³/min
Discharge speed: 2m³/min
Discharge residue rate: 0.7 / <0.7%
Filling Rate: 58.7%
water supply method: Air pressure water supply
hydraulic system: Closed hydraulic circuit
Vehicle certification code: CSC5120GJBDS / CSC5250GJBA / CSC5251GJBA4 / CSC5251GJBA12
Body Brand: Chusheng Brand
Others: Customizable 3 m³, 4 m³, 6 m³ tank / Available in 8/10/12 m³ mixer drum / Available with 10 m³ tank, 12 m³ tank
Engine parameters
Engine Model: Yuchai YC6J190-33 / Dongfeng L340 30 / Dongfeng ISLe340 40 / Dongfeng dCi340-30
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.494 / 8.9 / 11.2L
Emission standard: China III / Euro III
Max output power: 140 / 250kW
Max hp: 190 / 340Horsepower
Rated speed: 2500 / 2200 / 2100 / 1900rpm
Engine Type: Inline
Chassis Specs
Chassis Series: Dongfeng 153 Series / Dongfeng Dali Shen
Chassis Model: EQ3120GSZ3GJ / DFL5250GJBA / DFL5251GJBA4 / DFL5251GJBA1
Front axle description: 5T / 7T
rear axle description: 10T / 13T single reduction / 16T single reduction / 13T single-reduction dual rear axle
Leaf spring count: 8/10+7 / 8/12 / 8/12,9/13,10/12 / 9/13
Transmission Parameters
Number of gears: 6 / 9 / 8Gear
Transmission Model: Datong 85 / Fast Gear 9JS150T－B / Fast Gear 8JS130T-B
Tire
Tire Size: 10.00-20,10.00R20 / 11.00R20 / 11.00R20 radial tire
FAQ
What kind of truck is Chusheng Chusheng Dongfeng Commercial Vehicle Chassis concrete mixer truck?
Chusheng Chusheng Dongfeng Commercial Vehicle Chassis is an export-oriented concrete mixer truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Chusheng Dongfeng Commercial Vehicle Chassis cover?
Chusheng Dongfeng Commercial Vehicle Chassis mainly covers: Drive: 4x2 / 6x4; Horsepower: 190 hp / 340 hp; Emission: China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chusheng Dongfeng Commercial Vehicle Chassis?
For Chusheng Dongfeng Commercial Vehicle Chassis: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Chusheng Dongfeng Commercial Vehicle Chassis include?
Chusheng Dongfeng Commercial Vehicle Chassis currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chusheng Dongfeng Commercial Vehicle Chassis?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
