Dongfeng 153 series 190hp 4X2(6 wheels) concrete mixer truck (Chusheng brand)

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 12ton
Wheelbase:: 4200mm
Tire Size:: 10.00-20,10.00R20
Cab dimensions:: 8.0×2.49×3.75m
Truck Type:: Concrete mixer truck
Rated payload: 4.2ton
Drive 4X2 (6 wheels)
Horsepower 190
Emission China III / Euro III

Overview

The Dongfeng 153 series 190hp 4X2(6 wheels) concrete mixer truck (Chusheng brand) is a concrete mixer truck featuring 4.2t payload, 12ton GVW, 4X2 (6 wheels) drive and 8.0×2.49×3.75m cab. On the powertrain side, it comes with 190 hp, China III / Euro III emissions and Diesel fuel.

China III / Euro III 190 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.0×2.49×3.75m
Drive type: 4X2
Truck Type: Concrete mixer truck
Wheelbase: 4200mm
Front/rear track width: Front track: 1940mm; Rear track: 1860mm
Vehicle origin: Hubei
Curb Weight: 12ton
Rated payload: 4.2ton
Max. speed: 85km/h
Front/rear suspension: 1.25/2.25m
Body Parameters
Water tank capacity: 400L
Slump: 40.23mm
Mixing drum capacity: 1.96m³
Drum rotation speed: 3r/min
Feed rate: 3m³/min
Discharge speed: 2m³/min
Discharge residue rate: 0.7%
water supply method: Air pressure water supply
Vehicle certification code: CSC5120GJBDS
hydraulic system: Closed hydraulic circuit
Body Brand: Chusheng Brand
Others: Customizable 3 m³, 4 m³, 6 m³ tank
Engine parameters
Engine Model: Yuchai YC6J190-33
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.494L
Emission standard: China III / Euro III
Max output power: 140kW
Max hp: 190Horsepower
Rated speed: 2500rpm
Engine Type: Inline
Chassis Specs
Chassis Series: Dongfeng 153 Series
Chassis Model: EQ3120GSZ3GJ
Front axle description: 5T
rear axle description: 10T
Leaf spring count: 8/10+7
Transmission Parameters
Number of gears: 6Gear
Transmission Model: Datong 85
Tire
Tire Size: 10.00-20,10.00R20
Number of tires: 6pcs

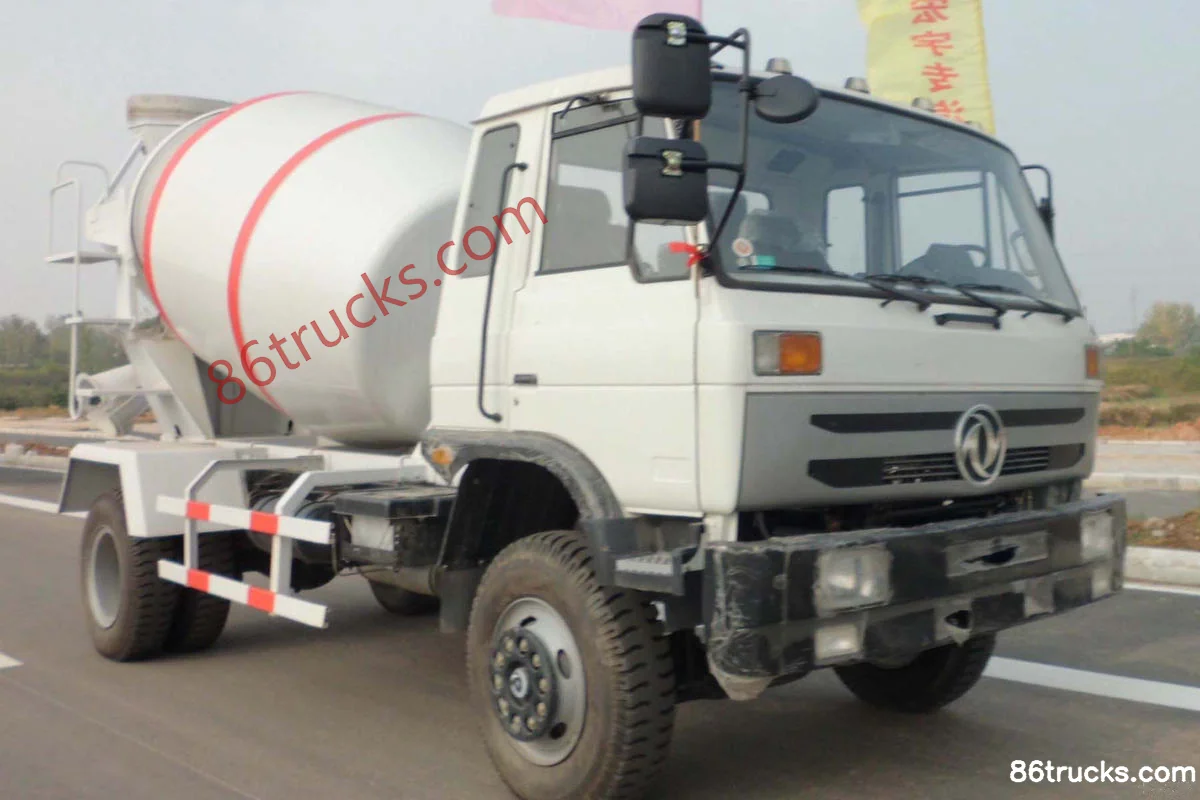

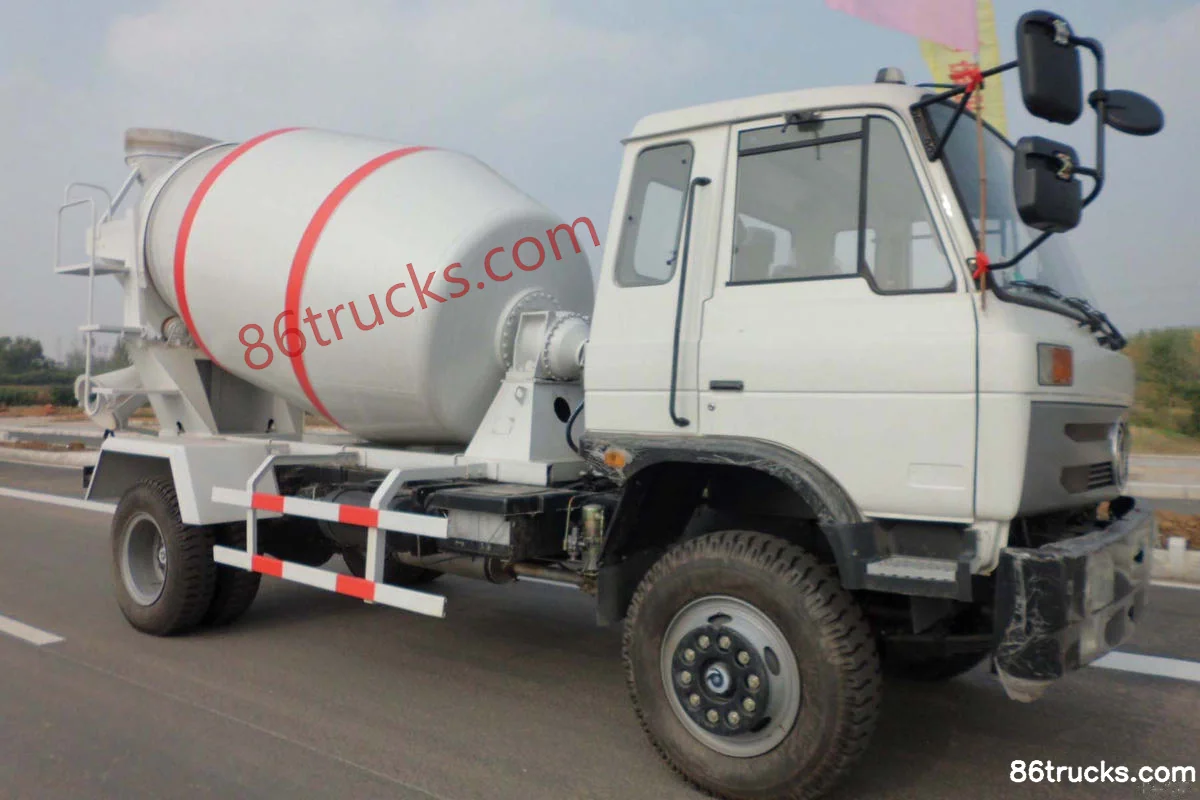

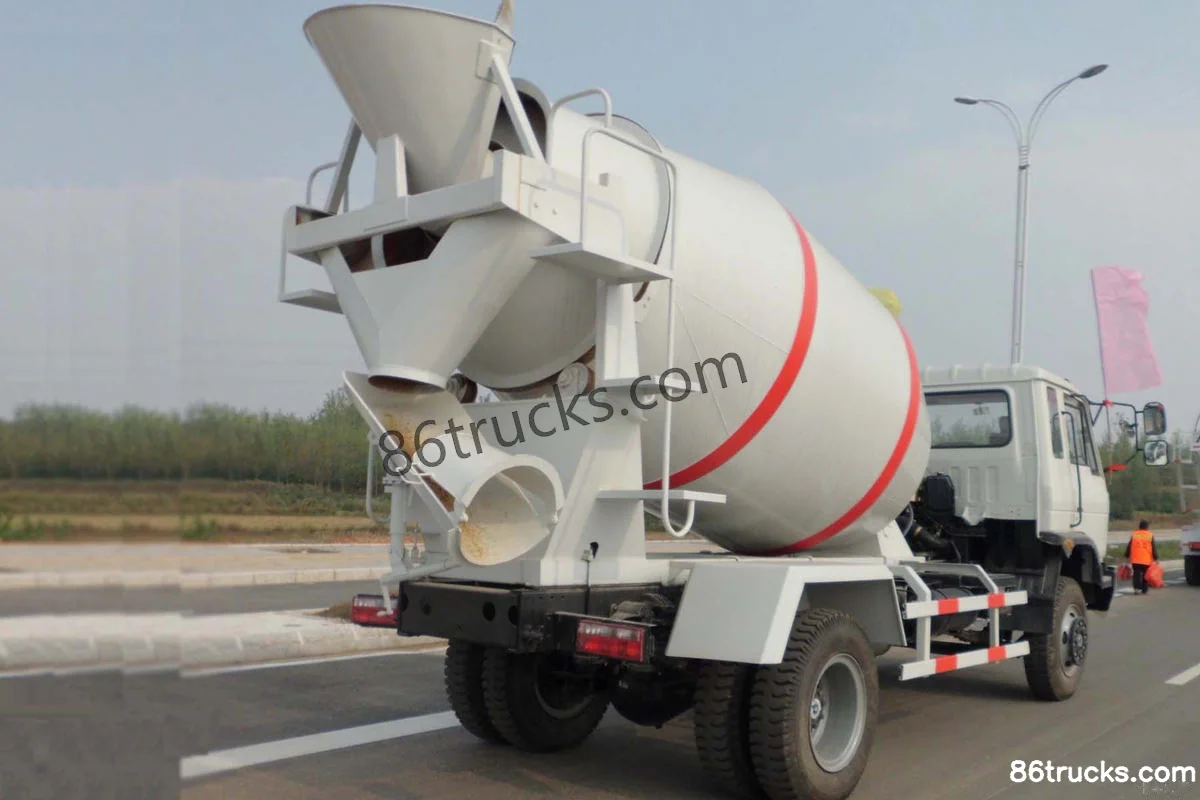

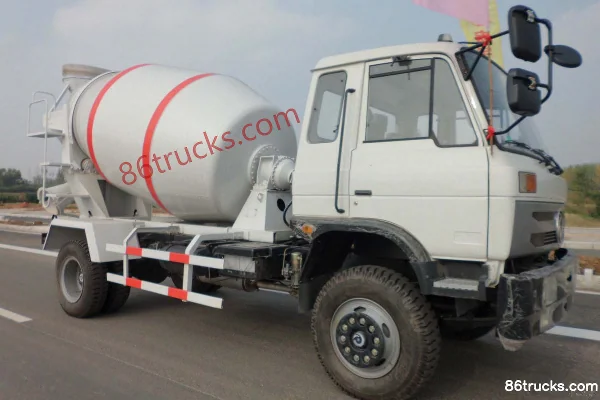

Photos

Exterior3

3 photos

FAQ

What emission standard does Dongfeng 153 series 190hp 4X2(6 wheels) concrete mixer truck (Chusheng brand) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng 153 series 190hp 4X2(6 wheels) concrete mixer truck (Chusheng brand)?

Key specs of Dongfeng 153 series 190hp 4X2(6 wheels) concrete mixer truck (Chusheng brand): Drive: 4x2; Horsepower: 190 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng 153 series 190hp 4X2(6 wheels) concrete mixer truck (Chusheng brand) suited for?

Dongfeng 153 series 190hp 4X2(6 wheels) concrete mixer truck (Chusheng brand) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng 153 series 190hp 4X2(6 wheels) concrete mixer truck (Chusheng brand) differ from other variants in the same series?

Dongfeng 153 series 190hp 4X2(6 wheels) concrete mixer truck (Chusheng brand) belongs to Chusheng Dongfeng Commercial Vehicle Chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng 153 series 190hp 4X2(6 wheels) concrete mixer truck (Chusheng brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng 153 series 190hp 4X2(6 wheels) concrete mixer truck (Chusheng brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
