Sinotruk Wangpai 7 Series 140hp 4X2(6 wheels) 3.35m³ Concrete Mixer Truck
EXW
From $18,861
Export quote
Sinotruk Wangpai 7 series light truck concrete
Main model photos
618 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk Wangpai 7 Series 140hp 4X2(6 wheels) 3.35m³ Concrete Mixer Truck | 4x2 / 140hp / China V | From $18,861 | |
| Sinotruk Ace 7 Series 170hp 4X2(6 wheels) 3.5m³ Concrete Mixer Truck | 4x2 / 170hp / China V | From $17,333 | |
| Sinotruk Wangpai 7 Series 185 hp 4X2(6 wheels) 3.35m³ Concrete Mixer Truck | 4x2 / 185hp / China V | From $20,667 | |
| Sinotruk Wangpai 7 Series 150 hp 4X2(6 wheels) 3.35 m³ concrete mixer truck | 4x2 / 150hp / China V | From $26,917 | |
| Sinotruk Wangpai 7 Series 130hp 4X2(6 wheels) 2.2m³ concrete mixer truck | 4x2 / 130hp / China IV |
Sinotruk Ace 7 Series 170hp 4X2(6 wheels) 3.5m³ Concrete Mixer Truck
EXW
From $17,333
Export quote
Sinotruk Wangpai 7 Series 185 hp 4X2(6 wheels) 3.35m³ Concrete Mixer Truck
EXW
From $20,667
Export quote

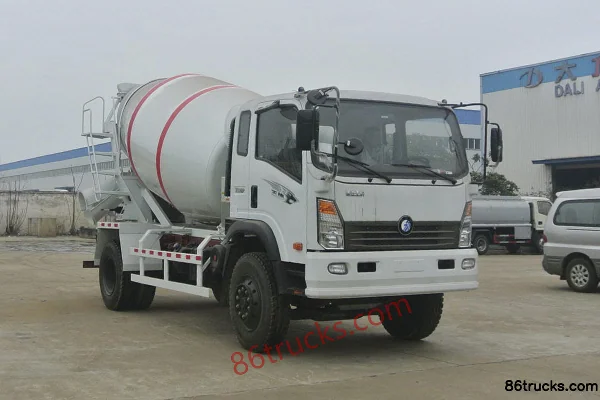

Sinotruk Wangpai 7 Series 150 hp 4X2(6 wheels) 3.35 m³ concrete mixer truck
EXW
From $26,917
Export quote

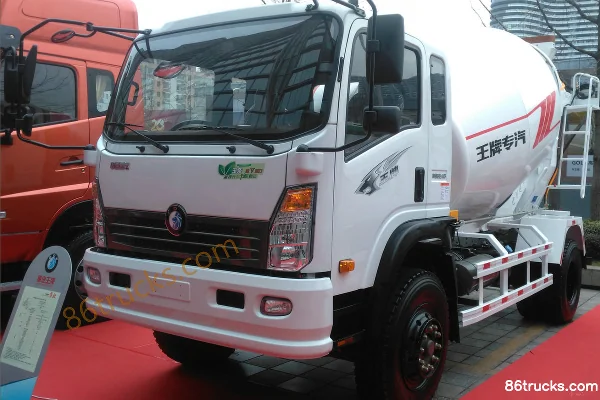

Sinotruk Wangpai 7 Series 130hp 4X2(6 wheels) 2.2m³ concrete mixer truck
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 6.94×2.35×3.5 / 7.63×2.35×3.5m
Truck Type: concrete mixer truck
Drive type: 4X2
Vehicle origin: Chengdu, Sichuan
Wheelbase: 3650 / 3950mm
Front/rear track width: Front track: 1780mm; Rear track: 1700mm / Front track: 1735mm; Rear track: 1725mm
Curb Weight: 8.25 / 15.8 / 6.495ton
Rated payload: 7.355 / 4.8ton
Max. speed: 80km/h
Front/rear suspension: 1.28/2.16 / 1.28/2.4 / 1.285/2.42 / 1.285/2.005m
Body Parameters
Mixing drum capacity: 3.35 / 2.2m³
Vehicle certification code: CDW5160GJBA3R5 / CDW5110GJBA2Q4
Body Brand: Sinotruk王牌 / 重汽王牌
Others: 5-7 m³ / Closed hydraulic system
Engine parameters
Engine Model: YuchaiYC4D140-50 / YuchaiYCD4P4S-170 / YuchaiYC4EG185-50 / YuchaiYC4S150-50 / YuchaiYC4D130-45
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.214 / 4.6 / 4.73 / 3.767L
Emission standard: China V / China IV
Max output power: 103 / 125 / 136 / 110 / 96kW
Max hp: 140 / 170 / 185 / 150 / 130Horsepower
Rated speed: 2800 / 2600 / 2500rpm
Engine Type: Vertical, inline, water-cooled, four-stroke / BOSCH high-pressure common rail / Electronic unit pump EGR + POC + DOC
Chassis Specs
Chassis Series: Wangpai 7 Series
Chassis Model: CDW3160HA3R5 / CDW3110A2Q4
Front axle description: CZ1450DS
Frame Dimensions: 280×10mm
rear axle description: CZ1530DS / 10 tons / CZ1092BS/CZ1450DAS
Axle ratio: 6.833 / 5.571
Leaf spring count: 11/10+8 / 11/11+9 / 11/11+9,9/10+8
Transmission Parameters
Number of gears: 6 / 8Gear
Transmission Model: WLYWLY653HF / Fast Gear8JS85F / WLY 6-speed
Cab parameters
Cab: Flat roof / 2080 Day Cab / Wangpai 7 Series / 757B
Tire
Tire Size: 9.00R20 / 10.00R20 / 9.00R20,10.00R20 / 8.25-20
Number of tires: 6pcs
FAQ
What kind of truck is Sinotruk Sinotruk Wangpai 7 series light truck concrete mixer truck?
Sinotruk Sinotruk Wangpai 7 series light truck is an export-oriented concrete mixer truck lineup with about 5 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sinotruk Wangpai 7 series light truck concrete?
Sinotruk Wangpai 7 series light truck concrete export reference is about $17,333 – $26,917. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sinotruk Wangpai 7 series light truck concrete cover?
Sinotruk Wangpai 7 series light truck concrete mainly covers: Drive: 4x2; Horsepower: 130 hp / 140 hp / 150 hp / 170 hp / 185 hp; Emission: China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk Wangpai 7 series light truck concrete?
For Sinotruk Wangpai 7 series light truck concrete: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sinotruk Wangpai 7 series light truck concrete include?
Sinotruk Wangpai 7 series light truck concrete currently lists about 5 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk Wangpai 7 series light truck concrete?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
