Sinotruk Ace 7 Series 170hp 4X2(6 wheels) 3.5m³ Concrete Mixer Truck

Export reference
From $17,333
MSRP ¥12.48M CNY
Fuel: Diesel
Curb Weight:: 8.25ton
Wheelbase:: 3650mm
Tire Size:: 9.00R20
Cab dimensions:: 6.94×2.35×3.5m
Truck Type:: concrete mixer truck
Rated payload: 7.355ton
Drive 4X2 (6 wheels)
Horsepower 170
Emission China V

Overview

The Sinotruk Ace 7 Series 170hp 4X2(6 wheels) 3.5m³ Concrete Mixer Truck is a concrete mixer truck featuring 7.355t payload, 8.25ton GVW, 4X2 (6 wheels) drive and 2080 Day Cab cab. On the powertrain side, it comes with 170 hp, China V emissions and Diesel fuel.

China V 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 6.94×2.35×3.5m
Truck Type: concrete mixer truck
Drive type: 4X2
Vehicle origin: Chengdu, Sichuan
Front/rear track width: Front track: 1780mm; Rear track: 1700mm
Wheelbase: 3650mm
Curb Weight: 8.25ton
Rated payload: 7.355ton
Max. speed: 80km/h
Front/rear suspension: 1.28/2.16m
Body Parameters
Mixing drum capacity: 3.35m³
Vehicle certification code: CDW5160GJBA3R5
Body Brand: Sinotruk王牌
Engine parameters
Engine Model: YuchaiYCD4P4S-170
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.6L
Emission standard: China V
Max output power: 125kW
Max hp: 170Horsepower
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Chassis Specs
Chassis Series: Wangpai 7 Series
Chassis Model: CDW3160HA3R5
Front axle description: CZ1450DS
rear axle description: CZ1530DS
Axle ratio: 6.833
Leaf spring count: 11/10+8
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS85F
Cab parameters
Cab: 2080 Day Cab
Tire
Tire Size: 9.00R20
Number of tires: 6pcs

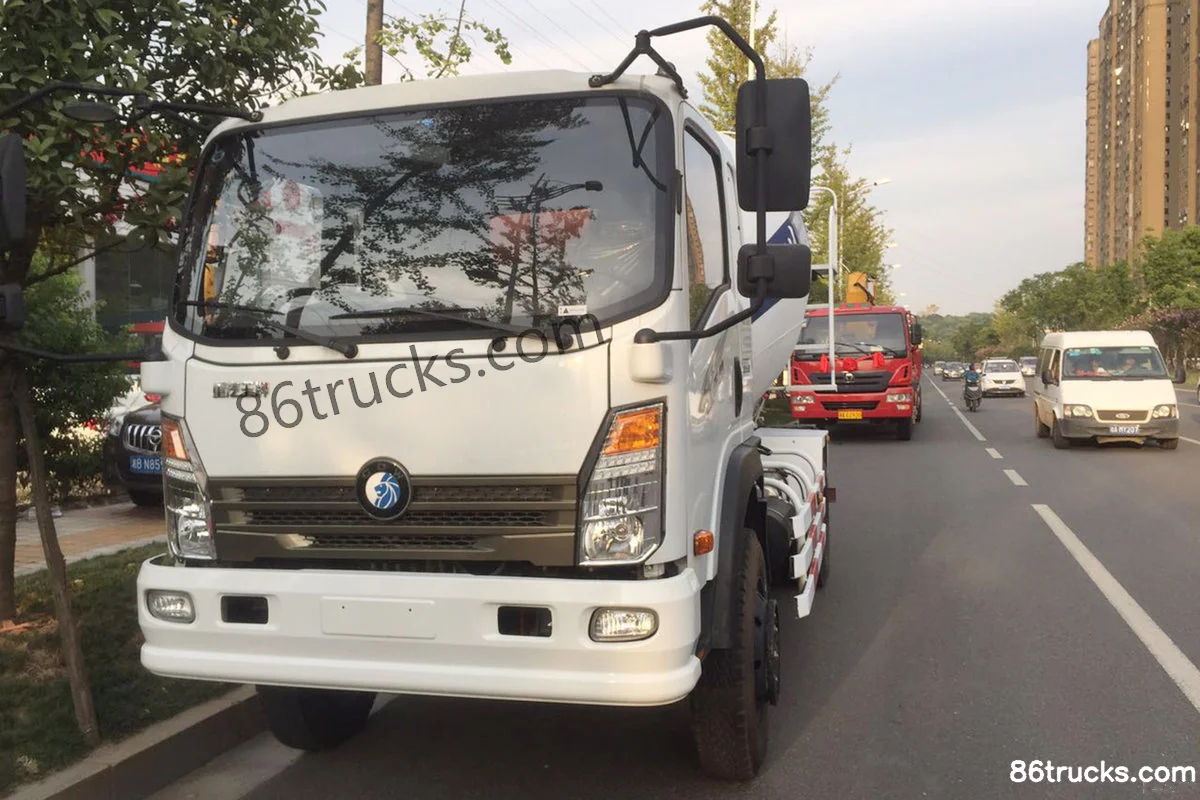

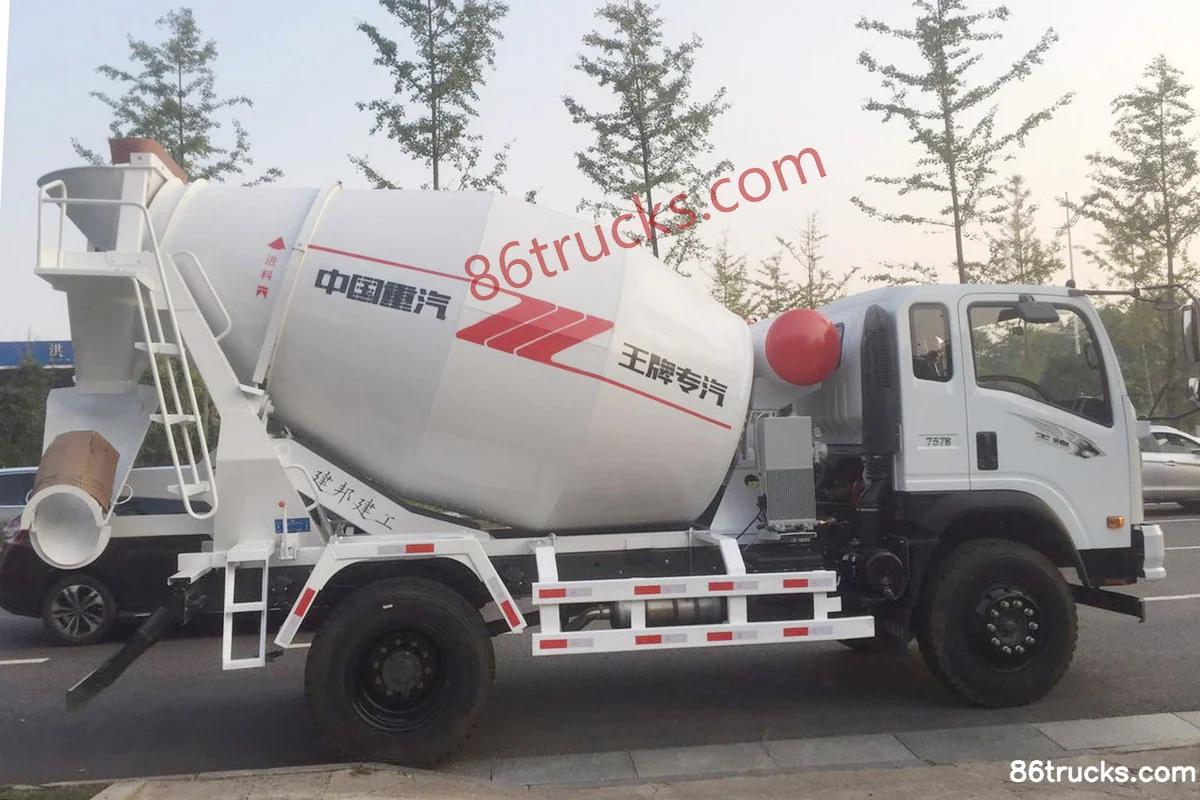

Photos

Exterior2

2 photos

FAQ

What is the export price of Sinotruk Ace 7 Series 170hp 4X2(6 wheels) 3.5m³ Concrete Mixer Truck, and what does it include?

Sinotruk Ace 7 Series 170hp 4X2(6 wheels) 3.5m³ Concrete Mixer Truck export reference is about From $17,333; MSRP is ¥12.48M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Ace 7 Series 170hp 4X2(6 wheels) 3.5m³ Concrete Mixer Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Ace 7 Series 170hp 4X2(6 wheels) 3.5m³ Concrete Mixer Truck?

Key specs of Sinotruk Ace 7 Series 170hp 4X2(6 wheels) 3.5m³ Concrete Mixer Truck: Drive: 4x2; Horsepower: 170 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Ace 7 Series 170hp 4X2(6 wheels) 3.5m³ Concrete Mixer Truck suited for?

Sinotruk Ace 7 Series 170hp 4X2(6 wheels) 3.5m³ Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Ace 7 Series 170hp 4X2(6 wheels) 3.5m³ Concrete Mixer Truck differ from other variants in the same series?

Sinotruk Ace 7 Series 170hp 4X2(6 wheels) 3.5m³ Concrete Mixer Truck belongs to Sinotruk Wangpai 7 series light truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Ace 7 Series 170hp 4X2(6 wheels) 3.5m³ Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Ace 7 Series 170hp 4X2(6 wheels) 3.5m³ Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
