SANY Group 200 hp 4X2(6 wheels) 3.99m³ concrete mixer truck
EXW
From $48,611
Export quote
SANY Truck SANY Heavy Industry concrete mixer truck
Main model photos
42 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SANY Group 200 hp 4X2(6 wheels) 3.99m³ concrete mixer truck | SYM5180GJB1F / 200hp / China VI | From $48,611 | |
| SANY Group 312hp 8X4(12 wheels) 7.99m³ Concrete Mixer Truck | 8x4 / 313hp / China V | ||
| SANY Group 300hp 8X4(12 wheels) 7.8m³ Concrete Mixer Truck | 8x4 / 300hp / China V | ||
| SANY Group 307hp 8X4(12 wheels) 7.99m³ Concrete Mixer Truck (China VI) | 8x4 / 307hp / China VI | ||
| SANY 8X4(12 wheels) 7.73m³ Pure Electric Intelligent Driving Concrete Mixer Truck | — |

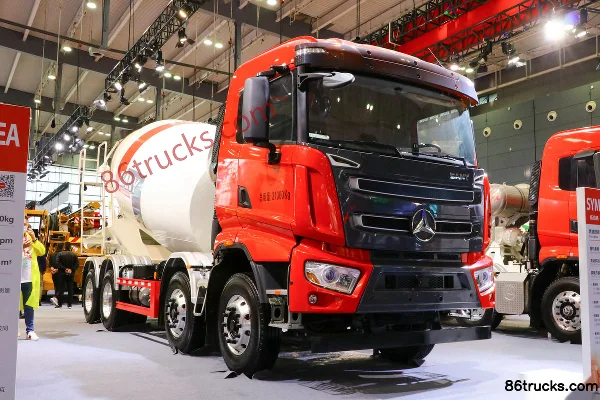

SANY Group 312hp 8X4(12 wheels) 7.99m³ Concrete Mixer Truck
EXW
Export quote

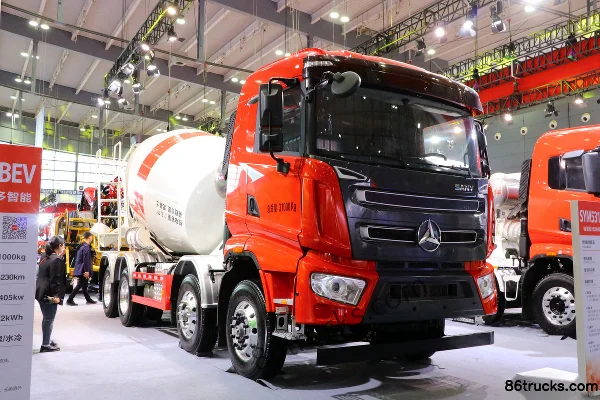

SANY Group 300hp 8X4(12 wheels) 7.8m³ Concrete Mixer Truck
EXW
Export quote
SANY Group 307hp 8X4(12 wheels) 7.99m³ Concrete Mixer Truck (China VI)
EXW
Export quote
SANY 8X4(12 wheels) 7.73m³ Pure Electric Intelligent Driving Concrete Mixer Truck
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 7.69x2.5x3.65 / 9.7×2.5×3.98 / 9.7×2.5×3.87 / 9.88×2.52×3.`96m
Drive type: SYM5180GJB1F / 8X4
Truck Type: Concrete mixer truck
Vehicle origin: Changsha, Hunan
Front/rear track width: 1977；1856 / Front: 2048/2048mm; Rear: 1860/1860
Wheelbase: 3900 / 1700+3200+1300 / 1900+3150+1350mm
Curb Weight: 8.15 / 31 / 32 / 14ton
Rated payload: 9.72 / 17.67 / 19.2ton
Max. speed: 75 / 85km/h
Front/rear suspension: 1.485/2.305 / 1.48/2 / 1.48/1.995m
Body Parameters
Mixing drum capacity: 3.99 / 7.99 / 7.73m³
Vehicle certification code: SYM5180GJB1F / SYM5310GJB1E / SYM5320GJB1F
Body Brand: SANY Heavy Industry / SANY / SANY Brand
Engine parameters
Engine Model: YuchaiYCS04200-68 / Shanghai HinoJ08E-YA / Shanghai HinoJ08E-YK
Number of cylinders: 4 / 6cylinder
fuel type: Diesel / Electric
Displacement: 4.16 / 7.41 / 7.684L
Emission standard: China VI / China V
Max output power: 147 / 230 / 224 / 226kW
Max hp: 200 / 313 / 300 / 307Horsepower
Rated speed: 2300 / 2500rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC / direct injection, electronic high-pressure common rail, SCR
Chassis Specs
Chassis Series: SANY Heavy Industry
Chassis Model: SYM1180T1F / SYM1310T1E / SYM1320T1F
Leaf spring count: 10/10+3 / 4/4/10 / 3/3/-
Transmission Parameters
Number of gears: 10 / 12Gear
Transmission Model: 10-speed transmission / SANY 12-speed transmission
Cab parameters
Cab: heavy-duty truck cab J0347
Tire
Tire Size: 10.00R20 18PR / 11R22.5 18PR / 11R22.5,12R22.5
Number of tires: 6 / 12pcs
FAQ
What kind of truck is SANY Truck SANY Truck SANY Heavy Industry concrete mixer truck?
SANY Truck SANY Truck SANY Heavy Industry is an export-oriented concrete mixer truck lineup with about 5 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for SANY Truck SANY Heavy Industry concrete mixer truck?
SANY Truck SANY Heavy Industry concrete mixer truck export reference is about From $48,611. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does SANY Truck SANY Heavy Industry concrete mixer truck cover?
SANY Truck SANY Heavy Industry concrete mixer truck mainly covers: Drive: 8x4 / SYM5180GJB1F; Horsepower: 200 hp / 300 hp / 307 hp / 313 hp; Emission: China V / China VI; Fuel: Diesel / Electric. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SANY Truck SANY Heavy Industry concrete mixer truck?
For SANY Truck SANY Heavy Industry concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does SANY Truck SANY Heavy Industry concrete mixer truck include?
SANY Truck SANY Heavy Industry concrete mixer truck currently lists about 5 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SANY Truck SANY Heavy Industry concrete mixer truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
