Sinotruk HOWO T7H 400 hp 8X4(12 wheels) Concrete Mixer Truck
EXW
Export quote
Sinotruk HOWO T7H heavy-duty truck concrete mixer
Main model photos
929 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HOWO T7H 400 hp 8X4(12 wheels) Concrete Mixer Truck | 8x4 / 400hp / China IV | ||

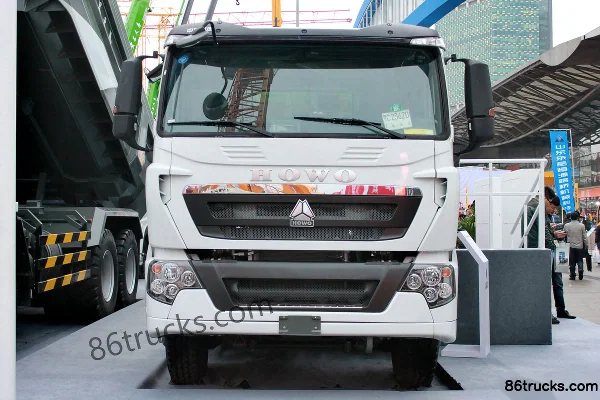

| Sinotruk HOWO-T7H 360hp 8X4(12 wheels) concrete mixer truck | 8x4 / 360hp / China IV | ||

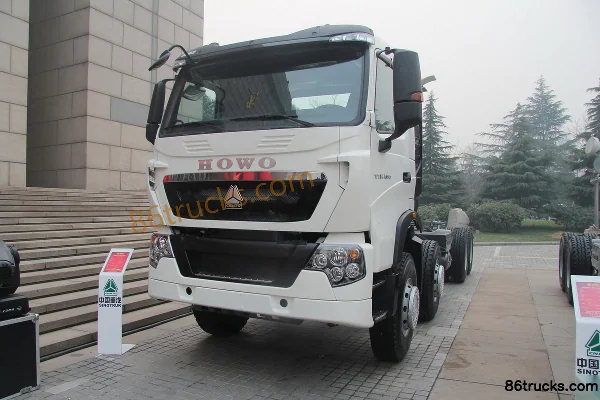

| Sinotruk HOWO-T7H heavy truck 400 hp 8X4(12 wheels) concrete mixer truck (chassis) | 8x4 / 400hp / China IV | ||
| Sinotruk HOWO-T7H heavy truck 400 hp 8X4(12 wheels) concrete mixer truck (chassis) | 8x4 / 400hp / China IV | ||
| Sinotruk HOWO-T7H 390hp 8X4(12 wheels) Concrete Mixer Truck | 8x4 / 390hp / China III / Euro III |
Sinotruk HOWO-T7H 360hp 8X4(12 wheels) concrete mixer truck
EXW
Export quote
Sinotruk HOWO-T7H heavy truck 400 hp 8X4(12 wheels) concrete mixer truck (chassis)
EXW
Export quote
Sinotruk HOWO-T7H heavy truck 400 hp 8X4(12 wheels) concrete mixer truck (chassis)
EXW
Export quote
Sinotruk HOWO-T7H 390hp 8X4(12 wheels) Concrete Mixer Truck
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 11.035x2.496x3.98 / 11.5x2.5x4 / 10.215×2.496×3.05 / 10.8×2.496×3.9 / 10.05×2.496×3.98m
Drive type: 8X4 / 6X4
Truck Type: concrete mixer truck
Wheelbase: 1950+3625+1350 / 1950+3225+1350 / 4025+1350mm
Front/rear track width: Front track: 2022/2022; Rear track: 1830/1830 / Front track: 2022mm; Rear track: 1830/1830mm
Vehicle origin: Jinan
Curb Weight: 16.55 / 14.17ton
Rated payload: 14.32 / 10.7ton
Max. speed: 78km/h
Front/rear suspension: 1.54/2.57 / 1.54/3.09m
Body Parameters
Water tank capacity: 500L
Mixing drum capacity: 5m³
Feed rate: ≥3m³/min
Discharge speed: ≥2m³/min
Discharge residue rate: ＜0.2%
Vehicle certification code: ZZ5317GJBV366HD1 / ZZ5257GJBN404HD1
hydraulic system: air type
Body Brand: Sinotruk HOWO
Others: Hydraulic pump, hydraulic motor, and reducer all use imported major components
Engine parameters
Engine Model: Sinotruk MC11.40-40 / Sinotruk MC11.36-40 / MC11.39-30 / MC11.36-40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 10.518L
Emission standard: China IV / China III / Euro III
Max output power: 294 / 265 / 286 / 268kW
Max hp: 400 / 360 / 390Horsepower
Rated speed: 1900rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail / Inline 6-cylinder, water-cooled, 4-stroke, high-pressure common rail, turbocharged intercooled / Inline, water-cooled, 4-stroke, turbocharged with intercooler
Chassis Specs
Chassis Series: HOWOT7H
Chassis Model: ZZ1317V366HD1 / ZZ1317N366HD1 / ZZ1317N366MD1 / ZZ1317V326HD1 / ZZ1317V326HC1 / ZZ1257N404HD1
Front axle description: HF9 disc front axle / 7000
rear axle description: AC16 rear axle / AC16 / HC16(4.8) / 18000 (twin axle)
Leaf spring count: 4/4/5 / 4/-,4/5,9/12
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Sinotruk HW21710 / HW19710
Tire
Tire Size: 12.00-20 / 12.00R20 16PR / 12.00R20 / 11.00-20,11.00R20
Number of tires: 12 / 10pcs
FAQ
What kind of truck is Sinotruk HOWO Sinotruk HOWO T7H heavy-duty truck concrete mixer truck?
Sinotruk HOWO Sinotruk HOWO T7H heavy-duty truck is an export-oriented concrete mixer truck lineup with about 6 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Sinotruk HOWO T7H heavy-duty truck concrete mixer cover?
Sinotruk HOWO T7H heavy-duty truck concrete mixer mainly covers: Drive: 8x4; Horsepower: 360 hp / 390 hp / 400 hp; Emission: China III / Euro III / China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk HOWO T7H heavy-duty truck concrete mixer?
For Sinotruk HOWO T7H heavy-duty truck concrete mixer: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sinotruk HOWO T7H heavy-duty truck concrete mixer include?
Sinotruk HOWO T7H heavy-duty truck concrete mixer currently lists about 6 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk HOWO T7H heavy-duty truck concrete mixer?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
