SHACMAN Delong X3000 345 hp 6X4(10 wheels) 4.43 m³ concrete mixer truck (SANY brand)
EXW
From $50,889
Export quote
SANY Truck SHACMAN chassis concrete mixer truck
Main model photos
13 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SHACMAN Delong X3000 345 hp 6X4(10 wheels) 4.43 m³ concrete mixer truck (SANY brand) | 6x4 / 345hp / China V | From $50,889 | |
| SHACMAN Delong X3000 375 hp 6X4(10 wheels) 4.43 m³ concrete mixer truck (SANY brand) | 6x4 / 375hp / China V | From $51,028 | |
| SHACMAN Delong F3000 375 hp 6X4(10 wheels) 4.43 cbm concrete mixer truck (SANY Brand) | 6x4 / 375hp / China V | From $44,347 | |
| SHACMAN Delong F3000 336 hp 6X4(10 wheels) 4.43 cbm concrete mixer truck (SANY Brand) | 6x4 / 336hp / China V | From $43,111 | |
| SHACMAN Delong New M3000 400hp 8X4(12 wheels) 7.8m³ Concrete Mixer Truck (SANY Brand) | 8x4 / 400hp / China V | From $48,667 |
SHACMAN Delong X3000 375 hp 6X4(10 wheels) 4.43 m³ concrete mixer truck (SANY brand)
EXW
From $51,028
Export quote
SHACMAN Delong F3000 375 hp 6X4(10 wheels) 4.43 cbm concrete mixer truck (SANY Brand)
EXW
From $44,347
Export quote
SHACMAN Delong F3000 336 hp 6X4(10 wheels) 4.43 cbm concrete mixer truck (SANY Brand)
EXW
From $43,111
Export quote

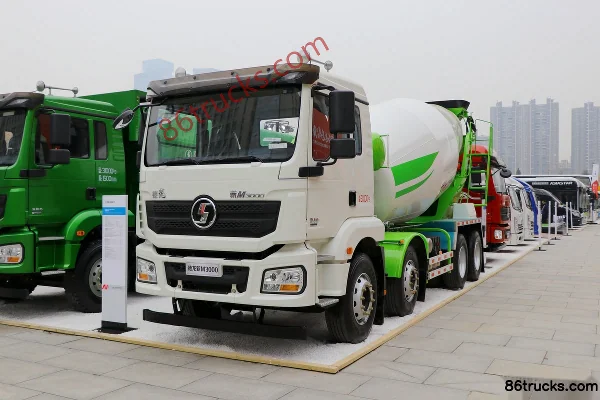

SHACMAN Delong New M3000 400hp 8X4(12 wheels) 7.8m³ Concrete Mixer Truck (SANY Brand)
EXW
From $48,667
Export quote
Series Specs
Basic Info
Cab dimensions: 10.02×2.55×3.98 / 9.85×2.525×3.98m
Truck Type: concrete mixer truck
Drive type: 6X4 / 8X4
Vehicle origin: Changsha, Hunan / Shaoyang, Hunan
Front/rear track width: Front track: 2036mm; Rear track: 1860/1860 / Front track: 2036/2036mm; Rear track: 1860/1860
Wheelbase: 4375+1400 / 3975+1400 / 1800+3000+1400mm
Curb Weight: 15.2 / 13.82ton
Rated payload: 9.67 / 17.05ton
Max. speed: 80km/h
Front/rear suspension: 1.525/3.12 / 1.525/2.125m
Body Parameters
Mixing drum capacity: 4.43 / 7.8m³
Vehicle certification code: SYM5255GJB1ES / HQC5316GJB1ES
Body Brand: SANY Brand
Engine parameters
Engine Model: Xi’an CumminsISM11E5 345 / WeichaiWP12.375E50 / WeichaiWP10.336E53 / WeichaiWP10H400E50 / WeichaiWP10.350E53 / WeichaiWP8.340E51 / WeichaiWP7.340E53
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 10.8 / 11.596 / 9.726 / 9.5 / 7.8 / 7.47L
Emission standard: China V
Max output power: 254 / 276 / 247 / 294 / 257 / 250kW
Max hp: 345 / 375 / 336 / 400 / 350 / 340Horsepower
Rated speed: 1900 / 2100rpm
Engine Type: Full electronic control / Inline, water-cooled, six-cylinder, electronically controlled high-pressure common rail + SCR / Water-cooled, 4-stroke, with exhaust brake, direct injection, turbocharged intercooled, electronically controlled high-pressure common rail + SCR / Electronic high-pressure common rail + SCR / High-pressure common rail+EGR
Chassis Specs
Chassis Series: Delong X3000 / Delong F3000 / Delong New M3000
Chassis Model: SX1250FB / SX5310GJBMB6
Frame Dimensions: 866×308(8+7+8) / 850×300(8+7) / 850×300(8+5) / 850×270(8+5)mm
rear axle description: MAN 16T dual-reduction / HDS 16T dual reduction / MAN 11.5T single reduction
Axle ratio: 5.262 / 4.769 / 4.266 / 4.8 / 5.73 / 5.286
Leaf spring count: 10/12 / 10/10/12, 10/10/10, left 14 right 13/left 14 right 13/12 / 3/3/5
Transmission Parameters
Number of gears: 10 / 12 / 9Gear
Transmission Model: Fast Gear10JSD140 / Fast Gear12JSD180T / Fast Gear9JS135 / Fast Gear10JSD140T / Fast Gear10JSD120T
Tire
Tire Size: 12.00R20 16PR / 11.00R20
Number of tires: 10 / 12pcs
FAQ
What kind of truck is SANY Truck SANY Truck SHACMAN chassis concrete mixer truck?
SANY Truck SANY Truck SHACMAN chassis is an export-oriented concrete mixer truck lineup with about 13 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for SANY Truck SHACMAN chassis concrete mixer truck?
SANY Truck SHACMAN chassis concrete mixer truck export reference is about $41,639 – $51,028. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does SANY Truck SHACMAN chassis concrete mixer truck cover?
SANY Truck SHACMAN chassis concrete mixer truck mainly covers: Drive: 6x4 / 8x4; Horsepower: 336 hp / 345 hp / 375 hp / 400 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SANY Truck SHACMAN chassis concrete mixer truck?
For SANY Truck SHACMAN chassis concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does SANY Truck SHACMAN chassis concrete mixer truck include?
SANY Truck SHACMAN chassis concrete mixer truck currently lists about 13 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SANY Truck SHACMAN chassis concrete mixer truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
